Shimbol Memory I Pro User Manual

1. Úvod

The Shimbol Memory I Pro is a versatile 5.5-inch portable monitor and recorder designed for professional video production. Featuring a 4K HDR daylight viewable display with 2000 nits brightness, an IPS touchscreen, and comprehensive monitoring tools, it is an essential tool for DSLR camera users and filmmakers. This manual provides detailed instructions for setting up, operating, maintaining, and troubleshooting your Memory I Pro device.

Figure 1.1: Shimbol Memory I Pro Portable Monitor/Recorder

2. Klíčové vlastnosti

• Vysoký jas 2000 nitů: Ensures clear visibility even in strong outdoor light conditions.
• Nahrávání a přehrávání: Supports real-time recording via HDMI and SDI with LUTs. Features a built-in player for quick internal playback and optional bit rate recording. Files are compatible with mainstream editing software like Da Vinci and iMovie.
• Easy Touchscreen and Professional Color Calibration: Intuitive pinch-to-zoom gesture control. Features a native 1920x1080 resolution, 2000nit brightness, and REC-709 color calibration for sharp, rich images.
• Accurate Exposure and Focus Tools: Includes Luma Waveform, RGB Parade, Vectorscope, Histogram, Aspect Ratio Markers, Safe Area, Center Marker, Focus Peaking, Zoom In, Zebra Pattern, False Color, Monochrome, 3D LUT loading & adjustment, Gamma setting, HDR monitoring, Color Temperature setting, Sharpness, and RGB adjustment.
• Letecké hliníkové tělo: Constructed from durable, lightweight aviation aluminum using a CNC process for robust performance.

Figure 2.1: 2000 Nits 5.5" Touch LCD Screen

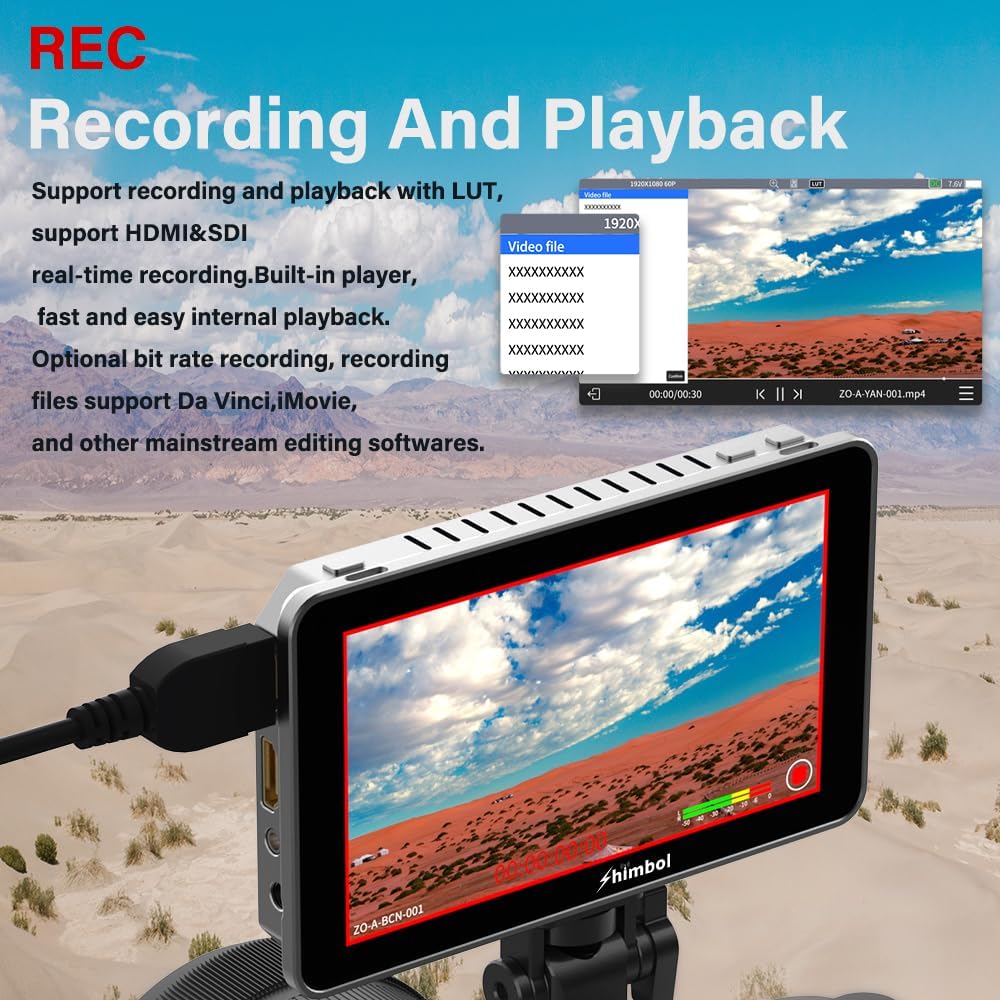

Figure 2.2: Recording and Playback Functionality

Figure 2.3: 3D-LUT Output Feature

3. Obsah balení

Prosím, ověřte, zda jsou v balení přítomny všechny položky:

• Shimbol Memory I Pro Monitor/Recorder
• Barvy
• Hot Shoe Mount
• SD Card (32GB Class 10)
• SDI kabel
• Uživatelská příručka (tento dokument)
• Tempered Screen Protector
• HDMI kabel

Obrázek 3.1: Obsah balení

4. Konec produktuview a Připojení

Familiarize yourself with the various ports and controls on your Memory I Pro device:

Figure 4.1: Shimbol Memory I Pro Dimensional Specifications and Ports

1. Vypínač: Used to turn the device on or off.
2. Funkční klíč: Customizable button for quick access to frequently used features.
3. HDMI Interfaces: Input and output ports for HDMI video signals.
4. 3.5mm konektor pro sluchátka: Pro monitorování zvuku.
5. DC IN: Power input port for external power supply.
6. Slot pro SD kartu: For inserting an SD card for recording and playback.
7. 1/4"-20 Thread Hole: Standard mounting point for accessories like hot shoe mounts.
8. Port ladění: For service and diagnostics.
9. Deska baterie NP-F: For attaching NP-F series batteries for portable power.
10. SDI Interfaces: Input and output ports for 3G-SDI video signals.

5. Nastavení

1. Připojení napájení:
   • For portable use, attach a compatible NP-F series battery to the NP-F Battery Plate.
   • For continuous power, connect a DC power adapter (not included) to the DC IN port.
2. Vložení SD karty: Insert the provided 32GB Class 10 SD card into the SD Card Slot with the contacts facing down until it clicks into place.
3. Připojení fotoaparátu:
   • Connect your camera's HDMI output to the HDMI IN port on the Memory I Pro using the supplied HDMI cable.
   • Alternatively, connect your camera's SDI output to the SDI IN port using the supplied SDI cable.
4. Montáž: Attach the Memory I Pro to your camera rig or stand using the 1/4"-20 Thread Hole and the hot shoe mount.

6. Návod k obsluze

6.1 Zapnutí/vypnutí

Stiskněte a podržte Tlačítko napájení (1) for a few seconds to turn the device on or off. A startup screen will appear upon successful power-on.

6.2 Navigace na dotykové obrazovce

The Memory I Pro features an intuitive IPS touchscreen. Tap icons to select functions, swipe to navigate menus, and use pinch-to-zoom gestures to magnify your shot.

6.3 Nahrávání a přehrávání

1. Ujistěte se, že je vložena SD karta.
2. From the main interface, tap the Záznam icon (typically a red circle) to start recording. Tap again to stop.
3. Pro přístup k záznamu files, tap the Přehrávání icon (typically a play arrow). You can browse and play back recorded footage directly on the monitor.

6.4 Používání monitorovacích nástrojů

The Memory I Pro offers a suite of professional monitoring tools accessible via the touchscreen interface:

• Luma Waveform / RGB Parade / Vectorscope / Histogram: Tap the respective icons to display these scopes for precise exposure and color analysis.
• Focus Peaking: Highlights in-focus areas with a selectable color (red, green, blue, white) to assist with critical focus.
• Falešná barva: Displays different exposure levels as distinct colors, helping to identify overexposed or underexposed areas.
• 3D LUT Loading & Adjustment: Load custom 3D LUTs via the SD card to preview your final graded look in real-time.

Figure 6.1: Focus Peaking Interface

Figure 6.2: Waveform and Scope Menu

Figure 6.3: False Color Display

7. Údržba

• Čištění: Use a soft, dry cloth to clean the monitor's body. For the screen, use a microfiber cloth specifically designed for electronics. Do not use harsh chemicals or abrasive materials.
• Skladování: When not in use, store the monitor in a cool, dry place away from direct sunlight and extreme temperatures. Use the original packaging or a protective case to prevent damage.
• Péče o baterie: Pokud používáte baterie NP-F, dodržujte pokyny výrobce pro nabíjení a skladování, abyste maximalizovali jejich životnost. Pokud monitor nebudete delší dobu používat, vyjměte baterie.

8. Řešení problémů

9. Specifikace

10. Záruka a podpora

Shimbol products are designed for reliability and performance. For specific warranty information, please refer to the warranty card included with your product or visit the official Shimbol webmísto.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Shimbol customer service through their official channels. You can also visit the Shimbol Store on Amazon pro další zdroje a možnosti kontaktování.
