Zavedení
Welcome to the X-PRO Storm 125cc Dirt Bike user manual. This document provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new dirt bike. Please read this manual thoroughly before operating the vehicle to ensure proper use and to maximize its lifespan.

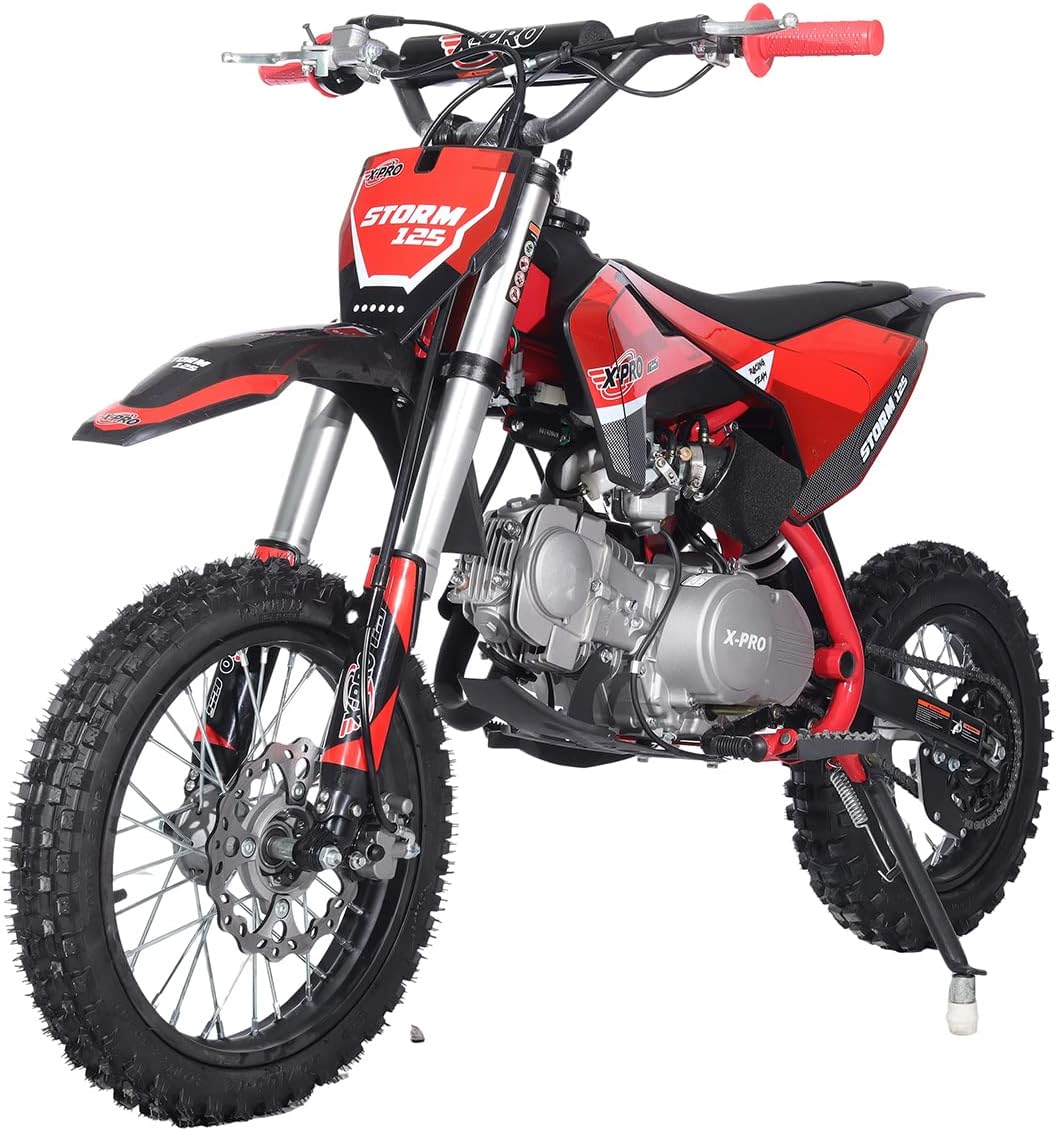

Obrázek: Přední strana view of the X-PRO Storm 125cc Dirt Bike, showcasing its red and black design with large tires.
Bezpečnostní informace
Operating a dirt bike can be hazardous. Always prioritize safety.
- Ochranné pomůcky: Always wear a helmet, eye protection, gloves, sturdy boots, and appropriate riding apparel.
- Kontrola před jízdou: Before each ride, check tire pressure, brake function, chain tension, and fluid levels.
- Pouze pro použití v terénu: This dirt bike is designed for off-road use only. It is not street legal.
- Dozor: Mladší jezdci by měli být vždy pod dohledem dospělé osoby.
- Bez cestujících: This vehicle is designed for a single rider only.
- Environmentální povědomí: Be aware of your surroundings and ride within your skill level. Avoid riding on public roads or in areas where it is prohibited.
- California Sales Restriction: Kindly note this dirt bike cannot be sold to California.
Nastavení a montáž
Your X-PRO Storm 125cc Dirt Bike requires some assembly upon arrival. The following components typically need to be installed:
- Handlebar brackets
- Kola
- Brzdy
- Státní poznávací značka
- Blatníky
Refer to the detailed assembly instructions included in the packaging for specific steps and torque specifications. Ensure all fasteners are securely tightened before operation.
Image: The X-PRO Storm 125cc Dirt Bike secured within its metal shipping crate, partially covered in plastic.

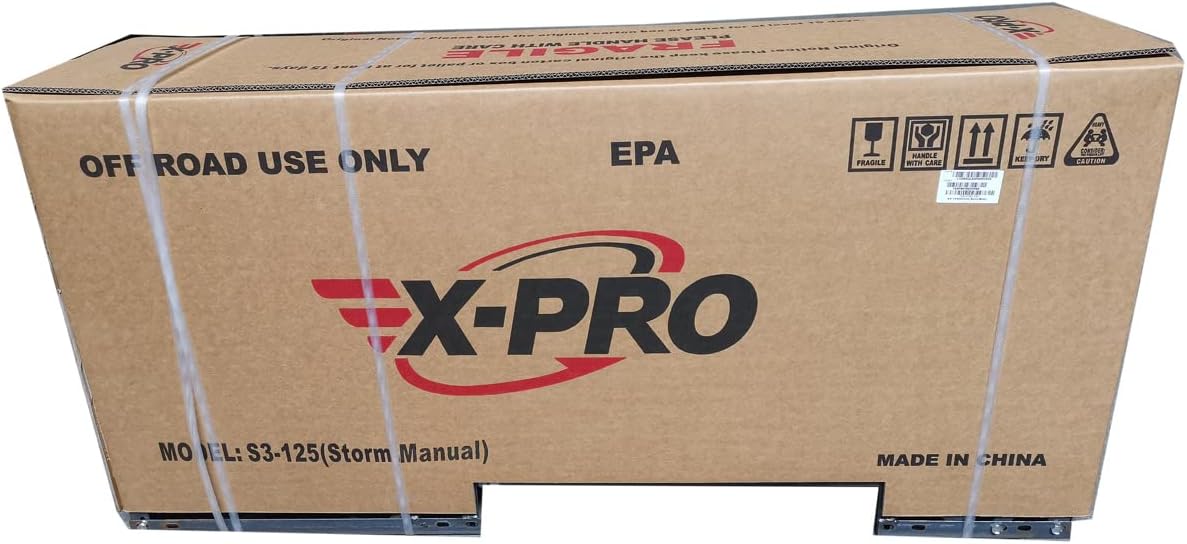

Image: The cardboard shipping box for the X-PRO Storm 125cc Dirt Bike, labeled "OFF ROAD USE ONLY" and "EPA".
Návod k obsluze
Startování motoru
- Ujistěte se, že je palivový ventil otevřený.
- Turn the ignition switch to the "ON" position.
- If the engine is cold, pull the choke lever to the "ON" position.
- Engage the kick start lever firmly and swiftly. Repeat if necessary.
- Once the engine starts, gradually push the choke lever to the "OFF" position as the engine warms up.
Shifting Gears (4-Speed Manual Transmission)
The X-PRO Storm 125cc features a 4-speed manual transmission.
- To shift up, pull the clutch lever, lift the gear shifter with your foot, and release the clutch smoothly.
- To shift down, pull the clutch lever, press the gear shifter down with your foot, and release the clutch smoothly.
- Practice shifting in a safe, open area until you are comfortable with the process.
Brzdění
The bike is equipped with front and rear brakes. Apply both brakes smoothly and progressively for effective stopping. Avoid sudden, hard braking, especially on loose surfaces.
Obrázek: Boční view of the X-PRO Storm 125cc Dirt Bike, highlighting the engine and exhaust system.
Údržba
Regular maintenance is crucial for the performance and longevity of your dirt bike.
- Výměna oleje: Check engine oil level regularly and change oil according to the schedule in your detailed owner's manual.
- Údržba řetězu: Keep the drive chain clean, lubricated, and properly tensioned.
- Tlak v pneumatikách: Maintain correct tire pressure as specified in your owner's manual for optimal handling and tire life.
- Kontrola brzd: Regularly inspect brake pads and fluid levels. Adjust or replace as needed.
- Kontroly spojovacích prvků: Pravidelně kontrolujte utažení všech matic, šroubů a spojovacího materiálu.
- Vzduchový filtr: Pravidelně čistěte nebo vyměňujte vzduchový filtr, zejména při jízdě v prašném prostředí.

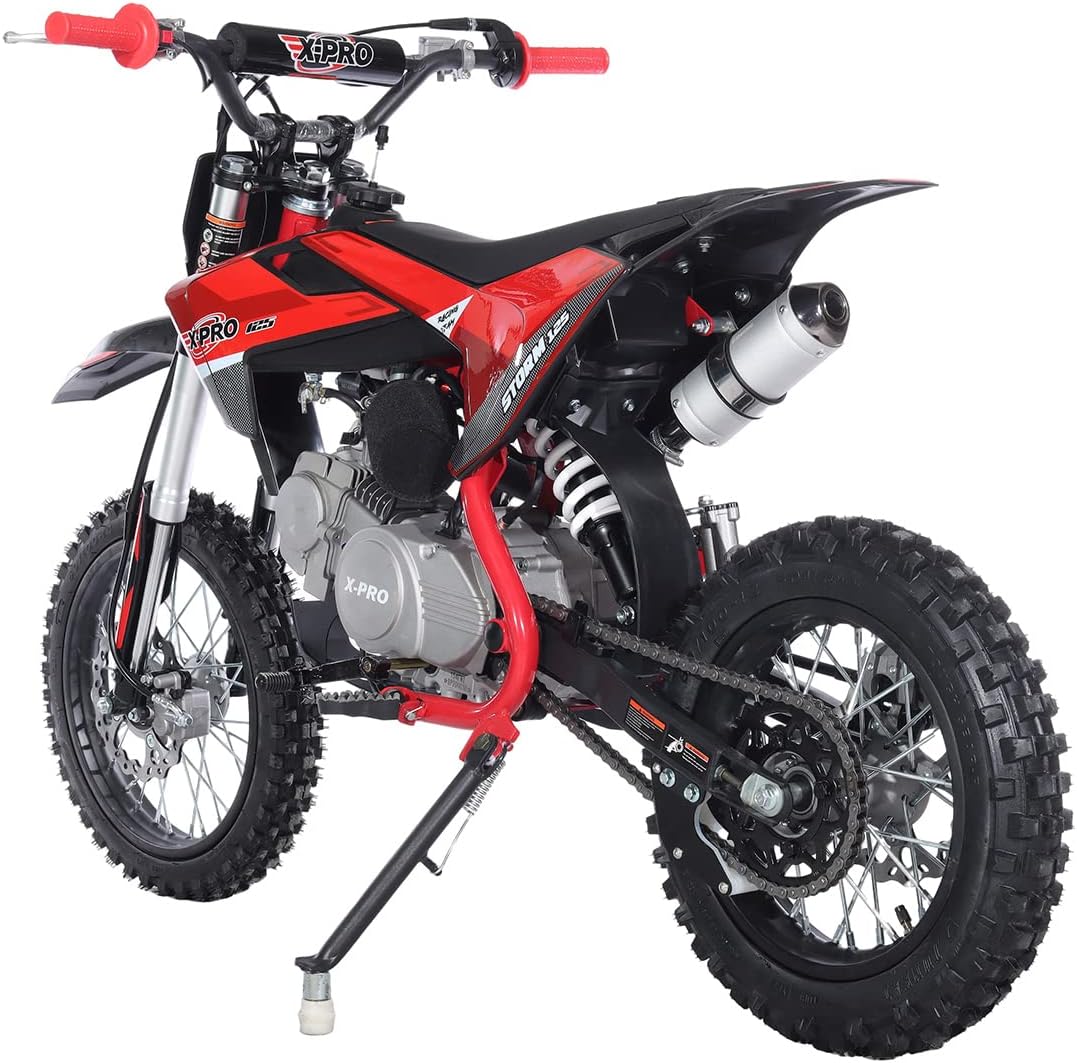

Obrázek: Zadní view of the X-PRO Storm 125cc Dirt Bike, showing the rear wheel, suspension, and exhaust.
Odstraňování problémů
Motor nenastartuje
- Check if the fuel valve is open.
- Ensure there is fuel in the tank.
- Verify the ignition switch is in the "ON" position.
- Zkontrolujte zapalovací svíčku, zda není znečištěná nebo poškozená.
- Ensure the choke is used correctly for cold starts.
Ztráta moci
- Inspect the air filter for clogging.
- Check fuel delivery and carburetor for blockages.
- Verify spark plug condition.
Brakes Not Effective
- Check brake pad wear.
- Inspect brake fluid level (if applicable).
- Ensure brake cables or hydraulic lines are not damaged or kinked.
For issues not covered here, consult a qualified technician or contact X-PRO customer support.
Specifikace
| Funkce | Detail |
|---|---|
| Značka | X-PRO |
| Model | DB-K023 |
| Typ motoru | 125cc Zongshen 4 Stroke Single Cylinder, Force Air Cooled |
| Přenos | Manual 4-Speed |
| Startovací systém | Kick Start |
| Velikost pneumatiky | Big 14"/12" |
| Typ rámu | Cradle Type Steel Tube Frame |
Záruka a podpora
X-PRO is committed to customer satisfaction and provides support for its products.
- Zásady vrácení: A 30-day return policy is typically offered. Please refer to your purchase agreement for specific terms and conditions.
- Aftermarket Parts: XPROUSA maintains a stock of parts for most vehicles sold, ensuring availability for repairs and maintenance.
- Technická podpora: Experienced technical support is available to assist with product inquiries, troubleshooting, and parts identification.
- Kontakt: For support, please refer to the contact information provided with your purchase or visit the official X-PROUSA webmísto.
