1. Konec produktuview
The SUNPIE 8 Pods Quick Connect White Rock Lights are designed to provide superior undercarriage illumination for various vehicles. Featuring 18 wide-angle chips per pod, these lights offer a 210-degree light beam in 6000K pure white, ensuring enhanced visibility and coverage. Built with durable PC material and rated IP67 waterproof, they are suitable for harsh outdoor conditions.
Obrázek: Overview of the SUNPIE 8 Pods Quick Connect White Rock Lights, showing the product and an example of installation on a truck.
2. Bezpečnostní informace
- Always disconnect the vehicle's battery before beginning any electrical installation to prevent electrical shock or short circuits.
- Ensure all wiring connections are secure and properly insulated to prevent water ingress and corrosion, even though the product is IP67 rated.
- Mount the lights in locations that do not obstruct vehicle operation, driver visibility, or interfere with moving parts.
- Produkt žádným způsobem neupravujte. Neoprávněné úpravy mohou vést ke ztrátě záruky a představovat bezpečnostní riziko.
- Uchovávejte mimo dosah dětí.
3. Obsah balení
Ověřte prosím, zda jsou ve vašem balení obsaženy všechny níže uvedené položky:
- Rock Light Pods (8 pieces)
- Extension Wires (4 meters each light)
- Montážní podložky
- Šrouby a nářadí
Obrázek: Podrobný view of all included components: 8 rock light pods, extension wires, mounting pads, screws, and tools.
4. Vlastnosti produktu
- 210 Degrees Wide Angle Light Beam: Provides extensive coverage and improved visibility for your vehicle's undercarriage.
- 6000K Pure White Color: Delivers bright, clear illumination.
- 18 Wide Angle Chips: Each pod is equipped with 18 high-power LED chips for powerful and efficient lighting, with a lifespan of up to 50,000 hours.
- 4-Meter Extension Wires: Long extension wires for flexible installation across various vehicle types.
- IP67 vodotěsný a prachotěsný: Constructed with durable PC material, these lights are designed to withstand water immersion and dust, ensuring reliable performance in challenging environments.
- Quick Connect Design: Simplifies installation by allowing all lights to connect with a single cable.
- Univerzální kompatibilita: Suitable for trucks, sedans, golf carts, ATVs, UTVs, and boats.
Obrázek: Detail view highlighting the 18 LED bulbs, high transparency lens, and overall high brightness of the rock light pod.
Image: The rock light demonstrating its IP67 waterproof capability by being submerged in water while illuminated.
5. Nastavení a instalace
Follow these steps for proper installation of your SUNPIE Rock Lights:
- Umístění plánu: Determine the desired locations for each rock light pod on your vehicle's undercarriage, wheel wells, or other areas. Consider the 4-meter extension wire length for optimal routing.
- Připravte montážní povrch: Ujistěte se, že montážní povrch je čistý, suchý a bez nečistot.
- Attach Mounting Pads: Secure the provided mounting pads to the back of each rock light pod. These pads help in stable installation and can provide some vibration dampening.
- Bezpečná světla: Use the included screws and tools to firmly attach each light pod to the chosen mounting surface. Ensure the wires are routed safely away from hot or moving parts.
- Připojení kabeláže: The quick-connect design allows for easy connection. Connect the wires from each light pod to the main wiring harness. Ensure positive (+) and negative (-) connections are correctly matched.
- Připojení napájení: Connect the main wiring harness terminals directly to your vehicle's 12V battery's positive and negative poles. For a switched operation, consider wiring through a relay and switch (not included).
- Test funkčnosti: Once all connections are made, test the lights to ensure they illuminate correctly.
Image: This image illustrates the generous 16.4 ft (approximately 4 meters) wire length provided with each SUNPIE rock light, facilitating flexible installation compared to shorter alternatives.
Video: This video demonstrates the wide-angle light beam, the IP67 waterproof capability, and provides a step-by-step guide on how to assemble the mounting pad to the light and connect the quick-connect wires for installation.
6. Návod k obsluze
Once installed and wired to a power source, the SUNPIE Rock Lights will illuminate when power is supplied. If connected directly to the battery, they will be continuously on. For controlled operation, it is recommended to connect them to a switch (not included) within your vehicle's electrical system.
7. Údržba
- Čištění: Periodically clean the light pods with a soft cloth and mild soap to remove dirt and debris. Avoid abrasive cleaners that could scratch the lens.
- Kontrola připojení: Regularly inspect all wiring connections for tightness and signs of corrosion. Re-secure or clean as necessary.
- Fyzická kontrola: Check the mounting points and the light housing for any signs of damage or wear.
- Despite being waterproof, avoid directing high-pressure water jets directly at the light pods for extended periods.
8. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světla nesvítí. | No power, incorrect wiring, blown fuse (if applicable). | Check battery connections. Verify positive and negative wires are correctly connected. Inspect any inline fuses. |
| Světla blikají nebo svítí tlumeně. | Loose connection, insufficient power, damaged wiring. | Tighten all connections. Ensure vehicle's electrical system can supply adequate power. Inspect wires for cuts or damage. |
| Water inside the light pod. | Improper sealing (rare), extreme pressure washing. | Contact customer support if water ingress occurs under normal operating conditions. Avoid direct high-pressure washing. |
9. Specifikace
| Atribut | Detail |
|---|---|
| Značka | SLUNCE |
| Číslo modelu | S-8Wide-WHITE |
| Barva | Bílý |
| Úhel světelného paprsku | 210 stupňů |
| Teplota barev | 6000K čistě bílá |
| LED Chips per Pod | 18 |
| Délka prodlužovacího drátu | 4 meters (approx. 13.1 ft) per light |
| Úroveň odolnosti proti vodě | IP67 Vodotěsný |
| Materiál | Durable PC Material |
| Hmotnost položky | 3.56 liber (pro balení po 8 kusech) |
| Rozměry (cca) | 3.9 in (10cm) x 1.9 in (5cm) per pod |

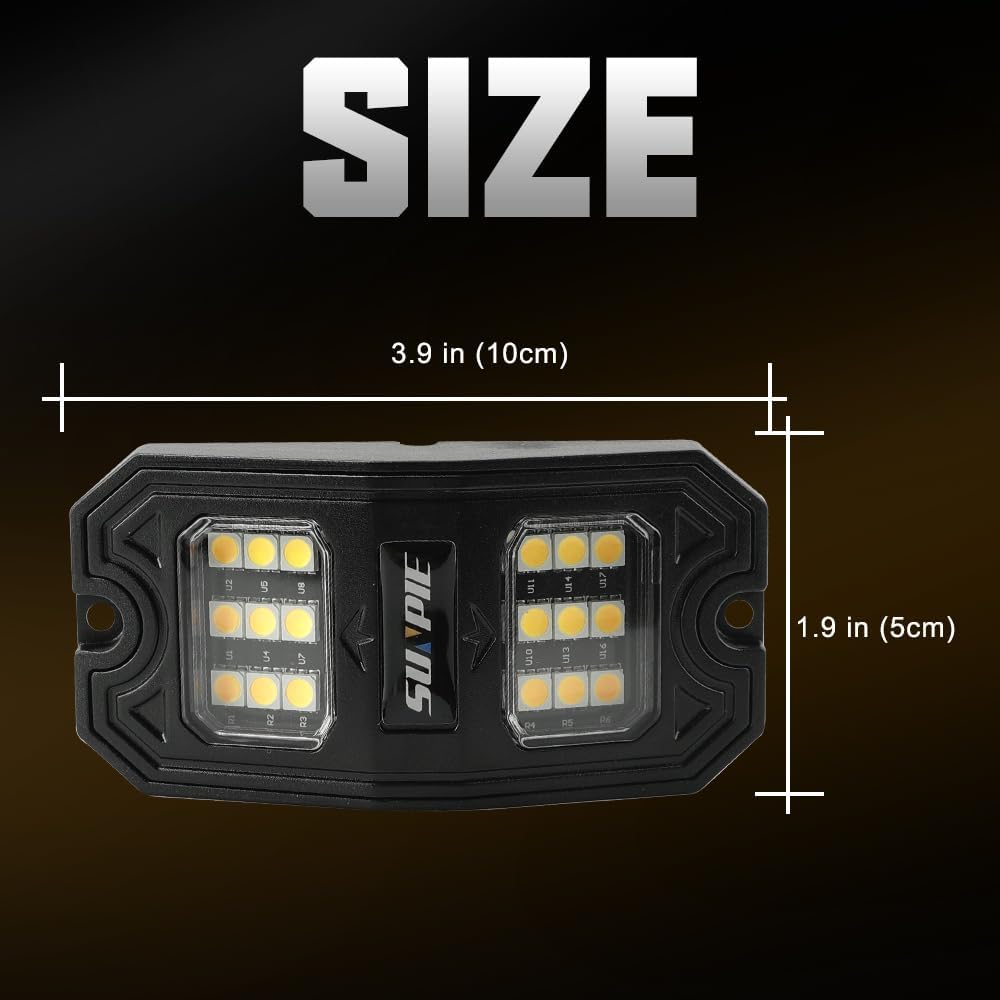

Image: Diagram showing the approximate dimensions of a single rock light pod: 3.9 inches (10 cm) in length and 1.9 inches (5 cm) in width.
10. Záruka a podpora
For warranty information or technical support, please contact SUNPIE BRAND directly. Refer to your purchase documentation for specific warranty terms and contact details. Additional protection plans may be available for purchase.
prodejce: SUNPIE BRAND
