Zavedení
This manual provides comprehensive instructions for the safe and effective assembly, operation, and maintenance of your tectake® 9 x 3 m Garden Gazebo. Please read all instructions carefully before use and retain this manual for future reference.
Bezpečnostní informace
Důležitá bezpečnostní opatření:
- Follow all assembly instructions carefully to ensure the stability of the gazebo.
- Exercise caution when handling and moving the product due to its weight and size.
- Do not use the gazebo in extreme weather conditions such as strong winds, heavy rain, or snow. Disassemble and store the gazebo during such conditions to prevent damage or injury.
- Ensure the gazebo is securely anchored to the ground using all provided ropes and stakes.
- Uchovávejte mimo dosah otevřeného ohně a zdrojů tepla.
- This product is intended for temporary outdoor use. Prolonged exposure to harsh weather may reduce its lifespan.
Konec produktuview
The tectake® 9 x 3 m Garden Gazebo is designed to provide a versatile outdoor shelter. Key features include:
- Prostorný design: Flexible barnum structure offering a large interior space.
- Odnímatelné boční panely: Eight removable side elements, six with large windows for natural light and two with mosquito nets for optimal air circulation.
- UV Protection & Waterproofing: Impermeable tarp provides protection against UV rays and rain.
- Robustní konstrukce: Epoxy-coated steel frame ensures stability and durability.
- Snadná montáž: Designed for quick and straightforward setup and disassembly.
- Kompletní sada: Includes eight tension ropes and sixteen stakes for enhanced stability.

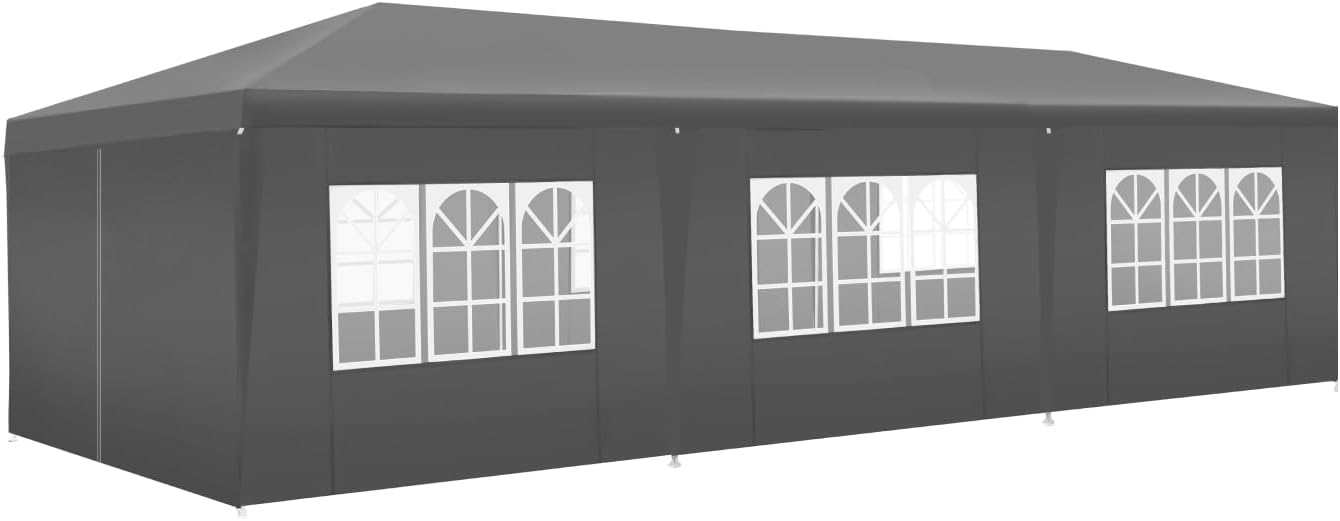

Image: The fully assembled tectake 9x3m Garden Gazebo, showcasing its spacious design and side panels with windows.
Montážní návod
Assembly requires at least two people due to the size of the gazebo. Follow these steps for proper installation:
- Rozbalte komponenty: Carefully unpack all parts and verify against the parts list (not provided in this manual, refer to product packaging). Ensure all poles, connectors, tarp, side panels, ropes, and stakes are present.
Image: Illustration of various frame components, including poles and connectors, essential for assembly.
- Sestavte rám: Connect the steel poles using the provided connectors. The frame is designed for easy, quick interlocking assembly. Start with the base, then erect the vertical supports, and finally connect the roof structure.
Obrázek: Detailní záběr view of a frame joint, demonstrating the interlocking assembly method for the gazebo poles.
- Attach the Roof Tarp: Once the main frame is standing, carefully drape the roof tarp over the structure. Ensure it is centered and evenly distributed. Secure the tarp to the frame using the integrated hook-and-loop fasteners.
Image: Detail of a hook-and-loop fastener used to secure the tarp to the gazebo frame, ensuring a snug fit.
- Instalace bočních panelů: Attach the side panels to the frame. The panels are flexible and can be fixed securely or removed easily. Position the panels with windows and mosquito nets as desired. The short sides feature zippered openings for easy access.
- Ukotvení altánu: Secure the gazebo to the ground using the provided stakes and tension ropes. Insert stakes through the feet of the gazebo and into the ground. Attach tension ropes to the designated points on the frame and stake them firmly into the ground at an angle to provide maximum stability.
Image: Close-up of a gazebo foot with a stake inserted, demonstrating how the structure is anchored to the ground.
Image: A collection of tension ropes and ground stakes, essential components for securing the gazebo against wind.
Návod k obsluze
Your tectake® Garden Gazebo is designed for various outdoor activities. Here are some operational guidelines:
- Větrání: Utilize the two side panels with mosquito nets to ensure optimal air circulation while keeping insects out.
- Přístup: The zippered openings on the short sides provide convenient entry and exit.
- Ochrana proti počasí: The waterproof tarp offers protection from light rain and harmful UV rays. However, it is not designed for heavy downpours or strong winds.
- Side Panel Management: Side panels can be easily removed or rolled up and secured to adapt to changing weather conditions or privacy needs.
Image: The gazebo set up in a garden, illustrating its use for outdoor gatherings and events.
Údržba
Správná údržba prodlouží životnost vašeho altánu:
- Čištění: The waterproof tarp and side panels can be easily cleaned with a damp hadříkem a jemným mýdlem. Nepoužívejte abrazivní čisticí prostředky ani agresivní chemikálie.
- Sušení: Ensure all fabric components are completely dry before folding and storing to prevent mold and mildew.
- Kontrola rámu: Periodically check the steel frame for any signs of rust or damage. Clean and dry any moisture promptly.
- Skladování: When not in use, especially during off-season or anticipated severe weather, disassemble the gazebo and store all components in a dry, protected area. The product comes with a transport bag for convenience.
Odstraňování problémů
If you encounter issues with your gazebo, consider the following:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Gazebo instability / Frame bending | Nedostatečné ukotvení; silný vítr; nesprávná montáž. | Ensure all stakes and tension ropes are securely fastened. Disassemble in strong winds. Verify all frame connections are tight. |
| Water pooling on roof / Leaks | Tarp not taut enough; heavy rain exceeding design capacity. | Adjust tarp to be as taut as possible to prevent water accumulation. This gazebo is designed for light rain; disassemble during heavy downpours. |
| Tears in fabric / Damaged seams | Excessive tension; sharp objects; prolonged exposure to harsh weather. | Avoid over-tightening. Inspect area before setup. Store when not in use. Small tears can be repaired with waterproof patch kits. |
| Difficulty with assembly/disassembly | Incorrect component alignment; lack of assistance. | Refer to assembly instructions carefully. Ensure components are correctly oriented. Assembly requires at least two people. |
Specifikace
| Funkce | Detail |
|---|---|
| Rozměry produktu (D x Š x V) | 900 x 300 x 250 cm (9D x 3Š x 2.5V metrů) |
| Číslo modelu | 404875-2 |
| Značka | TecTake |
| Material (Tarp) | Polyetylen (PE) |
| Materiál rámu | Epoxy-coated steel (powder-coated alloy steel) |
| Barva | Šedá |
| UV ochrana | Ano |
| Úroveň odolnosti proti vodě | Waterproof (for light rain) |
| Montáž Vyžadována | Ano |
| Hmotnost | Přibl. 22 kg |
| Výška průchodu | Přibl. 200 cm |
Image: Diagram illustrating the overall dimensions of the gazebo, including length, width, height, and passage height.
Záruka a podpora
For warranty information, spare parts availability, or technical support, please contact TecTake customer service directly. Refer to your purchase documentation for specific contact details.
Poznámka: Information regarding spare parts availability is currently unavailable. Please contact the manufacturer for further details.
