SUNPIE 9 Inch RGBW Halo Lights with Fog Lights Combo Instruction Manual

1. Úvod

This manual provides detailed instructions for the installation, operation, and maintenance of your SUNPIE 9 Inch RGBW Halo Lights with Fog Lights Combo. This product is designed to enhance vehicle lighting with customizable RGBW halo effects and improved illumination. Please read this manual thoroughly before installation and use to ensure proper function and safety.

2. Konec produktuview

The SUNPIE RGBW Halo Lights and Fog Lights Combo offers a comprehensive lighting upgrade for compatible vehicles. Key features include:

• RGBW Halos: Customizable colors (pure white, blue, red, yellow, purple, green, and custom colors) controlled via a dedicated app or remote.
• Vylepšený jas: Significantly brighter than original equipment manufacturer (OEM) headlights, providing over 3,600 lumens for improved visibility.
• Odolná konstrukce: IP68 waterproof rating ensures resistance to moisture, suitable for various weather conditions and off-road use.
• Režimy ovládání: Includes Music Mode, over 20 Strobe Modes, and Voice Mode for dynamic lighting effects.

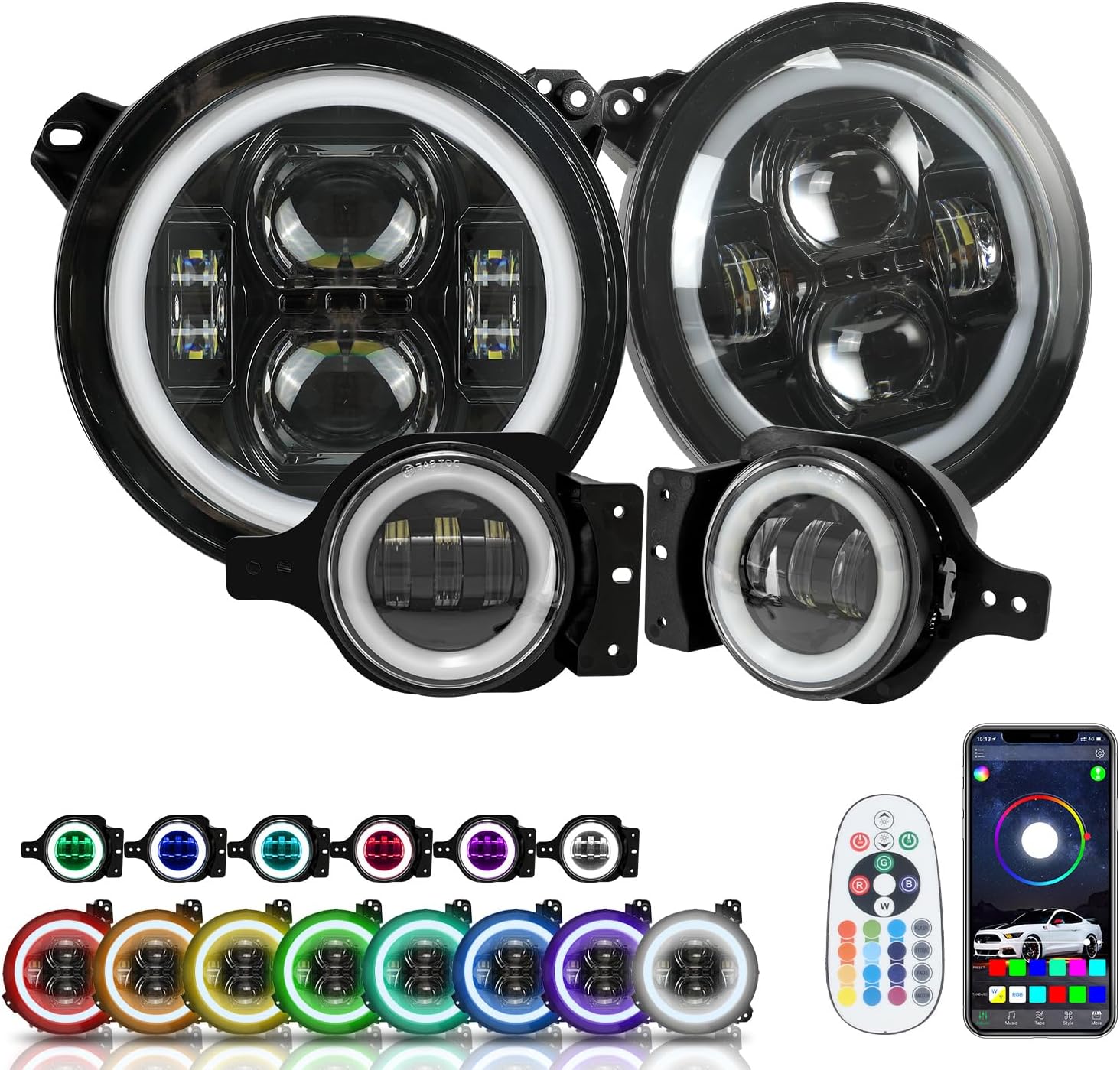

Obrázek 2.1: Konecview of the SUNPIE 9 Inch RGBW Halo Lights and Fog Lights Combo, including the remote control and a depiction of the mobile application interface.

Image 2.2: Illustration demonstrating the distinct high beam and low beam patterns produced by the SUNPIE headlights.

3. Obsah balení

Před zahájením instalace se prosím ujistěte, že jsou všechny položky přítomny:

• 2 x 9-inch RGBW Halo Headlights
• 2 x RGBW Halo Fog Lights
• 1 x Dálkové ovládání
• Necessary Wiring Harnesses and Connectors
• Návod k použití (tento dokument)

4. Bezpečnostní informace

Během instalace a provozu dodržujte následující bezpečnostní opatření:

• Disconnect the vehicle's battery before starting any electrical work to prevent short circuits or electrical shock.
• Používejte vhodné osobní ochranné prostředky, včetně ochranných brýlí a rukavic.
• Ensure all connections are secure and properly insulated to prevent moisture ingress and electrical issues.
• If you are unfamiliar with automotive electrical systems, it is recommended to seek professional installation.
• Do not look directly into the LED lights when they are active, as this may cause eye strain or damage.

5. Pokyny k instalaci

This product is designed for compatibility with 2018-2025 JL/JLU/4XE and 2019-2025 JT models. Headlight installation is generally plug-and-play. Fog light wiring may require additional steps.

5.1. Požadované nástroje

• Základní ruční nářadí (klíče, šroubováky)
• Wire strippers/crimpers (for fog lights, if applicable)
• Elektrická páska nebo smršťovací bužírka
• Multimeter (optional, for verifying connections)

5.2. Headlight Installation

1. Odpojte záporný pól baterie vašeho vozidla.
2. Remove the front grille and any necessary trim panels to access the OEM headlights.
3. Unplug the electrical connector from the back of the OEM headlight.
4. Remove the mounting screws or clips securing the OEM headlight and carefully remove it from the vehicle.
5. Connect the new SUNPIE headlight to the vehicle's factory headlight connector. Ensure a secure fit.
6. Mount the new SUNPIE headlight using the original mounting hardware.
7. Repeat for the other headlight.

5.3. Fog Light Installation

Poznámka: For vehicles with aftermarket bumpers, an additional fog light mount (ASIN: B094X69JJ1) may be required.

1. Access the OEM fog lights, typically by removing bumper covers or working from underneath the vehicle.
2. Disconnect the electrical connector and remove the OEM fog lights.
3. The provided fog light wiring may require splicing into the OEM harness or using an adapter (not included) if the connectors do not match directly. Carefully identify the positive and negative wires for the fog lights.
4. Connect the SUNPIE fog lights to the vehicle's wiring. Ensure proper polarity. Secure all connections with electrical tape or heat shrink tubing.
5. Mount the new SUNPIE fog lights in their respective locations.
6. Repeat for the other fog light.

5.4. RGB Halo Wiring

The RGB halo functionality requires a separate power connection for the control module.

1. Connect the RGB control module's positive wire to a 12V power source. Options include:
• Direct to Battery: Allows halos to be used even when the vehicle is off. Ensure the app or remote is used to turn them off to prevent battery drain.
• Ignition Switched Power: Connect to a fuse in the fuse box that is only active when the ignition is on. This ensures the halos turn off with the vehicle.
2. Connect the RGB control module's negative wire to a suitable ground point on the vehicle chassis.
3. Route all wiring securely, away from moving parts and heat sources. Use zip ties to keep wires tidy.

Image 5.1: Visual comparison of a vehicle's front end before and after the installation of the SUNPIE RGBW Halo Lights, highlighting the activated purple halos.

Image 5.2: A vehicle equipped with SUNPIE headlights and fog lights, displaying the green halo illumination.

5.5. Závěrečné kroky

1. Znovu připojte baterii vozidla.
2. Test all lighting functions: low beam, high beam, fog lights, and RGB halos.
3. Reinstall any removed grille or trim panels.
4. Adjust headlight aim if necessary to ensure proper road illumination and avoid blinding oncoming traffic.

6. App Control & Remote Operation

The RGBW halos can be controlled using the included remote or the dedicated mobile application.

6.1. Mobile App (Sunpie LED Light)

1. Download the "Sunpie LED Light" app from your device's app store.
2. Ujistěte se, že je v telefonu povoleno Bluetooth.
3. Open the app and follow the on-screen instructions to pair with the light control module.
4. Once connected, you can select from a wide range of colors, adjust brightness, and choose various dynamic modes (e.g., Music Mode, Strobe Modes, Voice Mode).

6.2. Dálkové ovládání

The remote control provides quick access to basic functions:

• Vypínač: Turns the halos on or off.
• Výběr barvy: Dedicated buttons for common colors (red, green, blue, white, etc.).
• Nastavení jasu: Increase or decrease halo intensity.
• Výběr režimu: Cycle through various dynamic lighting effects.

Image 6.1: Depiction of the Sunpie LED Light mobile application interface, illustrating options for color selection, music synchronization, and voice control.

7. Údržba

Regular maintenance ensures optimal performance and longevity of your SUNPIE lights.

• Čištění: Clean the lens surfaces periodically with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the polycarbonate lens.
• Inspekce: Regularly check all wiring connections for tightness and signs of wear or corrosion. Ensure the lights are securely mounted.
• Hydroizolace: While rated IP68, avoid directing high-pressure water jets directly at the light housing during vehicle washing.

8. Řešení problémů

If you encounter issues with your SUNPIE lights, refer to the following common problems and solutions:

If these troubleshooting steps do not resolve the issue, please contact SUNPIE customer service for further assistance.

9. Specifikace

• Značka: SLUNCE
• Model: JLJ00R
• Typ produktu: 9 Inch RGBW Halo Headlights & Fog Lights Combo
• Kompatibilita: 2018-2025 JL/JLU/4XE, 2019-2025 JT
• Wattage: 60 wattů
• Speciální funkce: IP68 Vodotěsný
• Materiál čočky: Polykarbonát
• Barva čočky: Jasný
• Řízení: APP Control, Remote Control
• Hmotnost položky: Přibližně 4 libry
• Rozměry balení: Přibližně 20.7 x 16.4 x 5.7 palce

Image 9.1: Detail highlighting the enhanced light output of the projector LED headlights, stating '400% MORE LIGHT' and over 3,600 lumens.

10. Záruka a podpora

SUNPIE stands behind its products. If you have any questions or encounter issues while using the product, please contact our customer service team. Refer to your purchase documentation for specific warranty terms and contact information.
