Coast TX17R Tactical LED Flashlight Instruction Manual

Zavedení

The Coast TX17R is a versatile and durable tactical LED flashlight designed for dynamic beam control across medium to long ranges. It features the COAST PURE BEAM system, allowing for seamless transitions between Ultra View Flood Beam and BULLS-EYE Spot Beam. Constructed from solid aluminum, the TX17R is built to withstand challenging environments and offers multiple power options for convenience.

Figure 1: Coast TX17R 1250 Lumen Rechargeable Long Range Tactical LED Flashlight.

Vlastnosti produktu

• Long Range Focusing Optic: Transitions seamlessly between X-RANGE Spot Beam and BROAD VIEW Flood Beam for versatile illumination.
• SLIDE FOCUS System: Allows for one-handed control to push or pull the bezel, effortlessly transitioning between flood and spot beams.
• BEAM LOCK: Secure your desired beam shape (flood, spot, or in-between) by twisting the bezel.
• Tři světelné režimy: Select from High (1250 lumens), Medium (500 lumens), and Low (100 lumens) to suit various lighting needs.
• Rechargeable Plus System: Operates with the included COAST ZITHION-X ZX850 lithium battery or two CR123 disposable lithium batteries (purchased separately).
• Odolná hliníková konstrukce: Lightweight yet robust construction for long-lasting performance.
• Stupeň krytí IP54: Provides resistance against dust and splashes from all angles.
• Reversible Pocket Clip: Offers versatile carry options for convenience.
• Anti-Roll Bezel: Prevents the flashlight from rolling on uneven surfaces, ensuring stability during hands-free operation.

Figure 2: High output of 1250 lumens with a beam distance of 234 meters.

Figure 3: Illustration of the PURE BEAM system with X-RANGE Spot and BROAD VIEW Flood beams.

Nastavení

Instalace baterie

The TX17R flashlight is powered by either the included COAST ZITHION-X ZX850 lithium battery or two CR123 disposable lithium batteries (sold separately). To install the battery:

1. Odšroubujte zadní krytku svítilny otáčením proti směru hodinových ručiček.
2. Insert the ZITHION-X ZX850 battery with the positive (+) end facing towards the head of the flashlight. If using CR123 batteries, ensure correct polarity as indicated inside the battery compartment.
3. Zašroubujte zadní víčko zpět ve směru hodinových ručiček, dokud nebude bezpečně utaženo.

Figure 4: The included ZITHION-X rechargeable battery.

Figure 5: The Rechargeable Plus system allows use of both rechargeable and alkaline batteries.

Nabíjení baterie

The ZITHION-X ZX850 battery can be recharged directly via its built-in USB-C port. A USB-C charging cable is included.

1. Locate the USB-C charging port on the battery.
2. Connect the included USB-C cable to the battery and to a compatible USB power source (e.g., wall adapter, computer USB port).
3. The charging indicator light on the battery will illuminate red during charging and turn green when fully charged.

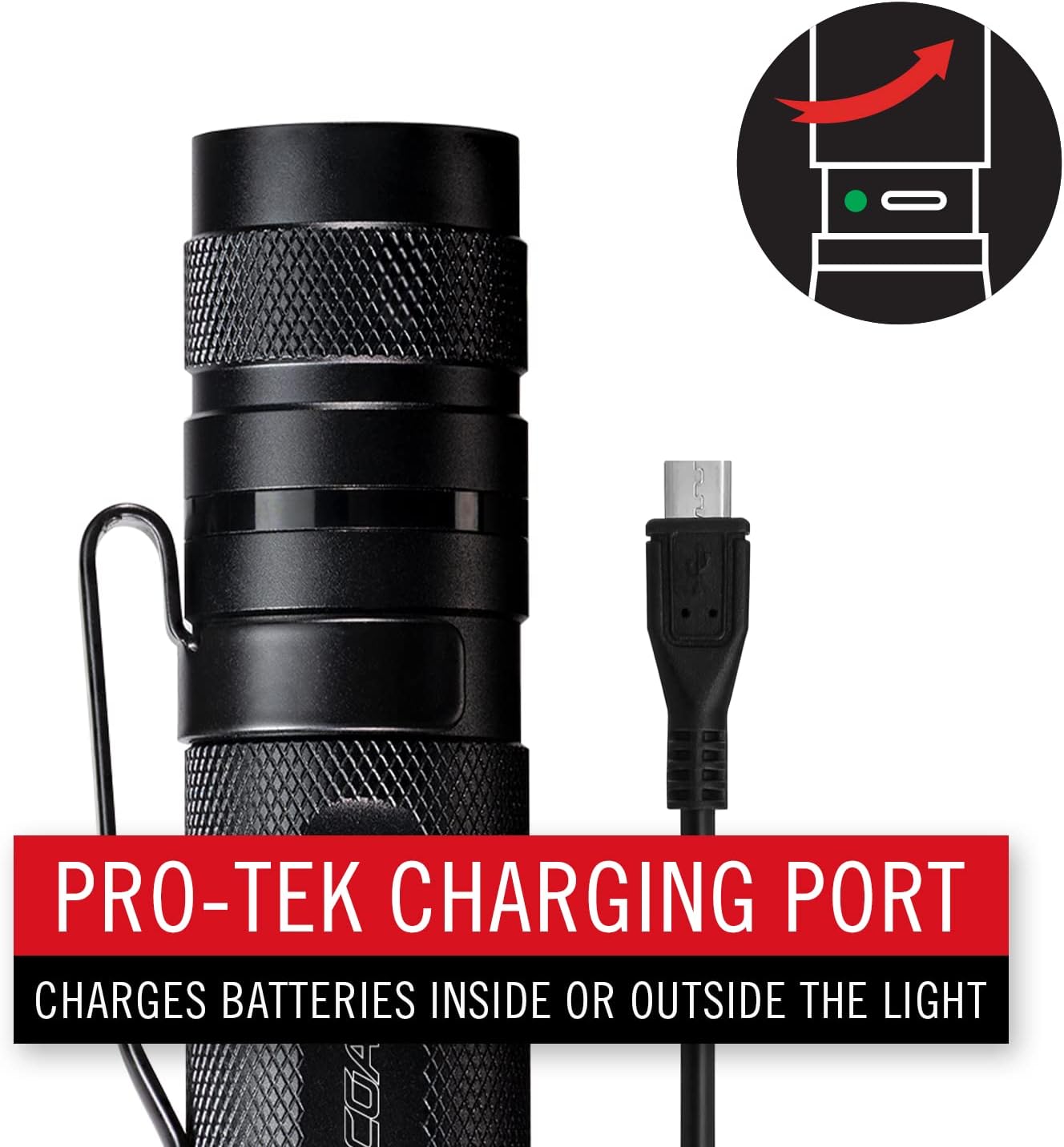

Figure 6: The Pro-Tek charging port on the battery for direct charging.

Návod k obsluze

Zapnutí/vypnutí a výběr režimu

The flashlight is operated using the tail cap button.

• Zapnutí/vypnutí: Press the tail cap button firmly until it clicks.
• Procházení režimů: With the flashlight ON, lightly press the tail cap button repeatedly to cycle through High, Medium, and Low light modes.

Focus Adjustment (SLIDE FOCUS & BEAM LOCK)

The TX17R features a dynamic focusing system:

• SLIDE FOCUS: To adjust the beam from a tight spot to a wide flood, simply push or pull the bezel (the front part of the flashlight) forward or backward.
• BEAM LOCK: To lock the beam in a specific focus position, twist the bezel. This will prevent accidental changes to the beam pattern during use. Twist it back to unlock.

Figure 7: The SLIDE FOCUS system allows easy beam adjustment.

Figure 8: The BEAM LOCK feature secures your preferred focus setting.

Údržba

To ensure the longevity and optimal performance of your Coast TX17R flashlight, follow these maintenance guidelines:

• Čištění: Wipe the flashlight body with a clean, soft cloth. For the lens, use a lens cleaning cloth and solution to avoid scratches.
• Mazání: Periodically apply a thin coat of silicone grease to the O-rings and threads to maintain water resistance and smooth operation.
• Péče o baterie: Store the battery in a cool, dry place when not in use. If storing for extended periods, charge the battery every 3-6 months to prevent deep discharge.
• Vyhněte se extrémním teplotám: Do not expose the flashlight to extreme heat or cold for prolonged periods, as this can affect battery life and internal components.

Odstraňování problémů

If you encounter issues with your TX17R flashlight, try the following solutions:

• Svítilna se nezapíná:
  • Ujistěte se, že je baterie plně nabitá.
  • Zkontrolujte, zda je baterie vložena se správnou polaritou.
  • Tighten the tail cap securely. A loose tail cap can prevent electrical contact.
  • If using CR123 batteries, ensure they are fresh and correctly installed.
• Tlumené nebo blikající světlo:
  • Recharge the battery. Low battery power can cause dimming.
  • Clean the battery contacts and the flashlight's internal contacts with a clean cloth.
  • Ensure the bezel is not stuck between focus settings. Adjust it fully to spot or flood.
• Focus mechanism is stiff:
  • Ensure the BEAM LOCK is disengaged (twisted to the unlocked position).
  • Clean the area around the bezel and apply a small amount of silicone grease if necessary.

Specifikace

Figure 9: The compact size of the TX17R, approximately 6 inches long.

Figure 10: The IP54 rating ensures dust and storm resistance.

Záruka a podpora

The Coast TX17R flashlight is backed by the COAST lifetime warranty against defects in materials and workmanship. This warranty does not cover normal wear and tear, nor damage resulting from misuse or neglect.

For warranty claims or technical support, please refer to the official Coast webwebu nebo se přímo obraťte na jejich zákaznický servis.

Figure 11: Coast offers a lifetime warranty on this product.
