1. Úvod
This manual provides essential information for the safe assembly, operation, and maintenance of your Vente-unique MODULO IV Bunk Bed. Please read these instructions carefully before beginning assembly and retain them for future reference.
The MODULO IV is a versatile bunk bed featuring a single top bed (90 x 190 cm) and a convertible futon sofa bed (135 x 190 cm) on the lower level. It is constructed from metal and designed for self-assembly.
2. Bezpečnostní informace
- Důležité: Horní palanda není vhodná pro děti mladší 6 let.
- Maximální nosnost: The upper bed has a maximum load capacity of 150 kg. The lower sofa bed has a maximum load capacity of 200 kg. Do not exceed these limits.
- Montáž na stěnu: This furniture unit must be securely mounted to a wall to prevent tipping. Ensure appropriate wall fixings are used for your wall type (not included).
- Požadavky na matraci: The upper bed is suitable for all mattresses measuring 90 x 190 cm. The maximum mattress height for the upper bunk is 15 cm to ensure the safety rail remains effective.
- Futon Mattress: The special MODULO futon for the sofa bed must be purchased separately.
- Pravidelně kontrolujte všechny šrouby a spoje, abyste se ujistili, že jsou pevně utažené.
- Nedovolte dětem hrát si na palandě nebo pod ní bez dozoru.
- Před použitím se ujistěte, že je žebřík bezpečně upevněn.
3. Obsah balení
Before assembly, verify that all components are present and undamaged. If any parts are missing or damaged, please contact Vente-unique customer service.
| Číslo balíku | Rozměry (D x Š x V) | Hmotnost |
|---|---|---|
| Balíček 1 | 198 cm x 45 cm x 9 cm | 32 kg |
| Balíček 2 | 106 cm x 46 cm x 11 cm | 23 kg |
Note: Specific hardware and component lists are typically included within the package. Refer to those for detailed part identification.
4. Nastavení a montáž
The Vente-unique MODULO IV Bunk Bed requires self-assembly. It is recommended that two adults assemble this product. Ensure you have sufficient space and the necessary tools (e.g., screwdriver, wrench) before starting.
- Rozbalte komponenty: Opatrně vybalte všechny díly z obou obalů. Položte je na měkký, čistý povrch, abyste zabránili poškrábání.
- Identifikujte díly: Refer to the included assembly diagram and hardware list to identify all components.
- Sestavte rám: Follow the step-by-step instructions provided in the separate assembly guide to construct the main metal frame of the bunk bed. Do not fully tighten all bolts until the entire frame is assembled.
- Attach Bed Bases: Secure the metal slatted bed bases for both the upper bunk and the lower futon frame.
- Instalace žebříku: The ladder is reversible. Attach it to your preferred side of the bunk bed, ensuring it is firmly secured.
- Montáž na stěnu: Once the bed frame is fully assembled and in its final position, securely attach it to the wall using appropriate wall anchors and screws (not supplied). This step is critical for stability and safety.
- Konečné utažení: Once the entire structure is assembled and wall-mounted, go back and fully tighten all bolts and fasteners.
- Umístěte matrace: Place the 90 x 190 cm mattress on the upper bunk (max height 15 cm) and the 135 x 190 cm futon mattress on the lower sofa bed frame.
5. Návod k obsluze
5.1 Using the Upper Bunk
- Access the upper bunk using the provided ladder. Always climb facing the ladder and use both hands.
- Ensure the mattress on the upper bunk does not exceed 15 cm in height to maintain the effectiveness of the safety rail.
5.2 Converting the Lower Futon Sofa Bed
The lower futon frame can be converted between a sofa and a bed position. Specific conversion mechanisms vary, but generally involve:
- From Sofa to Bed: Lift the front edge of the futon frame slightly, then push the backrest down until it lies flat, forming a bed surface.
- From Bed to Sofa: Lift the futon frame from the center until the backrest locks into an upright position.
Always ensure the futon mattress is properly positioned on the frame during conversion.
6. Údržba
- Čištění: Otřete kovový rám reklamouamp hadříkem a jemným čisticím prostředkem. Vyhněte se abrazivním čisticím prostředkům.
- Pravidelné kontroly: Periodically inspect all bolts, screws, and connections to ensure they are tight. Re-tighten if necessary.
- Strukturální integrita: Check for any signs of wear, damage, or loose parts. Address any issues promptly to maintain safety.
7. Řešení problémů
- Vrzavé zvuky: Check and tighten all bolts and connections. Ensure the bed is level on the floor.
- Obtížnost sestavení: Review the assembly instructions carefully. Ensure all parts are correctly oriented. Do not force components together.
- Chybějící nebo poškozené díly: If you discover any missing or damaged parts during unpacking or assembly, do not proceed with assembly. Contact Vente-unique customer support immediately for assistance.
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | Vente-unikátní |
| Model | MODULO IV |
| Barva | Černá a červená |
| Materiál | Kov |
| Velikost matrace horní postele | 90 x 190 cm |
| Lower Sofa Bed Mattress Size | 135 x 190 cm (futon sold separately) |
| Number of Places (Upper Bed) | 1 place |
| Bed Base Type | Slatted, Metal |
| Typ instalace | Pro připevnění na stěnu |
| Max Load (Upper Bed) | 150 kg |
| Max Load (Lower Sofa Bed) | 200 kg |

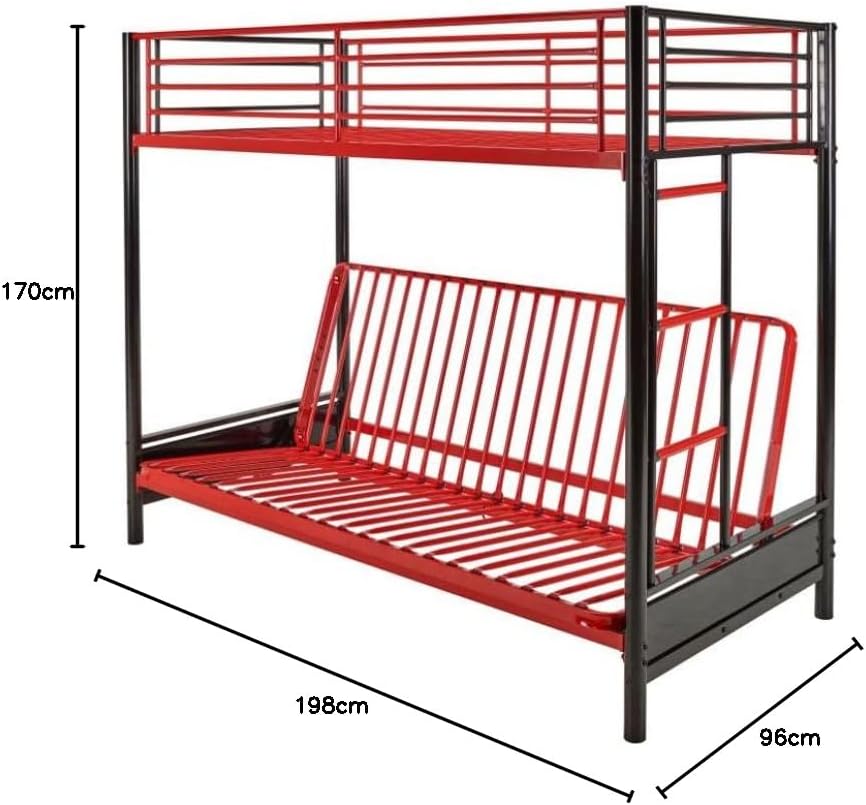

| Celková délka | 198 cm |
| Celková výška | 170 cm |
| Celková hloubka | 96 cm |
| Height Under Upper Bunk | 137 cm |
| Výška bezpečnostního zábradlí | 32 cm |
| Max Upper Mattress Height | 15 cm |
| Depth of Open Bed (Lower) | 128 cm |
9. Záruka a podpora
For information regarding warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Vente-unique website. For any questions, missing parts, or technical assistance, please contact Vente-unique customer service directly.
Vente-unique Customer Service: Please refer to your purchase receipt or the Vente-unique webstránky pro kontaktní údaje.
