Uživatelská příručka k teleskopickému hydročističi Starlyf 4.6 m

1. Úvod

Thank you for choosing the Starlyf Telescopic Hydrocleaner 4.6M. This water-powered cleaning tool is designed for efficient and convenient cleaning of various surfaces, including windows, solar panels, vehicles, and other high or hard-to-reach areas. Its telescopic handle, integrated brush with sponge and window cleaner, and soap dispenser make it a versatile solution for your cleaning needs. Please read this manual carefully before assembly and operation to ensure safe and effective use.

2. Bezpečnostní pokyny

• Always ensure a stable footing when using the Hydrocleaner, especially when extended to its maximum length.
• Do not use the Hydrocleaner near electrical wires or outlets.
• Avoid using harsh chemicals in the soap dispenser that could damage the product or the surfaces being cleaned.
• Během provozu držte děti a domácí zvířata mimo pracovní prostor.
• Inspect all components for damage before each use. Do not use if any parts are broken or compromised.
• V případě potřeby používejte vhodné osobní ochranné prostředky, jako jsou rukavice a ochrana očí.
• Do not attempt to modify the product. Use only original replacement parts if needed.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny níže uvedené položky:

• Telescopic Handle (Aluminum)
• Brush Head with integrated Sponge and Window Cleaner
• Water Tube (Hose)
• Connectors for Water Supply/Hose
• Professional Angle Adapter
• Dávkovač mýdla
• Návod k použití (tento dokument)

Obrázek 3.1: All components included in the package. This image displays the brush head, soap dispenser, water hose, various connectors, and sections of the telescopic pole.

4. Montážní návod

Follow these steps to assemble your Starlyf Telescopic Hydrocleaner:

1. Nasaďte hlavici kartáče: Securely connect the brush head to the end of the telescopic handle. Ensure it clicks into place or is tightened firmly.
2. Connect the Angle Adapter (Optional): If you need to adjust the angle of the brush head for specific cleaning tasks, attach the professional angle adapter between the brush head and the telescopic handle.
3. Install the Soap Dispenser: Connect the soap dispenser to the water tube. The dispenser allows for controlled application of cleaning solution.
4. Connect Water Tube to Handle: Attach the water tube, with the soap dispenser, to the designated inlet on the telescopic handle.
5. Připojení k vodovodnímu potrubí: Use the provided connectors to attach the other end of the water tube to a standard garden hose or water supply. Ensure all connections are tight to prevent leaks.

Obrázek 4.1: The fully assembled Hydrocleaner with the water hose attached, ready for connection to a water source.

Obrázek 4.2: Detailní view of the soap dispenser connection and how water flows through the brush head for effective cleaning.

5. Provoz

5.1 Extending the Handle

To extend the telescopic handle, unlock the clamps on each section, pull the sections to the desired length (up to 4.6 meters), and then securely lock the clamps. Zajistěte, aby všechny clamps are fully engaged before use to prevent accidental retraction.

5.2 Using the Soap Dispenser

Fill the soap dispenser with your preferred cleaning solution. The dispenser allows you to mix soap with the water flow, providing a deep cleaning action. Adjust the flow as needed for different cleaning tasks.

5.3 Techniky čištění

The Starlyf Telescopic Hydrocleaner is suitable for a variety of surfaces:

• Windows and Glass Surfaces: Use the integrated sponge and window cleaner for streak-free results. The soft bristles are safe for glass.
• Solární panely: Gently brush away dirt and debris. Regular cleaning can help maintain panel efficiency.
• Vehicles (Cars, Trucks, RVs, Caravans): The extendable reach allows you to clean large vehicles easily. The soft bristles prevent scratches.
• House Facades and Roofs: Reach high areas to remove dirt, cobwebs, and light grime.

Obrázek 5.1: Cleaning a vehicle. The extended pole allows for easy reach across large surfaces.

Obrázek 5.2: Cleaning solar panels. The long reach helps maintain panel efficiency by removing accumulated dirt.

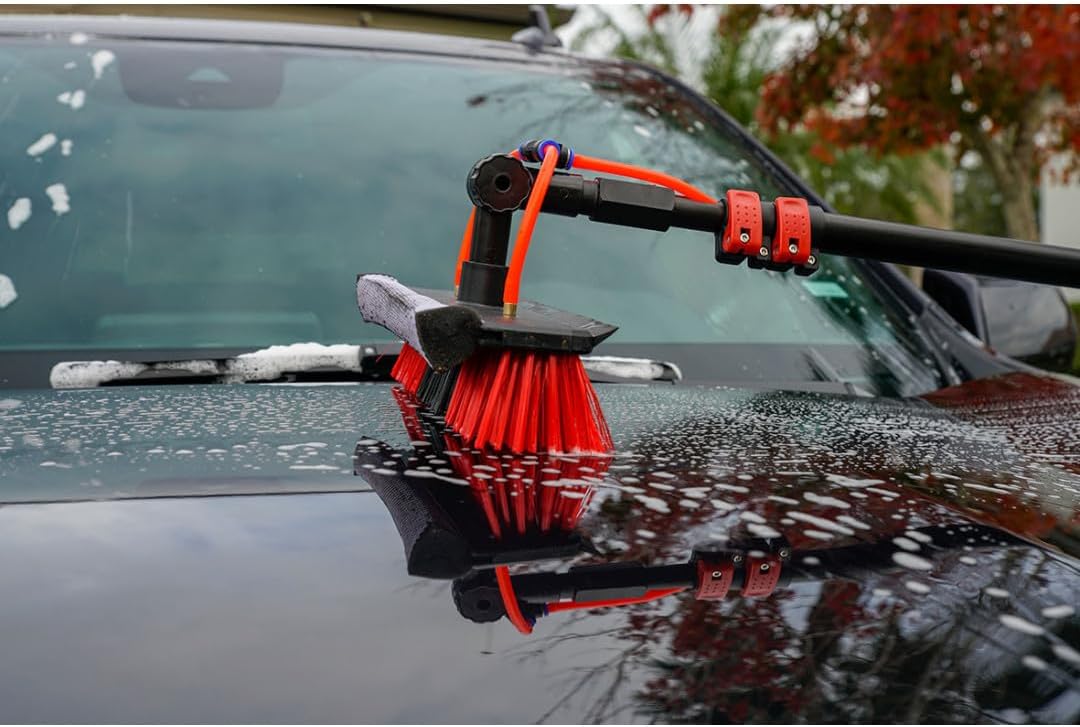

Obrázek 5.3: Close-up of the brush head in action, showing water and soap distribution.

Obrázek 5.4: Cleaning high windows. The telescopic feature eliminates the need for ladders in many situations.

6. Údržba

• Čištění hlavice kartáčku: After each use, rinse the brush head thoroughly with clean water to remove any soap residue or debris.
• Draining the System: Disconnect the water supply and allow all water to drain from the hose and handle to prevent mildew or freezing damage.
• Skladování: Retract the telescopic handle to its shortest length and store the Hydrocleaner in a clean, dry place, away from direct sunlight and extreme temperatures.
• Inspekce: Periodically check all connections, clamps, and the brush head for wear or damage. Replace any worn parts as necessary.

7. Řešení problémů

8. Specifikace

• Značka: Starlyf
• Model: TH 4.6M
• Maximální prodloužení: 4.6 metrů
• Materiál rukojeti: Lehký hliník
• Brush Head Features: Integrated sponge and window cleaner, soft feather bristles
• Speciální vlastnosti: Water-powered, extendable, rotating head, soap dispenser
• Product Dimensions (Retracted): 119 x 12.5 x 11 cm
• Hmotnost položky: 2.1 kg
• Doporučené povrchy: Windows, Solar Panels, Walls, Roofs, Vehicles

9. Záruka a podpora

For warranty information or customer support, please refer to the retailer where the product was purchased or visit the official Starlyf webUschovejte si doklad o koupi pro případné reklamace.
