1. Úvod
Thank you for choosing the VASAGLE L-Shaped Corner Desk. This desk is designed to provide a spacious and functional workspace for your home office, gaming setup, or study area. Its L-shaped design optimizes corner spaces, while integrated shelves offer convenient storage. This manual will guide you through the assembly process, proper usage, and maintenance to ensure long-lasting enjoyment of your new desk.

Figure 1.1: The VASAGLE L-Shaped Corner Desk, showcasing its design and amppracovní prostor.
2. Bezpečnostní pokyny
Před sestavením nebo použitím tohoto výrobku si prosím přečtěte a pochopte všechny bezpečnostní pokyny. Nedodržení těchto pokynů může vést ke zranění nebo poškození výrobku.
- Udržujte děti mimo dosah: For safety reasons, children are not allowed to climb on or play with the desk.
- Shromáždění: Assemble the desk on a soft, clean surface to prevent scratches. Ensure all parts are present and undamaged before beginning assembly.
- Utáhněte upevňovací prvky: Periodically check all screws and bolts to ensure they remain tight. Loose fasteners can compromise stability.
- Nosnost: Do not exceed the maximum static load capacity of 50 kg (110 lbs) for the desktop and 10 kg (22 lbs) for each storage shelf. Overloading can cause damage or collapse.
- Úroveň povrchu: Place the desk on a level surface. Use the adjustable feet to compensate for uneven floors and prevent wobbling.
- Vyhněte se vlhkosti: Keep the desk away from direct moisture, excessive humidity, and direct sunlight to prevent material degradation.
- Ostré předměty: Avoid placing sharp or abrasive objects directly on the desk surface to prevent scratches.
3. Obsah balení
Před montáží ověřte, zda jsou v balení obsaženy všechny níže uvedené komponenty. Pokud některé díly chybí nebo jsou poškozené, kontaktujte zákaznickou podporu.
| Položka | Množství | Popis |
|---|---|---|
| L-Shaped Desktop Panels | 1 sada | Main desk surface components. |
| Ocelové rámové komponenty | 1 sada | Legs, support bars, and frame for stability. |
| Skladovací police | 2 | Removable shelves for integrated storage. |
| Sada příslušenství | 1 | Includes screws, bolts, Allen wrench, and adjustable feet. |
| Návod k použití | 1 | Tento průvodce. |
4. Nastavení a montáž
Assembly is straightforward. It is recommended to have two people for easier and safer assembly. Please follow the steps below:
- Připravte pracovní prostor: Clear an open area and lay down a soft cloth or cardboard to protect the desk components and your floor from scratches.
- Identifikujte díly: Vybalte všechny součásti a identifikujte je pomocí dodaného seznamu dílů a schémat.
- Sestavte rám: Begin by assembling the steel frame components according to the included diagram. Do not fully tighten screws until all parts are aligned.
- Připojení panelů plochy: Carefully place the desktop panels onto the assembled frame. Align the pre-drilled holes with the frame.
- Instalace úložných polic: Insert the storage shelves into their designated slots. The top shelf is removable to accommodate a PC tower if needed.
- Utáhněte všechny upevňovací prvky: Once all components are in place and aligned, gradually tighten all screws and bolts. Ensure even tightening to prevent warping.
- Upravte nohy: Otočte stůl do svislé polohy. Upravte vyrovnávací nožičky ve spodní části nohou tak, aby stůl byl stabilní a nekýval se na nerovné podlaze.

Figure 4.1: The removable storage shelf, offering flexibility for PC tower placement or additional storage.

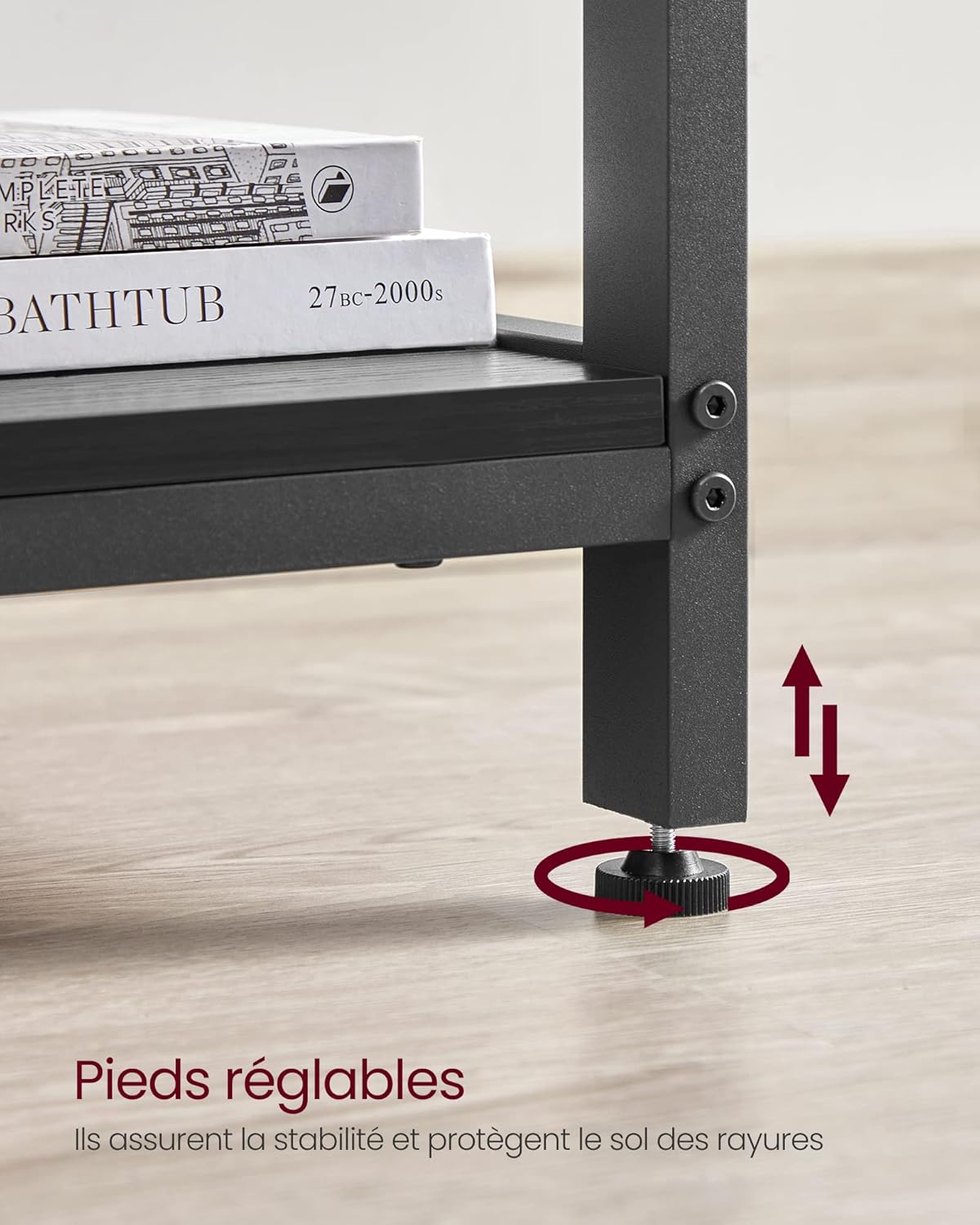

Obrázek 4.2: Nastavitelné nožičky pro stabilitu na nerovném povrchu.
5. Provoz
The VASAGLE L-Shaped Corner Desk is designed for versatile use in various settings:
- Prostorný pracovní prostor: The large 138 x 138 cm (54.3 x 54.3 inch) desktop can comfortably accommodate multiple monitors, laptops, and other office essentials, providing ampprostor pro práci, studium nebo hraní her.
- Integrované úložiště: Utilize the two open storage shelves for books, documents, office supplies, or decorative items. The top shelf can be removed to create space for a computer tower.
- Správa kabelů: The desk features a cutout corner at the back, allowing for neat routing of cables from electronic devices, helping to keep your workspace tidy and organized.

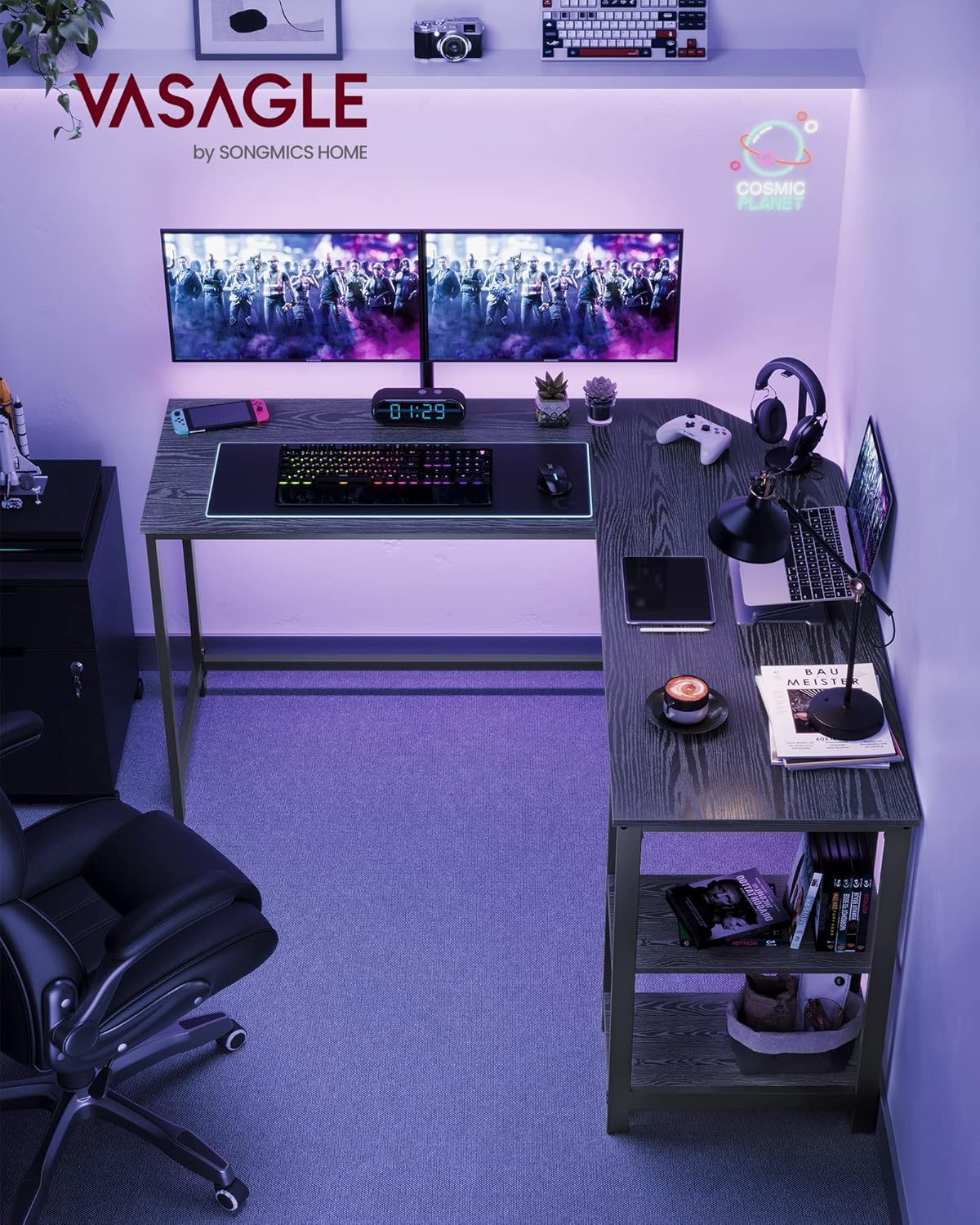

Figure 5.1: The desk configured for a multi-monitor gaming setup.

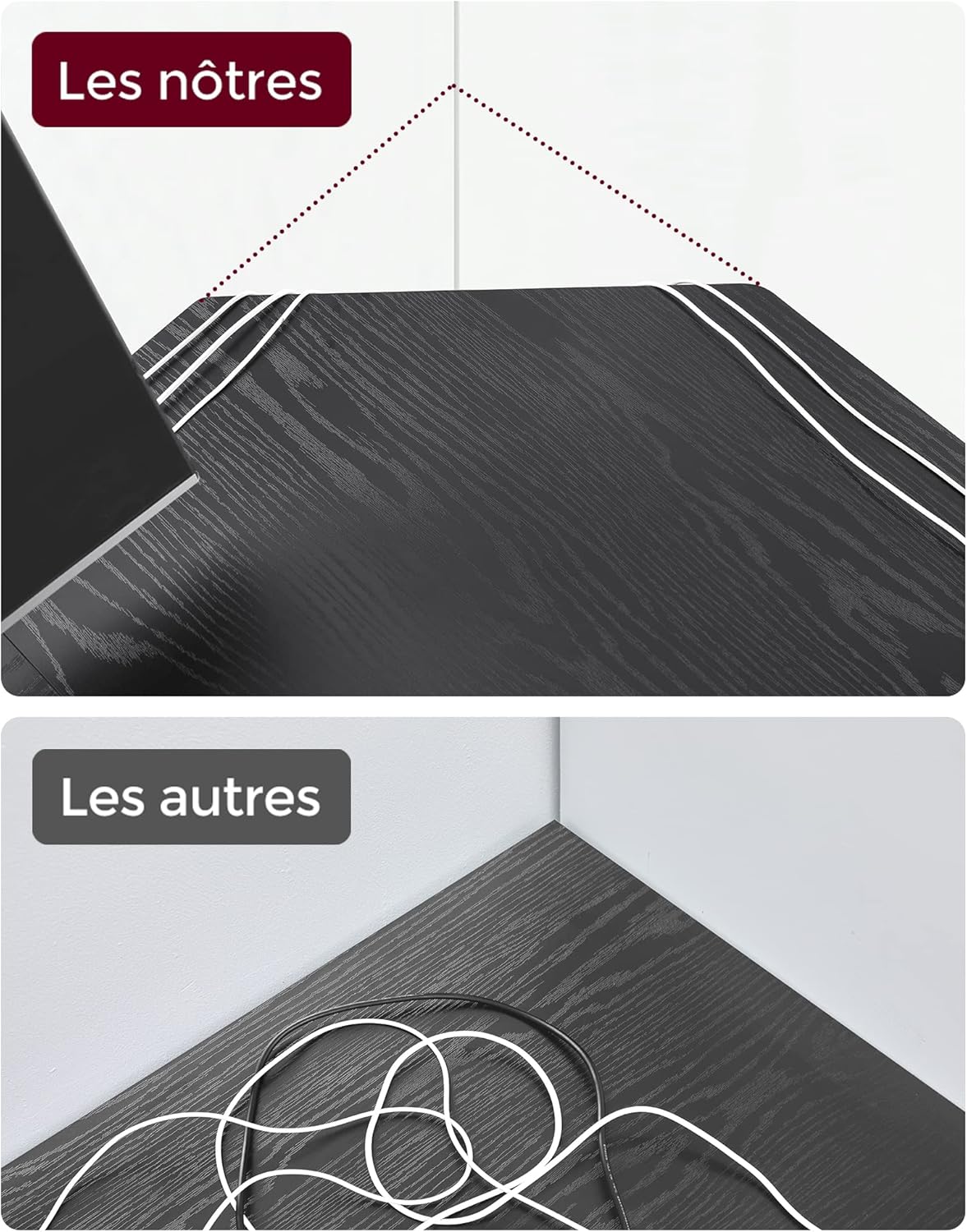

Figure 5.2: Detail of the corner cutout designed for efficient cable routing.
6. Údržba
Správná péče prodlouží životnost a vzhled vašeho stolu:
- Čištění: Otřete povrch stolu měkkým, damp hadříkem. Nepoužívejte agresivní chemikálie nebo abrazivní čisticí prostředky, které mohou poškodit povrchovou úpravu.
- Rozlití: Immediately wipe up any spills to prevent liquid from penetrating the wood grain finish.
- Tepelná ochrana: Používejte pod horké předměty podložky nebo ochranné podložky, abyste zabránili poškození pracovní plochy teplem.
- Pravidelné kontroly: Periodically inspect all screws and connections to ensure they are tight. Re-tighten if necessary.
7. Řešení problémů
Zde jsou řešení běžných problémů, se kterými se můžete setkat:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Stůl se kymácí | Nerovná podlaha; uvolněné upevňovací prvky. | Adjust the leveling feet at the bottom of the legs. Ensure all screws and bolts are securely tightened. |
| Parts don't align during assembly | Screws tightened too early; incorrect orientation of parts. | Loosen all screws slightly, re-align parts, then gradually tighten. Double-check the assembly diagrams for correct part orientation. |
| Chybějící nebo poškozené díly | Chyba balení; poškození při přepravě. | Do not proceed with assembly. Contact VASAGLE customer support immediately with your purchase details. |
| Desk surface scratched | Ostré předměty; abrazivní čištění. | Use a furniture repair kit for minor scratches. Prevent future scratches by using desk mats and avoiding abrasive materials. |
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | VASAGLE |
| Číslo modelu | HU-XI-201 / LWD072B56 |
| Barva | Black + Wood Grain |
| Materiál | Dřevotříska, ocel |
| Rozměry produktu (D x Š x V) | 138 x 138 x 76 cm (54.3 x 54.3 x 29.9 palce) |
| Hmotnost produktu | 23.8 kg (52.5 lb) |
| Desktop Static Load Capacity | 50 kg (110 lb) |
| Each Shelf Static Load Capacity | 10 kg (22 lb) |
| Speciální funkce | Adjustable Feet, Removable Storage Shelf, Cable Management Cutout |

Figure 8.1: Illustration of the desk's robust structure and weight capacity.

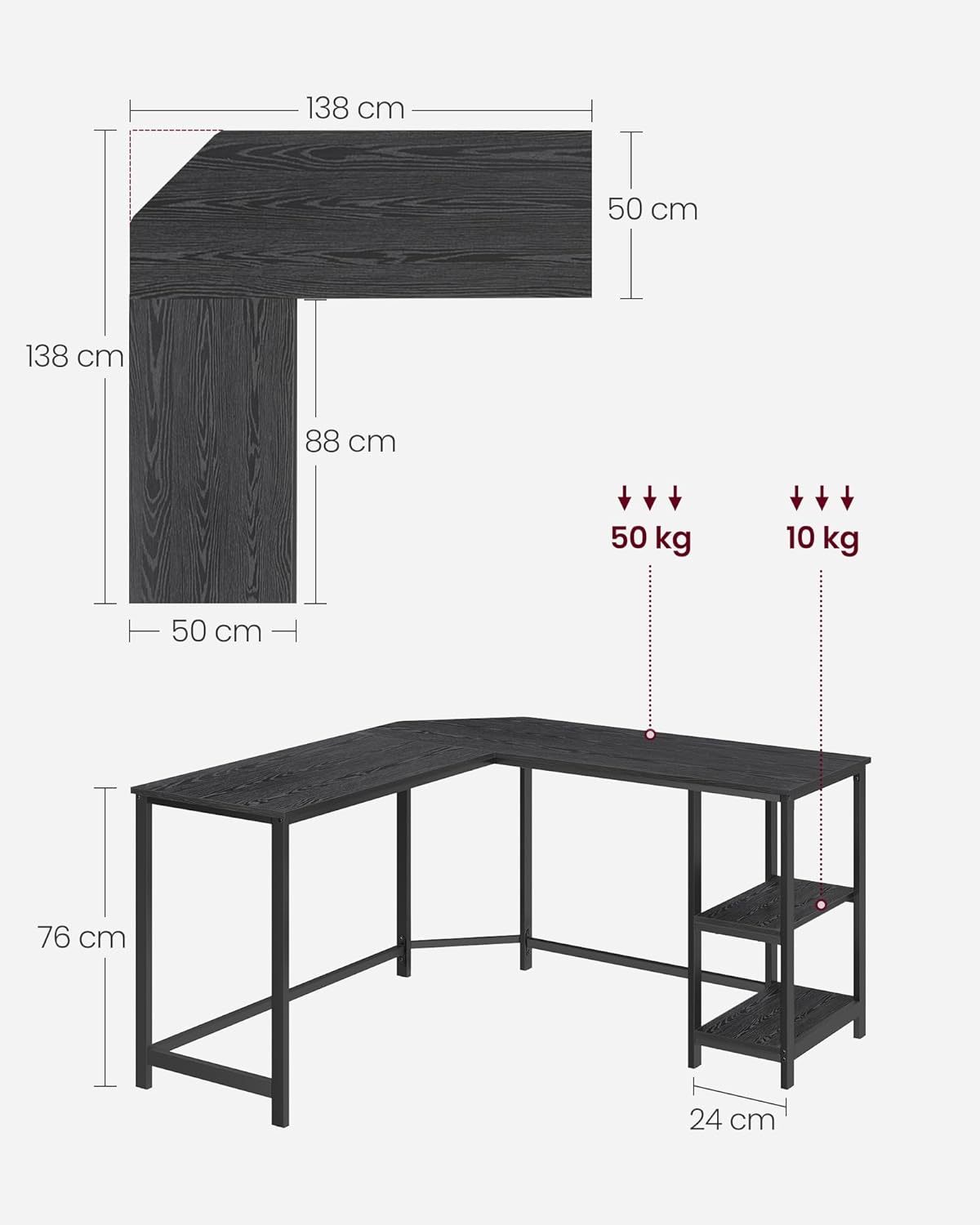

Figure 8.2: Comprehensive dimensions and load capacities of the desk.
9. Záruka a podpora
For warranty information, product support, or to inquire about replacement parts, please contact VASAGLE customer service directly. Refer to your purchase receipt or the product packaging for specific contact details.
Informace o podpoře často najdete na oficiálních stránkách VASAGLE. webwebu nebo prostřednictvím prodejce, u kterého jste produkt zakoupili.
