Deaf Bonce Apocalypse DB-SA305 D1 15" Subwoofer Instruction Manual

1. Úvod

Thank you for choosing the Deaf Bonce Apocalypse DB-SA305 D1 15" Subwoofer. This high-performance subwoofer is engineered to deliver powerful, deep bass and exceptional sound quality for car audio enthusiasts. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal performance and longevity of your subwoofer.

Co je v krabici

• 1x Deaf Bonce Apocalypse DB-SA305 D1 15" Subwoofer
• 1x Návod k použití

Figure 1: Deaf Bonce Apocalypse DB-SA305 D1 15" Subwoofer (Front View)

2. Specifikace

The Deaf Bonce Apocalypse DB-SA305 D1 subwoofer is built with high-quality components to ensure durability and superior audio performance. Below are the detailed technical specifications:

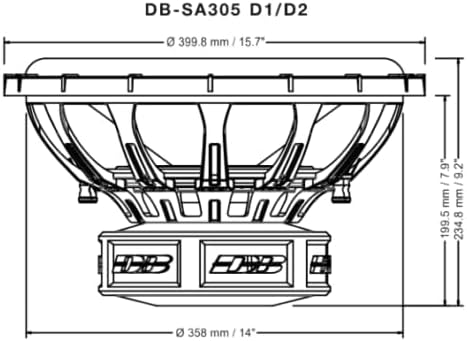

Figure 2: Subwoofer Dimensions and Mounting Specifications

3. Nastavení a instalace

Proper installation and wiring are critical for the performance and safety of your subwoofer. It is recommended that installation be performed by a qualified professional.

Montáž subwooferu

Ensure the subwoofer is securely mounted in an appropriate enclosure. Refer to the dimensions in the specifications section for proper cutout and mounting depth. Use appropriate hardware to prevent movement during vehicle operation.

Obrázek 3: Spodní část subwooferu View showing terminals and frame

Wiring Configurations (Dual 1-Ohm Voice Coils)

The DB-SA305 D1 features dual 1-Ohm voice coils, offering flexibility in wiring to achieve different impedance loads for your ampzáchranář. Vždy se ujistěte, že váš ampZáložní zdroj je stabilní při zvolené impedanci.

Series Wiring (2 Ohms)

To achieve a 2-Ohm load, wire the two 1-Ohm voice coils in series. This is done by connecting the positive terminal of one voice coil to the negative terminal of the other voice coil. The remaining positive and negative terminals will then connect to your ampživější.

Parallel Wiring (0.5 Ohms)

To achieve a 0.5-Ohm load, wire the two 1-Ohm voice coils in parallel. This is done by connecting the positive terminals of both voice coils together, and the negative terminals of both voice coils together. The combined positive and negative connections will then go to your ampživější.

4. Provozní pokyny

Doba vloupání

Allow a break-in period of approximately 10-20 hours of normal listening before operating the subwoofer at high volumes. This allows the suspension components to loosen up and achieve optimal performance.

AmpNastavení filtru

Nastavte si svůj ampsprávně nastavit zesílení lifieru tak, aby odpovídalo výstupní hlasitostitage of your head unit. Avoid setting the gain too high, as this can lead to clipping and damage to the subwoofer. Use a low-pass filter (LPF) to ensure the subwoofer only reproduces low frequencies, typically between 60Hz and 100Hz, as recommended by your amplifier or system setup.

5. Údržba

To ensure the longevity and performance of your Deaf Bonce subwoofer, follow these maintenance guidelines:

• Čištění: Use a soft, dry cloth to clean the subwoofer cone and surround. Avoid using harsh chemicals or abrasive materials.
• Inspekce: Periodically inspect the subwoofer for any signs of damage to the cone, surround, or voice coil. Ensure all wiring connections are secure.
• Podmínky prostředí: Avoid exposing the subwoofer to extreme temperatures, moisture, or direct sunlight for extended periods.

6. Řešení problémů

Pokud máte problémy se subwooferem, postupujte podle následujících běžných kroků pro odstraňování problémů:

• Žádný zvuk:
  • Zkontrolujte všechna zapojení od amplifier to the subwoofer and the head unit.
  • Ověřte amplifier is powered on and not in protect mode.
  • Ensure the head unit's volume is up and the subwoofer output is enabled.
• Zkreslený zvuk:
  • Snižte ampnastavení zesílení zařízení Liferier.
  • Check for proper enclosure size and tuning.
  • Ensure the subwoofer is not over-driven.
• Přehřívání:
  • Verify the impedance load matches the ampstabilní provozní dosah zařízení Liferier.
  • Zajistěte dostatečné větrání ampživější.
  • Check for proper gain settings to avoid clipping.

7. Informace o záruce

This Deaf Bonce Apocalypse DB-SA305 D1 Subwoofer comes with a limited warranty. Please refer to the warranty card included with your product or contact your retailer for specific terms and conditions regarding coverage and duration.

8. Podpora

For further assistance, technical support, or warranty claims, please contact your authorized Deaf Bonce retailer or the manufacturer directly. Ensure you have your product model number (DB-SA305-D1) and proof of purchase available when seeking support.
