ANNATTO Cooker 2 Burners EN417 User Manual

Zavedení

Thank you for choosing the Outwell ANNATTO 2-Burner Cooker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new cooker. Please read this manual thoroughly before use and retain it for future reference.

Bezpečnostní informace

Always prioritize safety when operating gas appliances. Failure to follow these instructions could result in fire, explosion, property damage, personal injury, or death.

• Use outdoors only. Never operate this appliance indoors or in an enclosed space.
• Zajistěte dostatečné větrání.
• Uchovávejte mimo dosah hořlavých materiálů.
• Nenechávejte spotřebič během používání bez dozoru.
• Check for gas leaks regularly using a soapy water solution. Never use a flame to check for leaks.
• Během provozu udržujte děti a domácí zvířata mimo dosah spotřebiče.
• Use only with the specified gas type and pressure. Refer to the product specifications.
• Allow the cooker to cool completely before cleaning or storing.

Konec produktuview

The Outwell ANNATTO cooker is a portable two-burner gas stove designed for outdoor cooking. It features a compact design with integrated wind shields and individual burner controls.

Obrázek 1: The Outwell ANNATTO cooker with its lid open, revealing the two gas burners and the removable pot supports. The integrated side wind shields are also visible, extended outwards.

Obrázek 2: A top-down perspective of the cooker with the lid fully open. This view clearly shows the two burner grates and the underlying burners, ready for cooking. The gas hose connection point is visible on the right side.

Obrázek 3: The Outwell ANNATTO cooker in its closed and compact state. The front panel displays the two control knobs for the burners and the central latch mechanism, making it easy to transport.

Obrázek 4: Detailní view of the cooker's control panel. It highlights the individual burner control knobs, the red ignition button, and the power switch, providing clear access for operation.

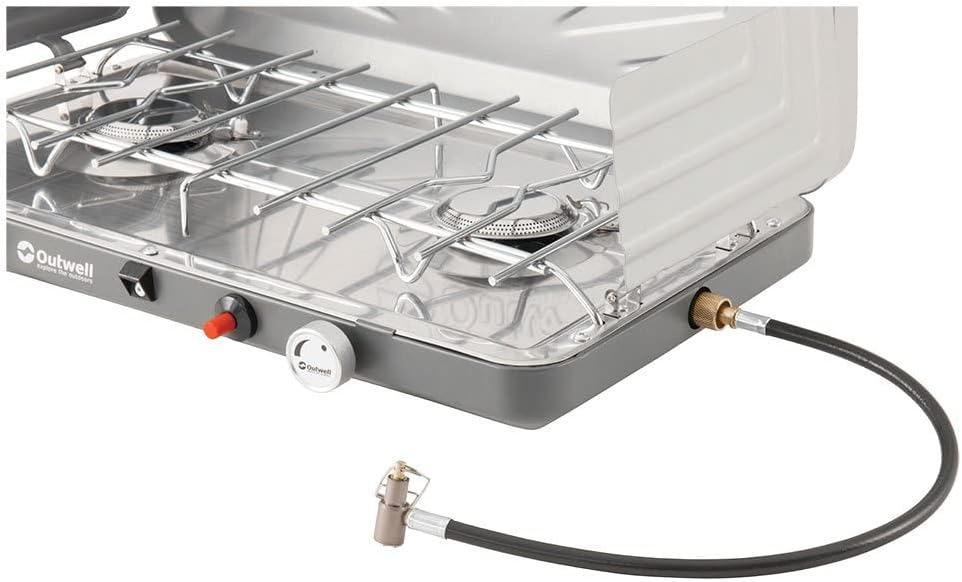

Obrázek 5: This image shows the side of the cooker with the gas hose connected to the appliance's inlet. The hose leads to the regulator, which would then connect to a gas cylinder, illustrating the setup for fuel supply.

Nastavení

1. Rozbalit: Carefully remove the cooker from its packaging. Retain packaging for storage if desired.
2. Umístění: Place the cooker on a stable, level, non-combustible surface outdoors, away from any flammable materials, buildings, or vehicles. Ensure adequate clearance above and around the cooker.
3. Open Lid and Wind Shields: Unlatch the lid and open it fully. Extend the side wind shields outwards to provide protection from wind.
4. Připojte přívod plynu:
   • Ensure both burner control knobs are in the "OFF" position.
   • Connect the gas hose (with regulator, if not integrated) to the cooker's gas inlet port. Ensure a secure, leak-free connection.
   • Connect the other end of the hose/regulator to your gas cylinder. Tighten all connections by hand, then use a wrench for a final snug fit if required, but do not overtighten.
5. Test těsnosti: Before first use and after every gas cylinder change, perform a leak test.
   • Smíchejte roztok stejných dílů tekutého saponátu na nádobí a vody.
   • Apply the solution to all gas connections (cooker inlet, hose connections, regulator connection to cylinder).
   • Pomalu otevřete ventil plynové láhve.
   • If bubbles appear, there is a leak. Immediately close the gas cylinder valve and tighten the connection. Repeat the test. If leaks persist, do not use the cooker and contact customer support.

Návod k obsluze

1. Připravte se na zapalování: Ensure the cooker is set up safely and the gas cylinder valve is open.
2. Zapalte hořák:
   • Push in and slowly turn one burner control knob counter-clockwise to the "HIGH" position.
   • Immediately press the red ignition button repeatedly until the burner ignites.
   • If the burner does not ignite within 5 seconds, turn the control knob to "OFF", wait 5 minutes for gas to disperse, and then repeat the ignition process.
3. Upravit plamen: Once ignited, adjust the flame by turning the control knob between "LOW" and "HIGH" settings. A stable blue flame is ideal.
4. Vaření: Place appropriate cookware on the pot supports over the lit burner.
5. Vypínání: When finished cooking, turn the burner control knob clockwise to the "OFF" position. Close the valve on the gas cylinder. Allow the cooker to cool completely before handling or storing.

Údržba

Regular cleaning and maintenance will prolong the life of your cooker and ensure safe operation.

• Čištění:
  • Ensure the cooker is completely cool and disconnected from the gas supply before cleaning.
  • Remove the pot supports and burner caps. Wash them with warm, soapy water. Rinse thoroughly and dry completely.
  • Wipe down the cooker body and stainless steel surfaces with a damp hadříkem a jemným čisticím prostředkem. Nepoužívejte abrazivní čisticí prostředky ani drátěnky.
  • Clean any food spills immediately to prevent stubborn stains.
• Skladování: Store the cooker in a dry, well-ventilated area, away from direct sunlight and extreme temperatures. Ensure it is clean and dry before storage.
• Inspekce: Periodically inspect the gas hose for cracks, cuts, or damage. Check all connections for tightness. If any damage is found, replace parts immediately with genuine Outwell components.

Odstraňování problémů

For issues not listed here, or if troubleshooting steps do not resolve the problem, please contact Outwell customer support.

Specifikace

• Název modelu: ANNATTO cooker 2 burners EN417
• Značka: Dobře
• Číslo dílu: 651158
• Rozměry (DxŠxV): 13.78" x 9.84" x 17.72" (35cm x 25cm x 45cm approx. when open/in use)
• Rozměry balení položky (DxŠxV): 17.24 cm x 9.13 cm x 2.68 cm
• Hmotnost balení: 1.44 kg
• Barva: Šedá
• Počet položek: 1
• Maximální energetický výstup: 2200 wattů
• Zdroj napájení: Gas (EN417 compatible)
• Materiál: (Specific material not detailed, generally metal construction)

Záruka a podpora

Outwell products are manufactured to high quality standards and are warranted against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official Outwell webmísto.

For technical support, spare parts, or warranty claims, please contact Outwell customer service. Contact information can typically be found on the Outwell webwebu nebo na účtence.

Webmísto: www.outwell.com (Please check for regional variations)
