Teka Gas Hob 640 KLN0E IX NAT Uživatelská příručka

1. Úvod

Thank you for choosing the Teka Natural Gas Hob 640 KLN0E IX NAT. This appliance is designed to provide efficient and safe cooking performance in your kitchen. This manual contains important information regarding the installation, operation, maintenance, and troubleshooting of your new gas hob. Please read it thoroughly before using the appliance and keep it for future reference.

Klíčové vlastnosti:

• Four High-Efficiency Burners: Includes one 1.00 kW auxiliary burner, two 1.75 kW semi-rapid burners, and one 3.00 kW rapid burner for versatile cooking.
• Ergonomic Side Knobs: Conveniently located controls for easy and precise flame adjustment.
• Enameled Cooking Grids: Durable and easy-to-clean grids allow for free movement of cookware across the hob surface.
• Integrated Dual Thermal Safety System: Automatically regulates temperature at high levels to prevent risks during cooking.
• Automatické zapalování: No need for matches or lighters; simply turn the knob to ignite the flame.
• High-Quality Stainless Steel Surface: Polished stainless steel construction ensures durability and easy cleaning.

2. Bezpečnostní informace

VAROVÁNÍ: Nesprávná instalace, seřízení, úprava, servis nebo údržba může způsobit poškození majetku, zranění nebo smrt. Před instalací nebo servisem tohoto zařízení si důkladně přečtěte pokyny pro instalaci, provoz a údržbu.

• Ensure proper ventilation in the kitchen area during operation.
• V blízkosti spotřebiče neskladujte hořlavé materiály.
• Keep children away from the hob during operation and when it is hot.
• Nikdy nenechávejte vaření bez dozoru.
• If you smell gas, immediately turn off the gas supply, open windows, and do not operate any electrical switches or appliances. Contact a qualified technician.
• Only use the appliance for its intended purpose of cooking food.

3. Instalace a nastavení

Installation of this gas hob must be carried out by a qualified and authorized technician in accordance with local regulations and standards.

Kontroly před instalací:

• Verify that the gas supply type (Natural Gas) matches the appliance's specifications.
• Ensure the installation area has adequate ventilation.
• Check the dimensions of the cutout in your countertop to ensure a proper fit.

Installation Steps (Summary for Qualified Technicians):

1. Prepare the countertop cutout according to the provided dimensions.
2. Connect the gas supply line to the appliance's inlet, ensuring all connections are secure and leak-free.
3. Place the hob into the cutout, ensuring it is level and securely seated.
4. Connect the electrical supply for the automatic ignition system.
5. Test all burners for proper ignition and flame stability.
6. Perform a gas leak test on all connections.

Figure 3.1: Technical drawing showing the dimensions of the Teka 4-Burner Natural Gas Hob for installation. (Dimensions in mm: 580 width, 500 depth, 38 height from countertop, cutout 553x473)

4. Návod k obsluze

Zapálení hořáku:

1. Ensure the burner caps and pan supports are correctly placed.
2. Push down and turn the corresponding control knob counter-clockwise to the maximum flame position (large flame symbol).
3. Hold the knob down for a few seconds until the flame ignites and stabilizes. The automatic ignition system will click during this process.
4. Once the flame is stable, release the knob. If the flame goes out, repeat the process.
5. Adjust the flame size by turning the knob between the maximum and minimum flame positions (small flame symbol).
6. To turn off the burner, turn the knob clockwise to the 'OFF' position (dot symbol).

Figure 4.1: The Teka 4-Burner Natural Gas Hob with burners ignited, illustrating the flame distribution and ergonomic side controls.

Obrázek 4.2: Režijní náklady view of the Teka 4-Burner Natural Gas Hob with flames, showing the burner layout and control panel for easy operation.

Použití nádobí:

• Use cookware with a flat, stable base that is appropriate for the burner size.
• Ensure the flame does not extend beyond the base of the pot or pan to prevent energy waste and potential damage to handles.
• The enameled cooking grids provide stability and allow you to move pots and pans easily.

5. Údržba a čištění

Pravidelné čištění a údržba zajistí dlouhou životnost a optimální výkon vaší plynové varné desky.

Denní úklid:

• Před čištěním nechte varnou desku zcela vychladnout.
• Wipe the stainless steel surface with a soft cloth and mild detergent. Avoid abrasive cleaners or scouring pads that can scratch the surface.
• Clean the enameled pan supports and burner caps with warm soapy water. They can be removed for easier cleaning.
• Ensure all parts are thoroughly dry before reassembling and using the hob.

Hloubkové čištění:

• For stubborn stains on the stainless steel, use a specialized stainless steel cleaner, following the product instructions.
• Periodically check the burner holes for any blockages and clean them gently with a small brush if necessary.

Obrázek 5.1: Detail view of a burner and the durable enameled grate, illustrating the components that require regular cleaning.

6. Řešení problémů

Než se obrátíte na zákaznický servis, prostudujte si prosím následující běžné problémy a jejich řešení:

7. Specifikace

8. Záruka a podpora

Teka products are manufactured with high-quality materials and undergo rigorous quality control. For warranty information and customer support, please refer to the warranty card included with your product or visit the official Teka webmísto.

Gas hobs are subject to Regulation (EU) 2016/426 of the European Parliament and of the Council of 9 March 2016 on appliances burning gaseous fuels. Teka Industrial SA accepts no liability for sales made by third parties in countries where the applicable technical and quality requirements are not met, and reserves the right to take appropriate legal action.

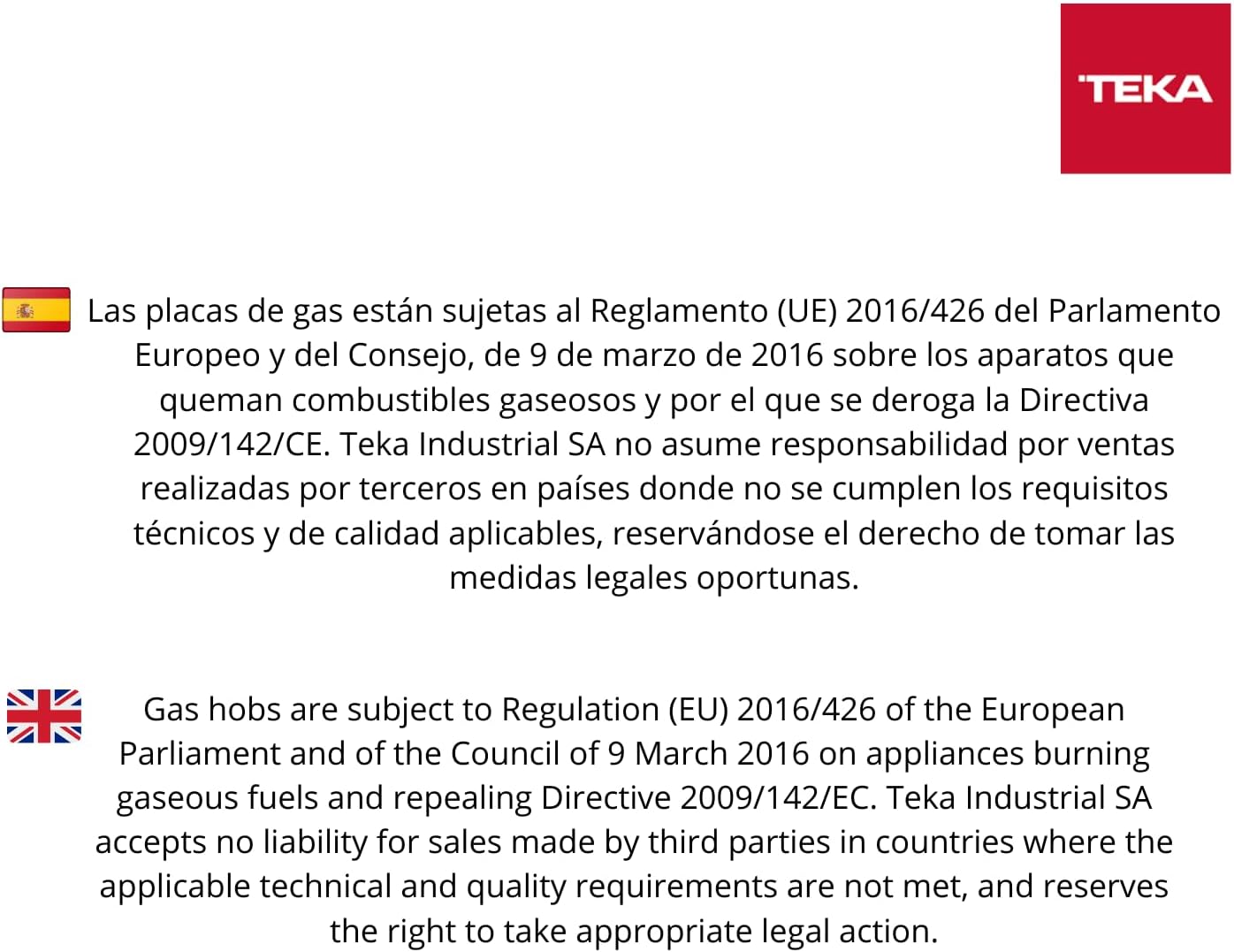

Figure 8.1: Regulatory compliance information for gas hobs, highlighting adherence to European Union standards.
