Discovery Spark 769 EQ Reflecting Telescope User Manual

1. Úvod

This manual provides instructions for the assembly, operation, and maintenance of your Discovery Spark 769 EQ Reflecting Telescope. Designed for beginners, this Newtonian reflector telescope is suitable for observing both deep-sky objects such as nebulae, star clusters, and distant galaxies, as well as celestial bodies within our solar system, including the Moon and planets.

For an enhanced understanding of astronomy, refer to the included book, "Space. Non-Empty Emptiness".

Obrázek 1: The Discovery Spark 769 EQ Reflecting Telescope fully assembled on its equatorial mount and tripod.

2. Obsah balení

Ověřte, zda jsou v balení přítomny všechny níže uvedené komponenty:

• Telescope optical tube
• SR 4mm eyepiece
• H 12.5mm eyepiece
• H 20mm eyepiece
• Optical finderscope 5x24
• 2x Barlowova čočka
• Equatorial mount EQ2
• Slow-motion control knobs (2)
• Protiváha
• Protizávaží tyč
• Trubkový kroužek
• Aluminum tripod with an accessory tray
• "Space. Non-Empty Emptiness" knowledge book (English Edition)
• Návod k použití a záruční list

Obrázek 2: Komplexní view of the telescope accessories, including eyepieces, Barlow lens, finderscope, and the astronomy book.

3. Nastavení

Pro sestavení dalekohledu postupujte podle těchto kroků:

1. Sestava stativu: Extend the legs of the aluminum tripod to a stable height. Secure the accessory tray to the center brace of the tripod.
2. Mounting the Equatorial Mount: Attach the EQ2 equatorial mount to the top of the tripod. Ensure it is securely fastened.
3. Upevnění protizávaží: Slide the counterweight onto the counterweight bar and secure the bar to the equatorial mount. Adjust its position later for balance.
4. Montáž optické trubice: Place the telescope optical tube into the tube ring and attach it to the equatorial mount. Ensure the tube is balanced.
5. Instalace Finderscope: Attach the 5x24 optical finderscope to its designated bracket on the optical tube.
6. Nasazení okulárů: Insert the desired eyepiece (e.g., H 20mm for initial setup) into the focuser. If using the Barlow lens, insert it first, then the eyepiece into the Barlow lens.

Obrázek 3: The telescope optical tube securely attached to the equatorial mount and tripod, ready for eyepiece insertion.

Obrázek 4: Detailní záběr view of the accessory tray, providing convenient storage for eyepieces and other small items during observation.

4. Návod k obsluze

Operating your Discovery Spark 769 EQ Telescope involves several key steps to ensure optimal viewing:

1. Zarovnání hledáčku: Before observing, align the finderscope with the main telescope. Point the main telescope at a distant, stationary object during daylight. Look through the finderscope and adjust its alignment screws until the object is centered in both the finderscope and the main telescope's eyepiece.
2. Výběr okuláru: Start with the lowest magnification eyepiece (e.g., H 20mm) for a wider field of view, making it easier to locate objects. Once an object is found, you can switch to higher magnification eyepieces (H 12.5mm, SR 4mm) or use the 2x Barlow lens for more detailed views.
3. Zaměření: Look through the eyepiece and slowly turn the focuser knob until the image appears sharp and clear.
4. Sledování nebeských objektů: The equatorial mount allows you to track celestial objects as they move across the sky due to Earth's rotation. Once an object is centered, use the slow-motion control knobs to make fine adjustments and keep the object in view.
5. Observing the Moon and Planets: Use various eyepieces to explore the Moon's craters and the visible features of planets.
6. Observing Deep-Sky Objects: For nebulae and galaxies, darker skies away from light pollution are recommended. Use lower magnification eyepieces to gather more light and observe these fainter objects.

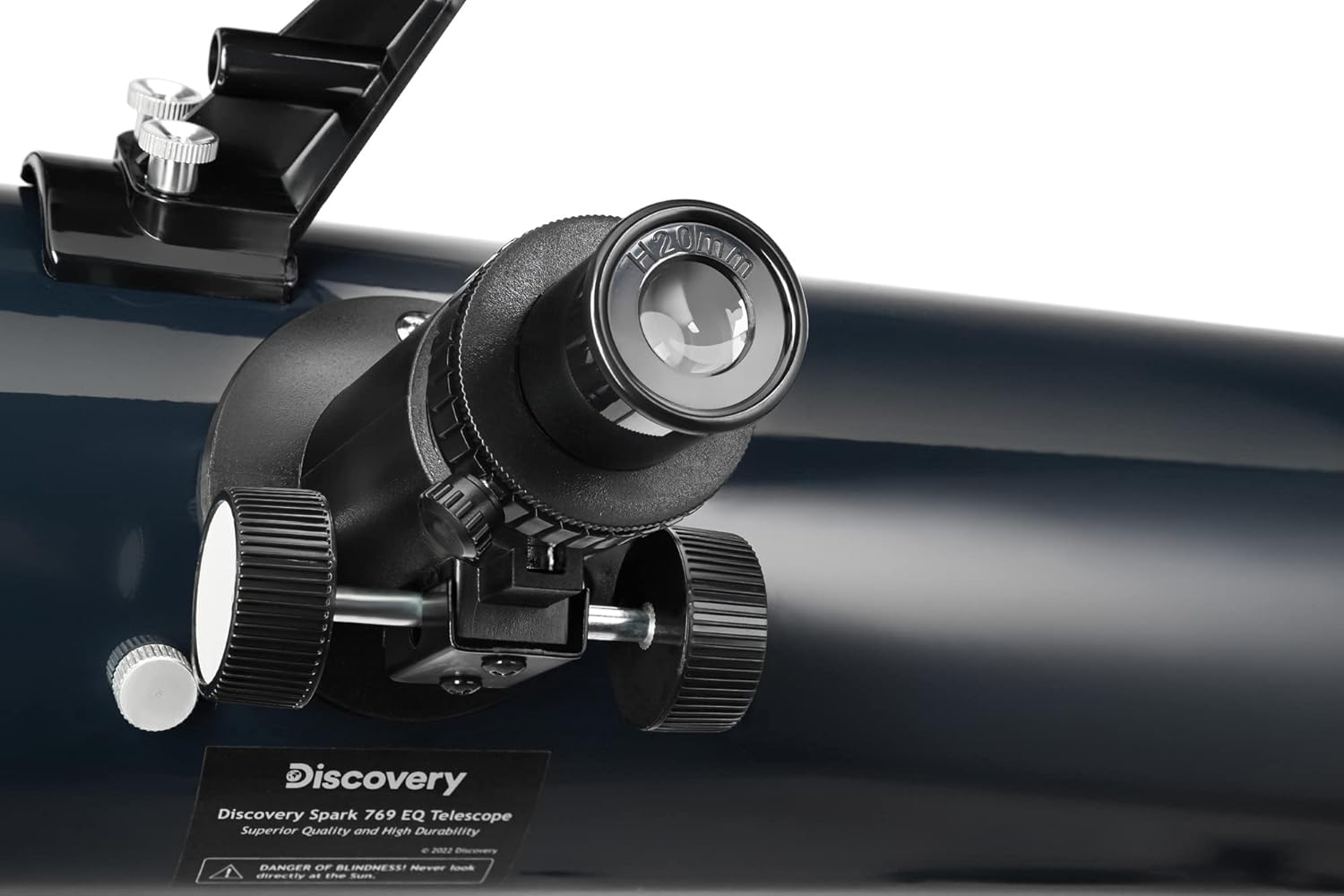

Obrázek 5: Detail of the focuser mechanism and an inserted eyepiece, used for adjusting image clarity.

Using the "Space. Non-Empty Emptiness" Book

The included knowledge book is an excellent resource for understanding astronomical concepts and identifying objects in the night sky. It provides illustrated information to guide your observations.

Obrázek 6: Bývalýample page from the "Space. Non-Empty Emptiness" book, showing its table of contents.

5. Údržba

Správná péče a údržba zajistí dlouhou životnost a výkon vašeho dalekohledu:

• Čištění optiky: Dust on the primary mirror or eyepieces should be removed with a soft brush or compressed air designed for optics. For smudges or fingerprints, use a specialized optical cleaning solution and a microfiber cloth. Avoid touching optical surfaces directly.
• Skladování: When not in use, store the telescope in a dry, dust-free environment. Cover the optical tube with its dust caps to protect the mirror and focuser.
• Zacházení: Always handle the telescope and its components with care to prevent damage. Avoid sudden impacts or dropping.
• Ochrana životního prostředí: Do not expose the telescope to extreme temperatures or humidity. Avoid observing in heavy rain or snow.

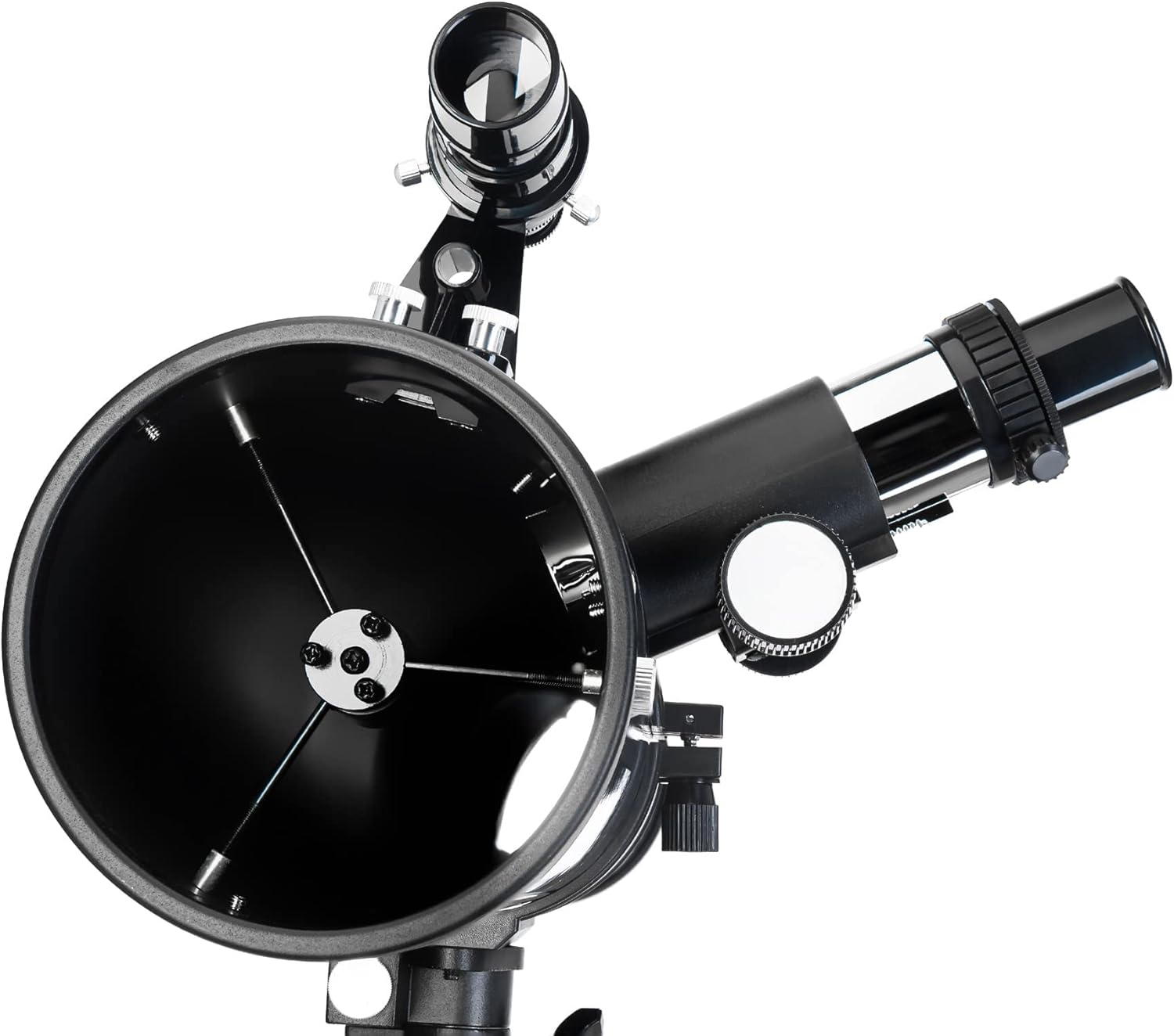

Obrázek 7: The front aperture of the telescope, revealing the primary mirror. Regular cleaning of this surface is crucial for clear images.

6. Řešení problémů

Pokud se během provozu setkáte s problémy, zvažte následující běžné problémy a jejich řešení:

• Rozmazané obrázky:
  • Pomalu otáčejte zaostřovacím knoflíkem, dokud nebude obraz ostrý.
  • Ensure the eyepiece is fully inserted and secured.
  • Check for condensation or dirt on the eyepiece or main mirror.
  • Verify that the finderscope is properly aligned.
• Obtížnost s hledáním objektů:
  • Ensure the finderscope is accurately aligned with the main telescope.
  • Start with the lowest magnification eyepiece (H 20mm) for a wider field of view.
  • Practice locating bright objects like the Moon or bright stars first.
• Nestabilní View:
  • Ensure the tripod legs are fully extended and locked, and the telescope is on a stable, level surface.
  • Tighten all knobs and screws on the mount and tripod.
  • Balance the optical tube with the counterweight on the equatorial mount.
• Není viditelný žádný obrázek:
  • Remove all lens caps from the front of the telescope and the eyepiece.
  • Ensure an eyepiece is inserted into the focuser.
  • Check if the finderscope is aligned and you are looking through the correct end of the eyepiece.

7. Specifikace

8. Záruka a podpora

The Discovery Spark 769 EQ Telescope comes with a 10letá záruka výrobce, ensuring long-term reliability and support for your product.

For technical assistance, warranty claims, or any questions regarding your telescope, please refer to the contact information provided on your warranty card or visit the official Discovery product support webmísto.
