Důležité bezpečnostní informace
Před montáží a použitím si pečlivě přečtěte všechny pokyny. Uschovejte si tento návod pro budoucí použití.
- Nosnost: Nepřekračujte maximální nosnost 700 liber. Exceeding this limit may cause damage to the frame and potential injury.
- Shromáždění: Adult assembly is required. Ensure all parts are correctly installed and tightened before use.
- Pohyblivé části: Be cautious of sharp edges and moving parts during assembly and operation. Keep hands and feet clear of moving mechanisms.
- Děti a domácí mazlíčci: Keep children and pets away from the adjustable bed frame during operation to prevent injury.
- Napájecí kabel: Ensure the power cord is not pinched or damaged. Do not operate the bed frame with a damaged cord or plug.
- Kompatibilita s matracemi: This frame is designed for use with 10-14 inch thick memory foam or hybrid mattresses. Using incompatible mattresses may affect performance.
Konec produktuview
The SunsGrove Twin XL Adjustable Bed Frame provides customizable comfort with independent head and foot incline, a wired remote control, and adjustable leg height options. It is constructed from sturdy steel for durability and features quiet dual motors.
Figure 1: SunsGrove Twin XL Adjustable Bed Frame in its fully extended and inclined positions.
Klíčové vlastnosti:
- Independent Head and Foot Incline: Head adjusts from 0 to 64 degrees, foot adjusts from 0 to 35 degrees.
- Kabelové dálkové ovládání: Easy to use and always accessible.
- Adjustable Leg Height: Two height options (7 inches or 12 inches) for customized bed height.
- Odolná konstrukce: Sturdy steel frame with a black finish, reinforced with metal screws.
- Reliable Dual Motors: ETL certified, quiet, and designed for long-term durability (20,000 fatigue tests).
- Mattress Retainer Bar: Keeps the mattress securely in place.
Nastavení a montáž
The SunsGrove adjustable bed frame is designed for easy assembly and comes smartly packaged in one carton. Assembly typically takes about 30 minutes.
Než začnete:
- Unpack all components and verify against the parts list (not provided in this manual, refer to included physical manual).
- Ensure you have enough clear space for assembly.
- Have a second person available for assistance, if needed, especially when lifting or positioning the frame.
Montážní kroky:
- Rozložte rám: Carefully unfold the bed frame sections. The frame is composed of two main sections.
- Připevněte nohy: Screw the adjustable legs into the designated points on the frame. You can choose between 7-inch or 12-inch height options by adjusting the leg sections.

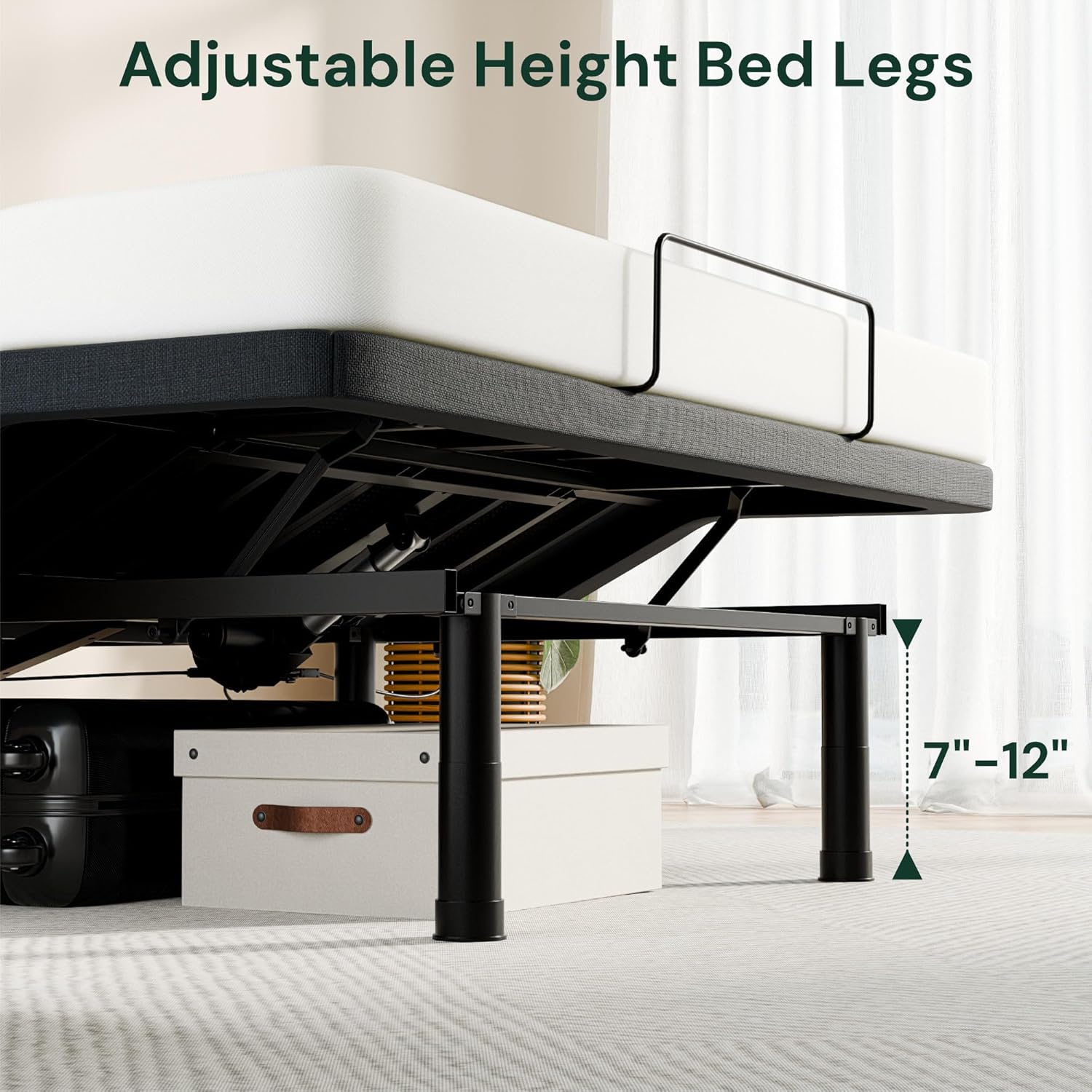

Figure 2: Adjustable leg height options (7" or 12").
- Connect the Motors and Wiring: Connect the motor cables to the control box and the control box to the power adapter. Ensure all connections are secure.
- Instalace záchytné tyče matrace: Attach the mattress retainer bar bracket at the foot of the bed frame. This bar prevents the mattress from sliding off when the bed is inclined.
- Místo matrace: Carefully place your compatible memory foam or hybrid mattress (10-14 inches thick) onto the assembled frame.
- Připojení k napájení: Zapojte napájecí adaptér do uzemněné elektrické zásuvky.
Each part is numbered, and a clear manual is included in the carton for detailed step-by-step instructions.
Návod k obsluze
The adjustable bed frame is operated using the wired remote control.
Wired Remote Control Functions:
Figure 3: Wired remote control layout and maximum incline angles.
- Ovládání hlavy: Use the dedicated buttons to raise or lower the head section of the bed. The head incline ranges from 0 to 64 degrees.
- Ovládání nohou: Use the dedicated buttons to raise or lower the foot section of the bed. The foot incline ranges from 0 to 35 degrees.
- Head and Foot Control: Some buttons may allow simultaneous adjustment of both head and foot sections.
- Plochá poloha: A dedicated button may be available to return the bed to a completely flat position.
The wired remote is designed to be easily accessible and can be hung over the edge of the bed.
Údržba a péče
Proper maintenance ensures the longevity and optimal performance of your SunsGrove adjustable bed frame.
- Čištění: Otřete kovový rám reklamouamp cloth and mild detergent. Avoid abrasive cleaners or solvents. Ensure the frame is dry before use.
- Péče o motor: The motors are designed to be maintenance-free. Do not attempt to open or lubricate the motor housing.
Figure 4: The ETL certified dual motors are designed for durability and quiet operation.
- Správa kabelů: Periodically check all cables and connections to ensure they are secure and not pinched or frayed.
- Rozložení hmotnosti: Distribute weight evenly across the bed frame. Avoid concentrating heavy loads on small areas.
- Přemístění: If moving the bed frame, ensure it is in a flat position and unplugged. Lift the frame carefully, avoiding dragging, to prevent damage to legs or motors.
Odstraňování problémů
If you encounter issues with your adjustable bed frame, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Bed frame does not operate. | Žádné napájení. Volné připojení kabelu. Remote control issue. | Ujistěte se, že je napájecí kabel bezpečně zapojen do funkční zásuvky. Check all motor and control box connections. Verify the remote control is functioning (if applicable, check batteries for wireless remotes, though this model is wired). |
| Motor vydává neobvyklý zvuk. | Obstruction under the bed. Uvolněné součásti. | Check for any objects obstructing the motor or moving parts. Inspect the frame for any loose screws or bolts and tighten them. |
| Bed frame moves slowly or unevenly. | Přetížení. Nerovnoměrné rozložení hmotnosti. | Ensure the total weight on the bed does not exceed 700 lbs. Redistribute weight evenly on the mattress. |
| Mattress slides off the frame. | Mattress retainer bar not installed or loose. Incompatible mattress. | Ensure the mattress retainer bar is securely installed at the foot of the bed. Verify your mattress is 10-14 inches thick and compatible with adjustable bases. |
If the problem persists after attempting these solutions, please contact SunsGrove customer support.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | ABB-WIRED-2302 |
| Velikost | Twin XL |
| Rozměry produktu (D x Š x V) | 78.9" x 37" x 14.17" (200 cm x 94 cm x 36 cm) Figure 5: Detailed dimensions of the Twin XL adjustable bed frame. |
| Nastavitelná výška nohou | 7 palce nebo 12 palce |
| Maximální nosnost | 700 liber |
| Head Incline Range | 0 až 64 stupňů |
| Foot Incline Range | 0 až 35 stupňů |
| Typ motoru | Dual, Quiet, ETL Certified |
| Typ ovládání | Kabelové dálkové ovládání |
| Materiál rámu | Sturdy Steel, Black Finish |
| Kompatibilní tloušťka matrace | 10-14 inches (Memory Foam or Hybrid) |
| Doba montáže (přibližně) | 30 minut |
| Hmotnost položky | 74.9 libry |
Záruka a podpora
SunsGrove stands behind the quality of its products. For specific warranty details, please refer to the warranty card included with your product or visit the official SunsGrove webmísto.
Zákaznická podpora:
If you have any questions, require assistance with assembly, or need troubleshooting support, please contact SunsGrove customer service:
- Webmísto: Visit the SunsGrove Store on Amazon
- E-mail: Refer to your product packaging or included documentation for direct email support.
- Telefon: Refer to your product packaging or included documentation for phone support.
Please have your model number (ABB-WIRED-2302) and purchase information ready when contacting support.
