Aktivní PA reproduktor PRORECK SP-15 a Stage Uživatelská příručka k monitoru

Zavedení

Thank you for choosing the PRORECK SP-15 15-inch 1400W P.M.P.O Stereo Powered Stage Monitor and PA Speaker. This versatile audio system is designed to deliver powerful and clear sound for a wide range of applications, including churches, weddings, conferences, ballrooms, and live performances. Featuring a built-in Digital Signal Processor (DSP), Bluetooth 5.0 connectivity, and multiple input channels, the SP-15 offers exceptional flexibility and control over your audio. Please read this manual thoroughly before operating the unit to ensure proper use and to maximize its performance and longevity.

Bezpečnostní informace

Vždy dodržujte následující bezpečnostní opatření, abyste předešli úrazu elektrickým proudem, požáru nebo zranění:

• Zdroj napájení: Připojte jednotku pouze k uvedenému zdroji napájení.tage. Ensure the power cord is not damaged or pinched.
• Větrání: Neblokujte větrací otvory. Zajistěte dostatečné proudění vzduchu kolem reproduktoru, abyste zabránili přehřátí.
• Voda a vlhkost: Nevystavujte jednotku dešti ani vlhkosti. Nepokládejte na jednotku předměty naplněné tekutinami, například vázy.
• Zdroje tepla: Udržujte jednotku mimo dosah zdrojů tepla, jako jsou radiátory, topná tělesa, sporáky nebo jiná zařízení (včetně amplifikátory), které produkují teplo.
• Čištění: Před čištěním odpojte přístroj ze zásuvky. Používejte pouze suchý hadřík.
• Servis: Nepokoušejte se tento výrobek opravovat sami. Veškerý servis svěřte kvalifikovanému servisnímu personálu. Servis je nutný, pokud je zařízení jakkoli poškozeno, například je poškozen napájecí kabel nebo zástrčka, do zařízení se dostala tekutina nebo do něj spadly nějaké předměty, zařízení bylo vystaveno dešti nebo vlhkosti, nefunguje normálně nebo upadlo.
• Umístění: Place the speaker on a stable, flat surface or a suitable speaker stand. Avoid placing it in unstable positions where it could fall and cause injury or damage.

Obsah balení

Zkontrolujte prosím, zda jsou v balení přítomny všechny položky:

• PRORECK SP-15 Powered PA Speaker
• Power Cord (5-inch, 3-prong)
• Uživatelská příručka (tento dokument)

Konec produktuview

Přední a boční View

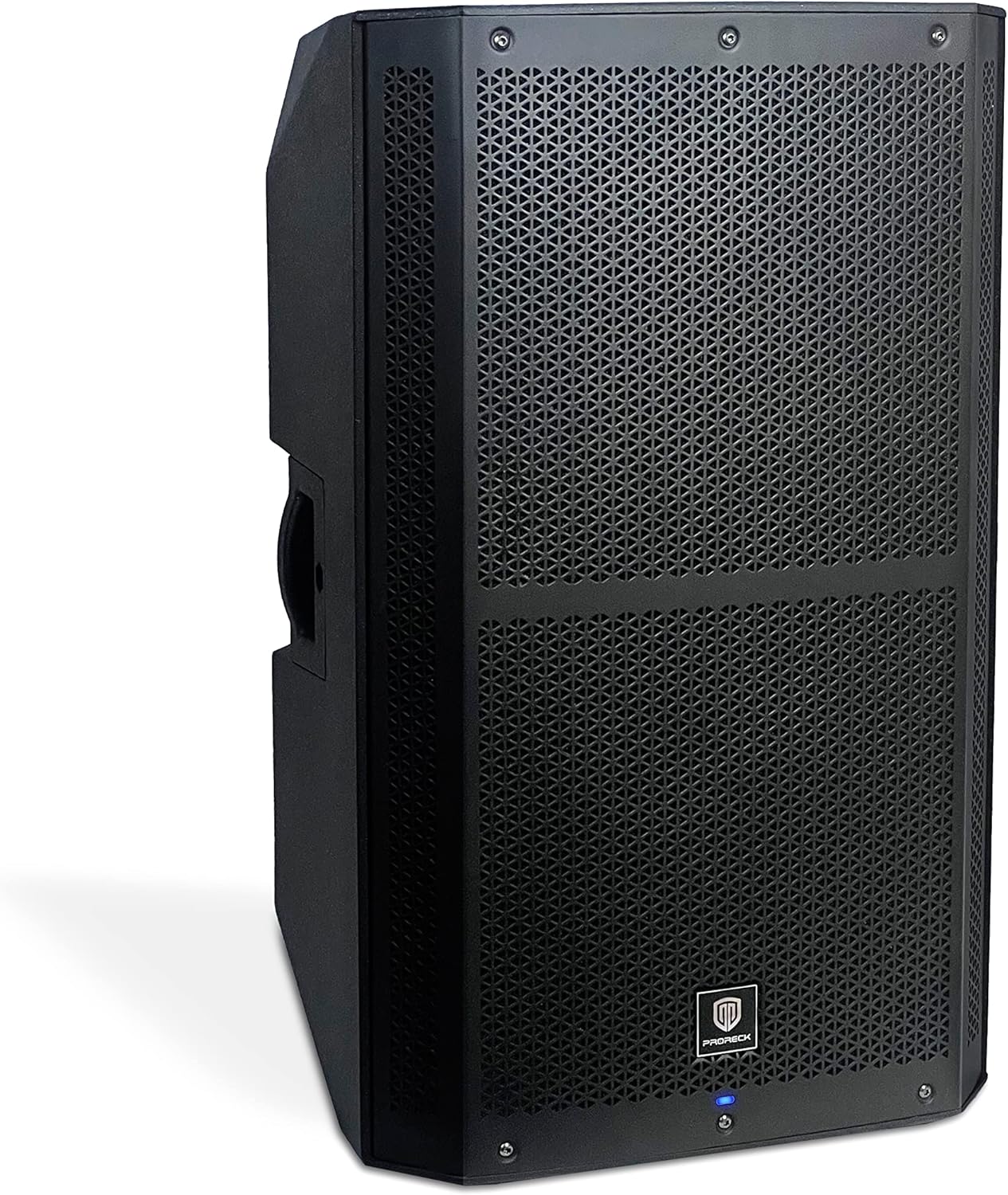

Obrázek 1: Přední a boční view of the PRORECK SP-15 speaker, showcasing its robust polypropylene enclosure and front grille.

Obrázek 2: Strana view of the PRORECK SP-15, highlighting the integrated handle for easy transport.

The PRORECK SP-15 features a durable polypropylene construction designed to reduce resonance and enhance sound quality. It includes an integrated handle for convenient portability. The front grille protects the 15-inch woofer and 1.75-inch horn coil, which are engineered for powerful and clear audio output.

Figure 3: Illustration of the 15-inch woofer with 3-inch voice coil and 1.75-inch horn coil for enhanced sound.

Rear Panel and Controls (4-Channel Mixer)

Obrázek 4: Detailní view of the PRORECK SP-15's rear panel, showing the 4-channel mixer and DSP controls.

Figure 5: Full rear panel view, including power input and switch.

The rear panel houses all the essential inputs, outputs, and controls for the SP-15. It features a comprehensive 4-channel mixer with a built-in Digital Signal Processor (DSP) for precise audio adjustments.

1. DSP USB SET: USB port for DSP settings and updates.
2. Bluetooth Switch Button: Aktivuje/deaktivuje režim párování Bluetooth.
3. Stereo RCA Input: For connecting devices with RCA outputs.
4. XLR Mix Output: For connecting to another speaker or mixer.
5. Obrazovka LED displeje: Shows DSP menu, levels, and settings.
6. Function Selection Knob (DSP CONTROL): Navigates and selects options within the DSP menu.
7. 1/4"/XLR Combo Aux/Line Input: Versatile input for auxiliary or line-level signals.
8. 1/4"/XLR Combo Mic/Line Input: Versatile input for microphone or line-level signals.
9. Line/Mic Switch button: Toggles input sensitivity between line and microphone levels for the combo inputs.
10. Ovladač zisku: Adjusts the input gain for connected devices.

Nastavení

Počáteční umístění

The PRORECK SP-15 can function as both a traditional PA speaker and a stage monitor. Its design allows for flexible placement:

• PA Speaker Mode: For general sound reinforcement, place the speaker upright on a flat, stable surface or mount it on a compatible speaker stand.
• Stage Monitor Mode: For use as a floor monitor, position the speaker on its side, utilizing its angled design to direct sound towards the performer.

Figure 6: The PRORECK SP-15 configured as a PA speaker (left) and a stage monitor (right).

Připojení napájení

1. Ujistěte se, že je vypínač na zadním panelu v poloze „VYPNUTO“.
2. Connect the provided 3-prong power cord to the AC inlet on the rear panel of the speaker.
3. Zapojte druhý konec napájecího kabelu do uzemněné elektrické zásuvky.

Připojení audio zdrojů

The SP-15 offers multiple input options:

• Microphones/Line-level Instruments: Use the 1/4"/XLR Combo Mic/Line Input (8). Ensure the Line/Mic Switch button (9) is set appropriately for your source.
• Auxiliary/Line-level Devices: Use the 1/4"/XLR Combo Aux/Line Input (7).
• RCA Devices: Connect devices like CD players or DJ mixers to the Stereo RCA Input (3).
• Zařízení Bluetooth: For wireless audio streaming, refer to the "Bluetooth Pairing" section under Operating Instructions.

After connecting your sources, you can use the XLR Mix Output (4) to link the SP-15 to another powered speaker or a main mixer, expanding your sound system.

Návod k obsluze

Zapnutí/vypnutí

1. Before powering on, ensure all gain control knobs are turned down to their minimum setting.
2. Flip the power switch on the rear panel to the "ON" position. The LED display screen (5) will illuminate.
3. Slowly increase the Gain Control Knob (10) for your active input to the desired listening level.
4. To power off, turn down all gain controls, then flip the power switch to the "OFF" position.

Using the DSP Processor

The built-in Digital Signal Processor (DSP) allows for advanced sound customization:

1. Press the Function Selection Knob (DSP CONTROL) (6) to enter the DSP menu on the LED Display Screen (5).
2. Rotate the knob to navigate through the menu options (e.g., EQ settings, crossover, delay, presets).
3. Press the knob again to select an option.
4. Rotate the knob to adjust the selected parameter.
5. Press the knob to confirm the setting or exit the sub-menu.
6. The DSP allows you to set up your speaker with personal sound styles, optimizing it for different environments or audio content.

Párování pomocí Bluetooth

The SP-15 features Bluetooth 5.0 for wireless audio streaming:

1. Press the Bluetooth Switch Button (2) on the rear panel. The LED display will indicate Bluetooth pairing mode (e.g., "BT Pairing").
2. On your Bluetooth-enabled device (e.g., smartphone, tablet), go to its Bluetooth settings and search for available devices.
3. Select "PRORECK SP-15" from the list.
4. Once connected, the LED display will confirm the successful pairing.
5. You can now stream audio wirelessly from your device to the SP-15.

Figure 7: Illustrates Bluetooth connectivity between a smartphone and the PRORECK SP-15 speaker.

Using as PA Speaker or Stage Monitor

The SP-15 is designed for dual functionality:

• PA Speaker: Ideální pro amplifying sound to a large audience. Position upright on a stand or flat surface.
• Stage Monitor: Perfect for musicians to hear themselves on stage. Position on its side with the angled design facing the performer.

The 1400W peak power and 3-inch voice coil ensure penetrating sound, capable of accommodating up to 100 persons in a typical setting.

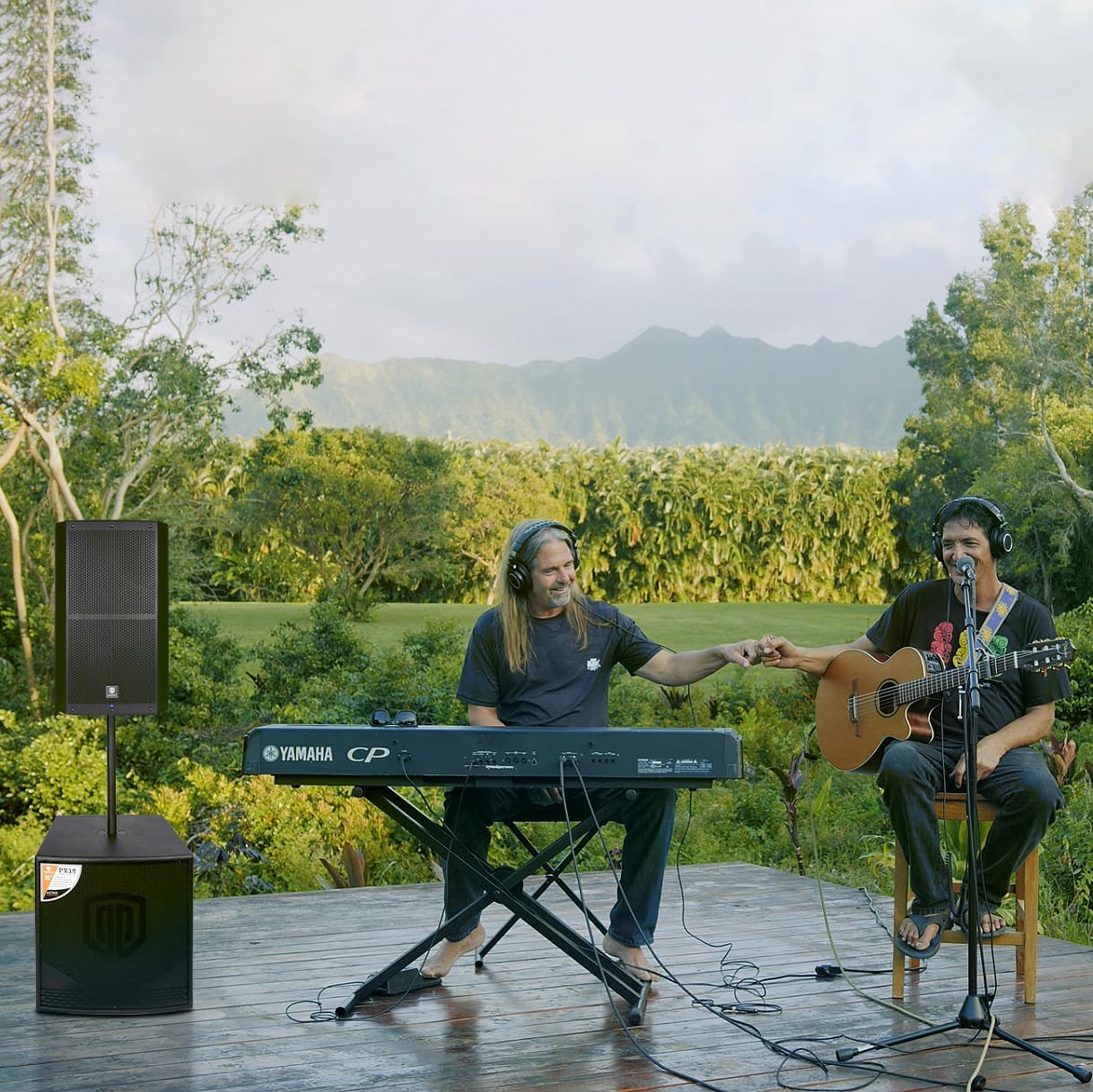

Figure 8: The PRORECK SP-15 being used in an outdoor musical performance, demonstrating its versatility.

Údržba

• Čištění: Always unplug the speaker before cleaning. Use a soft, dry cloth to wipe down the exterior. Do not use abrasive cleaners, waxes, or solvents.
• Skladování: If storing the speaker for an extended period, keep it in a cool, dry place, away from direct sunlight and extreme temperatures.
• Větrání: Regularly check that the ventilation openings are clear of dust and debris to ensure proper heat dissipation.
• Kabely: Inspect power and audio cables periodically for any signs of wear or damage. Replace damaged cables immediately.

Odstraňování problémů

Specifikace

Figure 9: Dimensions of the PRORECK SP-15 speaker (15 inch / 380mm width, 16.5 inch / 420mm depth, 27 inch / 690mm height).

Záruka a podpora

The PRORECK SP-15 comes with a limited warranty. For specific details regarding warranty coverage, duration, and terms, please refer to the warranty card included with your product or visit the official PRORECK website. For technical support, troubleshooting assistance beyond this manual, or service inquiries, please contact PRORECK customer service through their official channels. You can often find contact information on the PRORECK webmístě nebo na obalu produktu.
