Zavedení
Welcome to the instruction manual for your new METAL-TIME Quarry Transporter model kit. This manual provides detailed instructions for assembly, operation, and maintenance of your model. Please read it carefully before beginning assembly.
Značka: METAL-TIME
Model: Quarry Transporter (MT014)
Bezpečnostní informace
WARNING: This product contains small and/or sharp parts. Not suitable for children under 3 years of age. In order to avoid possible injury from sharp edges, please carefully discard the metal sheet parts after assembly. This product is not a toy. Keep out of reach of children.
- Always handle metal parts with care to avoid cuts.
- Udržujte malé části mimo dosah malých dětí, abyste předešli nebezpečí udušení.
- Ensure a clean and well-lit workspace.
- Do not force parts together; if they do not fit, re-check the instructions.
Image: The back of the Quarry Transporter kit box, displaying important safety warnings regarding small and sharp parts, age recommendations, and product specifications.
Co je zahrnuto
Your METAL-TIME Quarry Transporter kit includes the following components:
- 71 individual stainless steel parts
- Spring-loaded winding mechanism
- Toolbox (containing necessary assembly tools like pliers, file, gloves)
- Instruction booklet (available in 14 languages)
Image: The complete METAL-TIME Quarry Transporter kit, showing the packaging, unassembled metal sheets, assembly tools (pliers, file), and the fully assembled model.
Nastavení a montáž
Follow these steps to assemble your Quarry Transporter model. Refer to the included instruction booklet for detailed diagrams and specific part identification.
- Připravte pracovní prostor: Clear a flat, well-lit surface. Ensure all parts are accessible.
- Identifikujte díly: Carefully detach all 71 individual stainless steel parts from their sheets. Use the provided file pro vyhlazení případných drsných hran.
- Initial Frame Assembly: Begin by assembling the main chassis components. Pay close attention to the interlocking tabs and slots.
- Sestava kola: Construct the large, detailed wheels. Ensure they can rotate freely once attached to the axles.
- Cabin and Ladder: Assemble the driver's cabin and the access ladder. These parts require precise bending and fitting.
- Dump Bed Assembly: Construct the large dump bed. This section will be designed to alternate positions.
- Winding Mechanism Integration: Install the spring-loaded winding mechanism into the designated area of the chassis. Ensure it is securely fastened and functions correctly.
- Konečná připojení: Attach the dump bed to the chassis, ensuring the lifting mechanism operates smoothly. Connect all remaining detail parts.
Obrázek: A view of the partially assembled Quarry Transporter, highlighting the intricate metalwork of the chassis and the large, detailed wheels.
Obrázek: Vedlejší profesionálfile of the Quarry Transporter model, emphasizing the driver's cabin, the detailed access ladder, and the robust wheel design.
Image: A rear perspective of the Quarry Transporter model, illustrating the substantial dump bed and the intricate design of the rear wheels.
For a visual guide to assembly, please refer to the official METAL-TIME assembly video:
No official seller-created assembly video is available in the provided data.
Obsluha modelu
The METAL-TIME Quarry Transporter features a spring-loaded winding mechanism for movement and a functional dump bed.
- Navíjecí mechanismus: To activate the movement, gently wind the spring mechanism located on the side of the model. Do not overwind.
- Dump Bed Operation: The dump bed can be manually adjusted from a horizontal (transport) position to a vertical (dumping) position. Carefully lift the front of the dump bed to raise it.
- Rotating Wheels: The wheels are designed to rotate, allowing the model to move when the winding mechanism is engaged.
Image: The Quarry Transporter model with its large dump bed fully raised, demonstrating its functional capability.
Image: A low-angle view of the Quarry Transporter, showcasing the intricate details of the undercarriage, suspension, and the robust design of the wheels.

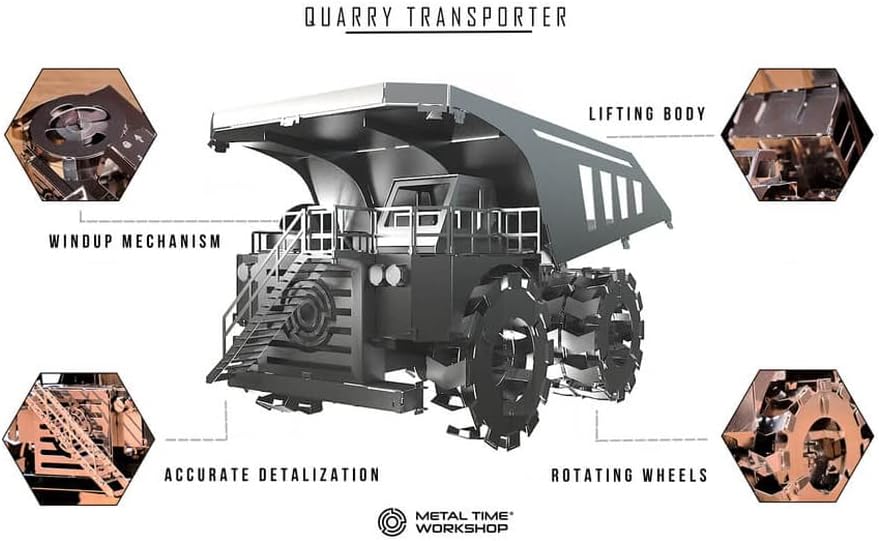

Image: A diagram highlighting key features of the METAL-TIME Quarry Transporter model, including its windup mechanism, lifting body, accurate detailing, and rotating wheels.
Údržba
To ensure the longevity and appearance of your METAL-TIME Quarry Transporter model, follow these maintenance guidelines:
- Čištění: Use a soft, dry cloth to gently wipe dust from the model. Avoid abrasive cleaners or harsh chemicals, as they may damage the stainless steel finish.
- Skladování: Store the model in a dry environment, away from direct sunlight and extreme temperatures, to prevent discoloration or material degradation.
- Pohyblivé části: Periodically check the winding mechanism and rotating wheels for smooth operation. If any part becomes stiff, ensure no dust or debris is obstructing its movement. Do not apply lubricants unless specifically recommended by the manufacturer.
- Zacházení: Handle the model by its main body. Avoid applying excessive force to delicate parts like ladders or railings.
Odstraňování problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Model does not move after winding. | Mechanism not fully wound, obstruction in gears, or spring issue. | Ensure the mechanism is fully wound. Check for any visible obstructions. If the issue persists, contact support. |
| Dump bed is stiff or does not move smoothly. | Misalignment during assembly, or debris in the pivot points. | Gently check the pivot points for debris. Review assembly instructions for correct alignment. |
| Po montáži se díly zdají být uvolněné. | Tabs not fully secured, or incorrect bending. | Carefully re-examine the connections and ensure all tabs are securely interlocked. |
Specifikace
- Název modelu: Quarry Transporter
- Číslo modelu: MT014
- Značka: METAL-TIME
- Materiál: Nerez
- Počet dílů: 71
- Rozměry po sestavení (D x Š x V): 7.87 x 3.94 x 3.94 palce (20 x 10 x 10 cm)
- Hmotnost položky: 15.8 unce (448 gramů)
- Doporučený věk: 14 let a více
- Speciální vlastnosti: Spring-loaded winding mechanism, functional lifting dump bed, rotating wheels.

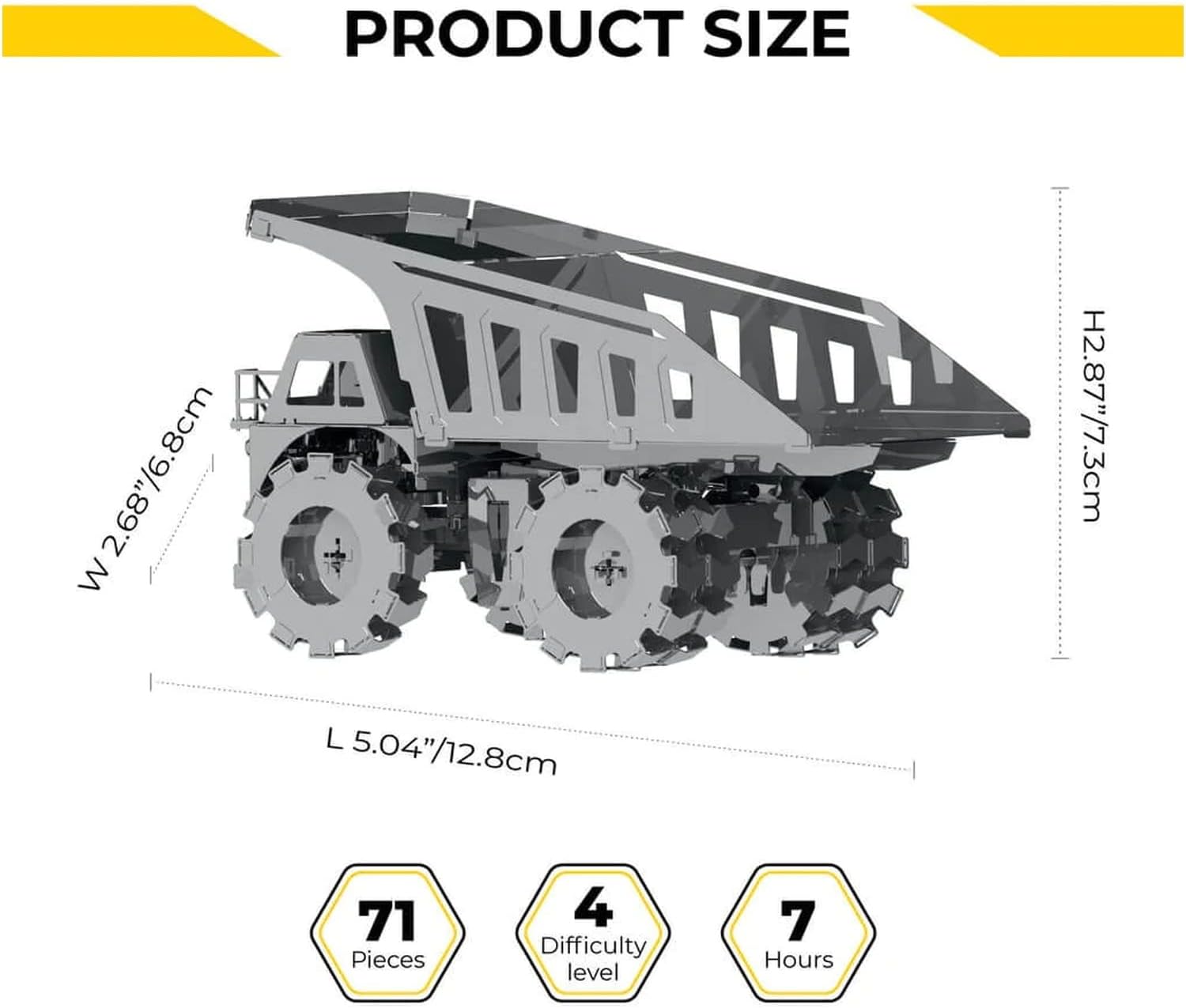

Image: A diagram illustrating the length, width, and height of the assembled Quarry Transporter model, along with the number of pieces, difficulty level, and estimated assembly time.
Záruka a podpora
For information regarding warranty, replacement parts, or technical support, please visit the official METAL-TIME webwebu nebo se přímo obraťte na jejich zákaznický servis.
Oficiální Webmísto: metal-time.com
Výrobce: METAL-TIME
Kontaktní údaje: Obraťte se na úředníka webstránky s nejaktuálnějšími kontaktními údaji.
