Uživatelská příručka k digitálnímu mikroskopu TOMLOV DM209

1. Úvod

This manual provides detailed instructions for the setup, operation, and maintenance of your TOMLOV DM209 Digital Microscope. This device is designed for detailed observation and analysis, featuring a 7-inch IPS display, 2K HDMI output, and a 26MP Sony CMOS sensor, offering up to 1200x magnification. Please read this manual thoroughly before using the microscope to ensure proper function and longevity.

2. Bezpečnostní informace

• Ujistěte se, že je mikroskop umístěn na stabilním a rovném povrchu, aby se zabránilo jeho převrácení.
• Nevystavujte zařízení extrémním teplotám, vlhkosti nebo přímému slunečnímu záření.
• Keep the microscope away from water and other liquids.
• Používejte pouze dodaný napájecí adaptér.
• Avoid touching the lens directly with your fingers. Use a soft, lint-free cloth for cleaning.
• Do not attempt to disassemble or repair the microscope yourself. Contact customer support for assistance.

3. Obsah balení

Ověřte, zda jsou v balení přítomny všechny položky:

• TOMLOV DM209 Digital Microscope Unit
• Nastavitelný stojan
• Dálkové ovládání
• USB kabel
• HDMI kabel
• Napájecí adaptér
• Kalibrační pravítko
• Uživatelská příručka (tento dokument)
• 32GB MicroSD karta (předinstalovaná nebo dodávaná samostatně)

4. Konec produktuview

The TOMLOV DM209 Digital Microscope consists of a main microscope unit with an integrated 7-inch IPS display, a sturdy metal stand, and a base with adjustable LED lights. Key components include the focus wheel, magnification adjustment, lens, and various ports for connectivity.

Figure 4.1: Fully assembled TOMLOV DM209 Digital Microscope with its stand and adjustable lights.

5. Nastavení

1. Sestavte stojan: Attach the microscope unit to the adjustable stand. Ensure all screws are tightened securely.
2. Připojte napájení: Plug the power adapter into the microscope's DC input port and then into a power outlet.
3. Vložte MicroSD kartu: If not already inserted, gently push the 32GB MicroSD card into the designated slot until it clicks.
4. Umístění: Place the object to be observed on the base plate. Adjust the height of the microscope unit using the stand's adjustment knob to get a preliminary focus.

6. Návod k obsluze

6.1 Zapnutí/vypnutí

Press and hold the power button on the microscope unit for a few seconds to turn it on. Repeat the action to turn it off.

6.2 Nastavení zvětšení a zaostření

Rotate the focus wheel on the side of the microscope unit to achieve a clear image. The DM209 offers a magnification range from 2X to 1200X. Adjust the distance between the lens and the object for optimal magnification and clarity.

Figure 6.1: Illustration of the microscope's 2X-1200X zoom capability, showing magnified views of a fabric texture and a coin.

6.3 Using the 7-inch IPS Monitor

The integrated 7-inch IPS monitor provides a clear and wide viewing angle for direct observation. Use the buttons below the screen to navigate menus and adjust settings.

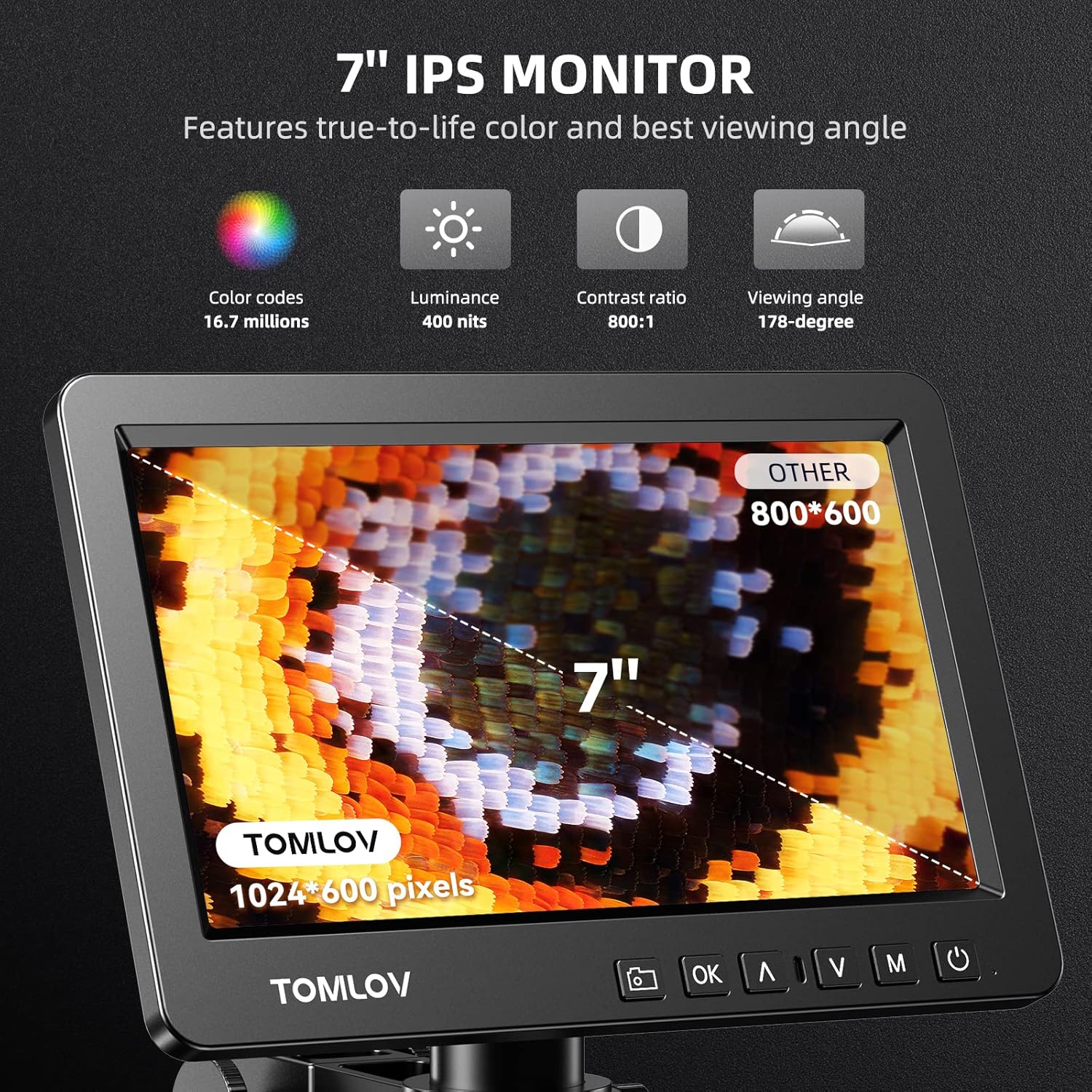

Figure 6.2: Close-up of the 7-inch IPS monitor displaying a magnified butterfly wing, highlighting its color, luminance, contrast, and viewing angle specifications.

6.4 Funkce dálkového ovládání

The included remote control allows for convenient operation without touching the microscope, reducing vibrations. Functions include digital zoom, image flip, taking pictures/videos, and freezing the screen.

Figure 6.3: A hand holding the remote control for the microscope, with icons for digital zoom, image flip, capture, and freeze screen functions.

6.5 HDMI Output to External Display

Connect the microscope to a larger monitor or TV using the provided HDMI cable for a wider view and collaborative observation. Ensure both devices are powered off before connecting the HDMI cable, then power them on.

Figure 6.4: Microscope connected to an external monitor via HDMI, displaying a magnified circuit board.

6.6 USB Output for PC View

For advanced analysis and larger screen viewing on a computer, connect the microscope to your PC using the USB cable. The microscope is compatible with Windows operating systems. Install any necessary drivers or software as prompted by your computer.

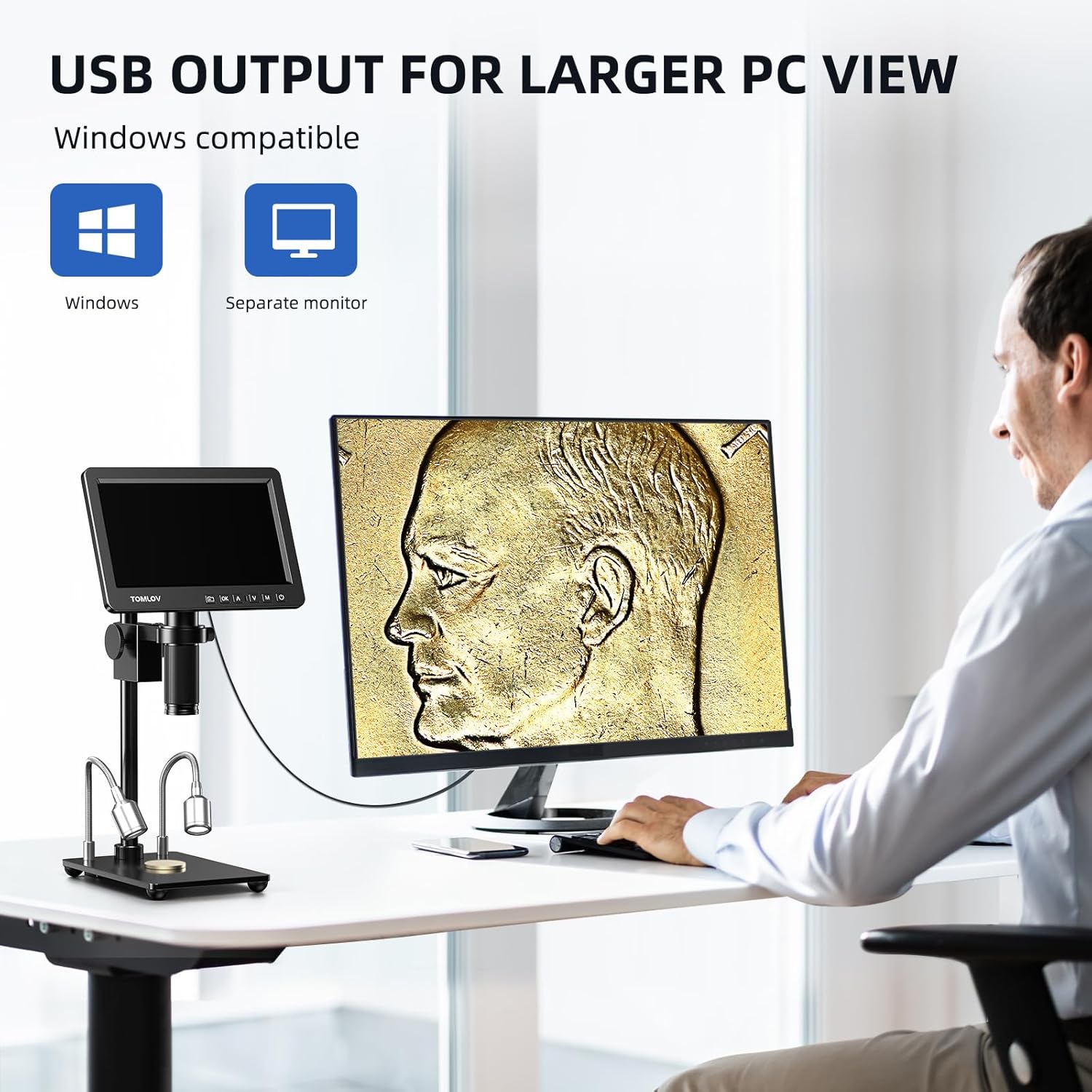

Obrázek 6.5: Uživatel viewing the microscope's output on a larger PC monitor via USB connection, demonstrating Windows compatibility.

6.7 Pořizování obrázků a videí

Use the dedicated capture button on the microscope unit or the remote control to take still images or record videos. Files are saved directly to the inserted MicroSD card.

6.8 Trinocular Compatibility

The DM209 features C-mount compatibility, allowing it to be integrated into trinocular microscope setups for comprehensive and direct viewing, facilitating sharing and advanced applications.

Figure 6.6: The microscope's screen displaying a magnified plant cell structure, illustrating its trinocular compatibility for comprehensive viewsdílení a sdílení.

7. Údržba

• Čištění objektivu: Použijte měkký hadřík bez žmolků, který je speciálně určen pro optické čočky. V případě odolných šmouh lze na hadřík nanést malé množství čisticího roztoku na čočky (ne přímo na čočku).
• Čištění těla: Wipe the microscope body with a soft, dry cloth. Do not use abrasive cleaners or solvents.
• Skladování: When not in use, store the microscope in a clean, dry, and dust-free environment. Use a dust cover if available.
• Péče o baterii (pokud je k dispozici): If the device has an internal battery, avoid fully discharging it frequently to prolong its lifespan.

8. Řešení problémů

9. Specifikace

10. Záruka a podpora

For warranty information and technical support, please refer to the warranty card included with your product or visit the official TOMLOV website. Do not attempt to repair the device yourself, as this may void your warranty.
