X-PRO Panther 200 Sports ATV Instruction Manual

1. Úvod

This manual provides essential information for the safe operation, assembly, and maintenance of your X-PRO Panther 200 Sports ATV. Please read this manual thoroughly before operating the vehicle to ensure proper use and to prevent injury or damage.

The X-PRO Panther 200 is an off-road sports ATV featuring a 177.3cc engine with a built-in balance shaft for reduced vibration, an automatic transmission with reverse, and LED headlights for improved visibility. It is equipped with large 23-inch front and 22-inch rear tires designed for enhanced ground clearance and stability.

Image 1.1: The X-PRO Panther 200 Sports ATV, showcasing its design and tire size.

2. Bezpečnostní informace

Operating an ATV can be hazardous. Adhere to all safety warnings and instructions to minimize risks.

• Always wear a helmet and appropriate safety gear: This includes eye protection, gloves, long pants, and sturdy boots.
• No passengers: This ATV is designed for a single rider only.
• Věková omezení: Ensure the rider meets the recommended age and skill level for operating this vehicle.
• Off-road use only: This ATV is not intended for use on public roads.
• Read all labels: Pay attention to all warning labels on the ATV.
• Návrh 65 Varování: Tento produkt vás může vystavit chemikáliím, o nichž je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo jiné reprodukční poškození.

Obrázek 2.1: Přední strana view of the ATV, highlighting the LED headlights and robust front suspension.

3. Vybalení a montáž

Your X-PRO Panther 200 ATV requires some assembly upon arrival. Inspect the packaging for any signs of damage before opening. If significant damage is noted, document it with photographs before proceeding.

3.1. Vybalování

1. Carefully open the shipping crate or box.
2. Remove all packing materials, ensuring no small parts are discarded.
3. Gently remove the ATV from its packaging. It is recommended to have assistance due to the vehicle's weight.

Image 3.1: The X-PRO ATV in its original shipping box.

3.2. Montážní kroky

Assembly typically includes the following components. Refer to the specific assembly guide included in your package for detailed instructions and diagrams.

• Handlebar brackets and handlebar installation.
• All four wheels.
• Front and rear racks (if included with your model).
• Rear shock absorber.
• Připojení baterie.

Use appropriate tools and avoid overtightening fasteners. It is crucial to ensure all connections are secure before proceeding.

4. Setup and Pre-Ride Checks

Before each ride, perform the following checks to ensure safe operation.

• Hladina paliva: Ensure adequate fuel is in the tank. Use recommended fuel type.
• Hladina motorového oleje: Check the engine oil level using the dipstick. Add oil if necessary, ensuring it meets specifications.
• Tlak v pneumatikách: Verify tire pressure is at the recommended levels for both front (23") and rear (22") tires.
• brzdy: Zkontrolujte správnou funkci a odezvu předních i zadních brzd.
• Světla: Check the functionality of the LED headlights, taillights, and brake lights.
• Škrticí klapka: Ensure the throttle operates smoothly and returns to the idle position when released.
• Řízení: Check for smooth and unrestricted steering movement.
• Volné spojovací prvky: Inspect for any loose nuts, bolts, or other fasteners and tighten as needed.

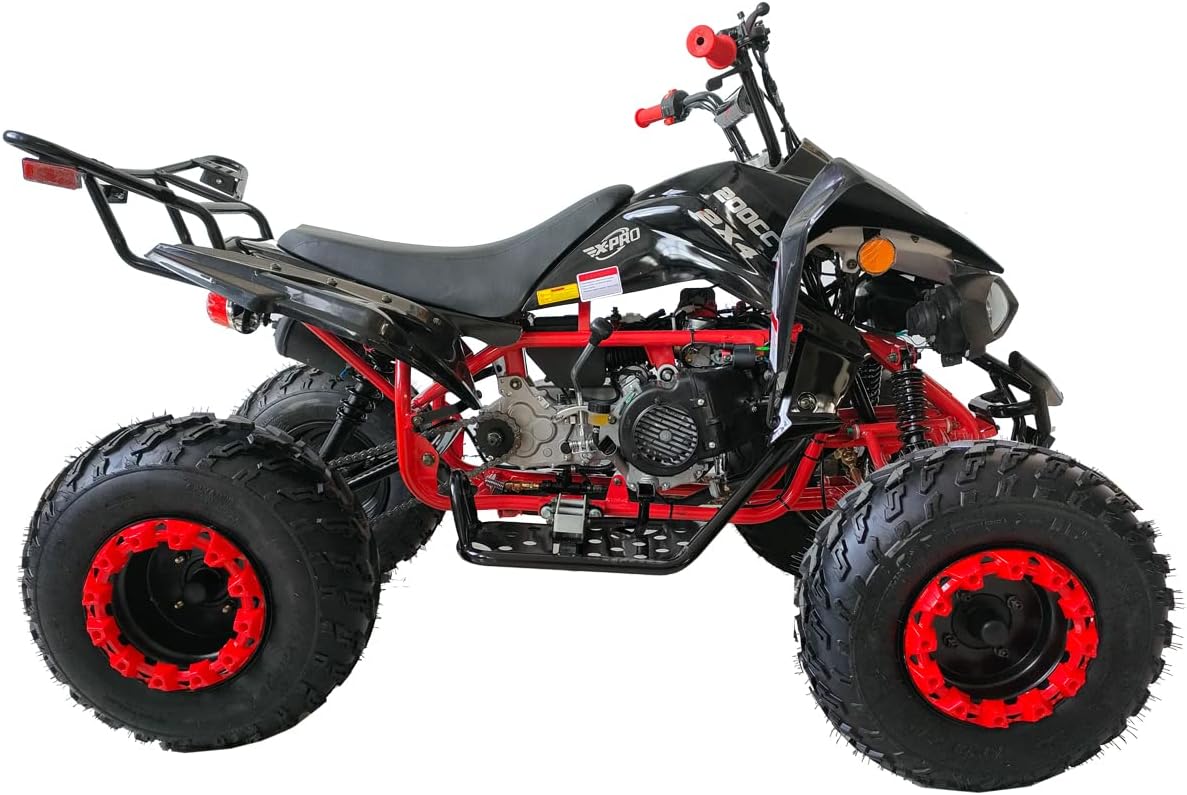

Obrázek 4.1: Boční strana view of the ATV, illustrating the engine placement and tire dimensions.

5. Návod k obsluze

5.1. Spuštění motoru

1. Ensure the ATV is on a level surface and the parking brake is engaged.
2. Otočte klíček zapalování do polohy „ON“.
3. If the engine is cold, apply the choke as necessary.
4. Press the electric start button. Release the button once the engine starts.
5. Allow the engine to warm up for a few minutes before riding.

5.2. Automatic Transmission with Reverse

The X-PRO Panther 200 features an automatic transmission with forward, neutral, and reverse gears.

• Vpřed: Select the forward gear for normal operation.
• Neutrální: Use neutral when starting the engine or when the ATV is idling.
• Zvrátit: Engage the reverse gear for backing up. Always check your surroundings before moving in reverse.

Shift gears smoothly and avoid abrupt changes while the vehicle is in motion.

5.3. Brzdění

Apply both front and rear brakes simultaneously for effective stopping. Avoid sudden or hard braking, especially on loose or uneven terrain, to prevent loss of control.

Image 5.1: Front angle view of the ATV, showing the handlebar controls and front wheel assembly.

6. Údržba

Regular maintenance is crucial for the longevity and safe operation of your ATV.

• Výměna oleje: Follow the manufacturer's recommended schedule for engine oil changes.
• Vzduchový filtr: Pravidelně čistěte nebo vyměňujte vzduchový filtr, zejména při jízdě v prašném prostředí.
• Zapalovací svíčka: Inspect and replace the spark plug as needed.
• Údržba řetězu: Keep the drive chain properly tensioned and lubricated.
• Brzdový systém: Periodically check brake fluid levels and inspect brake pads for wear.
• Kontrola pneumatik: Check tires for wear, damage, and proper inflation before each ride.
• Generální úklid: Clean the ATV after each ride to remove dirt and debris, paying attention to the engine and suspension components.

7. Řešení problémů

This section addresses common issues you might encounter. For problems not listed or if solutions are ineffective, contact X-PRO customer support.

8. Specifikace

9. Záruka a podpora

X-PRO provides a 3-month parts warranty for the Panther 200 ATV. This warranty covers manufacturing defects in parts. For warranty claims or technical assistance, please contact X-PRO customer service.

For further support, parts inquiries, or to view other X-PRO products, visit the official X-PRO store online: X-PRO Store.
