Abovsare Digital Clock (White Case+green Digit)

Uživatelská příručka k digitálním nástěnným hodinám Abovsare

Model: Digital Clock (White Case+green Digit)

Značka: Abovsare

1. Úvod

This manual provides detailed instructions for the setup, operation, and maintenance of your Abovsare Digital Wall Clock. Please read this manual thoroughly before using the product to ensure proper function and longevity.

2. Konec produktuview

The Abovsare Digital Wall Clock features a 13-inch large LED display with high-contrast digits, making it easily readable from various distances and angles. It displays time, date, day of the week, and temperature. The clock includes a remote control for convenient adjustments and offers automatic brightness dimming. It is designed for both wall-mounted and desktop use.

Klíčové vlastnosti:

  • 13-inch Large LED Display: 3.5-inch high contrast jumbo digits for clear visibility.
  • 10 Levels Automatic Brightness Dimmer: Adjustable brightness manually via remote or automatically based on ambient light.
  • Všestranné umístění: Suitable for wall mounting or desktop placement.
  • Dálkové ovládání: All settings and operations can be managed conveniently with the included remote.
  • Funkce paměti: Built-in memory retains time data even if power is disconnected.
  • Funkce duálního alarmu: Nastavte dva samostatné budíky pro různé plány.
  • Count-up/Count-down Timer: Supports timing up to 99 minutes and 99 seconds.
  • Zobrazuje: Time (12/24H), Date, Week, and Temperature (°C/°F).
Abovsare Digital Clock with 13-inch LED display showing time, date, week, and temperature.
Image 2.1: The 13-inch large LED display of the digital clock, highlighting its clear visibility and various informational displays including time, date, week, and temperature.
Abovsare Digital Clock displaying time, temperature, and date with icons representing its features.
Image 2.2: A visual representation of the clock's features, including alarm setting, brightness adjustment, remote control, ringtone, 12/24H mode, temperature, timing/countdown, time memory, date display, and week display.

3. Obsah balení

Zkontrolujte prosím balení, zda neobsahuje následující položky:

  • Abovsare Digital Wall Clock Unit
  • Dálkové ovládání
  • USB Power Cable (Note: Power adapter not included, requires 5V/1A or 5V/2A adapter)
  • Uživatelská příručka

4. Nastavení

4.1 Připojení napájení

The clock requires continuous power to operate. Connect the provided USB cable to the clock and plug it into a 5V/1A or 5V/2A USB power adapter (not included) or a USB port. The clock is not battery operated for its main function.

4.2 Memory Battery Installation

Aby funkce paměti fungovala i při výpadku napájenítages, install 2 AAA batteries (not included) into the battery compartment located on the back of the clock. These batteries only store time data and do not power the main display.

Back of the Abovsare Digital Clock showing the battery compartment and mounting holes.
Obrázek 4.1: Zadní strana view of the clock, indicating the location of the memory battery box (requires 2x AAA batteries), wall holes for mounting, and control buttons.

5. Návod k obsluze

All settings and operations can be performed using the included remote control.

5.1 Nastavení času a data

  1. Press the 'SET' button on the remote control.
  2. Use the arrow keys (Up/Down) to adjust the hour, then press 'SET' to confirm.
  3. Opakujte pro minuty, rok, měsíc a den.
  4. Stiskněte znovu tlačítko „SET“ pro ukončení režimu nastavení.
  5. To switch between 12-hour and 24-hour format, press the '12/24H' button on the remote.

5.2 Nastavení alarmu

The clock supports two separate alarms.

  1. Press the 'ALARM' button on the remote control.
  2. Select Alarm 1 or Alarm 2 using the arrow keys.
  3. Adjust the alarm hour and minutes using the arrow keys, pressing 'SET' after each adjustment.
  4. To activate/deactivate an alarm, press the 'ON/OFF' button when the alarm is selected. An alarm icon will appear/disappear on the display.
  5. To snooze, press any button on the remote when the alarm sounds.

5.3 Nastavení jasu

The clock offers 10 levels of brightness and an automatic dimming feature.

  • Ruční nastavení: Press the 'BRIGHTNESS' button on the remote repeatedly to cycle through 10 brightness levels.
  • Automatické stmívání: The built-in sensor automatically adjusts display brightness according to ambient light conditions. This feature is enabled by default.

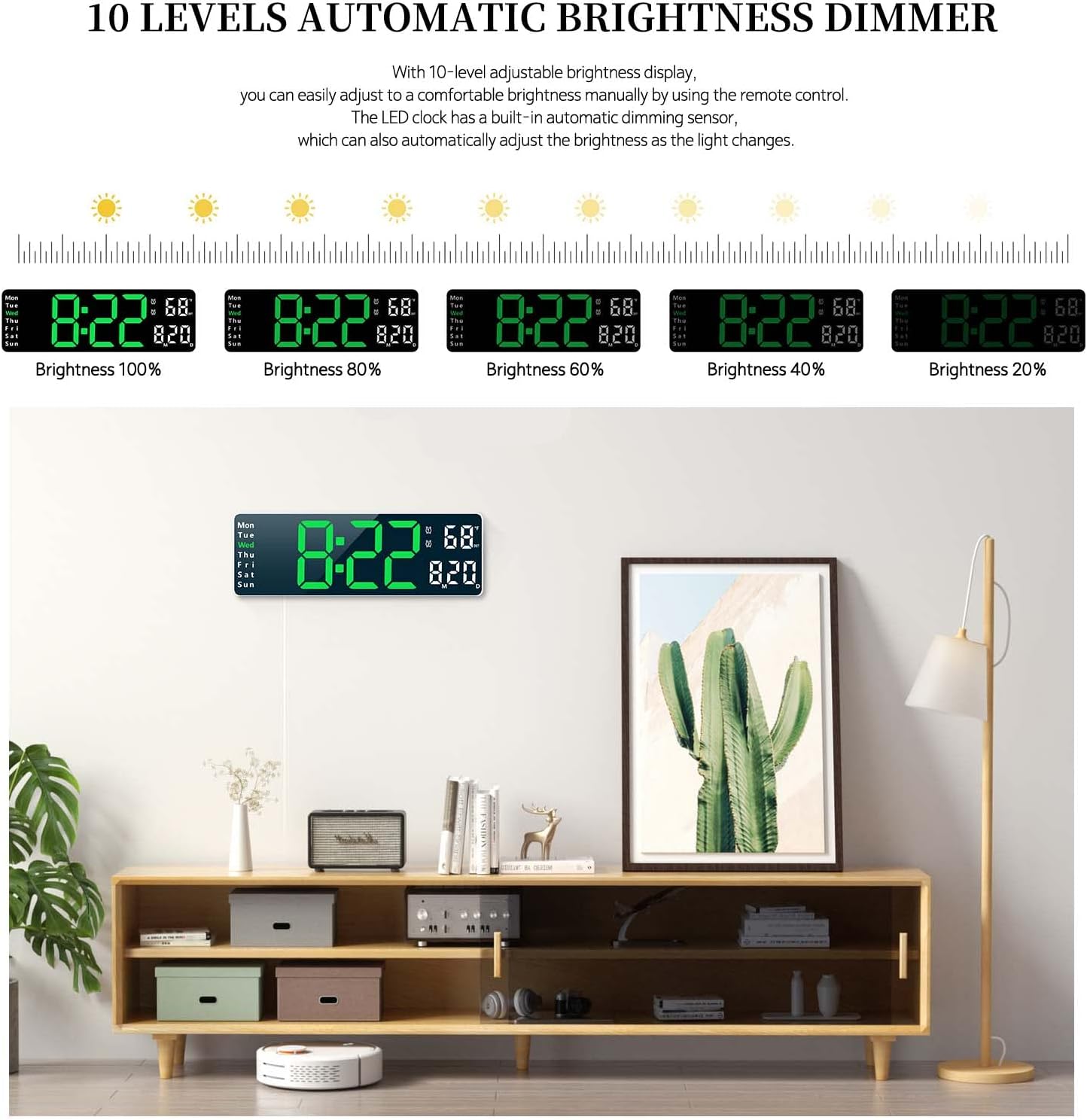

Abovsare Digital Clock showing different brightness levels from 100% to 20%
Image 5.1: Illustration of the 10-level automatic brightness dimmer, showing the clock display at various brightness percentages.

5.4 Timer Function (Count-up/Count-down)

The clock can function as a timer for up to 99 minutes and 99 seconds.

  • Odpočítávání: Press the 'TIMER' button, then use the number keys on the remote to input the desired time. Press 'START' to begin.
  • Přičítat: Press the 'TIMER' button, then press 'START' without inputting a time to begin counting up from zero.
  • Press 'STOP' to pause and 'RESET' to clear the timer.
Digital clock displaying count-down and count-up timer functions.
Image 5.2: The timer function showing both count-down (e.g., 99:36) and count-up (e.g., 00:58) modes on the digital display.

5.5 Použití dálkového ovládání

The remote control allows for easy adjustment of all clock functions from a distance. Ensure there is a clear line of sight between the remote and the clock's sensor.

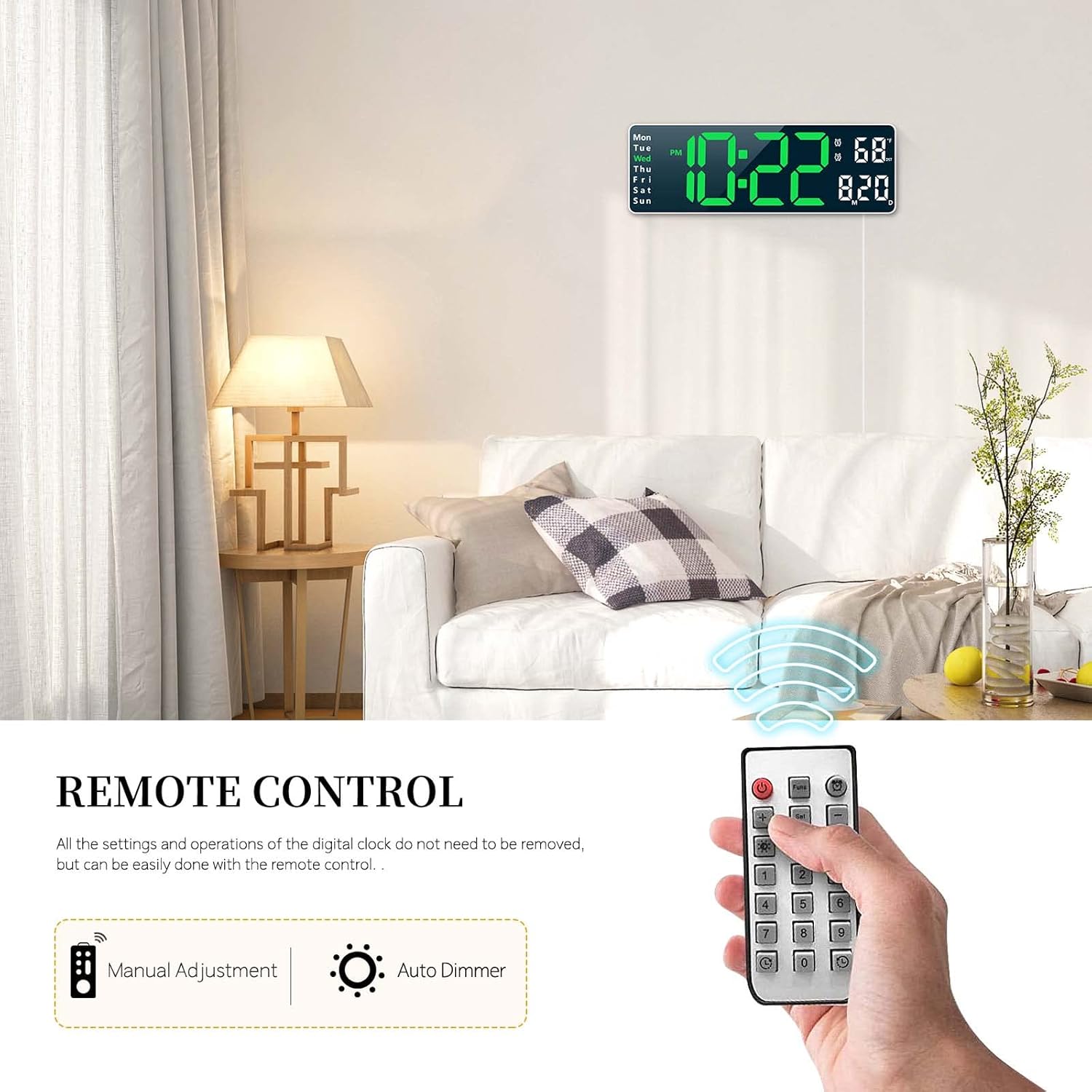

Hand holding the remote control for the Abovsare Digital Clock.
Image 5.3: A hand operating the remote control, demonstrating its use for manual adjustment and auto-dimmer functions.

6. Možnosti montáže

The Abovsare Digital Wall Clock can be placed on a desktop or mounted on a wall.

6.1 Umístění na pracovní ploše

Simply place the clock on any flat surface such as a desk, shelf, or nightstand. Ensure it is stable and not prone to falling.

6.2 Montáž na stěnu

The clock features integrated keyholes on the back for easy wall mounting.

  1. Measure the distance between the keyholes on the back of the clock.
  2. Mark two corresponding spots on the wall where you wish to mount the clock.
  3. Install two screws (not included) into the wall at the marked spots, leaving a small portion of the screw head protruding.
  4. Align the keyholes on the back of the clock with the screw heads and slide the clock down to secure it.
Abovsare Digital Clock on a surface with dimensions indicated.
Image 6.1: The digital clock displayed on a surface, illustrating its dimensions (13 inches wide, 4.1 inches high) and suitability for both desktop and wall placement.
Abovsare Digital Clock mounted on a wall above a sofa.
Image 6.2: The digital clock mounted on a wall in a living room setting, demonstrating its aesthetic integration and clear visibility.

7. Údržba

To ensure the longevity and optimal performance of your digital clock, follow these maintenance guidelines:

  • Čištění: Use a soft, dry cloth to wipe the display and casing. Avoid abrasive cleaners or solvents that may damage the surface.
  • Moc: Always use a 5V/1A or 5V/2A USB power adapter. Incorrect power sources may damage the device.
  • Prostředí: Chraňte hodiny před přímým slunečním zářením, extrémními teplotami a vysokou vlhkostí.
  • Výměna baterie: Replace the AAA memory batteries annually or when the memory function appears to fail during power outages.

8. Řešení problémů

If you encounter any issues with your Abovsare Digital Wall Clock, please refer to the following common problems and solutions:

ProblémMožná příčinaŘešení
Zobrazení hodin je vypnuté.Chybí napájení nebo je vadné připojení.Ensure the USB cable is securely connected and the power adapter is working. Use a 5V/1A or 5V/2A adapter.
Dálkové ovládání nefunguje.Batteries in remote are dead or incorrect orientation; obstacle between remote and clock.Replace remote control batteries. Ensure clear line of sight to the clock's sensor.
Time/Date not saving after power off.Memory batteries are dead or not installed.Install 2 new AAA batteries in the memory battery compartment.
Display too dim or too bright.Brightness setting needs adjustment or automatic dimming sensor is obstructed.Manually adjust brightness using the remote. Ensure the light sensor on the clock is not covered.

9. Specifikace

FunkceDetail
ZnačkaAbovsare
Model (Color)White Case+green Digit
Typ zobrazeníDigitální LED
Rozměry produktu1.2"W x 4.1"H (Note: This seems to be a partial dimension, the display is 13-inch diagonal)
Zdroj napájeníCorded Electric (USB, 5V/1A or 5V/2A adapter required)
Paměťová baterie2 x AAA (nejsou součástí balení)
Typ montážeStolní nebo nástěnná
MateriálAkrylonitrilbutadienstyren (ABS)
Speciální funkceLarge LED display, automatic brightness dimmer, count-up or count-down function, memory function, remote control, dual alarm, date, week, temperature display.

10. Záruka a podpora

For warranty information and customer support, please refer to the product packaging or contact Abovsare customer service through the retailer where the product was purchased. Keep your purchase receipt as proof of purchase.
