KitchenAid 13-Cup Food Processor with Dicing Kit

Zavedení

This manual provides essential instructions for the safe and efficient operation, maintenance, and care of your KitchenAid 13-Cup Food Processor with Dicing Kit. Please read all instructions carefully before first use and retain this manual for future reference.

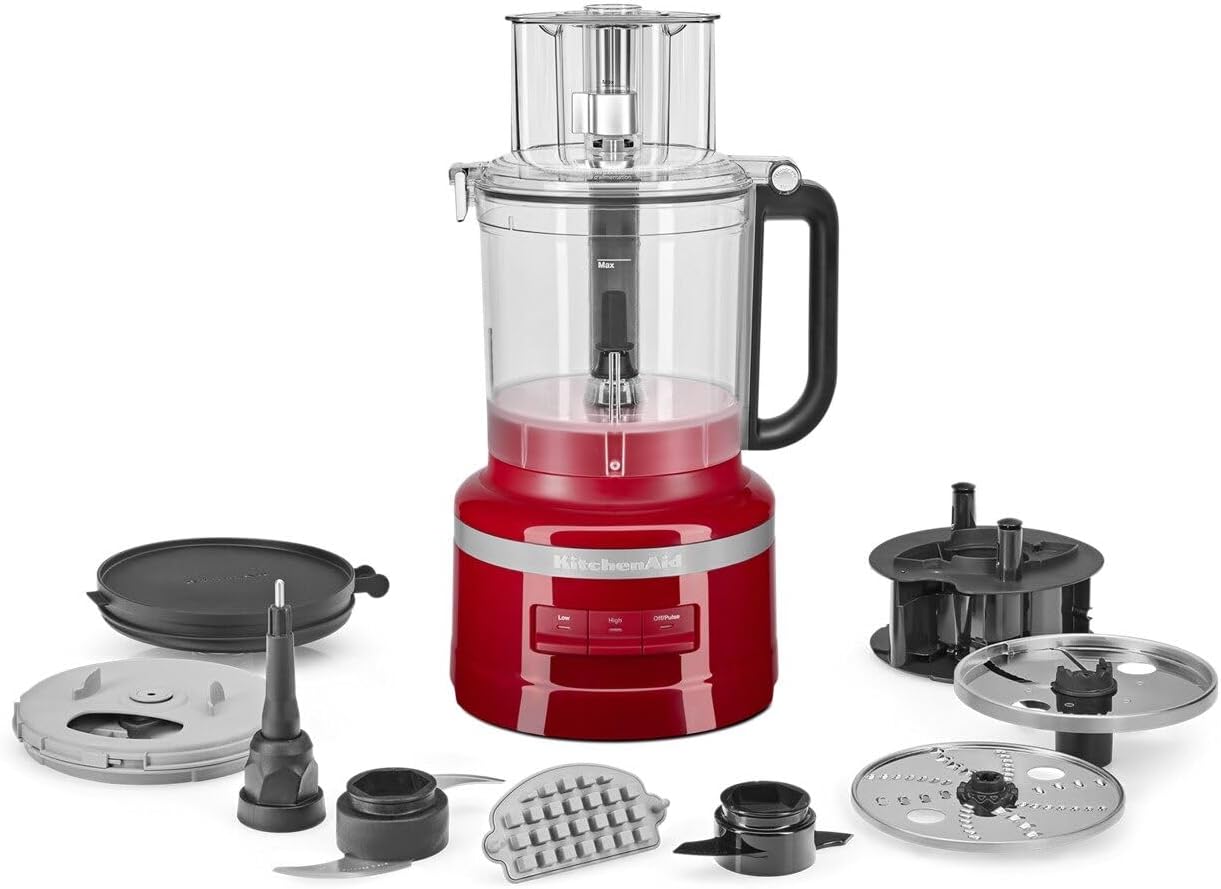

Image: The KitchenAid 13-Cup Food Processor in Empire Red, displayed with its various blades, discs, and the storage caddy.

Důležité bezpečnostní pokyny

Při používání elektrických spotřebičů je třeba vždy dodržovat základní bezpečnostní opatření, včetně následujících:

1. Přečtěte si všechny pokyny.
2. To protect against risk of electrical shock, do not immerse the food processor base in water or other liquid.
3. Když je jakýkoli spotřebič používán dětmi nebo v jejich blízkosti, je nutný pečlivý dohled.
4. Vytáhněte zástrčku ze zásuvky, když ji nepoužíváte, před montáží nebo demontáží dílů a před čištěním.
5. Vyvarujte se kontaktu s pohyblivými částmi.
6. Neprovozujte žádný spotřebič s poškozenou šňůrou nebo zástrčkou nebo poté, co spotřebič nefunguje správně, upadl nebo byl jakýmkoli způsobem poškozen.
7. Použití příslušenství, které není doporučeno nebo prodáno výrobcem, může způsobit požár, úraz elektrickým proudem nebo zranění.
8. Nepoužívejte spotřebič venku.
9. Nenechávejte kabel viset přes okraj stolu nebo pultu.
10. Keep hands and utensils away from moving blades or discs while processing food to prevent the possibility of severe personal injury and/or damage to the food processor. A scraper may be used but must be used only when the food processor is not running.
11. Čepele jsou ostré. Zacházejte opatrně.
12. Always use the food pusher to feed food into the feed tube. Never use hands.
13. Před použitím spotřebiče se ujistěte, že je víko bezpečně zajištěno na místě.

Co je zahrnuto

Your KitchenAid 13-Cup Food Processor package includes the following components:

• Základna kuchyňského robota
• Pracovní miska na 13 šálky
• Víceúčelová čepel
• Nastavitelný krájecí kotouč
• Dicing Kit with Cleaning Tool
• Víko chladničky
• Oboustranný skartovací disk
• Čepel těsta
• Úložný Caddy

Obrázek: Detailní záběr zepředu view of the KitchenAid 13-Cup Food Processor, highlighting the control panel with 'Low', 'High', and 'Off/Pulse' buttons.

Nastavení a montáž

Follow these steps to assemble your food processor before use:

1. Place the food processor base on a clean, dry, and stable surface.
2. Carefully place the 13-cup work bowl onto the base, aligning the handle with the right side of the base and twisting clockwise until it locks into place.
3. Select the desired blade or disc for your task. For blades (multi-purpose or dough), place it onto the drive adapter in the center of the work bowl. For discs (slicing, shredding, dicing), place the drive adapter onto the center shaft, then carefully place the disc onto the drive adapter.
4. Place the work bowl lid onto the work bowl, aligning the feed tube with the work bowl handle, and twist clockwise until it locks securely. The food processor will not operate unless the lid is properly locked.
5. Vložte posunovač potravin do plnicí trubice.
6. Ensure the appliance is unplugged before assembly or disassembly.

Návod k obsluze

Your KitchenAid Food Processor is designed for various food preparation tasks. Always ensure the unit is properly assembled and locked before operation.

Obecný provoz

1. After assembly, plug the food processor into a grounded electrical outlet.
2. Add ingredients to the work bowl or feed them through the feed tube using the food pusher. Do not overfill the work bowl.
3. Vyberte požadovanou rychlost: Nízký, Vysokýnebo Puls. The Pulse function provides short bursts of power for controlled processing.
4. Po dokončení stiskněte Vypnuto/Pulzní button to stop the motor and unplug the appliance.
5. Wait for all moving parts to stop before removing the lid or work bowl.

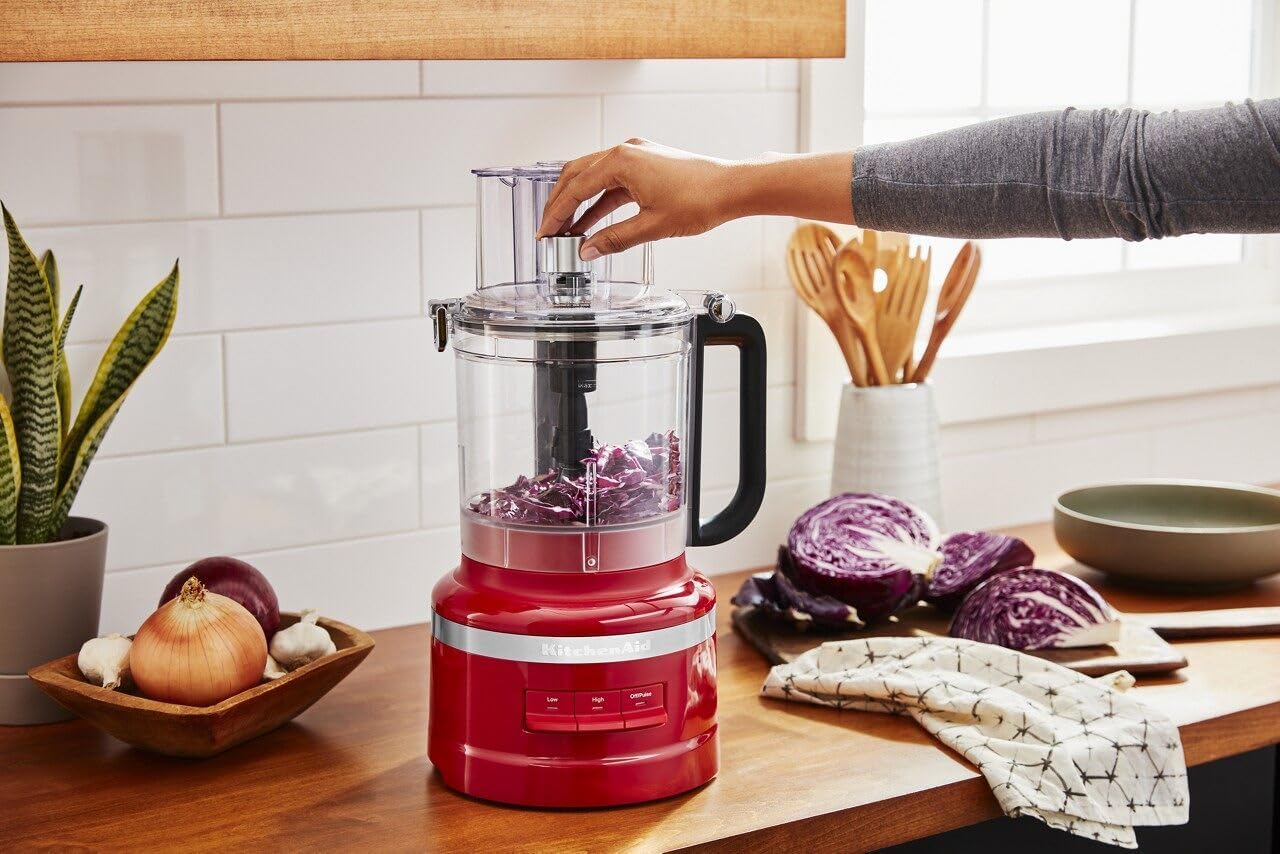

Image: The KitchenAid Food Processor actively processing red cabbage, demonstrating its chopping capability.

Using the 3-in-1 Feed Tube

The 3-in-1 feed tube allows you to process various ingredient shapes and sizes. Use the appropriate opening and food pusher for optimal results. For larger items, use the wide opening. For smaller or longer items, use the narrower opening with the smaller food pusher.

Nastavitelný krájecí kotouč

The externally adjustable Exact Slice disc allows you to easily change slicing thickness from thick to thin without removing the blade. Refer to the markings on the disc for desired thickness settings.

Kostkovací souprava

The dicing kit is designed for precise dicing of fruits and vegetables. Assemble the dicing grid and blade according to the instructions provided with the kit. Use the dedicated cleaning tool to remove any food particles from the dicing grid after use.

Obrázek: Podrobný view of the dicing kit components and the adjustable slicing disc, showcasinjejich design.

Image: The KitchenAid Food Processor on a kitchen counter, surrounded by bowls of freshly processed vegetables, illustrating its output.

Údržba a čištění

Proper cleaning and maintenance ensure the longevity and performance of your food processor.

1. Před čištěním vždy odpojte kuchyňský robot ze zásuvky.
2. Work Bowl, Lid, Blades, and Discs: All removable parts (work bowl, lid, multi-purpose blade, adjustable slicing disc, dicing kit, reversible shredding disc, dough blade, and storage caddy) are dishwasher safe. Place them on the top rack for best results. For hand washing, use warm, soapy water and a non-abrasive brush or sponge. Handle blades and discs with extreme care due to their sharpness.
3. Food Processor Base: Otřete základnu dočista reklamouamp tkanina. Základnu neponořujte do vody ani jiné kapaliny.
4. Dicing Kit Cleaning Tool: Use the provided cleaning tool to dislodge any food particles from the dicing grid.

Skladování

The included storage caddy allows for convenient in-bowl storage of all blades and discs. This keeps accessories organized and protected. The refrigerator lid can be used to store processed ingredients directly in the work bowl.

Odstraňování problémů

If you encounter issues with your food processor, refer to the following common solutions:

• Spotřebič se nezapne:
  • Ujistěte se, že je napájecí kabel bezpečně zapojený do funkční elektrické zásuvky.
  • Verify that the work bowl and lid are correctly assembled and locked into place. The food processor has safety interlocks that prevent operation if not properly assembled.
• Motor se během provozu zastaví:
  • The food processor may have overheated due to prolonged use or processing very dense ingredients. Unplug the unit and allow it to cool down for at least 30 minutes before attempting to use it again.
  • Check for any food jams around the blade or disc. Unplug the unit, carefully remove the obstruction, and then resume operation.
• Food Not Processing Evenly:
  • Ensure ingredients are cut into appropriate sizes before placing them in the feed tube or work bowl.
  • Do not overfill the work bowl. Process in smaller batches if necessary.
  • Use the pulse function for better control over consistency.

Specifikace

Záruka a podpora

KitchenAid products are manufactured to high-quality standards. For information regarding your product's warranty, please refer to the warranty card included in your original packaging or visit the official KitchenAid website. For technical support, replacement parts, or service inquiries, please contact KitchenAid customer service through their official channels.
