1. Úvod
Thank you for choosing the LumiCharge 4-in-1 Wireless Charging Station. This device is designed to provide a convenient and clutter-free charging solution for your compatible electronic devices, including smartphones, smartwatches, and wireless earbuds. It also features an integrated LED night light for added functionality.
Před použitím produktu si prosím pečlivě přečtěte tento návod k obsluze, abyste zajistili jeho správný provoz a maximalizovali jeho životnost.
2. Bezpečnostní informace
- Zařízení nerozebírejte ani neupravujte.
- Nevystavujte zařízení vodě, vlhkosti nebo extrémním teplotám.
- Use only the provided power adapter and USB-C cable.
- Udržujte zařízení mimo dosah zdrojů tepla a přímého slunečního záření.
- Během používání zajistěte řádné větrání, aby nedošlo k přehřátí.
- Do not place metal objects or magnetic cards on the charging pads, as this may interfere with charging or damage the device.
- This device incorporates an intelligent chip with multiple protections, including short-circuit, over-current, over-voltage, over-temperature, and foreign object detection, to ensure safe charging.
3. Obsah balení
Ověřte, zda jsou v balení přítomny všechny položky:
- LumiCharge 4-in-1 Wireless Charging Station
- Nabíjecí adaptér
- USB-C kabel
- Návod k použití (tento dokument)
4. Konec produktuview
The LumiCharge 4-in-1 Wireless Charging Station features dedicated areas for charging your smartphone, smartwatch, and wireless earbuds, along with an additional USB-C port for other devices. It also includes an integrated LED night light.
5. Nastavení
- Připojte napájení: Plug the provided USB-C cable into the charging station's input port and connect the other end to the included power adapter. Plug the power adapter into a wall outlet.

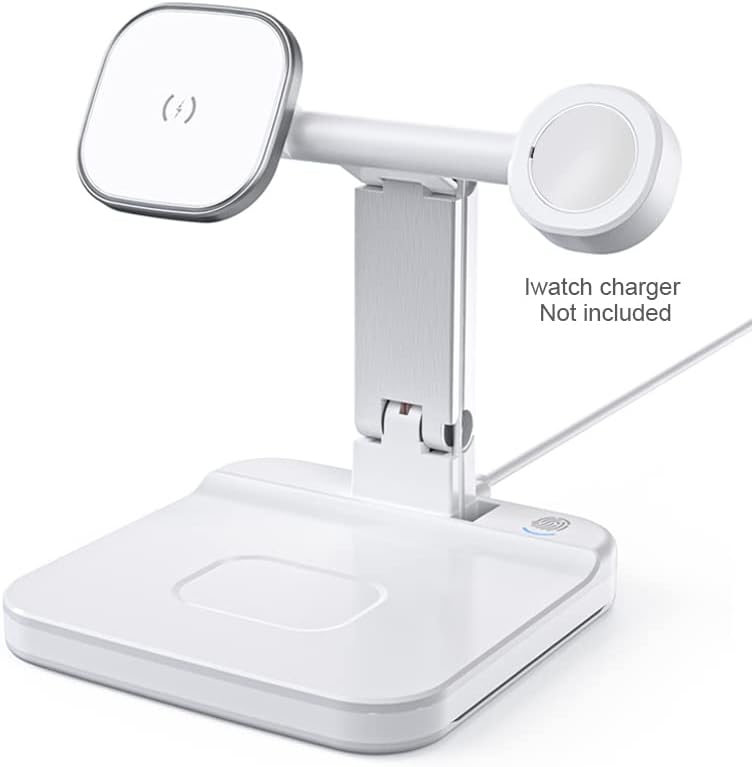

- Install Apple Watch Charger (Not Included): The charging station provides a dedicated slot for your existing Apple Watch magnetic charging cable. Route your Apple Watch charging cable through the designated channel in the stand and connect it to the internal USB port. Ensure the magnetic charging puck is securely seated in its holder.
- Umístění: Place the charging station on a stable, flat surface. The non-slip silicone base helps prevent accidental movement.
6. Návod k obsluze
6.1. Nabíjecí zařízení
- Nabíjení smartphonu: Place your Qi-compatible smartphone on the magnetic charging pad. The phone can be charged in both portrait and landscape orientations. The strong magnetic connection ensures secure placement and efficient charging. The device supports charging through phone cases up to 0.2 inches (5mm) thick.
- Nabíjení chytrých hodinek: Place your Apple Watch on the magnetic charging puck installed in the dedicated holder. Ensure it aligns correctly for charging to begin.
- Nabíjení sluchátek: Place your Qi-compatible wireless earbuds case on the flat charging area at the base of the station.
- Additional Device Charging: An extra USB port is located at the back of the base for charging other devices via a cable (not included).
6.2. Provoz nočního světla
The charging station features an integrated LED night light. To operate the night light, gently touch the designated touch sensor on the base. The light offers two brightness settings (low and high) and can be turned off with subsequent touches.
6.3. Adjustable Angles
The smartphone charging pad and the overall stand structure are designed with adjustable hinges. This allows you to adjust the viewing angle of your smartphone for optimal comfort during video calls, media streaming, or general use. The support plate can be adjusted to two different angles, and the large charging coils support both vertical and horizontal phone charging.
7. Údržba
- Clean the charging station regularly with a soft, dry cloth.
- Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Před čištěním se ujistěte, že je zařízení odpojeno.
8. Řešení problémů
| Problém | Možné řešení |
|---|---|
| Zařízení se nenabíjí |
|
| Noční světlo nefunguje |
|
| Pomalá rychlost nabíjení |
|
9. Specifikace
| Funkce | Detail |
|---|---|
| Model | B0B5F6D923 |
| Rozměry produktu | 5 x 2 x 5 palce |
| Hmotnost položky | 0.634 unce |
| Vstupní objemtage | 120 voltů |
| Ampvymazat | 2 Amps |
| Celkový počet portů USB | 1 (for Apple Watch charger or other devices) |
| Bezdrátový nabíjecí výstup | Up to 15W (Phone), 3W (Apple Watch), 3W (AirPods) |
| Kompatibilita pouzder | Charges through cases up to 0.2 inches (5mm) thick |
| Speciální funkce | LED Night Light (2 settings), Adjustable Viewing Angles, Foldable Design, Intelligent Protection Chip |
10. Záruka a podpora
LumiCharge products are designed for reliability and performance. For warranty information, technical support, or customer service inquiries, please refer to the contact details provided on the product packaging or visit the official LumiCharge webmísto. Uschovejte si doklad o koupi pro případ záručních reklamací.
11. Produktová videa
Watch these official videos for a visual guide on using your LumiCharge 4-in-1 Wireless Charging Station:
Nabíjecí stanice přesview
Toto video poskytuje komplexní přehledview of the LumiCharge 4-in-1 Wireless Charging Station, demonstrating its features for charging phones, smartwatches, and earbuds, along with its LED night light functionality.
Magnetic Wireless Charger Features
Explore the magnetic wireless charging capabilities of the LumiCharge station, showcasing how it securely holds and charges your smartphone, smartwatch, and AirPods.
Clutter-Free Charging Solution
This video highlights how the LumiCharge station helps organize your charging space, making it ideal for student desks or office environments by consolidating multiple devices.
