SOOPYK Hot and Cold Water Dispenser with Ice Maker User Manual

Zavedení

Thank you for choosing the SOOPYK Hot and Cold Water Dispenser with Built-in Ice Maker. This appliance is designed to provide convenient access to hot, cold, and room-temperature water, in addition to producing ice cubes. To ensure safe and efficient operation, please read this manual thoroughly before initial setup and use.

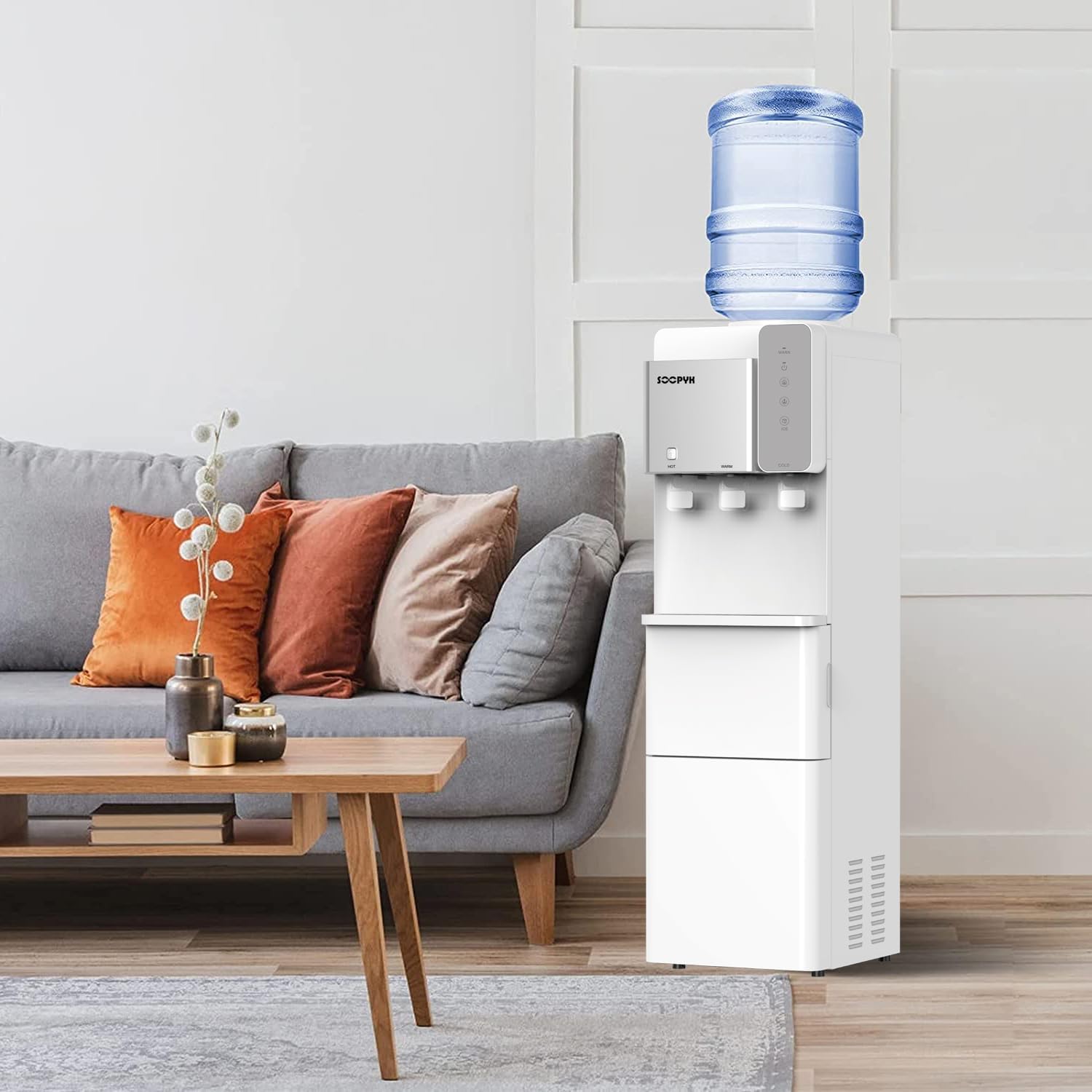

Obrázek: Přední strana view of the SOOPYK Hot and Cold Water Dispenser with Ice Maker, showing a 5-gallon water bottle on top and an open ice maker compartment.

Důležité bezpečnostní informace

Always adhere to basic safety precautions when operating electrical appliances to minimize the risk of fire, electric shock, and personal injury.

• Read all instructions completely before using the appliance.
• Do not operate any appliance if the power cord or plug is damaged, or if the appliance has malfunctioned or been damaged in any way.
• Position the appliance away from direct sunlight and any heat sources.
• Ensure the appliance is placed on a flat, stable, and level surface.
• Dětská pojistka: The hot water spout is equipped with a child safety lock. Always engage this lock when the hot water function is not in active use to prevent accidental burns.
• Unplug the dispenser from the power outlet before performing any cleaning or maintenance procedures.
• This appliance is ETL Approved, indicating compliance with North American safety standards.

Konec produktuview

The SOOPYK water dispenser integrates multiple functionalities for enhanced user convenience:

• Three Temperature Output: Provides access to crisp cold, room-temperature, and piping hot water.
• Built-in Ice Maker: Capable of producing 9 bullet ice cubes in approximately 6-8 minutes, with a daily ice production capacity of 27 lbs.
• Funkce nočního světla: Illuminates the water spouts for improved visibility and ease of use in low-light environments.
• Auto Shut-Off System: Automatically ceases ice production when the water level is insufficient or the ice bin is full.

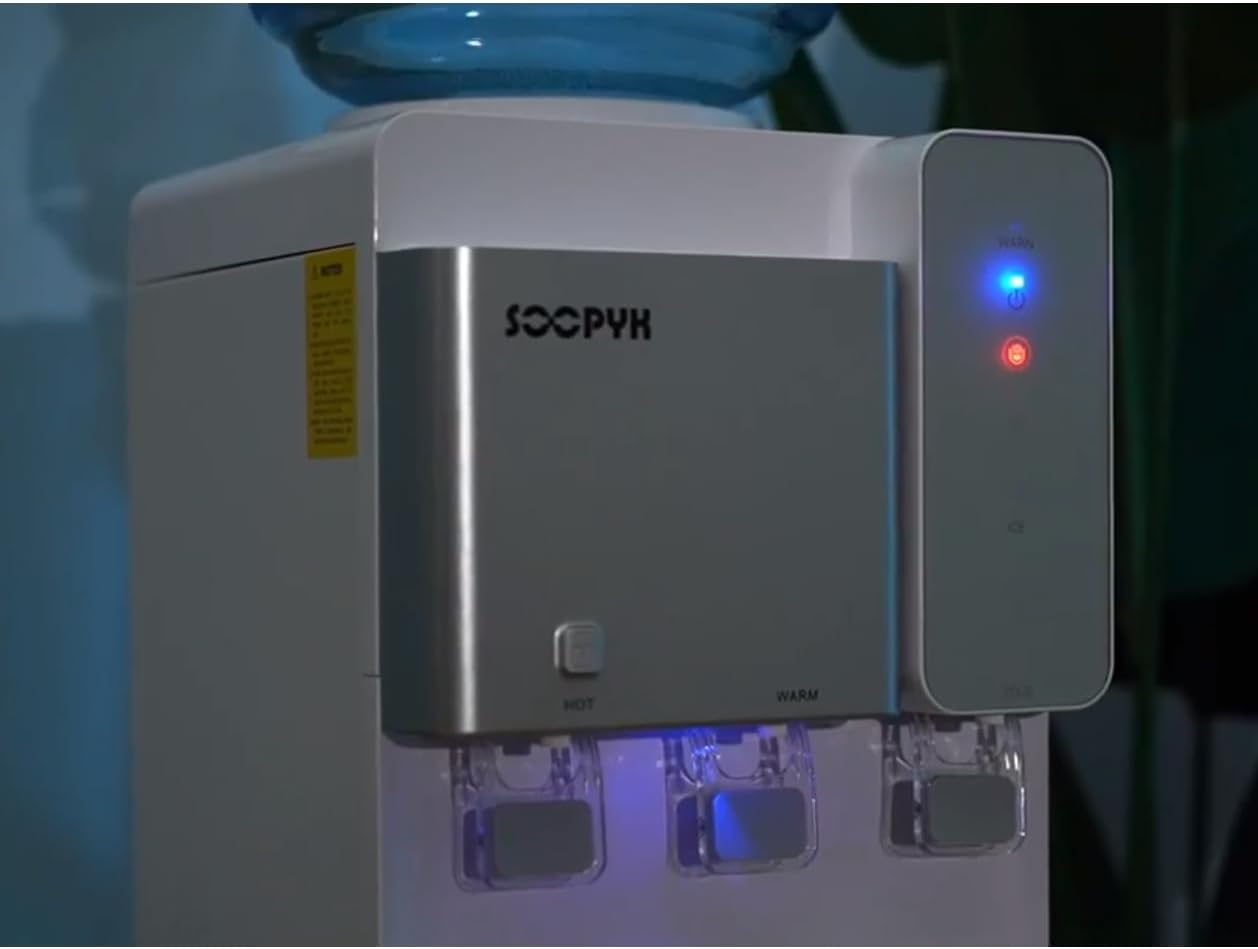

Obrázek: Detail view of the dispenser's control panel and water spouts, highlighting the hot, warm, and cold water options.

Image: Infographic detailing the ice making performance: 7 minutes for fast ice, 9 cubes per cycle, and 27 lbs daily capacity. Please note that this unit makes ice but does not keep it frozen.

Pokyny pro nastavení

1. Rozbalení: Carefully remove the water dispenser from its packaging. Inspect the unit for any visible damage.
2. Umístění: Place the dispenser on a firm, level, and stable surface. Ensure it is positioned away from direct sunlight and heat sources, and allow adequate ventilation space around the unit.
3. Install Ice Tray: Open the ice maker compartment door and carefully insert the ice collection tray into its designated slot.
4. Instalace láhve na vodu: Remove the protective cap from a standard 3-5 gallon water bottle. Carefully lift and place the bottle onto the top-loading smart water barrel seat. Ensure the bottle is securely seated and water begins to flow into the dispenser's internal reservoir.
5. Počáteční proplachování: Before first use, plug in the unit. Dispense and discard at least two cups of hot water and two cups of cold water to thoroughly flush the internal system.
6. Připojení napájení: Zapojte napájecí kabel do řádně uzemněné elektrické zásuvky.

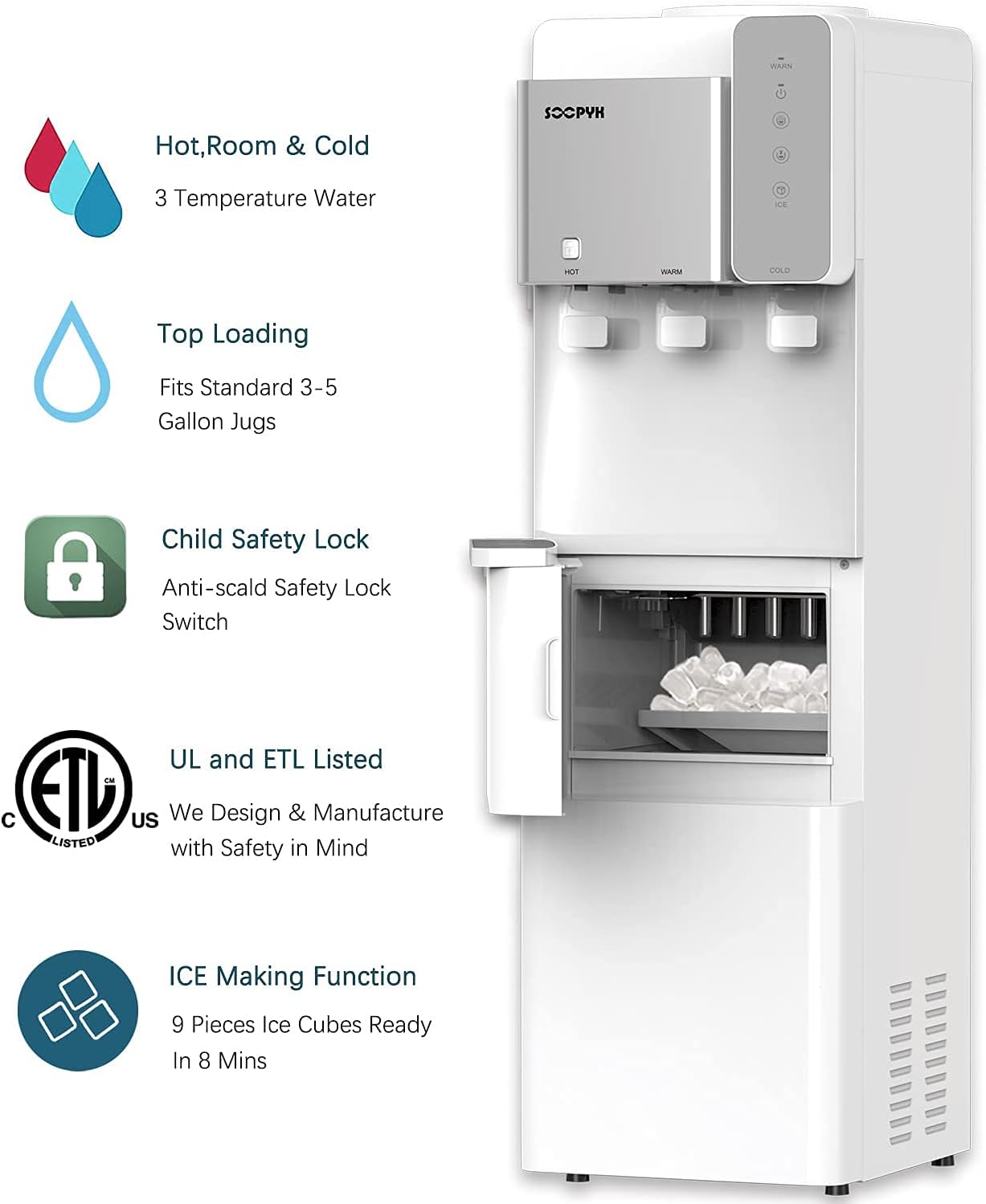

Image: Labeled components of the dispenser, including the child safety lock, removable drip tray, water bucket, and ice-making box.

Image: Demonstrates the top-loading process for a 5-gallon water bottle.

Návod k obsluze

Výdej vody

• Studená voda: Place a cup under the cold water spout. Press the cold water dispensing button to release cold water.
• Teplota vody v místnosti: Place a cup under the room temperature water spout. Press the room temperature water dispensing button to release water.
• Horká voda: For safety, the hot water spout features a two-step dispensing mechanism. First, press and hold the child safety lock button located above the dispensing button, then press the hot water dispensing button to release hot water.

Image: A user dispensing cold water from the unit into a glass.

Ice Making Function

1. Ensure the water bottle is correctly installed and the dispenser's reservoir contains sufficient water.
2. Press the "ICE" button on the control panel to activate the ice maker. The corresponding indicator light will illuminate.
3. The ice maker will begin producing 9 bullet-shaped ice cubes, typically ready in approximately 6-8 minutes.
4. The ice maker will automatically stop when the ice bin is full. It will resume operation once ice is removed from the bin.
5. Důležitá poznámka: This unit is designed to make ice but does not have a freezing function to keep ice solid long-term. For extended storage, transfer the produced ice to a freezer.

Obrázek: Uvnitř view of the ice maker, showing the ice molds and collected ice cubes.

Funkce nočního světla

The dispenser is equipped with a nightlight that illuminates the water spouts, facilitating easy water dispensing in low-light conditions. For energy conservation, it is recommended to turn off the ice maker function at night if not actively needed.

Video: Overview of the SOOPYK water dispenser with ice maker, demonstrating its features including water dispensing, ice making, and nightlight function.

Údržba a čištění

Regular maintenance and cleaning will ensure the longevity and optimal performance of your water dispenser.

• Čištění exteriéru: Unplug the unit from the power outlet. Wipe the exterior surfaces with a soft, damp hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
• Odkapávač: The drip tray is removable for easy cleaning. Empty and clean it regularly to prevent overflow and the accumulation of residue.
• Vnitřní čištění: To clean the internal water lines and remove any initial plastic taste, clean the water cooler with a citric acid solution. After cleaning, completely drain the unit with no water source attached.
• Čištění výrobníku ledu: Periodically clean the ice maker compartment and the ice tray using a mild detergent. Rinse all components thoroughly with clean water before reassembly.

Odstraňování problémů

Běžné problémy a jejich možná řešení naleznete v tabulce níže.

Specifikace

Detailed technical specifications for the SOOPYK Hot and Cold Water Dispenser with Ice Maker:

Záruka a podpora

For detailed warranty information or technical support, please refer to the documentation included with your product or contact SOOPYK customer service directly.

• Zásady vrácení: This product is eligible for a 30-day return or replacement policy.
• Plány ochrany: Optional 3-Year and 4-Year protection plans are available for purchase to extend coverage beyond the standard warranty.
• Výrobce: SOOPYK
