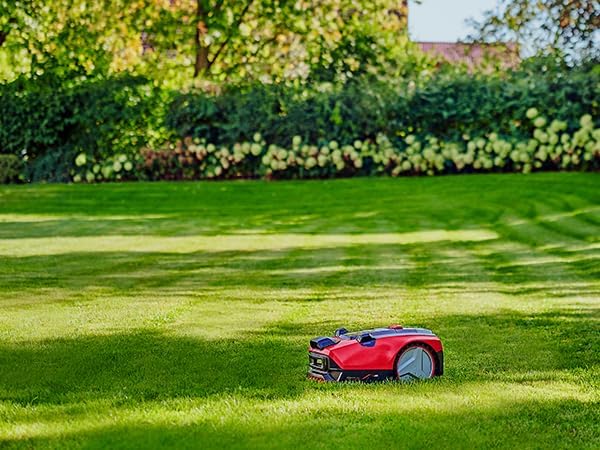

Einhell FREELEXO CAM 500 Robotic Lawnmower

1. Úvod

Thank you for choosing the Einhell FREELEXO CAM 500 Robotic Lawnmower. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your new robotic lawnmower. Please read it thoroughly before first use and keep it for future reference.

Klíčové vlastnosti:

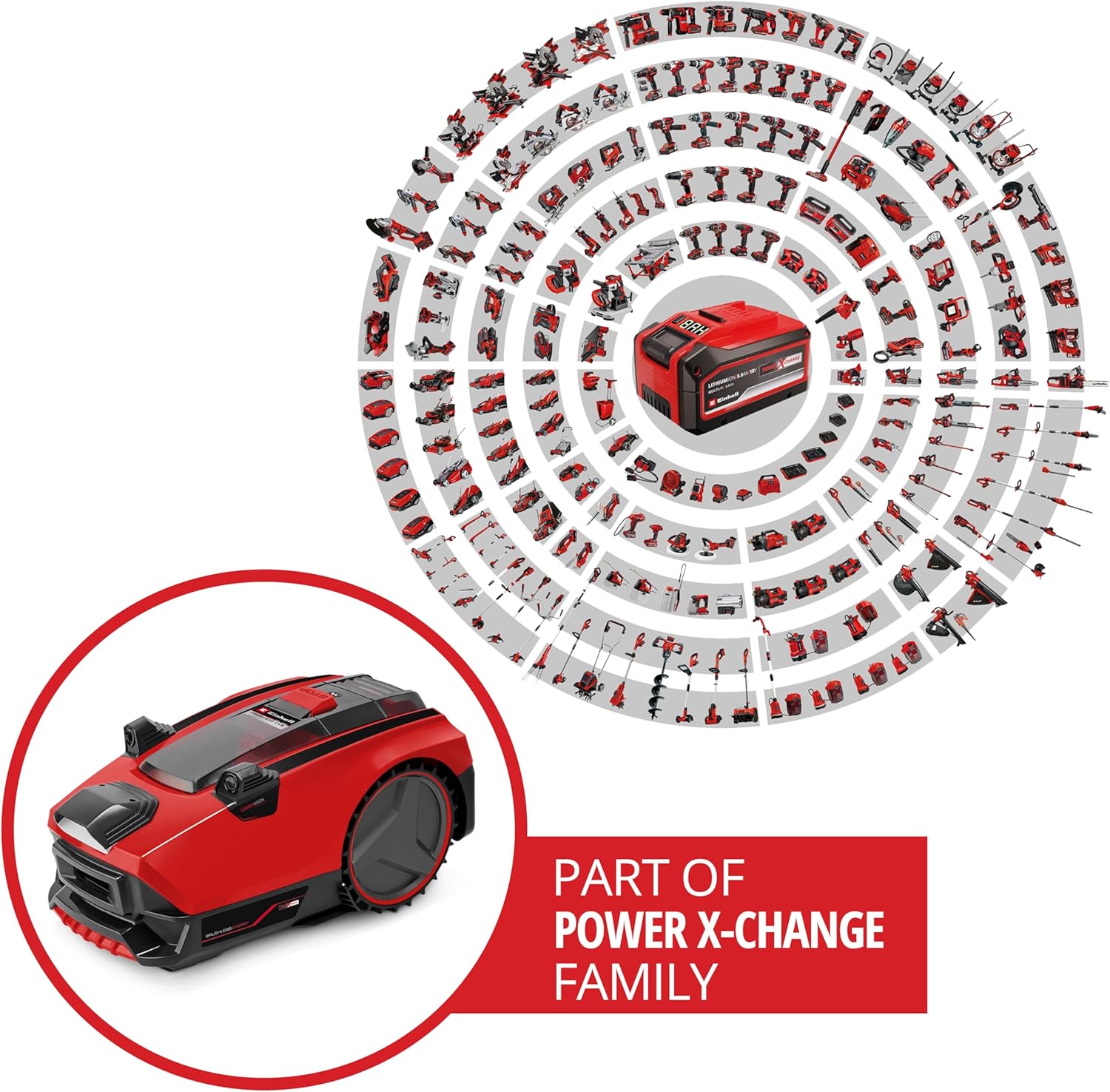

• Systém Power X-Change: Part of the Einhell Power X-Change family, offering flexible battery compatibility across various tools.
• Bezdrátový provoz: Utilizes an integrated camera to automatically recognize mowing area boundaries based on colors and structures, eliminating the need for a perimeter wire.
• Inteligentní detekce překážek: Integrated ultrasonic sensors detect physical obstacles like walls, hedges, and trees, while the camera identifies optical boundaries.
• Nastavitelná výška sečení: Easily adjust the cutting height between 20 and 60 mm for a perfect lawn.
• Schopnost svahu: Capable of handling slopes up to 25%.
• Intuitivní ovládání: Features an LED display and an intuitive button control panel for easy programming of mowing times.
• Ochrana proti krádeži: Secured by a PIN code and a warning signal.
• Automatické nabíjení: Automatically returns to the charging station when needed.
• Dešťový senzor: Integrated rain sensor for optimal operation.

2. Bezpečnostní pokyny

Always prioritize safety when operating the robotic lawnmower. Failure to follow these instructions may result in injury or damage to the product.

• Před použitím zařízení si přečtěte celý návod k obsluze.
• Keep children and pets away from the mowing area when the robot is operating.
• Never attempt to lift or carry the robotic lawnmower while the blades are rotating.
• Ensure the mowing area is free of loose objects (stones, toys, wires) that could be thrown by the blades or damage the robot.
• Do not operate the robotic lawnmower in wet conditions or during heavy rain. The integrated rain sensor will prevent operation in such conditions.
• Používejte pouze originální náhradní díly a příslušenství.
• The robotic lawnmower is protected against theft by a PIN code and a warning signal. Keep your PIN code secure and do not share it.
• Regularly inspect the blades for wear and damage. Replace them as necessary.
• Always turn off the robotic lawnmower and remove the battery before performing any maintenance or cleaning.

3. Obsah balení

Pečlivě vybalte krabici a ujistěte se, že jsou všechny položky přítomny a v dobrém stavu. Pokud některé položky chybí nebo jsou poškozené, kontaktujte svého prodejce.

• Einhell FREELEXO CAM 500 Robotic Lawnmower
• 1 x 3.0 Ah Power X-Change Battery
• 1 x nabíjecí stanice
• 3 x Náhradní čepele
• 1 x 12m Guide Cable
• 1 x 5m Magnetic Tape
• 20 x Fixing Hooks
• 2 x Connection Clamps

4. Nastavení

Setting up your FREELEXO CAM 500 is straightforward due to its innovative camera-based navigation system.

4.1. Preparing the Mowing Area

• The FREELEXO CAM 500 does not require a perimeter wire. Its integrated camera recognizes the boundaries of the mowing area based on colors and structures (e.g., lawn edge, path, flower bed).
• Ensure clear distinctions between your lawn and adjacent areas for optimal performance.
• Physical obstacles like walls, hedges, and large trees are detected by ultrasonic sensors.
• For areas you wish to temporarily exclude from mowing (e.g., freshly planted trees, flower beds), use the included 5m magnetic tape as a virtual barrier. The robot's magnetic sensors will recognize this tape and avoid the delimited space.

4.2. Umístění nabíjecí stanice

• Place the charging station on a flat, level surface in an area with good access to power and away from direct sunlight or heavy rain.
• Ensure there is enough clear space around the charging station for the robot to dock easily.
• Připojte nabíjecí stanici k elektrické zásuvce.

4.3. Počáteční nabíjení

• Insert the 3.0 Ah Power X-Change battery into the robotic lawnmower.
• Place the robotic lawnmower onto the charging station. The robot will automatically begin charging.
• Allow the battery to fully charge before the first operation.

5. Provoz

Once set up, operating your FREELEXO CAM 500 is simple and convenient.

5.1. Programování doby sečení

• Use the intuitive button control panel and LED display on the robot to program your desired mowing times.
• You can set specific days and hours for the robot to operate.

5.2. Nastavení výšky sečení

• The cutting height can be easily adjusted between 20 mm and 60 mm to suit your lawn's needs.
• Refer to the control panel or a dedicated adjustment knob (if present) for this setting.

5.3. Automatický provoz

• The robot will automatically start mowing according to your programmed schedule.
• When the battery is low, the robot will automatically return to its charging station.
• The integrated rain sensor will pause mowing operations during rain and resume when conditions are suitable.

6. Údržba

Regular maintenance ensures the longevity and optimal performance of your robotic lawnmower.

6.1. Výměna čepele

• The robotic lawnmower comes with 3 spare blades. Blades should be replaced regularly for a clean cut and to prevent damage to the lawn.
• Always turn off the robot and remove the battery before replacing blades.
• Use appropriate tools to carefully remove the old blades and install the new ones. Refer to the detailed diagrams in the full product manual for specific instructions.

6.2. Čištění

• Regularly clean the underside of the robot to remove grass clippings and debris.
• Wipe the top surface and sensors with a damp cloth. Do not use high-pressure cleaners or harsh chemicals.
• Ensure the charging contacts on both the robot and the charging station are clean.

7. Řešení problémů

This section addresses common issues you might encounter with your robotic lawnmower.

7.1. Robot Not Mowing

• Zkontrolujte baterii: Ujistěte se, že je baterie nabitá a správně vložena.
• Check Schedule: Verify that the mowing schedule is correctly set and the current time is within the programmed mowing period.
• Dešťový senzor: If it's raining or the sensor is wet, the robot will not operate. Wait for dry conditions.
• PIN kód: Ensure the correct PIN code has been entered if prompted.

7.2. Robot Not Docking

• Umístění nabíjecí stanice: Ensure the charging station is placed on a flat surface with clear access.
• Kontakty pro nabíjení: Vyčistěte nabíjecí kontakty na robotu i na stanici.
• Překážky: Check for any obstacles blocking the robot's path to the charging station.

7.3. Poor Mowing Performance

• Čepele: Worn or dull blades can lead to uneven cutting. Replace blades as needed.
• Výška řezu: Adjust the cutting height to suit your lawn type and desired length.
• Mowing Area: Ensure the mowing area is free of debris that could interfere with cutting.

7.4. Chybové zprávy

If the robot displays an error message on its LED screen, consult the full product manual for a list of error codes and their corresponding solutions. Common errors might relate to lifted sensors, trapped situations, or battery issues.

8. Specifikace

9. Záruka a podpora

Informace o záruce naleznete v záručním listu, který je součástí vašeho produktu, nebo navštivte oficiální webové stránky společnosti Einhell. webUschovejte si doklad o koupi pro případ reklamace.

If you encounter any issues not covered in this manual or require technical assistance, please contact Einhell customer support:

• Oficiální Einhell Webmísto: www.einhell.com
• Viz kontaktní sekci na webweb s regionálními telefonními čísly podpory nebo e-mailovými adresami.
