Uživatelská příručka digitálního budíku AMIR

Konec produktuview

The AMIR Digital Alarm Clock is a versatile LED clock designed for various settings such as bedrooms, offices, and homes. It features a large display, adjustable brightness, and multiple functions including time, date, temperature display, and alarm modes. This manual provides detailed instructions for setup, operation, and maintenance of your new alarm clock.

AMIR Digital Alarm Clock with large blue case and white LED display showing 10:00

Obrázek 1: Přední strana view of the AMIR Digital Alarm Clock.

Video 1: Overview demonstrating the features and functions of the AMIR Digital Alarm Clock, including its large LED display, adjustable brightness, and various modes.

Setup and Power Supply

Your AMIR Digital Alarm Clock offers two primary power supply methods: USB power and 3 AAA batteries. Understanding these options is crucial for optimal performance.

Instalace baterie

Instalace baterií:

Najděte přihrádku na baterie na zadní straně hodin.
Otevřete kryt baterie.
Vložte 3 baterie typu AAA a dbejte na správnou polaritu (+/-).
Pevně zavřete kryt baterie.

Poznámka: When powered by batteries, the screen will turn off after 16 seconds to enter power-saving mode. Voice control functionality is only available when using battery power.

Zadní view of the AMIR Digital Alarm Clock showing battery compartment and control buttons.

Obrázek 2: Zadní view budíku, zvýrazněním prostoru pro baterie a ovládacích tlačítek.

Diagram showing two power modes: AAA battery and USB power supply.

Figure 3: Illustration of the two power supply methods: AAA battery (for power saving and voice control) and USB power (for continuous display).

Připojení napájení USB

To power the clock via USB:

Connect the provided 1-meter (39.37-inch) USB power cord to the DC 5V port on the back of the clock.
Plug the other end of the USB cable into a USB power adapter (not included) or a compatible USB port.

Poznámka: When using USB power, the screen will always remain on. If powered by USB alone, there is no time memory function after power off.

Návod k obsluze

Setting Time and Display Modes

The clock features clock mode, date mode, temperature mode, night mode, and alarm mode. The "colon" between the hour and minute display flashes continuously.

Stiskněte a podržte tlačítko "MODE" button to enter time setting.
Stiskněte "UP"nebo"DOLŮ" to adjust the 12/24 hour format.
Stiskněte "MODE" again, then use "UP"nebo"DOLŮ" to adjust the hour.
Stiskněte "MODE" again, then use "UP"nebo"DOLŮ" to adjust the minute.
Stiskněte "MODE" again to return to the time display.

Diagram showing steps to adjust alarm clock time using MODE, UP, and DOWN buttons.

Figure 4: Step-by-step guide for setting the time on your alarm clock.

The clock can display time, date, and temperature. You can cycle through these displays by pressing the "MODE" button briefly.

Image showing the clock displaying time, date, and temperature.

Figure 5: The clock's multi-function display showing time, date, and temperature.

Adjustable Brightness and Night Mode

The clock offers 3 levels of brightness (Bright/Medium/Low). Simply press "UP"nebo"DOLŮ" to adjust the brightness.

Chcete-li nastavit noční režim:

Stiskněte "MODE" to enter the night mode setting.
Stiskněte "UP"nebo"DOLŮ" to turn night mode ON/OFF (default is OFF).
When night mode is ON, the clock automatically dims during 18:00-6:00. You can set a custom period by long pressing "MODE" in night mode setting.

To turn off the display completely (e.g., while sleeping), press and hold the "PODŘIMOVAT" button for more than 3 seconds.

Image showing three brightness levels: Low Light, Medium Light, Bright Light.

Figure 6: Visual representation of the three adjustable brightness levels.

Alarm Modes and Snooze Function

The alarm clock offers three working day modes:

Monday to Friday (1-5)
Monday to Saturday (1-6)
Monday to Sunday (1-7)

Chcete-li nastavit budík:

Dlouze stiskněte tlačítko "POPLACHtlačítko ".
Použijte "UP" a "DOLŮ" buttons to adjust the hour, minute, snooze time (1-60 minutes), and working day mode.
Stiskněte "POPLACH" again to confirm each setting.

When the alarm goes off, press the "PODŘIMOVAT" button to get 1-60 minutes of extra sleep. Press any other key to cancel the alarm.

Image showing a person sleeping with the clock and three alarm mode options: 1-5, 1-6, 1-7.

Figure 7: The three available alarm modes for customized wake-up schedules.

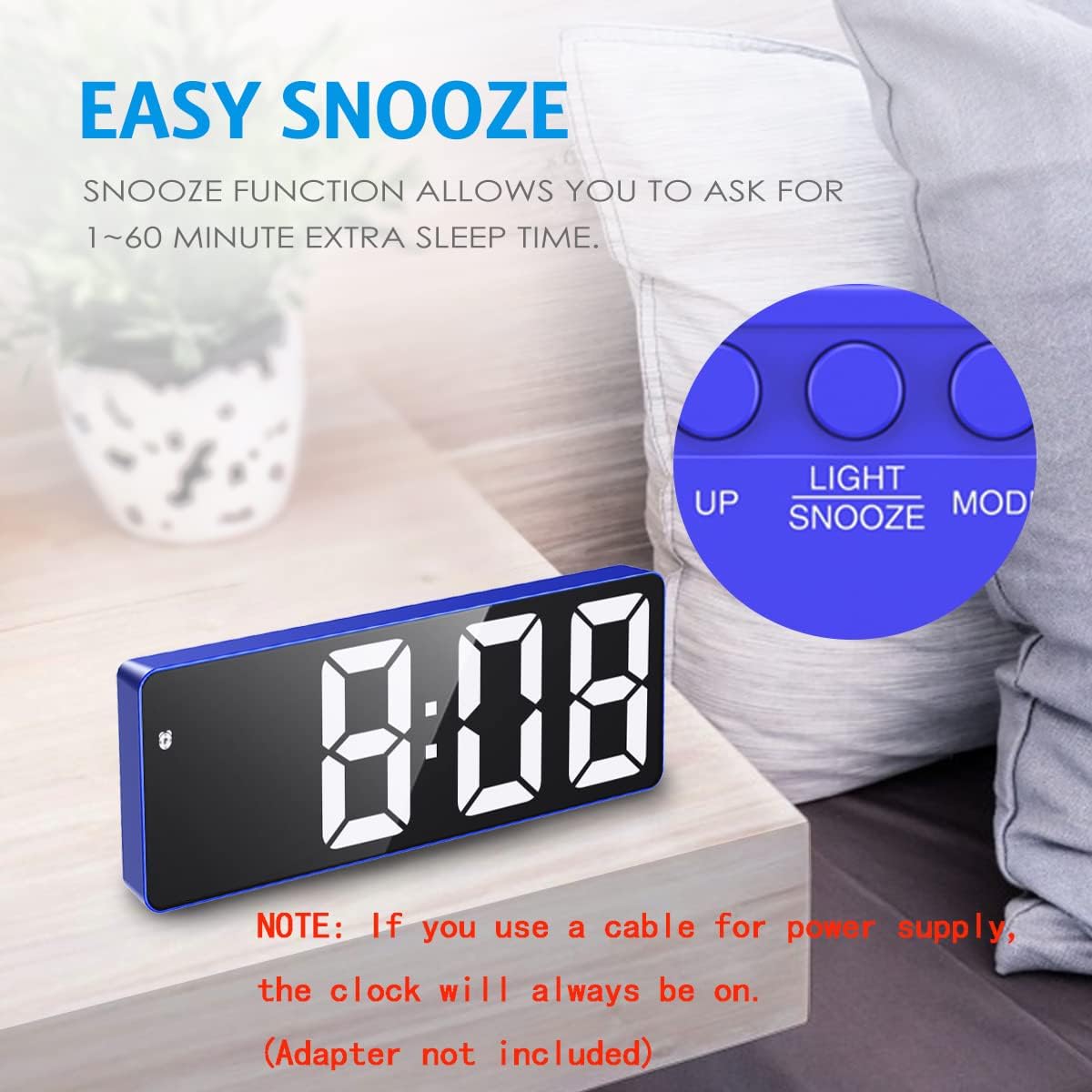

Close-up of the clock showing the SNOOZE button and text 'EASY SNOOZE'.

Figure 8: The snooze function allows for adjustable extra sleep time.

Voice Control and Power Saving Mode

This feature is available only when powered by AAA batteries. You can activate the display by making a noise (like clapping your hands) or tapping the clock.

In power saving mode (battery powered), the LED alarm clock automatically turns off after 16 seconds of no operation. The system continues to keep normal timing and temperature, maintaining previous settings.

Diagram illustrating voice control activation by tap, snap, or clap.

Figure 9: Intelligent voice control allows the LED display to be activated by sound or touch when using batteries.

Údržba

To ensure the longevity and proper functioning of your AMIR Digital Alarm Clock, please follow these maintenance guidelines:

Clean the clock regularly with a soft, dry cloth. Avoid using abrasive cleaners or solvents.
Chraňte hodiny před přímým slunečním zářením, extrémními teplotami a vysokou vlhkostí.
If using batteries, replace them when the display becomes dim or unresponsive. Remove batteries if the clock will not be used for an extended period to prevent leakage.
Ensure the USB cable is not bent or damaged, as this can affect power supply.

Odstraňování problémů

If you encounter any issues with your AMIR Digital Alarm Clock, please refer to the following common problems and solutions:

Problém	Možná příčina / řešení
Clock does not light up or display is off.	Check if the power plug is working properly or try a different power source. If using batteries, ensure the 3 AAA batteries are installed correctly with positive and negative terminals aligned. If in battery power-saving mode, activate the display by clapping hands, tapping the table, or touching the clock.
Time or format resets to 24-hour.	This issue may occur if the clock loses power when only using USB. The time memory function requires AAA batteries. Ensure batteries are installed for time memory. Re-set the time and 12/24H format as per the "Setting Time and Display Modes" section.
Screen is too bright at night.	Adjust the brightness level using the "UP"nebo"DOLŮ" buttons. Enable and configure the "Night Mode" to automatically dim the display during specific hours. Stiskněte a podržte tlačítko "PODŘIMOVAT" button for more than 3 seconds to turn off the display completely.
Hlasové ovládání nefunguje.	Voice control is only available when the clock is powered by 3 AAA batteries, not when powered by USB. Ensure the clock is in power-saving mode (display off) for voice control to activate it.

Specifikace

Značka: AMIR
Číslo modelu: WA33
Barva: Blue Case+white Digit
Typ displeje: Digitální
Styl: Moderní
Speciální vlastnosti: Adjustable Brightness, Large Display, Snooze, Temperature Display, Voice Control
Rozměry produktu: 0.7 cm Š x 6.3 cm V
Zdroj napájení: Battery Powered (3x AAA, not included), Corded Electric (USB)
Typ pokoje: Ložnice
Tvar: Obdélníkový
Vnitřní/venkovní použití: Krytý
Materiál rámu: Akrylonitril-butadien-styren
Hmotnost položky: 5.6 unce (0.16 kilogramů)
Budík: Ano

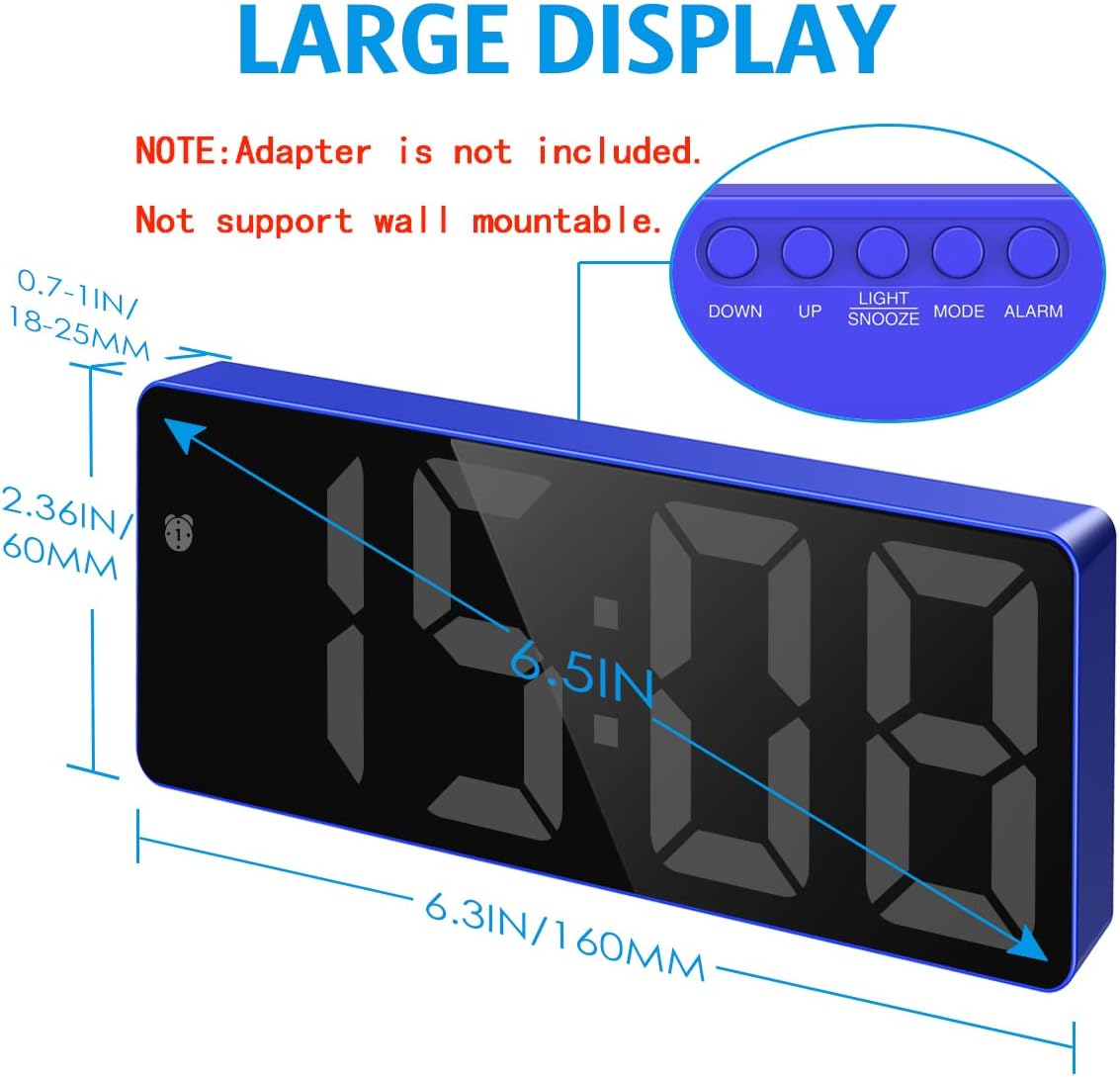

Image showing the dimensions of the large LED display alarm clock.

Figure 10: Dimensions of the AMIR Digital Alarm Clock.

Záruka a podpora

For detailed warranty information or further assistance, please refer to the official user guide provided by AMIR. A digital version of the user guide is available:

Stáhnout uživatelskou příručku (PDF)

For any product-related inquiries or support, please contact AMIR customer service through the retailer's platform or their official webmísto.
