1. Úvod
This user manual provides comprehensive instructions for the safe and effective operation, maintenance, and troubleshooting of your KLARUS XT2CR Pro Tactical Flashlight. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Bezpečnostní informace
- Nesviťte baterkou přímo do očí.
- Uchovávejte mimo dosah dětí.
- Use only recommended batteries and charging methods.
- Avoid disassembling the flashlight head or tail cap unless specified for maintenance.
- Ensure the USB-C port cover is securely closed when not charging, especially in wet conditions.
3. Obsah balení
Your KLARUS XT2CR Pro package includes the following items:
- KLARUS XT2CR Pro Tactical Flashlight
- 18650 Li-ion Battery (3100mAh)
- Nabíjecí kabel USB-C
- Pouzdro
- Šňůrka
- Náhradní O-kroužek
- Uživatelská příručka (tento dokument)
Image: Contents of the KLARUS XT2CR Pro package, including the flashlight, holster, charging cable, lanyard, and spare O-ring.
4. Nastavení
4.1. Instalace baterie
The KLARUS XT2CR Pro comes with a pre-installed 18650 Li-ion battery. Ensure the battery is inserted with the positive (+) end facing towards the flashlight head (LED end).
4.2. Nabíjení baterie
The flashlight features a convenient USB-C charging port. To charge:
- Locate the USB-C charging port on the side of the flashlight head.
- Jemně zvedněte gumový kryt, abyste odkryli port.
- Connect the provided USB-C cable to the flashlight and a USB power source (e.g., wall adapter, power bank, computer USB port).
- The indicator light next to the charging port will show charging status: Red for charging, Green for fully charged.
- Once charging is complete, securely close the rubber cover to maintain waterproof integrity.

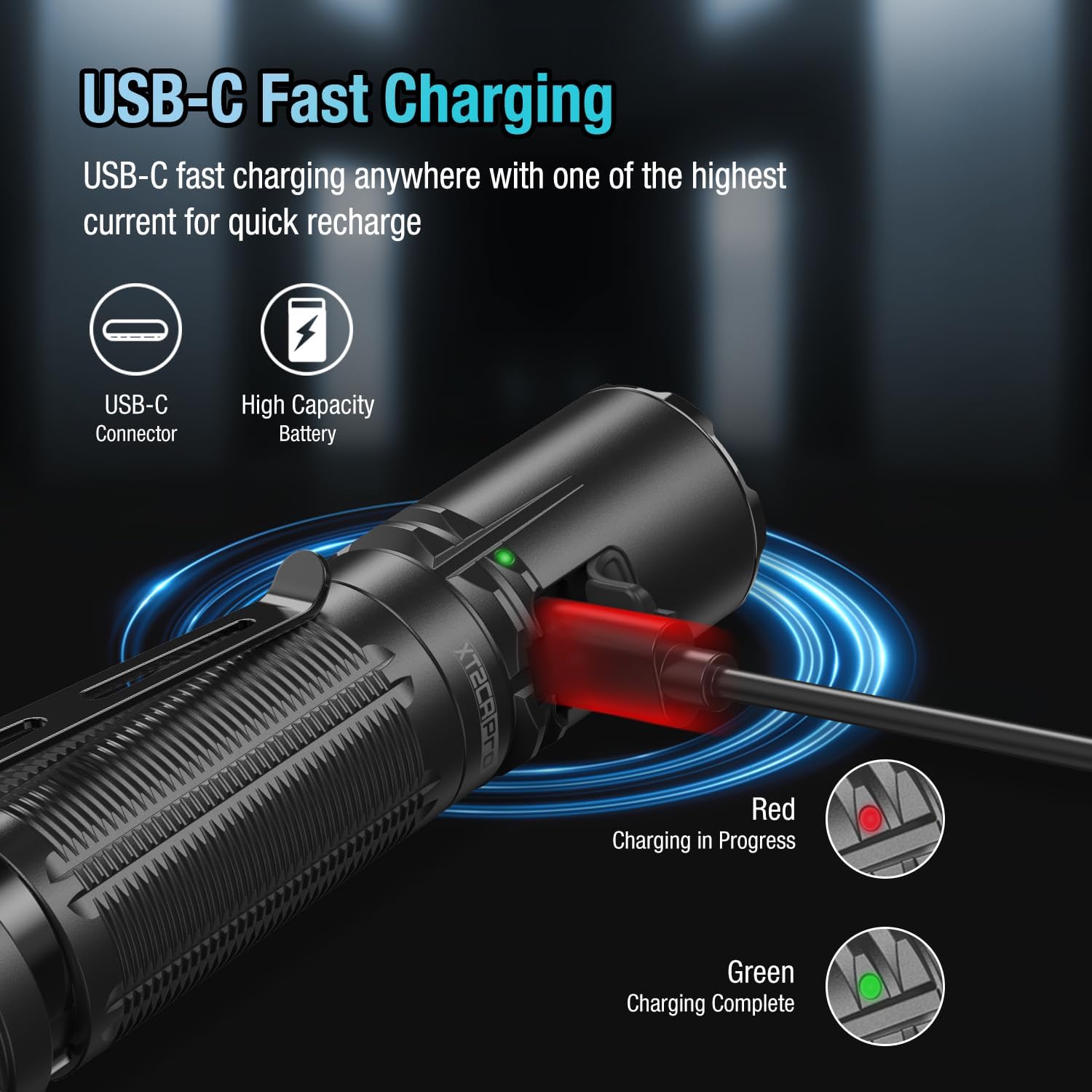

Image: The flashlight connected to a USB-C charging cable, showing the charging indicator light. Red indicates charging, green indicates fully charged.
Video: Komplexní přehledview of the KLARUS XT2CR Pro Tactical Flashlight, demonstrating its features and functionality.
5. Návod k obsluze
The XT2CR Pro features dual tail switches and a side switch for versatile operation.
5.1. Dual Tail Switches
- Main Switch (Large, Circular): Press for momentary ON/OFF. Fully press and click for constant ON/OFF. Always activates Turbo mode.
- Mode Switch (Smaller, Paddle-shaped): Provides instant access to Strobe (Tactical Setting) or Low (Outdoor Setting).
5.2. Side Switch
- When the flashlight is ON, press the side switch to cycle through brightness levels (Low > Medium > High > Turbo).
- Press and hold the side switch for 1 second to activate SOS mode.
5.3. Switching Operating Modes (Tactical/Outdoor)
The XT2CR Pro offers two programmable settings: Tactical and Outdoor. To switch between them:
- Ensure the flashlight is OFF.
- Press and hold the side switch until the indicator light flashes red and green.
- While the indicator is flashing, simultaneously press the main tail switch. The flashlight will switch to the other mode.
Image: Close-up of the dual tail switches, highlighting the main circular switch and the paddle-shaped mode switch for tactical and outdoor settings.
Video: Demonstrates the XT2CR Pro's operating modes and how to switch between them, including the instant turbo and strobe functions.
6. Údržba
- Tělo a čočku svítilny očistěte měkkým hadříkem.amp tkanina.
- Lubricate O-rings regularly with silicone grease to maintain waterproof sealing.
- Pokud svítilnu delší dobu nepoužíváte, vyjměte z ní baterii, abyste zabránili vytečení.
- Skladujte na chladném a suchém místě mimo dosah přímého slunečního záření.
Image: The flashlight submerged in water, demonstrating its IPX8 waterproof rating, which supports adventures in any weather.
7. Řešení problémů
| Problém | Možná příčina | Řešení |
|---|---|---|
| Svítilna se nezapíná | Slabá baterie; Nesprávná instalace baterie; Uvolněný kryt baterie | Charge battery; Reinstall battery correctly; Tighten tail cap |
| Přerušované světlo | Dirty contacts; Loose components | Clean battery and flashlight contacts; Ensure all parts are tightened |
| Nelze přepínat režimy | Incorrect operation sequence | Refer to "Switching Operating Modes" section (5.3) |
8. Specifikace
| Funkce | Detail |
|---|---|
| Značka | KLARUS |
| Model | XT2CR Pro |
| Maximální výkon | 2100 XNUMX lumenů |
| Vzdálenost paprsku | 240 metrů (262 yardů) |
| Doba běhu | Až 150 hodin (nízký režim) |
| Typ LED | Cree XPH35 HD LED (6500K Color Light) |
| Materiál | Aluminum 6061-T6 with Mil-Spec HAIII Anodized Finish |
| Voděodolnost | IPX8 (ponořitelné do hloubky 2 metrů) |
| Odolnost proti nárazu | 1 metru |
| Rozměry | 1.08 x 1.02 x 5.04 palce |
| Hmotnost | 4.9 unce (bez baterie) |
9. Záruka a podpora
KLARUS offers a warranty for its products. For detailed warranty information and customer support, please visit the official KLARUS webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případ reklamace.
Pro další pomoc se můžete také obrátit na KLARUS Brand Store on Amazon.
