Návod k obsluze dětské chůvičky Codnida

1. Konec produktuview

The Codnida Baby Monitor provides comprehensive monitoring of your baby with advanced features designed for peace of mind. This manual will guide you through the setup, operation, and maintenance of your new baby monitor.

Image 1: Codnida Baby Monitor components.

Klíčové vlastnosti:

• 5" 720P HD Display: Poskytuje jasné view vašeho dítěte.
• 4x digitální zoom: Zoom in to see your little one up close.
• Pan 340° & Tilt 50°: Offers a wide coverage area with no blind spots.
• Obousměrný rozhovor: Komunikujte se svým dítětem na dálku.
• Cry & Motion Detection: Alerts you to your baby's needs.
• Monitorování teploty a vlhkosti: Ensures a comfortable environment.
• Připomenutí krmení: Helps maintain a consistent feeding schedule.
• Automatické noční vidění: Jasný viewing in low light or darkness.
• 18 Gentle Lullabies: Soothe your baby to sleep.
• 1000ft Transmission Range: Reliable connection throughout your home.
• Dlouhá výdrž baterie: Up to 10 hours in live view, 6 days in sleep mode.
• Podpora mobilních aplikací: Monitor from your smartphone (CloudEdge app).

2. Obsah balení

Po vybalení zkontrolujte obsah balení, abyste se ujistili, že jsou přítomny všechny položky:

• 1 x Baby Camera Unit
• 1 x Displej (rodičovská jednotka)
• 2 x Charging Cables with Adapters
• 1 x Set of Screws for Mounting
• 1 x montážní držák
• 1 x resetovat PIN
• 1 x Uživatelská příručka (tento dokument)

Obrázek 2: Všechny položky obsažené v balení produktu.

3. Průvodce nastavením

3.1 Nabíjení jednotek

Before first use, fully charge both the baby camera unit and the display screen using the provided charging cables and adapters. A full charge ensures optimal performance and battery life.

3.2 Umístění kamery

Place the baby camera unit in a location that provides a clear and unobstructed view of your baby. Ensure it is out of reach of children and away from any potential hazards. The camera can be placed on a flat surface or mounted to a wall using the included bracket and screws.

Image 3: The camera unit offers 340° pan and 50° tilt for comprehensive room coverage.

3.3 Initial Connection (Monitor & Camera)

The baby camera unit and display screen are pre-paired at the factory. Simply power on both devices, and they should automatically connect. If they do not connect, or if you are adding a new camera, follow the pairing instructions in the Operating Instructions section.

3.4 Připojení k mobilní aplikaci (volitelné)

For remote monitoring via your smartphone, download the "CloudEdge" app from your device's app store. Follow the in-app instructions to connect your baby camera unit to your home Wi-Fi network. This allows you to view your baby from anywhere with an internet connection.

4. Návod k obsluze

4.1 Zobrazení a přiblížení

The 5-inch 720P HD display provides a clear live feed. Use the zoom function on the parent unit to get a closer look at your baby. The monitor supports up to 4X digital zoom.

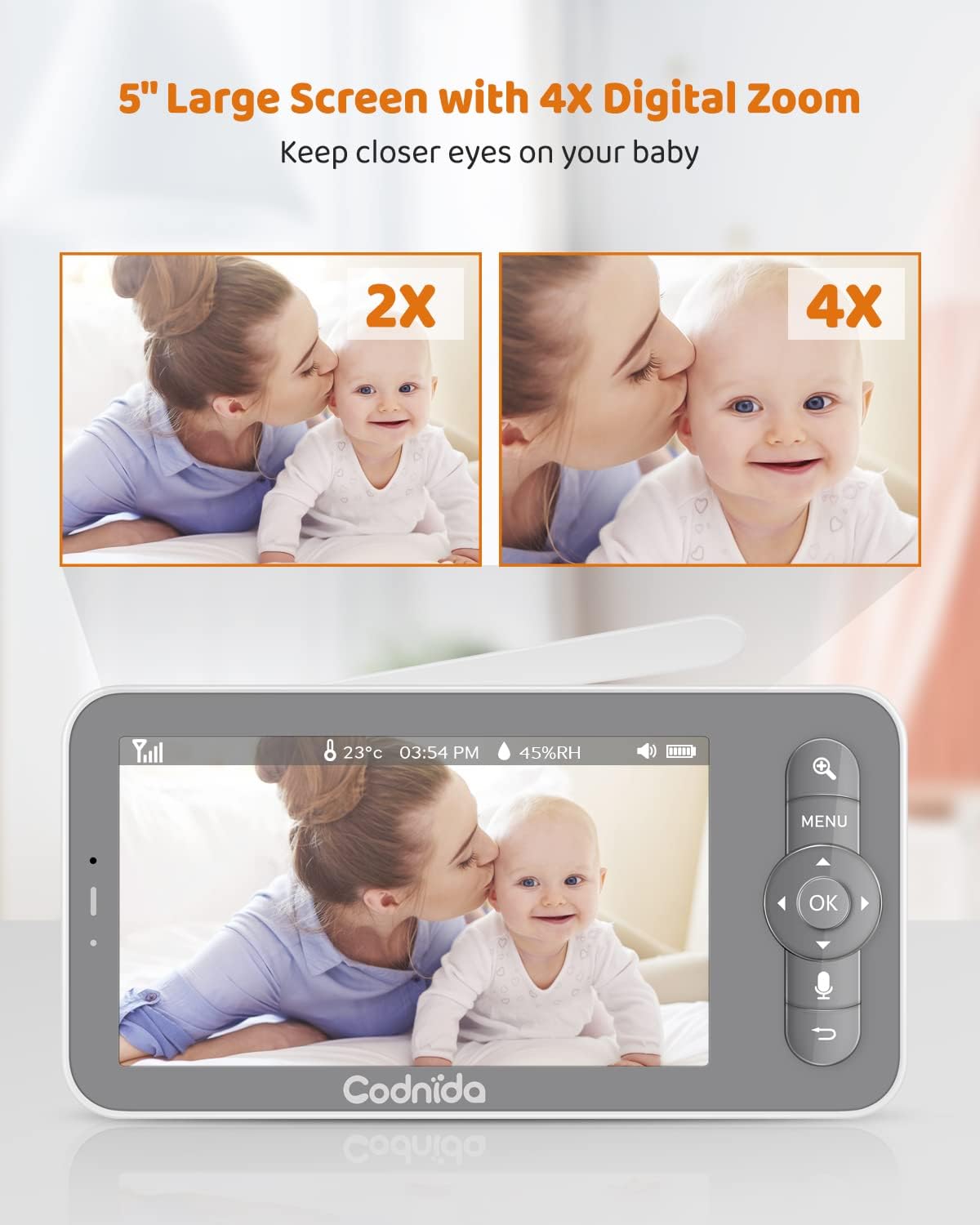

Image 4: The 5-inch display with 4X digital zoom capability.

4.2 Camera Control (Pan & Tilt)

Ovládejte fotoaparát viewing angle directly from the parent unit. The camera can pan 340 degrees horizontally and tilt 50 degrees vertically, ensuring you can see every corner of the room.

Image 5: Illustrates the camera's pan and tilt range.

4.3 Obousměrná komunikace

Press and hold the microphone button on the parent unit to speak to your baby. Your voice will be transmitted through the camera unit's speaker, allowing you to soothe your baby from another room.

Image 6: Two-way talk feature in action, allowing parents to communicate with their baby.

4.4 Monitoring Features

• Cry & Motion Detection: The monitor will alert you when it detects crying or significant motion from your baby. This feature helps you respond promptly to your baby's needs.
• Teplota a vlhkost: The camera unit includes sensors to monitor the room's temperature and humidity, displayed on the parent unit.
• Připomenutí krmení: Set customizable feeding reminders to ensure your baby is fed on schedule.
• Poplachová zóna: Define a safe area for your baby. If your baby moves outside this pre-set zone, an alert will be triggered on the parent unit.

Image 7: Visual representation of various alert features including motion, cry, temperature, and feeding reminders.

4.5 Automatic Night Vision

The camera automatically switches to infrared (IR) night vision in low-light conditions, providing a clear black-and-white image of your baby without disturbing their sleep.

Image 8: Clear night vision allows monitoring even in complete darkness.

4.6 ukolébavky

The monitor comes with 18 gentle lullabies that can be played through the camera unit to help soothe your baby to sleep. Access this feature through the parent unit's menu.

Image 9: The baby monitor can play 18 gentle lullabies.

4.7 Nahrávání a přehrávání

The camera unit supports an SD card (not included) for local recording of video and images. You can review zaznamenané footage directly from the parent unit or via the mobile app.

Image 10: Capture key moments with photo and video recording capabilities.

5. Battery Life & Transmission Range

5.1 Výkon baterie

The parent unit features low power consumption technology, offering extended battery life. It can last up to 10 hours in live view mode and up to 6 days in sleep mode (VOX mode), where the display activates only upon detecting motion, noise, or abnormal temperature.

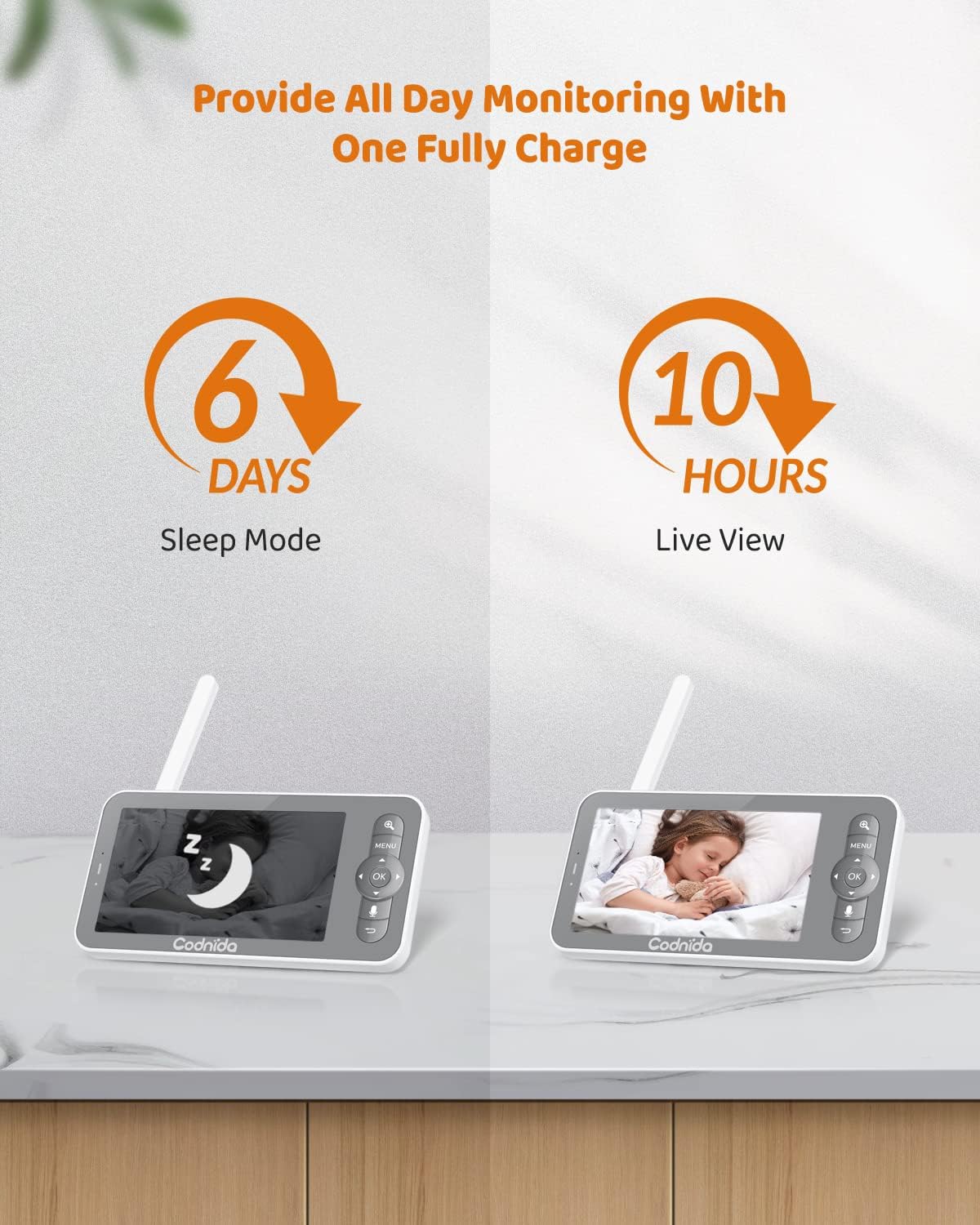

Image 11: Battery life indicators for sleep mode and live view.

5.2 Dosah přenosu

The video baby monitor covers a transmission range of up to 1000 feet in an open area, allowing you to monitor your baby from various locations within your home with a stable video feed.

Image 12: The monitor offers a transmission range of up to 1000ft.

6. Údržba

To ensure the longevity and optimal performance of your Codnida Baby Monitor, follow these maintenance guidelines:

• Čištění: Use a soft, dry cloth to clean the camera lens and display screen. Do not use abrasive cleaners or solvents.
• Skladování: When not in use for extended periods, store the monitor in a cool, dry place away from direct sunlight and extreme temperatures.
• Péče o baterie: Avoid fully discharging the battery frequently. Charge the unit regularly to maintain battery health.

7. Řešení problémů

If you encounter any issues with your Codnida Baby Monitor, please refer to the following common troubleshooting tips:

• Žádný obraz/zvuk: Ensure both the camera and parent unit are powered on and fully charged. Check that they are within range of each other.
• Špatný signál: Move the parent unit closer to the camera unit. Reduce obstacles between the units (e.g., thick walls, large appliances).
• Rušení: Keep the monitor away from other electronic devices that may cause interference (e.g., Wi-Fi routers, microwaves).
• Resetovat: If issues persist, try resetting both units. Refer to the included manual for specific reset instructions using the reset pin.
• Problémy s připojením aplikace: Ensure your Wi-Fi network is stable and the password is correct. Restart your router and try connecting again.

8. Specifikace

9. Podpora

For any product issues or technical assistance, please contact Codnida customer support. Our professional customer support team is committed to resolving any product issues within 24 hours.

Navštivte Codnida Store on Amazon další informace a zdroje podpory.
