Spider Farmer 2x2x6 Grow Tent Instruction Manual

Zavedení

This manual provides detailed instructions for the assembly, operation, and maintenance of your Spider Farmer 2x2x6 Grow Tent. Designed for optimal indoor plant growth, this tent offers a controlled environment for various hydroponic and soil-based cultivation methods. Please read this manual thoroughly before setting up and using your grow tent to ensure proper function and longevity.

Konec produktuview

The Spider Farmer 2x2x6 Grow Tent is engineered with high-quality materials and user-centric features to support a successful indoor growing experience. Key features include:

• Pro-Grade Lightproof Design: Premium SBS zippers with double protection and dual stitching effectively prevent light leakage, ensuring a completely controlled environment for your plants.
• Špičkový materiál: Constructed from tear-proof and waterproof 1680D Oxford canvas with diamond reflective Mylar interior, maximizing light reflectivity and preventing light leaks.
• Vylepšená stabilita: Features 3x-thicker hardened steel poles and reinforced adapters, capable of supporting up to 120 lbs of equipment, including heavy grow lights and carbon filters.
• Pohodlný přístup: Zahrnuje a view window (11.8"x11.8") for observation, a side buckle to secure the main door when open, and hooks for controller placement.
• Optimalizované proudění vzduchu: Multiple ventilation ports and cable holes are designed for efficient air extraction and cable management, promoting healthy plant growth.
• Waterproof Floor Tray: A removable and waterproof floor tray helps maintain a clean and organized growing environment.

Figure 1: Lightproof Technology. The tent's design ensures no light escapes or enters, crucial for plant growth cycles.

Figure 2: Superior Material Construction. Layers include 1680D Oxford fabric, a lightproof layer, and diamond reflective Mylar for maximum light efficiency.

Figure 3: User-Centric Design. Features like the viewing window and controller lanyard enhance convenience. Note: Controller is sold separately.

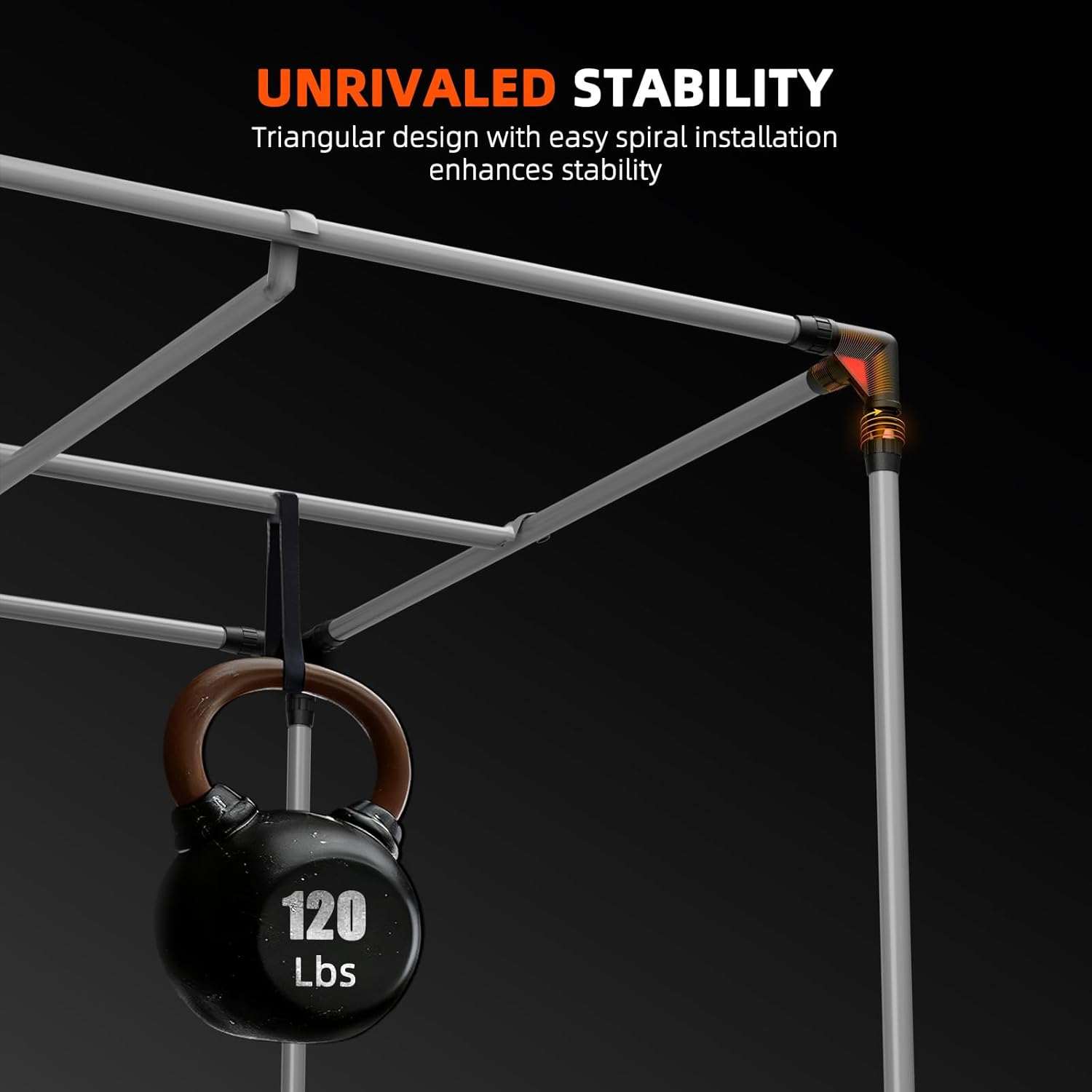

Figure 4: Unrivaled Stability. The robust steel frame and reinforced connectors support significant weight, up to 120 lbs.

Figure 5: Innovative Storage Solution. The side buckle allows the door to be fastened neatly for quick and secure access.

Pokyny pro nastavení

Follow these steps for a hassle-free assembly of your Spider Farmer Grow Tent:

1. Rozbalte komponenty: Opatrně vyjměte všechny díly z obalu. Zkontrolujte, zda jsou přítomny všechny součásti uvedené v dodacím listu.
2. Sestavte rám: Connect the metal poles (labeled E, F, G, H, J) using the corner adapters (labeled D). Ensure all connections are secure. The triangular design with spiral installation enhances stability.
3. Instalace závěsných tyčí: Attach the hanging bars (labeled I) to the top frame using the provided hooks. These bars will support your grow lights and other equipment.
4. Drape the Tent Fabric: Carefully pull the tent fabric over the assembled frame. Ensure the zippers are fully open to facilitate fitting.
5. Zajistěte látku: Zip up all zippers, ensuring the double protection zipper flap is properly aligned to prevent light leaks.
6. Insert Floor Tray: Place the waterproof floor tray at the bottom of the tent.
7. Position Ventilation and Cables: Utilize the cable hole ports and mesh ventilation ports for your fan, filter, and electrical cables.

Figure 6: Hassle-Free Assembly. A visual guide to connecting the frame components for quick setup.

Návod k obsluze

To ensure optimal growing conditions within your Spider Farmer Grow Tent, consider the following operational aspects:

• Osvětlení: Install your grow light (e.g., SF1000, SE1500, G1500) using the hanging bars. Adjust the light height according to your plant's growth stage and light intensity requirements.
• Větrání: Connect an inline fan (4-inch recommended) and carbon filter to the designated ports to manage temperature, humidity, and odor. Ensure proper airflow to prevent stale air and promote healthy plant development.
• Sledování: Použijte viewing window to observe your plants without disturbing the internal environment. Utilize the controller hooks to hang environmental monitors or light controllers for easy access and adjustments.
• Kontrola prostředí: Maintain consistent temperature and humidity levels suitable for your specific plants. The tent's lightproof and insulated design aids in stable environmental control.

Figure 7: Dimensions and Recommendations. This image provides the tent's dimensions and suggests compatible grow lights and fan sizes.

Údržba

Regular maintenance ensures the longevity and optimal performance of your grow tent:

• Čištění interiéru: Periodically wipe down the reflective Mylar interior with a damp cloth to remove dust and debris, maintaining maximum reflectivity.
• Podlahový zásobník: The waterproof floor tray is detachable for easy cleaning. Remove and clean it regularly to prevent water accumulation and maintain hygiene.
• zipy: Keep zippers clean and free of obstructions. Lubricate them occasionally with a silicone-based lubricant to ensure smooth operation and prevent wear.
• Kontrola rámu: Periodically check the steel frame and connectors for any signs of loosening or damage. Tighten connections as needed to maintain structural integrity.
• Kontrola tkaniny: Inspect the Oxford canvas for any tears or damage. Small tears can be repaired with appropriate fabric repair kits to maintain lightproofing.

Odstraňování problémů

Zde jsou některé běžné problémy a jejich řešení:

• Úniky světla: Ensure all zippers are fully closed and the zipper flaps are properly positioned. Check all ventilation ports and cable holes to confirm they are securely tightened or covered. Inspect the fabric for any small holes and repair if necessary.
• Nestabilní rám: Verify that all steel poles are fully inserted into their connectors. Ensure the frame is assembled on a flat, level surface.
• Špatné proudění vzduchu: Check if the inline fan is operating correctly and if the carbon filter is clean. Ensure all intake and exhaust ports are open and unobstructed.
• Vysoká vlhkost: Increase ventilation by running the exhaust fan at a higher speed or opening passive intake vents. Consider using a dehumidifier if necessary.
• Nízká vlhkost: Reduce ventilation or use a humidifier to increase moisture levels within the tent.

Specifikace

Záruka a podpora

For warranty information, product support, or any inquiries regarding your Spider Farmer Grow Tent, please refer to the official Spider Farmer webnebo se obraťte přímo na jejich zákaznický servis. Uschovejte si účtenku jako doklad o koupi pro případ reklamace.

Můžete navštívit Spider Farmer Store on Amazon pro více informací a prozkoumání dalších produktů.
