1. Úvod
This manual provides essential instructions for the proper use and maintenance of your OneOdio A71 Headphone Cable. Please read this manual thoroughly before using the product to ensure optimal performance and longevity.
2. Konec produktuview
The OneOdio A71 Headphone Cable is a 1.2-meter auxiliary audio cable designed for use with OneOdio A71 headphones. It features 3.5mm male connectors on both ends and includes an integrated microphone for communication.

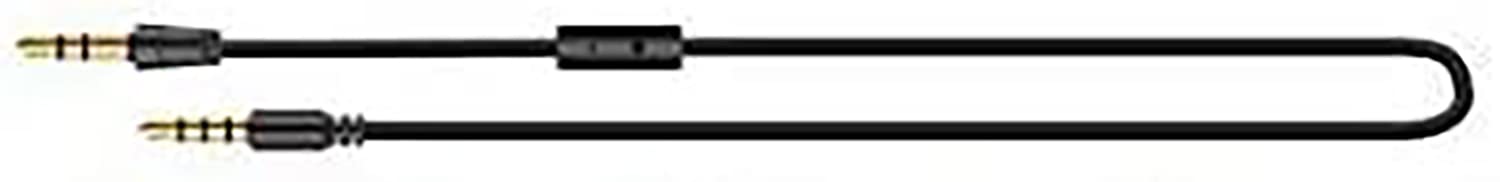

Obrázek 1: OneOdio A71 Headphone Cable. This image displays the black 1.2-meter cable with a 3.5mm jack on each end. One end features a standard 3.5mm TRRS connector, while the other end also has a 3.5mm TRRS connector with an inline module containing the microphone. The cable is shown in a U-shape, highlighting its length and flexibility.
Klíčové vlastnosti:
- Délka: 1.2 metru (přibližně 4 stop)
- Konektory: Dual 3.5mm male auxiliary (AUX) jacks
- Mikrofon: Integrated for voice communication
- Kompatibilita: Specifically designed for OneOdio A71 headphones
3. Nastavení
To set up your OneOdio A71 Headphone Cable, follow these steps:
- Identifikujte konektory: Locate the 3.5mm audio input port on your OneOdio A71 headphones. This is typically found on one of the earcups.
- Connect to Headphones: Insert one end of the 3.5mm cable into the audio input port of your OneOdio A71 headphones. Ensure it is fully seated.
- Připojit k zařízení: Insert the other end of the 3.5mm cable into the audio output jack of your desired audio source (e.g., smartphone, computer, gaming console controller).
- Ověřit připojení: Ensure both ends of the cable are securely connected to prevent audio interruptions or poor sound quality.
4. Návod k obsluze
Once the cable is connected, you can use your headphones for audio playback and the integrated microphone for voice input.
- Přehrávání zvuku: Audio from your connected device will be transmitted to your headphones. Adjust volume directly on your audio source or headphones if they have built-in controls.
- Použití mikrofonu: The integrated microphone allows for voice communication. When connected to a compatible device, the microphone will automatically activate for calls, voice chat, or recording. Position the microphone close to your mouth for clear audio capture.
5. Údržba
Proper care will extend the life of your headphone cable:
- Skladování: When not in use, coil the cable loosely. Avoid tight coiling or sharp bends, which can damage the internal wires.
- Čištění: Wipe the cable with a soft, dry cloth to remove dust or dirt. Do not use harsh chemicals or abrasive cleaners.
- Zacházení: Při zapojování nebo odpojování kabelu vždy uchopte kryt konektoru, netahejte za samotný kabel.
- Vyhněte se stresu: Do not expose the cable to excessive tension, crushing, or extreme temperatures.
6. Řešení problémů
If you encounter issues with your OneOdio A71 Headphone Cable, refer to the following common problems and solutions:
| Problém | Možné řešení |
|---|---|
| No audio or intermittent audio |
|
| Mikrofon nefunguje |
|
| Poor sound quality (static, distortion) |
|
7. Specifikace
- Značka: OneOdio
- Model: A71
- Typ kabelu: AUX (Auxiliary Audio)
- Konektory: 3.5mm Male to 3.5mm Male (TRRS compatible for microphone)
- Délka: 1.2 metrů
- Barva: Černý
- Speciální funkce: Integrovaný mikrofon
- Kompatibilní zařízení: OneOdio A71 Headphones, devices with 3.5mm audio jacks
- Rozměry produktu: 9 x 2.5 x 1.5 cm (packaging); 15 grams (weight)
- ASIN: B0B187ZGWD
8. Záruka a podpora
For information regarding warranty coverage and customer support, please refer to the documentation included with your original product purchase or visit the official OneOdio webUschovejte si doklad o koupi pro případ reklamace.
For further assistance, you may contact OneOdio customer service through their official channels.
