KOSUMOSU Digital LED Wall/Desk Clock ACD-215B Instruction Manual

1. Úvod

Děkuji za nákupasing the KOSUMOSU Digital LED Wall/Desk Clock, Model ACD-215B. This clock features a modern 3D LED display, remote control operation, and multiple functions including time, date, temperature display, and an alarm. Please read this manual carefully before use to ensure proper operation and to maximize the product's lifespan.

This clock is designed for indoor use and can be mounted on a wall or placed on a desk. Its adjustable brightness and large display ensure clear visibility in various lighting conditions.

2. Obsah balení

• KOSUMOSU Digital LED Clock (ACD-215B)
• Dálkové ovládání
• Napájecí kabel USB
• Uživatelská příručka
• Montážní materiál (šrouby, hmoždinky)

Poznámka: An AC adapter (5V/1A USB-A) is required for operation and is sold separately. It is not included in the package.

Image: Contents of the KOSUMOSU Digital LED Clock package.

3. Bezpečnostní informace

• Use only a 5V/1A USB-A power adapter. Using an incompatible adapter may cause malfunction or damage.
• Udržujte zařízení mimo dosah vody a vysoké vlhkosti.
• Nepokoušejte se zařízení sami rozebírat nebo opravovat. Požádejte o pomoc zákaznickou podporu.
• Ensure the clock is securely mounted if wall-hanging to prevent falling.

4. Nastavení

4.1 Připojení napájení

1. Připojte dodaný napájecí kabel USB ke vstupnímu portu napájení hodin.
2. Plug the other end of the USB cable into a 5V/1A USB-A power adapter (not included).
3. Plug the power adapter into a wall outlet. The clock display will illuminate.

The clock features a super capacitor for memory retention, allowing it to retain time settings for over 2 hours even if power is disconnected.

4.2 Příprava dálkového ovládání

Before using the remote control, ensure you remove the transparent battery insulation sheet from the battery compartment at the bottom of the remote.

Image: Remote control battery insulation sheet removal.

4.3 Možnosti umístění

The clock can be placed on a desk using its integrated stand or mounted on a wall. For wall mounting, use the hook holes on the back of the clock and the provided mounting hardware.

Obrázek: Zpět view of the clock showing wall mounting holes and desk placement.

5. Návod k obsluze

All settings are controlled via the remote control. Ensure the remote is pointed towards the infrared sensor located at the bottom of the clock for optimal response. The effective range is approximately 3.5 meters.

Image: Pointing the remote control at the clock's IR sensor.

5.1 Nastavení času a data

1. Stiskněte tlačítko SOUBOR button on the remote control. The display will start flashing.
2. Použijte UP (△) a DOWN (▽) tlačítka pro úpravu hodnoty.
3. Stiskněte SOUBOR again to move to the next setting (e.g., hours, minutes, year, month, day).
4. Jakmile jsou všechna nastavení dokončena, stiskněte SOUBOR pro ukončení režimu nastavení.

5.2 12/24hodinový formát

Krátce stiskněte UP (△) button on the remote control to switch between 12-hour and 24-hour display formats.

5.3 Nastavení jasu

The clock offers 5 levels of brightness adjustment: Bright, Slightly Dim, Dim, Auto-dim, and OFF.

1. Stiskněte tlačítko JASNÝ button on the remote control to cycle through the manual brightness levels.
2. The clock also features an automatic dimming function with 8 levels, which adjusts brightness based on ambient light detected by the built-in light sensor.

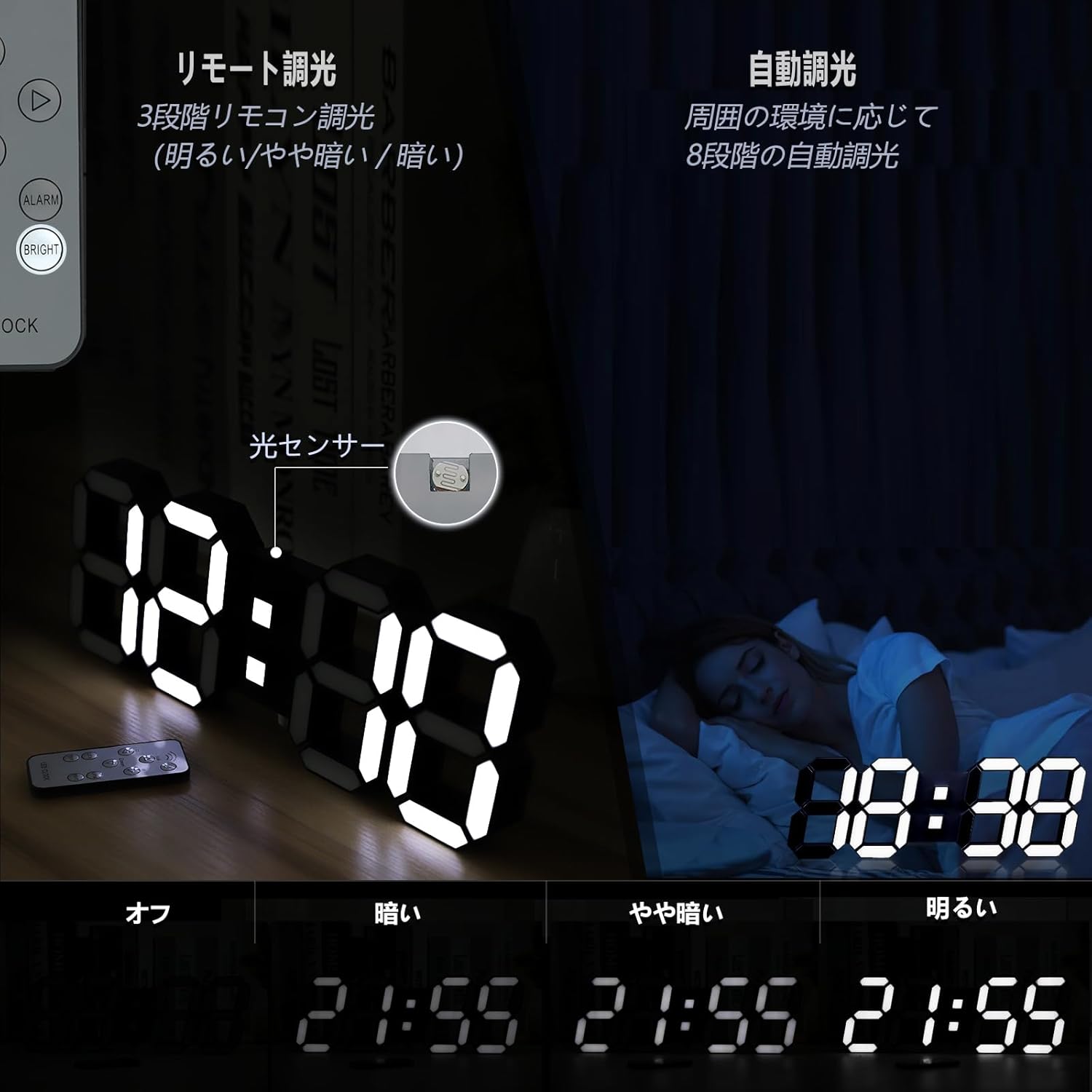

Image: Brightness adjustment levels and automatic dimming feature.

5.4 Nastavení alarmu

1. Stiskněte tlačítko POPLACH button on the remote control. The alarm time display will flash.
2. Použijte UP (△) a DOWN (▽) tlačítky nastavte požadovaný čas budíku.
3. Stiskněte POPLACH again to confirm and activate the alarm. An alarm icon will appear on the display.
4. Chcete-li alarm deaktivovat, stiskněte tlačítko POPLACH znovu stiskněte tlačítko, dokud ikona budíku nezmizí.

5.5 Temperature Display (Fahrenheit/Celsius)

The clock can display temperature in either Fahrenheit or Celsius.

1. Krátce stiskněte LEFT (◀) button on the remote control to cycle through the display modes: Date, Time, and Temperature.
2. When the temperature is displayed, press the TEPL button to switch between Fahrenheit (°F) and Celsius (°C).

Image: Loop display of time, date, and temperature.

5.6 Colon Blinking Control

To stop or start the blinking of the colon (time separator) on the display, press the RIGHT (▶) tlačítko na dálkovém ovladači.

Image: Controlling the colon blinking with the remote.

6. Údržba

• Povrch hodin čistěte měkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
• Keep the clock free from dust and debris to ensure optimal performance of the light sensor and display.
• If the remote control stops responding, check if the battery insulation sheet has been removed. If it has, consider replacing the remote control battery (CR2025 type).

7. Řešení problémů (Otázky a odpovědi)

Q: Does the clock run on an internal battery?

A: No, this LED clock requires a 5V/1A USB-A power adapter (sold separately) to operate. It is not a wireless clock. It has an internal super capacitor for memory backup, not for continuous operation.

Q: Why does the display freeze, flicker, or hum during use or brightness changes?

A: This usually indicates an unstable or incompatible power adapter. The clock may not be receiving sufficient current to function normally. Please replace it with a standard 5V/1A adapter manufactured by a reputable brand.

Q: The remote control is not working. What should I do?

A: 1. Ensure you have removed the transparent battery insulation sheet from the bottom of the remote. 2. When operating the remote, point it towards the infrared sensor at the bottom of the clock. Avoid any obstructions that might interfere with the infrared signal. The effective range is approximately 3.5 meters.

Q: How do I stop the colon (time separator) from blinking?

A: Simply press the RIGHT (▶) arrow button on the remote control. This will toggle the colon's blinking on or off.

Q: Can this clock display in 24-hour format?

A: Yes. Short press the UP (△) arrow button on the remote control to switch between 12-hour and 24-hour formats.

Q: Why doesn't the alarm sound at the set time?

A: Please verify both the alarm time setting and the time format setting (12-hour/24-hour). For 12-hour format: AM12-PM11. For 24-hour format: 0-23.

Q: How do I display the temperature and switch between Fahrenheit and Celsius?

A: Short press the LEFT (◀) arrow button to cycle through the display of date, time, or temperature. Once the temperature is displayed, press the TEPL tlačítko pro přepínání mezi stupni Fahrenheita a Celsia.

Q: How do I contact the seller if I have an unknown product issue?

A: If you require support for product issues, please send a message via Amazon mail (chat box). We will resolve the issue and provide a solution promptly.

8. Specifikace

9. Záruka a podpora

For any product issues or support inquiries, please contact KOSUMOSU customer service directly through the Amazon messaging system (chat box). Our team is committed to providing prompt assistance and solutions.

Please refer to this user manual for detailed instructions and troubleshooting steps before contacting support.
