1. Úvod
The XPOWER FM-88W Misting Fan is designed to provide ultimate cooling solutions by lowering ambient temperatures. This powerful and effective unit produces high capacity airflow and features adjustable speeds and oscillation for broad coverage. It is convenient, portable, and suitable for both outdoor misting and indoor air circulation.
Konec produktuview
Klíčové vlastnosti
- Ultimate Misting Solution: Effectively lowers ambient temperatures for enhanced comfort.
- Powerful & Effective: Delivers 1000 CFM airflow with 3 adjustable speeds.
- Široké pokrytí: Features 145° rotation angle positions with auto oscillation.
- Pohodlné a přenosné: Lightweight, durable design with a sealed motor.
- Všestranný zdroj vody: Can draw water from a WT-90 reservoir (sold separately) or a 5-gallon utility bucket (not included), eliminating the need for a direct water line.
- Víceúčelové použití: Suitable for outdoor misting and indoor air circulation/cooling.
- Bezpečnostní certifikace: ETL / CETL safety certified.
2. Nastavení
Vybalování
Carefully remove the XPOWER FM-88W Misting Fan from its packaging. Inspect the unit for any signs of damage during transit. Ensure all components listed in the packing list are present before proceeding.
Připojení vody

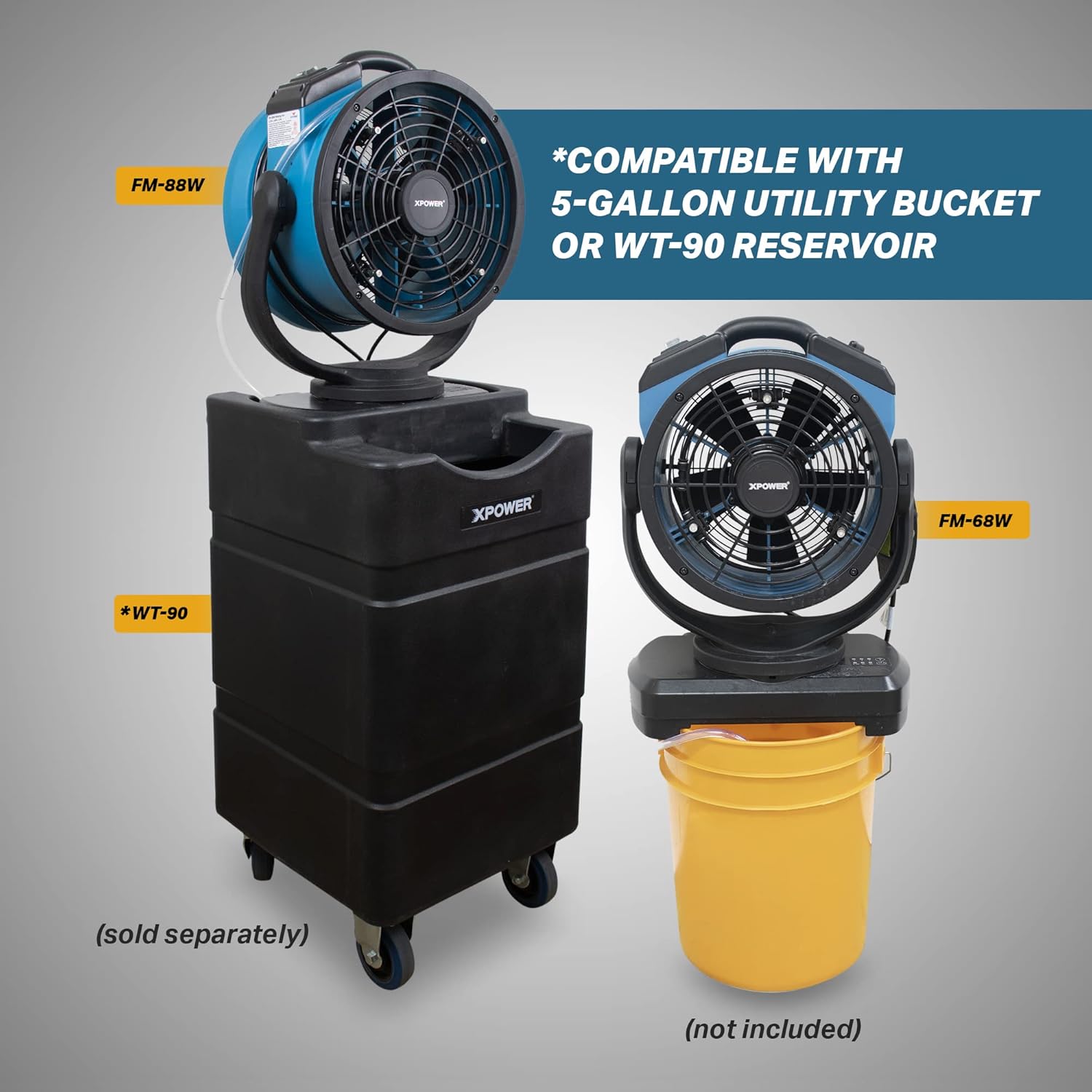

The FM-88W is designed for flexible water sourcing. It can be connected to an XPOWER WT-90 wheeled reservoir or a standard 5-gallon utility bucket.
- Using WT-90 Reservoir: Place the FM-88W securely on top of the WT-90 reservoir. Connect the water pump hose from the fan to the reservoir's water outlet.
- Using 5-Gallon Utility Bucket: Place the FM-88W on a stable surface next to or above a 5-gallon utility bucket filled with water. Insert the water pump hose into the bucket, ensuring it reaches the bottom for continuous water supply.
Připojení napájení
Plug the fan's power cord into a standard 115V AC electrical outlet. Ensure the outlet is properly grounded and rated for the fan's power requirements (88 watts, 1 Amp nebo méně).
3. Návod k obsluze
Ovládací panel
The FM-88W features an intuitive control panel located on the unit's base.
- Vypínač: Stiskněte pro zapnutí nebo vypnutí jednotky.
- Nastavení rychlosti ventilátoru: Select from 3 adjustable fan speeds (1, 2, 3) to control airflow intensity.
- Nastavení mlhy: Choose from 3 mist settings to adjust the mist output.
- Funkce časovače: Set the operation timer for 0.5 hours, 1 hour, or 2 hours. The unit will automatically shut off after the set time.
Oscilace a náklon
The FM-88W offers both oscillation and manual tilt adjustments to direct airflow and mist precisely where needed.
- Kmitání: Activate the auto oscillation feature for broader coverage, distributing air and mist across a wider area.
- Nastavení sklonu: Manually adjust the fan head's tilt up to 145 degrees to direct airflow and mist vertically.
4. Údržba
Regular maintenance ensures the longevity and optimal performance of your XPOWER FM-88W Misting Fan.
Čištění
- Mister Nozzles: After each use, it is recommended to remove and dry the mister nozzles to prevent mineral buildup and clogging. Periodically wash them with clean water. Consider using a calcium inhibiting filter if your water supply is hard.
- Lopatky a mřížka ventilátoru: Použijte měkký, damp cloth to wipe down the fan blades and protective grille. Ensure the unit is unplugged before cleaning.
- Vnější: Wipe the exterior surfaces with a clean, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
Skladování
When not in use for extended periods, store the fan in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure the water reservoir/bucket is empty and dry before storage. Wrap the hose and cord neatly around the designated handle for easy packing.
5. Řešení problémů
This section addresses common issues you might encounter with your FM-88W Misting Fan.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Ventilátor se nezapne. | No power supply; Power cord not fully plugged in; Outlet malfunction. | Check power connection; Try a different outlet; Ensure power button is pressed. |
| Žádná mlha nebo nízký výkon mlhy. | Water reservoir empty; Clogged mister nozzles; Kinked water hose; Pump malfunction. | Refill water reservoir/bucket; Clean mister nozzles; Straighten water hose; Contact customer support if pump issue persists. |
| Z jednotky uniká voda. | Loose connections; Damaged hose or nozzle piece. | Check all hose connections and tighten if loose; Inspect hose and nozzle for damage and replace if necessary. |
| Ventilátor je hlučný. | Obstruction in fan blades; Unit not on a stable surface. | Unplug and check for debris in fan blades; Place unit on a flat, stable surface. |
6. Specifikace
| Specifikace | Detail |
|---|---|
| Značka | XPOWER |
| Název modelu | FM-88W |
| Zdroj napájení | Elektrický střídavý proud |
| svtage | 115 voltů |
| Wattage | 88 wattů |
| Proud vzduchu | 1000 CFM (kubických stop za minutu) |
| Počet úrovní výkonu | 3 (rychlosti ventilátoru) |
| Speciální funkce | Portable, High Velocity, Lightweight, Oscillating, Built-in Water Pump |
| Vnitřní/venkovní použití | Venkovní, Vnitřní |
| Rozměry produktu | 9.6 x 17.1 x 23.5 palce |
| Hmotnost položky | 21.7 libry |
| Materiál | Plast |
| Bezpečnostní certifikace | ETL / CETL |
7. Záruka a podpora
Informace o záruce
The XPOWER FM-88W Misting Fan comes with a 1letá omezená záruka od data nákupu. Tato záruka se vztahuje na vady materiálu a zpracování při běžném používání. Uschovejte si prosím doklad o koupi pro případ uplatnění záruky.
Zákaznická podpora
For any questions, technical assistance, or warranty inquiries, please contact XPOWER's California-based customer service team. They are dedicated to providing comprehensive support and ensuring a first-class customer experience.
Podrobnější informace naleznete také v oficiální uživatelské příručce ve formátu PDF:
