Uživatelská příručka pro mechanickou klávesnici Keychron K3 verze 2

Konec produktuview

The Keychron K3 Version 2 is an ultra-slim, 75% layout (84 keys) mechanical keyboard designed for versatility and performance. It offers both wireless Bluetooth 5.1 and wired USB-C connectivity, making it compatible with macOS and Windows devices. Featuring hot-swappable low-profile Keychron Optical Red Switches, this keyboard provides a precise linear typing experience with white LED backlighting.

Obrázek 1: Shora dolů view of the Keychron K3 Version 2 keyboard, showcasing its 75% layout with 84 keys and white backlighting.

Nastavení a připojení

The Keychron K3 Version 2 offers flexible connectivity options to suit various setups.

Bezdrátové připojení Bluetooth 5.1

1. Ujistěte se, že je klávesnice nabitá nebo připojená přes USB-C.
2. Locate the mode switch on the side of the keyboard and set it to "Bluetooth".
3. On your device (laptop, PC, tablet, or phone), enable Bluetooth and search for available devices.
4. Select "Keychron K3" from the list of devices.
5. The keyboard can connect to up to 3 devices simultaneously. Use the Fn + 1, Fn + 2, or Fn + 3 keys to switch between paired devices.

Kabelové připojení USB-C

• Connect the provided USB-C to USB-A cable from the keyboard to your computer's USB port.
• Set the mode switch on the side of the keyboard to "Cable".
• The keyboard will automatically be recognized by your device.

Figure 2: Illustration showing the Keychron K3 connecting wirelessly via Bluetooth 5.1 to a laptop, tablet, and smartphone, highlighting its multi-device compatibility.

Návod k obsluze

Key Layout and Compatibility

The 75% layout with 84 keys provides a compact design while retaining essential function keys. The keyboard is fully compatible with both macOS and Windows operating systems. It includes extra keycaps for both systems to ensure proper labeling.

Figure 3: The tenkeyless design of the Keychron K3, demonstrating how it saves desk space and provides more room for mouse movement.

Přepínače vyměnitelné za provozu

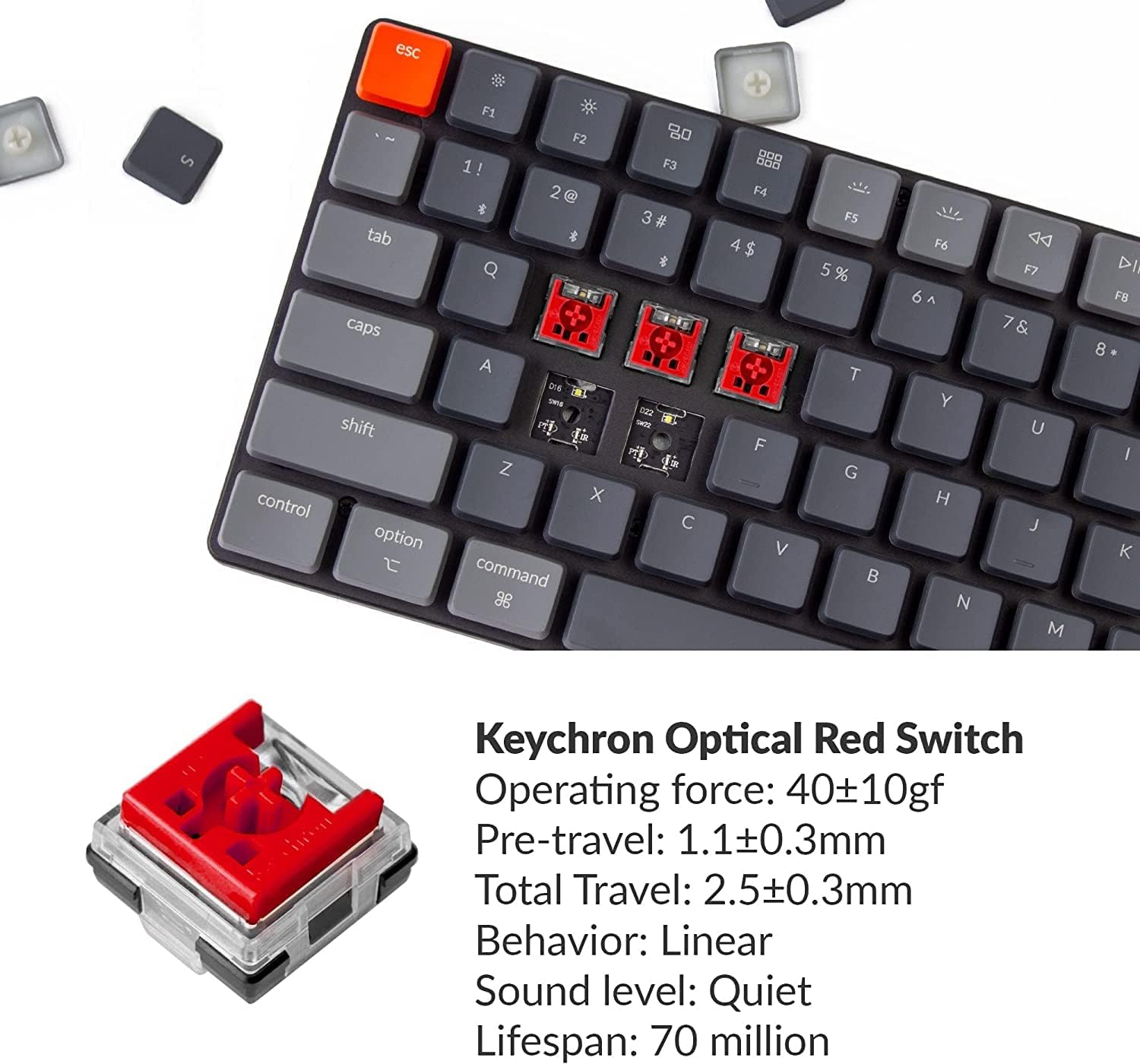

The K3 features hot-swappable low-profile Keychron Optical Red Switches, allowing users to easily change switches without soldering. This enables customization of the typing experience, whether you prefer linear, clicky, or tactile feedback.

Obrázek 4: Detail view of the Keychron K3 showcasing its hot-swappable low-profile optical switches, with a keycap puller demonstrating the ease of removal.

Bílé LED podsvícení

The keyboard is equipped with a white LED backlight. Users can switch between static white or flashing light modes to suit their preference.

Figure 5: The Keychron K3 keyboard illuminated with its white LED backlight, enhancing visibility in low-light conditions.

Ergonomický design

The K3's design incorporates ergonomics with two keyboard stands that provide a comfortable typing angle (6-9 degrees), reducing wrist strain. Its streamlined aluminum body ensures durability and a lightweight profile.

Obrázek 6: Strana view of the Keychron K3 demonstrating its adjustable typing angle (6-9 degrees) for improved ergonomics.

Údržba

Čištění

• K otření povrchu klávesnice použijte měkký, suchý hadřík.
• For deeper cleaning, remove keycaps using the provided keycap puller and use compressed air to clear debris from beneath the keys.

Výměna spínače

Výměna spínače:

1. Gently pull the keycap off using the keycap puller.
2. Use the switch puller to carefully remove the optical switch from the keyboard.
3. Align the pins of the new optical switch with the holes on the PCB and press firmly until it clicks into place.
4. Znovu nasaďte krytku kláves.

Note: This keyboard is NOT compatible with conventional MX style mechanical switches.

Odstraňování problémů

Problémy s připojením

• If experiencing input delay or disconnections in Bluetooth mode, ensure the keyboard is within range of your device and there are no significant obstructions.
• Zkuste znovu spárovat klávesnici se zařízením.
• Switch to wired mode via USB-C to rule out Bluetooth interference.

Životnost baterie

• The keyboard has a built-in 1550 mAh rechargeable Li-polymer battery, offering up to 34 hours of working time.
• If battery life seems shorter than expected, ensure the backlight is not set to maximum brightness constantly, as this consumes more power.
• The keyboard enters a deep sleep mode after 5 minutes of inactivity to conserve battery. Press any key to wake it up.

Specifikace

Co je v krabici

• USB kabel
• Stahovač klíčů

Oficiální video produktu

Záruka a podpora

For detailed warranty information and customer support, please refer to the official Keychron webwebu nebo v uživatelské příručce v PDF dodané s vaším produktem.

• Stáhnout uživatelskou příručku (PDF)
• Protection Plans are available for purchase separately:
  • Dvouletý ochranný plán
  • Dvouletý ochranný plán
  • Kompletní ochrana (měsíční tarif)
