Návod k obsluze nabíječky do auta Baseus 65W USB C

Zavedení

This manual provides detailed instructions for the safe and efficient use of your Baseus 65W USB C Car Charger. Please read this manual thoroughly before operating the device and retain it for future reference.

Klíčové vlastnosti

• 65W USB C Fast Charging: Capable of charging MacBooks and other high-power devices rapidly.
• Dual Port Quick Charge: Features one Type-C (65W Max) and one USB (30W Max) port, allowing simultaneous charging of a laptop and a phone. Total output 63W when both ports are in use (Type-C 45W + USB 18W).
• Inteligentní digitální displej: Monitors and displays vehicle battery voltage, výstupní objemtage, and output power, cycling every five seconds for enhanced driving safety.
• Efficiency & Safety: Constructed with an upgraded metal body for efficient heat dissipation and certified by UL, CE, FCC, ensuring protection against short-circuiting, over-heating, over-current, and over-charging. Includes a soft LED light for visibility in the dark.
• Široká kompatibilita: Supports PPS, PD3.0, PD2.0, QC4.0, QC3.0, QC2.0, FCP, SCP, AFC, MTK PE+ protocols, compatible with a broad range of devices including iPhones, Samsung Galaxy phones, MacBooks, iPads, and other laptops.

Konec produktuview

Obrázek 1: Přední strana view of the Baseus 65W USB C Car Charger, showing the digital display and dual charging ports.

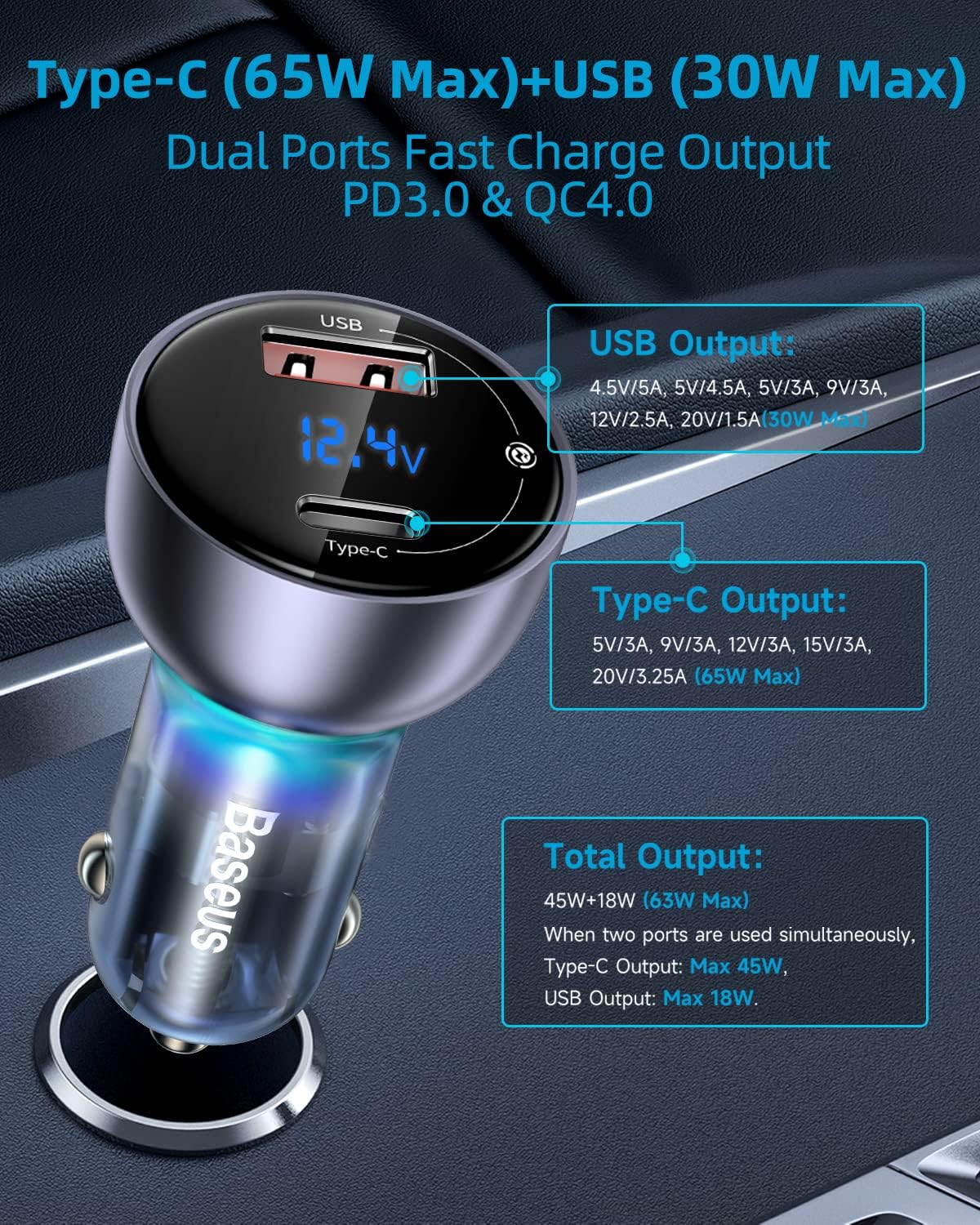

Obrázek 2: Detailní view of the charger's ports, indicating Type-C (65W Max) and USB (30W Max) outputs, and combined output (63W Max).

Pokyny pro nastavení

1. Vložení do zapalovače cigaret: Insert the Digital Display PPS Dual Fast Charger Car Charger into your vehicle's cigarette lighter interface.
2. Zapnutí: Ensure the car's power is on. The blue LED digital tube of the charger will light up.
3. Displej monitoru: The display will cycle every five seconds, showing the vehicle battery voltage, výstupní objemtage, and output power, indicating normal operation.
4. Připojit zařízení: Connect one end of your charging cable to the appropriate output port (Type-C or USB) of the car charger, and the other end to your mobile phone or other digital device. The device will begin charging.

Figure 3: The car charger inserted into a vehicle's 12V socket, displaying voltage informace.

Návod k obsluze

• Nabíjení jedním portem:
  • Type-C Output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (65W Max)
  • USB Output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/3A, 12V/2.5A, 20V/1.5A (30W Max)
• Nabíjení s dvojitým portem: When both Type-C and USB ports are used simultaneously, the output is Type-C: 45W Max and USB: 18W Max (Total 63W Max).
• Digital Display Monitoring: The LED display continuously cycles through vehicle battery voltage, výstupní objemtage, and output power, providing real-time information.

Figure 4: The digital display cycling through real-time input voltage, výstupní objemtage, and output current values.

Specifikace

Kompatibilita

The Baseus 65W USB C Car Charger is compatible with a wide range of devices and vehicle types:

• Podporované protokoly: PPS, PD3.0, PD2.0, QC4.0, QC3.0, QC2.0, FCP, SCP, AFC, MTK PE+, etc.
• Kompatibilní zařízení:
  • chytré telefony: iPhone 14 series/13 series/12 series/11 series/X series, XS 8 7 Plus; Samsung S22 series/S21 series/S20 series/S9 series+, Note9; Google Pixel, Pixel 3a, XL, Nexus 5X, 6P; Huawei P10, Mate 9, Mate 30, Mate 30 Pro; LG G7, V30+; Sony XZ2 Premium, Sony XZ3; HTC, Nokia, Motorola.
  • Tablety: iPad Pro, iPad Air, Samsung Tab S8.
  • Notebooky: MacBook 2021, Pro, Air 2020; Chrome Book; Lenovo, Dell, HP, Google Pixelbook.
  • Další zařízení: Nintendo Switch, Steam Deck, Bluetooth receiver, dash cams, drones, Kindle Fire HD 10, and more.
• Kompatibilita vozidla: Suitable for most 12V to 24V sockets in cars and trucks.

Figure 5: Visual representation of the charger's broad compatibility with phones, laptops, and different vehicle types.

Odstraňování problémů a důležité poznámky

• Super Fast Charging for Samsung: For optimal super fast charging with Samsung phones, it is recommended to use the original charging cable. Non-original cables may not achieve the highest charging speeds.
• Huawei SCP Compatibility: 4.5V/5A and 5V/4.5A outputs are possible when the connected load is compatible with low-voltage fast charging protocols such as Huawei SCP.
• 20V USB Port Output: The USB Port can deliver 20V output when the input voltage is 24V (typically found in large trucks).
• Vozidlo svtage Limit: Apply this car charger to vehicles with voltages of 12V-24V only. Using it with voltages above 24V may cause irreversible damage to the product.
• Engine Start Recommendation: Always insert your device for charging after the car engine has been started to prevent potential issues.
• Vyhněte se přetížení: Do not charge high-power devices that exceed the charger's capabilities to protect the device from damage.

Oficiální videa produktů

Záruka a podpora

Baseus offers a lifetime warranty for this product. For any questions or support needs, please contact Baseus customer service via email. They are available 24/7 to provide prompt assistance.
