1. Úvod
This manual provides essential information for the safe installation, operation, and maintenance of your LMP ZY-B1046C Dusk to Dawn Outdoor Wall Sconce. Please read these instructions thoroughly before installation and retain them for future reference.
2. Bezpečnostní informace
- Always disconnect power at the circuit breaker before installation, servicing, or cleaning.
- Ensure all electrical connections comply with local codes and ordinances. If you are unsure about wiring, consult a qualified electrician.
- Neinstalujte v blízkosti hořlavých materiálů.
- This fixture is rated for outdoor use and is IP65 waterproof.
- Use only GU10 5W LED bulbs as specified.
3. Obsah balení
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny:
- LMP ZY-B1046C Wall Sconce Fixture (2 units)
- GU10 5W 3500K LED Bulbs (4 units)
- Mounting Hardware (screws, wire nuts, hex key)
- Návod k použití
Obrázek 3.1: Obsah balení
This image displays the product packaging, the black wall sconce fixture, two GU10 LED bulbs, and a small bag containing wire nuts and a hex key.
4. Nastavení a instalace
Pro správnou instalaci postupujte podle následujících kroků:
- Vypnout napájení: Locate the circuit breaker controlling the light fixture and turn off the power.
- Příprava montážní desky: Attach the mounting plate to the wall junction box using the provided screws. Ensure it is securely fastened.
- Připojení kabeláže: Connect the fixture's wires to your household wiring. Typically, black to black (live), white to white (neutral), and green/bare copper to green/bare copper (ground). Secure connections with wire nuts.
- Instalace žárovek: Insert the GU10 5W LED bulbs into the sockets within the fixture. Push and twist to secure.
- Připevněte přípravek: Align the fixture with the mounting plate and secure it with the provided screws or nuts.
- Obnovit napájení: Znovu zapněte napájení na jističi.
Image 4.1: Installation Steps
This image illustrates the installation process, showing how to attach the mounting bracket to the wall and then secure the light fixture onto the bracket.
For a visual guide on bulb installation, refer to the video below:
Video 4.1: How to Replace GU10 Lightbulbs
This video demonstrates the process of replacing GU10 lightbulbs in a wall sconce, showing how to remove the old bulb and insert a new one.
5. Návod k obsluze
The LMP ZY-B1046C features a built-in Dusk to Dawn sensor for automated operation:
- The high-sensitivity IC light sensor detects ambient brightness.
- The light fixture will automatically turn on at night (when brightness is between 20-50 lux).
- The light fixture will automatically turn off during the daytime (when brightness is between 80-110 lux).
- No manual switching is required, providing convenience and energy savings.
Image 5.1: Dusk to Dawn Sensor Functionality
This image visually explains the Dusk to Dawn sensor, depicting the light fixture automatically activating in low light conditions and deactivating in daylight.
See the Dusk to Dawn feature in action:
Video 5.2: LMP Dusk to Dawn Outdoor Wall Lights Demonstration
This video showcases the LMP outdoor wall lights, highlighting their IP65 waterproof rating and the automatic dusk-to-dawn sensor functionality.
6. Údržba
- Čištění: Před čištěním svítidla se ujistěte, že je vypnuté napájení. Otřete měkkým hadříkem.amp tkanina. Nepoužívejte abrazivní čisticí prostředky nebo rozpouštědla.
- Výměna žárovky: If a bulb needs replacement, turn off the power, carefully remove the old GU10 bulb by pushing and twisting, and insert a new GU10 5W LED bulb.
- Trvanlivost: The fixture is constructed from heavy-duty aluminum and is IP65 waterproof, designed to withstand various weather conditions including rain, snow, and extreme temperatures without rusting or corrosion.
7. Řešení problémů
- Světlo se nerozsvítí:
- Zkontrolujte, zda je jistič zapnutý.
- Ensure bulbs are correctly installed and not faulty.
- Ověřte, zda jsou kabeláž bezpečně připojena.
- Dusk to Dawn sensor not working correctly:
- Ensure the sensor is not obstructed by dirt, debris, or objects.
- Confirm there are no other light sources (e.g., streetlights, other fixtures) directly illuminating the sensor, which could prevent it from activating at dusk.
8. Specifikace
| Funkce | Specifikace |
|---|---|
| Značka | LMP |
| Číslo modelu | ZY-B1046C |
| Barva | Černý |
| Materiál | Hliník |
| Styl | Moderní |
| Forma svítidla | Šikovnost |
| Rozměry produktu | 4.25 cm D x 2.48 cm Š x 9.64 cm V |
| Vnitřní/venkovní použití | Venkovní |
| Zdroj napájení | AC |
| Speciální funkce | Vodotěsný (IP65) |
| Typ světelného zdroje | LED |
| svtage | 110V-240V |
| Světlá barva | Teplá bílá (3000 Kelvinů) |
| Jas | 450 Lumen (per bulb) |
| Wattage | 5 wattu (na žárovku) |
| Základna žárovky | GU10 |
| Osvědčení | ETL |

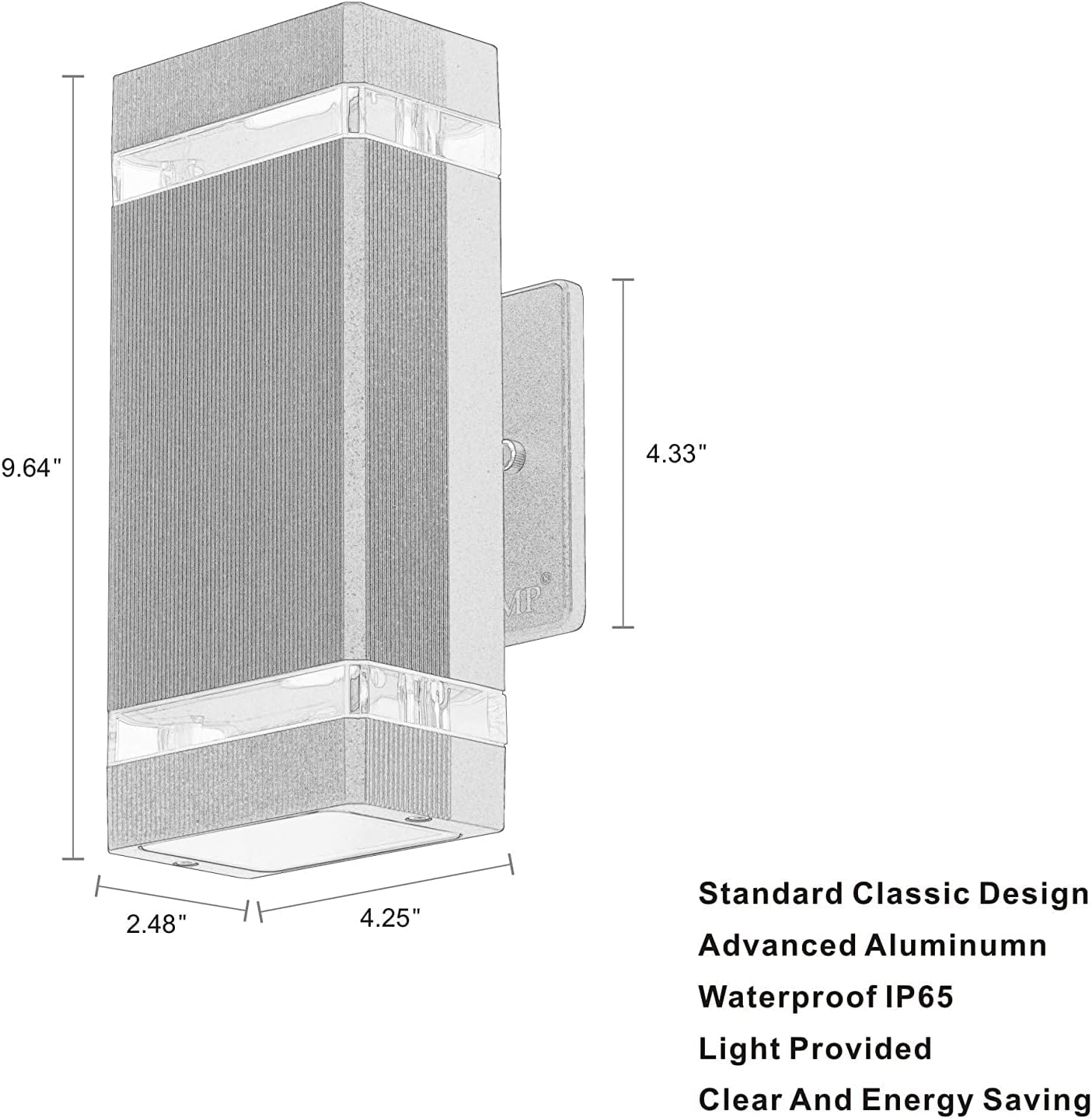

Obrázek 8.1: Diagram rozměrů produktu
This diagram provides the length, width, and height measurements of the wall sconce fixture.
9. Záruka a podpora
LMP provides a 2letá záruka for this LED wall light. If you encounter any problems with your product, please do not hesitate to contact us. We are committed to resolving any issues as quickly as possible.
For support, please refer to the contact information provided with your purchase or visit the official LMP webmísto.
