1. Úvod
This manual provides essential information for the installation, operation, and maintenance of your RIGID 36122-360-Series SAE Compliant Fog Lights. These lights are designed for both on-road and off-road use, offering dual-function lighting with selective yellow, white, or all-on modes. They feature an integrated thermal management system, an impact-resistant polycarbonate lens, and operate on 9-36 VDC.
Image 1.1: RIGID 360-Series SAE Compliant Fog Lights installed on a vehicle.
2. Bezpečnostní informace
Always prioritize safety during installation and operation. Ensure the vehicle's power is disconnected before beginning any electrical work. Professional installation is recommended. These lights are designed for specific applications; ensure compliance with all local, state, and federal laws regarding auxiliary lighting.
VAROVÁNÍ: Tento produkt obsahuje chemikálie, o kterých je ve státě Kalifornie známo, že způsobují rakovinu a vrozené vady nebo jiné reprodukční poškození. Více informací naleznete na www.p65warnings.ca.gov.
3. Obsah balení
The RIGID 36122-360-Series SAE Compliant Fog Lights Yellow/White Pair package typically includes:
- Two (2) RIGID 36122-360-Series SAE Compliant Fog Lights (Yellow/White)
- Montážní hardware
- Wiring harness (sold separately, if not included in specific kit)
- Installation instructions (refer to manufacturer's website for detailed vehicle-specific guides)
Image 3.1: A pair of RIGID 360-Series Fog Lights.
4. Nastavení a instalace
Installation of the RIGID 36122-360-Series fog lights requires partial assembly. It is crucial to follow the detailed instructions provided by RIGID Industries for your specific vehicle application. Incorrect installation can lead to varied light patterns or flickering, as noted by some users.
Obecné kroky instalace:
- Review Instrukce: Carefully read the complete installation manual from RIGID Industries for your vehicle model.
- Připravte vozidlo: Ensure the vehicle is turned off and the battery is disconnected.
- Montážní světla: Securely attach the fog lights using the provided mounting hardware. Ensure proper alignment for optimal beam pattern.
- Zapojení: Connect the lights to the vehicle's electrical system. The lights operate on 9-36 VDC. Ensure all connections are secure and waterproof.
- Test funkčnosti: Reconnect the battery and test all lighting functions (yellow, white, all on) to ensure correct operation.
Image 4.1: Dimensional diagram of the RIGID 360-Series light for installation planning.
5. Návod k obsluze
The RIGID 36122-360-Series fog lights offer dual-function lighting. You can toggle between selective yellow, white, or have both colors on simultaneously. The specific method for switching modes depends on your vehicle's wiring and the switch used during installation. Refer to your wiring diagram and switch instructions for precise operation.
Image 5.1: Vehicle demonstrating the bright output of the RIGID fog lights in a snowy setting.

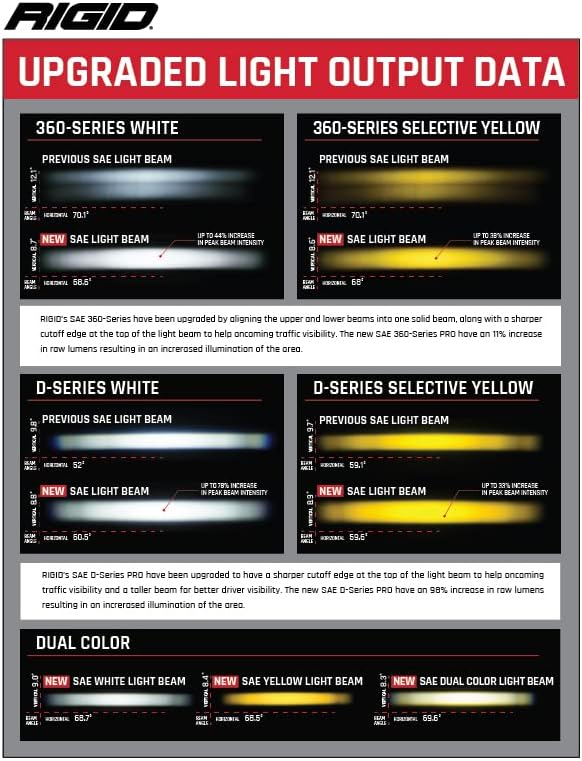

Image 5.2: Data illustrating the upgraded light output and beam patterns for 360-Series and D-Series lights, including dual color options.
6. Údržba
To ensure the longevity and optimal performance of your RIGID fog lights, regular maintenance is recommended:
- Čištění: Clean the polycarbonate lens regularly with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the lens.
- Inspekce: Periodically inspect the lights, wiring, and mounting hardware for any signs of wear, corrosion, or damage. Ensure all connections remain secure.
- Stav objektivu: The lights feature an impact-resistant polycarbonate lens, but extreme impacts can still cause damage. Replace any damaged lenses promptly to maintain light integrity.
7. Řešení problémů
If you encounter issues with your RIGID fog lights, consider the following troubleshooting steps:
- Žádný světelný výkon: Check all electrical connections, fuses, and the power source. Ensure the lights are receiving the correct 9-36 VDC.
- Blikající světla: This can sometimes be caused by loose connections or insufficient power. Verify all wiring is tight and the power supply is stable.
- Varying Light Pattern/Brightness: Ensure the lights are securely mounted and properly aimed. Check for any obstructions or damage to the lens or internal components. If one light appears brighter than the other, verify consistent power delivery to both units.
- Vstup vody: While the lights are waterproof, inspect seals and housing for any signs of damage if moisture is observed inside the lens.
If problems persist, contact RIGID customer support or a qualified automotive electrician.
8. Specifikace
| Funkce | Specifikace |
|---|---|
| Značka | Pevné |
| Název modelu | RIGID 36122-360-Series SAE Compliant Fog Lights Yellow/White Pair |
| Číslo dílu | 36122 |
| Barva | Bílá, žlutá |
| Specifické použití pro produkt | Mlhová světla |
| Typ služby vozidla | Auto (univerzální) |
| Speciální funkce | Vodotěsný |
| svtage | 9–36 voltů (DC) |
| Pozice automatického dílu | Right (Pair for Left and Right) |
| Barva čočky | Jasný |
| Materiál čočky | Polykarbonát |
| Rozměry položky D x Š x V | 6 x 8 x 6 palce |
| Hmotnost balení | 1.55 kg |
| Počet položek | 2 |
| Montáž Vyžadována | No (Partial assembly may be needed for installation) |
| UPC | 849774033759 |
9. Záruka
RIGID provides a warranty for this product. For detailed information regarding the warranty period, coverage, and claims process, please refer to the official RIGID Industries webwebové stránky nebo se obraťte přímo na jejich zákaznickou podporu. Uschovejte si doklad o koupi pro případ reklamace.
10. Podpora
For further assistance, technical support, or inquiries not covered in this manual, please visit the official RIGID Industries website or contact their customer service department. You can often find additional resources, FAQs, and contact information on their webmísto.
