DAREU EK807G Wireless TKL Mechanical Keyboard User Manual

2.1 Inserting Batteries and USB Receiver

The DAREU EK807G keyboard requires two AAA batteries (not included) for operation. The 2.4G USB receiver is conveniently stored within the keyboard's battery compartment.

1. Najděte kryt přihrádky na baterie na spodní straně klávesnice.
2. Remove the cover to access the battery slots and the stored USB receiver.
3. Carefully remove the 2.4G USB receiver from its storage slot.
4. Vložte dvě baterie typu AAA do přihrádky a dbejte na správnou polaritu (+/-).
5. Nasaďte kryt prostoru pro baterie.

Image 2.1: The battery compartment and USB receiver storage on the keyboard's underside.

2.2 Připojení k vašemu zařízení

The keyboard uses a 2.4G wireless connection for stable and reliable performance.

1. Plug the 2.4G USB receiver into an available USB port on your computer, laptop, or tablet.
2. Locate the ON/OFF switch on the upper side of the keyboard.
3. Posuňte přepínač do polohy „ON“.
4. Your device should automatically detect and connect to the keyboard. No additional drivers are typically required.

Image 2.2: The keyboard features 2.4G wireless connectivity.

3.1 Basic Typing and Ergonomics

The DAREU EK807G features a classic TKL (Tenkeyless) 87-key layout, providing a comfortable typing experience. The keyboard is designed with an ergonomic 5° optimum slope when the folding holder is used, preventing wrist strain during long typing sessions. Anti-slide pads ensure stability.

This model is equipped with DAREU Red Switches, known for their linear and quiet operation, making them suitable for office and study environments where minimal noise is preferred.

Image 3.1: The DAREU EK807G features quiet Red Switches for comfortable typing.

3.2 Function (Fn) Key Shortcuts

The keyboard includes 12 hotkeys accessible via the Fn key, allowing for quick access to various functions.

• Fn+F1: Můj počítač
• Fn+F2: domovská stránka
• Fn+F3: E-mail
• Fn+F4: Kalkulačka
• Fn+F5: Zastavit (média)
• Fn+F6: Last Song (Media)
• Fn+F7: Play/Pause (Media)
• Fn+F8: Next Song (Media)
• Fn+F9: Snížit hlasitost
• Fn+F10: Zvýšení hlasitosti
• Fn+F11: Ztlumit
• Fn+F12: Switch Left Win & Left Alt keys

Image 3.2: Shortcut keys activated by pressing the Fn key in combination with F1-F12.

3.3 Anti-Ghosting Technology

The DAREU EK807G features advanced anti-ghosting technology, allowing up to 6 keys to be pressed simultaneously without conflict. This ensures all your commands are registered accurately, improving efficiency.

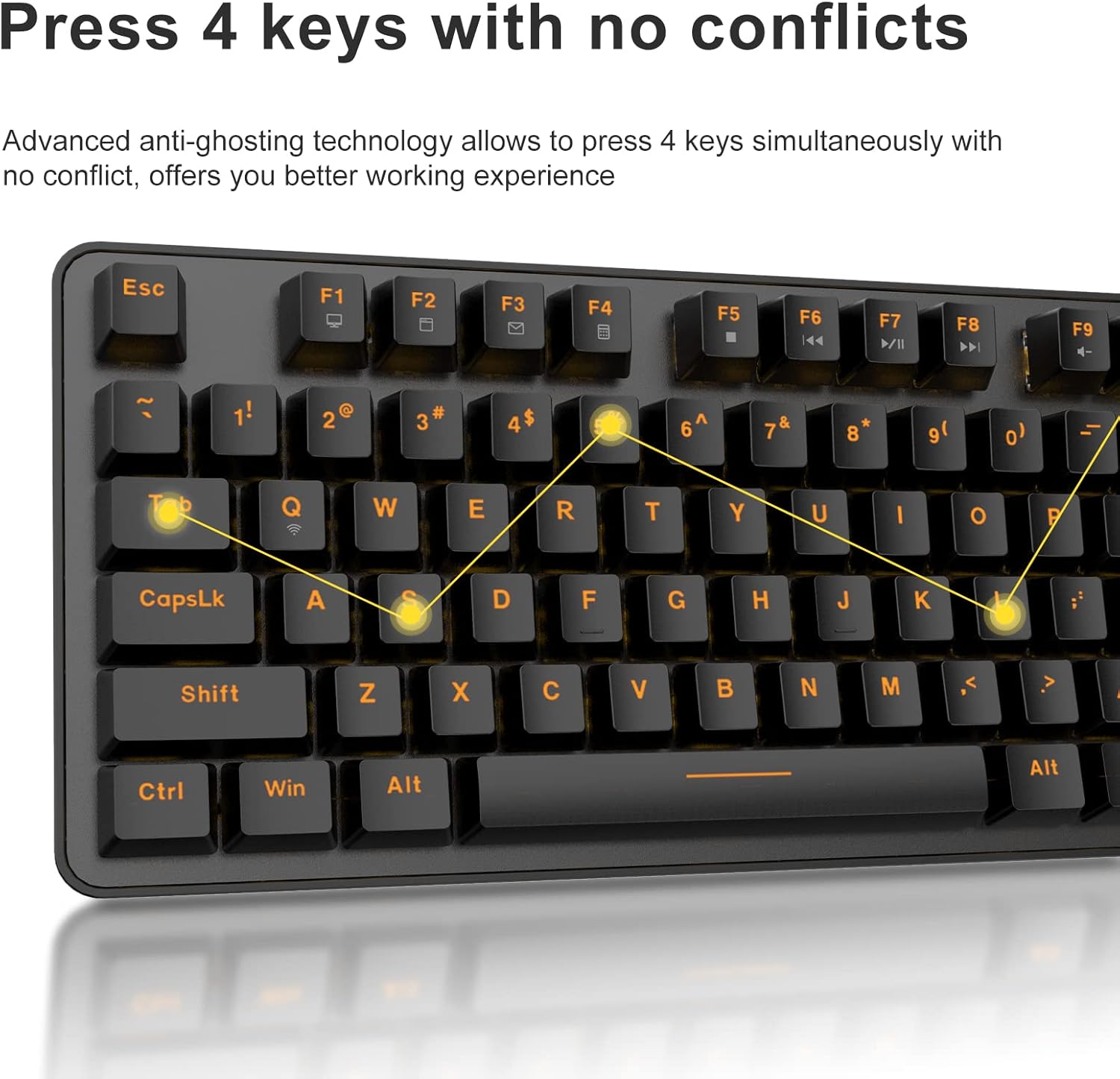

Image 3.3: Anti-ghosting technology ensures multiple key presses are registered accurately.

3.4 Automatic Power Saving

To conserve battery life, the keyboard enters an automatic sleeping mode after 6 seconds of inactivity. To wake the keyboard, simply press any key. With this feature, the keyboard can last approximately 90 days of continuous use, and up to half a year between battery changes.

Image 3.4: The keyboard features automatic power saving for extended battery life.

4.1 Čištění klávesnice

Pravidelné čištění pomáhá udržovat funkčnost a vzhled klávesnice.

• Generální úklid: K otření povrchu klávesnice použijte měkký, suchý hadřík. V případě odolné nečistoty použijte lehceamp Lze použít hadřík s jemným mýdlem a ujistit se, že se na klávesnici nedostane žádná tekutina.
• Čištění kláves: The DAREU EK807G features removable double-shot keycaps, which are resistant to fading and easy to clean. Use the included keycap puller to carefully remove keycaps. Clean them with a soft brush or a damp cloth. Ensure keycaps are completely dry before reattaching.
• Aluminum Alloy Panel: The aluminum alloy panel is designed to be sweat-resistant and anti-rust. Wipe it with a soft cloth to keep it clean.

5.1 Problémy s připojením

• Klávesnice nereaguje:
  • Ensure the keyboard's ON/OFF switch is in the "ON" position.
  • Zkontrolujte, zda jsou baterie AAA správně vloženy a zda jsou dostatečně nabité. V případě potřeby je vyměňte.
  • Ověřte, zda je 2.4G USB přijímač bezpečně zapojený do funkčního USB portu na vašem zařízení. Zkuste jiný USB port.
  • Restartujte počítač nebo zařízení.
• Přerušované připojení:
  • Ensure the keyboard is within the operating distance of 33 feet (10m) from the USB receiver.
  • Avoid placing the keyboard near strong electromagnetic interference sources (e.g., Wi-Fi routers, other wireless devices).

5.2 Klíčové funkční problémy

• Klíče se neregistrují nebo se zobrazují jako ghosting:
  • While the keyboard has anti-ghosting for up to 6 keys, excessive simultaneous presses beyond this limit may not register.
  • Ensure keycaps are properly seated. If a key feels stuck, gently remove the keycap with the puller and reattach it.
  • Clean any debris under the keycaps (refer to Maintenance section).
• Fn key shortcuts not working:
  • Ensure you are pressing the Fn key simultaneously with the desired F-key.
  • If Fn + F12 (Switch L-Win & L-Alt) was accidentally activated, press it again to revert the key functions.

7.1 Záruční servis

DAREU provides a 180-day warranty service for the EK807G Wireless TKL Mechanical Keyboard from the date of purchase. This warranty covers manufacturing defects and issues arising from normal use.

7.2 Zákaznická podpora

If you encounter any problems during the use of your DAREU keyboard, please contact DAREU customer support. Our team is available to assist you with troubleshooting, product inquiries, and warranty claims.

Please refer to the contact information provided on the product packaging or the official DAREU webweb s nejaktuálnějšími kanály podpory.
