Targus Ambidextrous Bluetooth Mouse

Zavedení

This manual provides comprehensive instructions for the setup, operation, and maintenance of your Targus Ambidextrous Bluetooth Mouse (Model: PMB58102GL). This compact, multi-device wireless mouse offers dual-mode connectivity (2.4 GHz and Bluetooth 5.0) and is compatible with Windows and macOS. It also features Targus DefenseGuard Protection, an antimicrobial additive that helps prevent the growth of microorganisms on the mouse surface.

Vlastnosti produktu

• Oboustranný design: The mouse features an oval, pebble-shaped design suitable for both left and right-handed users.
• Připojení více zařízení: Connects to up to three devices using either 2.4 GHz wireless (via USB receiver) or Bluetooth 5.0.
• DefenseGuard Protection: Infused with an antimicrobial additive (Silver Phosphate Glass (nano-)) that works continuously to protect the mouse surface by inhibiting microbial growth. This protection does not wear off.
• Essential Controls: Equipped with three essential buttons for clicking, pointing, and scrolling.
• Široká kompatibilita: Fully compatible with Windows and macOS operating systems.

Nastavení

Obsah balení

• Targus Ambidextrous Bluetooth Mouse (PMB58102GL)
• USB přijímač (uložený uvnitř myši)
• Baterie AA (předinstalovaná nebo součástí balení)
• Rychlý průvodce

Instalace baterie

1. Najděte kryt přihrádky na baterie na spodní straně myši.
2. Posunutím otevřete kryt.
3. Vložte jednu baterii typu AA a dbejte na správnou polaritu (+/-).
4. Bezpečně zavřete kryt bateriového prostoru.

Note: The USB receiver is typically stored inside the battery compartment for safekeeping.

Image: The underside of the Targus mouse, displaying the battery compartment, the power switch, and the multi-device pairing button.

Connecting via 2.4 GHz USB Receiver

1. Remove the USB receiver from its storage slot inside the mouse.
2. Zapojte USB přijímač do volného portu USB-A na vašem počítači.
3. Zapněte myš pomocí vypínače na spodní straně.
4. Myš by se měla automaticky připojit k počítači.

Obrázek: Úhlové view of the Targus mouse, with its small USB receiver placed beside it, illustrating the 2.4 GHz wireless connection component.

Připojení přes Bluetooth 5.0

1. Zapněte myš pomocí vypínače na spodní straně.
2. Press the multi-device pairing button on the underside of the mouse to select a Bluetooth channel (indicated by LED lights 1, 2, or 3).
3. Press and hold the pairing button for 3-5 seconds until the selected LED light blinks rapidly, indicating pairing mode.
4. On your computer (Windows or macOS), go to Bluetooth settings and search for new devices.
5. Select "Targus Mouse" from the list of available devices to complete the pairing process.

Note: You can pair up to three devices (one via 2.4 GHz USB receiver, two via Bluetooth).

Návod k obsluze

Zapnutí/vypnutí

Use the ON/OFF switch located on the underside of the mouse to power it on or off. Turning the mouse off when not in use conserves battery life.

Přepínání mezi připojenými zařízeními

If you have paired the mouse with multiple devices, press the multi-device pairing button on the underside of the mouse to cycle through the connected devices (channels 1, 2, and 3). The corresponding LED light will indicate the currently active channel.

Základní funkce myši

• Levé kliknutí: Primární výběr a aktivace.
• Klikněte pravým tlačítkem myši: Zpřístupňuje kontextové nabídky.
• Rolovací kolečko: Scrolls content vertically. The scroll wheel also functions as a middle click button.

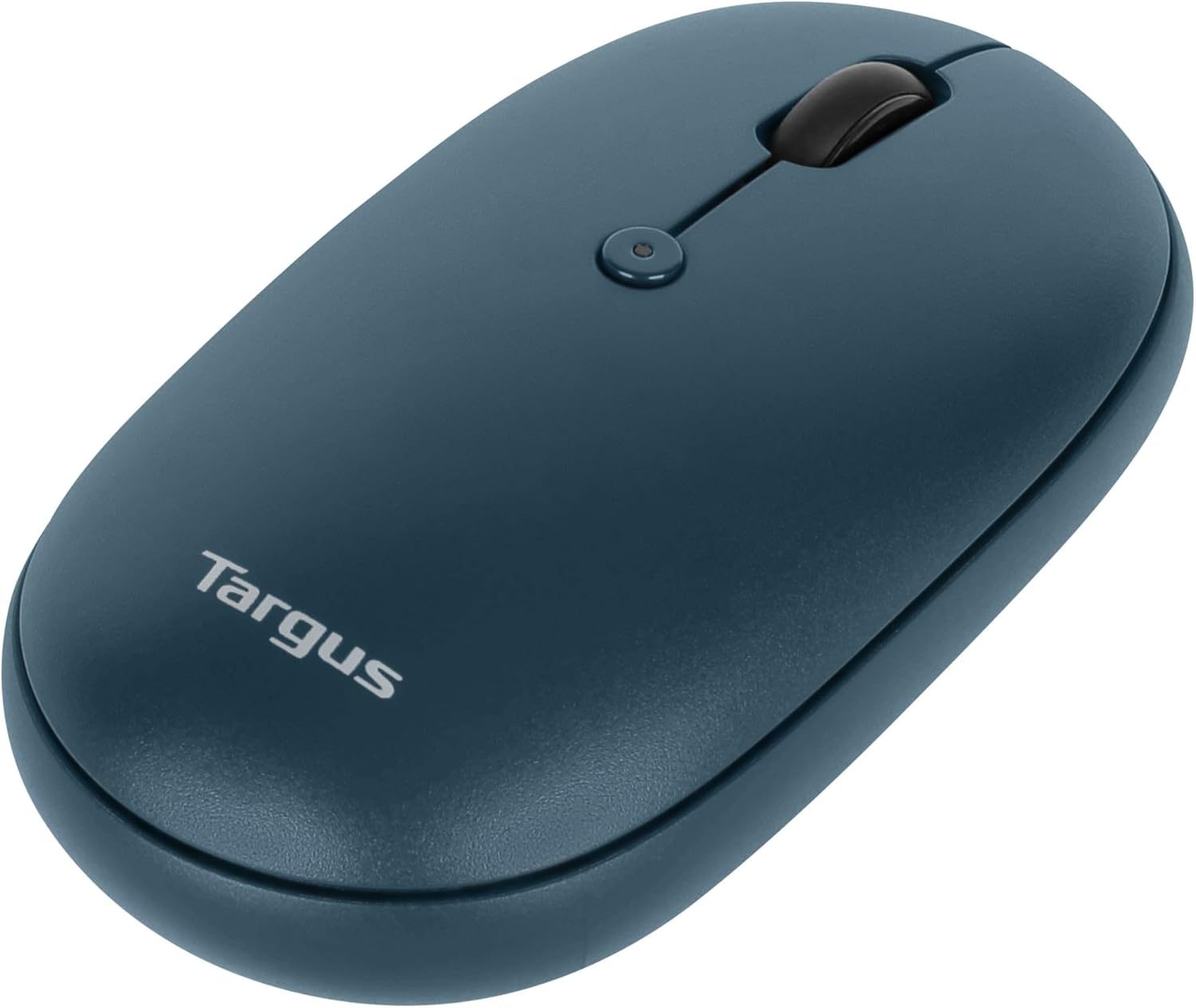

Obrázek: Pohled shora dolů view of the Targus mouse, highlighting the left and right click buttons and the central scroll wheel.

DPI Adjustment (Scroll Speed)

The mouse features a button near the scroll wheel that allows you to adjust the DPI (Dots Per Inch) setting, which controls the cursor speed. Press this button to cycle through different sensitivity levels to match your preference.

Image: An angled top view of the Targus mouse, clearly showing the small button located behind the scroll wheel, used for DPI adjustment.

Údržba

• Čištění: Použijte měkký, damp cloth to clean the exterior of the mouse. Avoid harsh chemicals or abrasive materials.
• Výměna baterie: When the mouse performance degrades or the indicator light signals low battery, replace the AA battery as described in the "Battery Installation" section.
• Skladování: When not in use, store the USB receiver inside the mouse's battery compartment to prevent loss.

Odstraňování problémů

Specifikace

Oficiální video produktu

Záruka a podpora

The Targus Ambidextrous Bluetooth Mouse (PMB58102GL) comes with a Omezená 2letá záruka. This warranty covers specific parts and types of damage for computer keyboards, mice, and accessories. For detailed warranty information and support, please refer to the official Targus webnebo kontaktujte zákaznický servis.

Pro další pomoc navštivte stránku Targus Store.
