Konec produktuview
The TOPENS AT6132S is a medium-duty automatic gate opener designed for dual swing gates. It features two 24VDC 50W motors capable of driving gates up to 660 lbs in weight or 18 ft in length per gate leaf. This system offers flexible power modes, including direct AC power and solar power support with optional batteries. It incorporates advanced safety features and is designed for straightforward DIY installation.

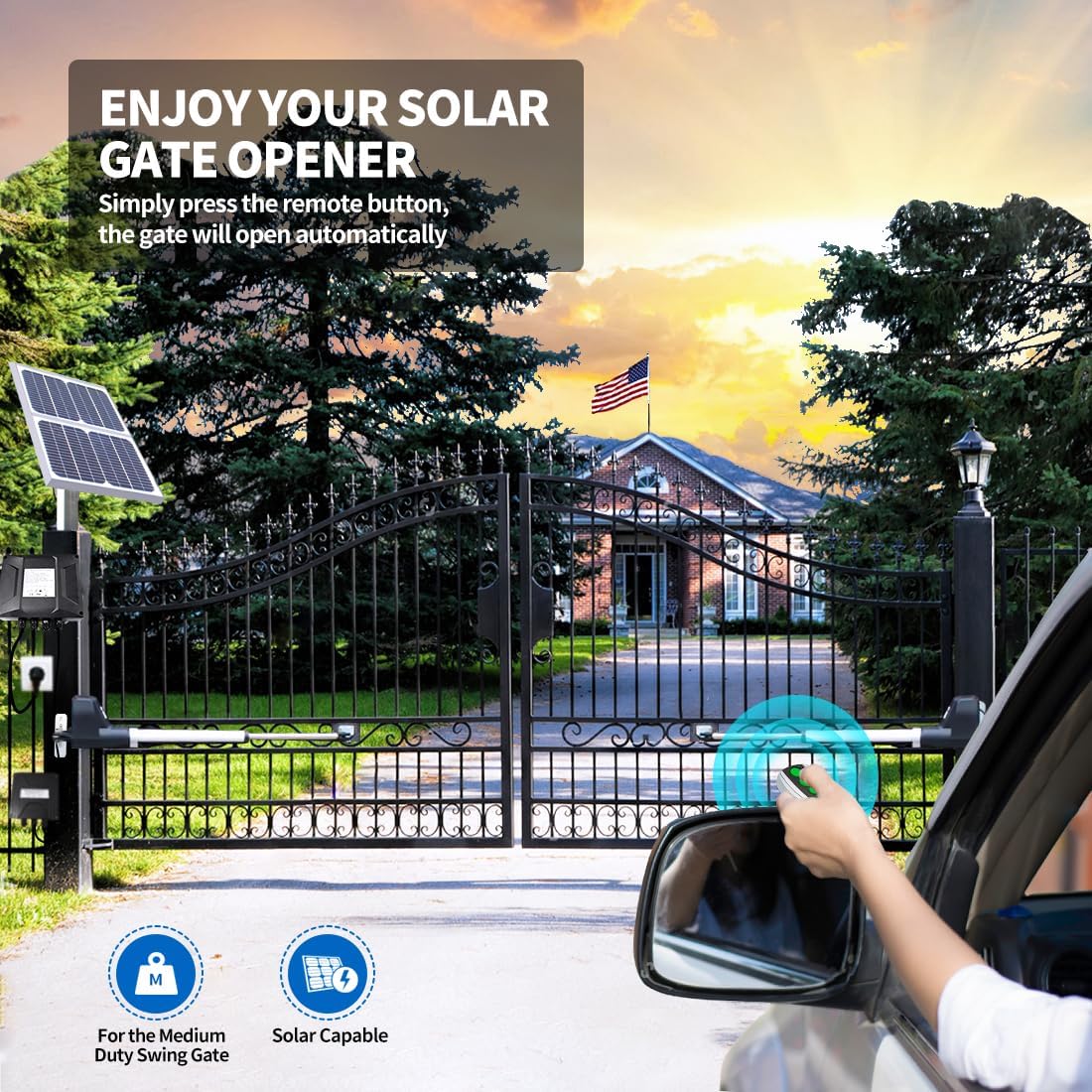

Image: The TOPENS AT6132S Solar Dual Swing Gate Opener system.
Nastavení a instalace
Proper installation is crucial for the safe and efficient operation of your gate opener. Please follow these steps carefully. The installation process may vary depending on your specific gate condition. Refer to the detailed installation video for visual guidance.
1. Check Your Gate
Before beginning installation, ensure that your gate can open and close smoothly and freely by hand without the gate opener. Any stiffness or obstruction should be resolved first.
Video: Detailed installation guide for the TOPENS AT6132S / AT12132S Dual Gate Opener.
2. Assemble Brackets
Assemble the post bracket and the pull-to-open bracket as shown. Ensure all components are securely fastened.
Image: Close-up of hands assembling the post bracket and pull-to-open bracket.
3. Determine Arm Position
Refer to the instruction manual's diagrams and tables to determine the proper mounting position for the post bracket and the gate arm. This involves measuring distances 'A' and 'B' to achieve the desired opening angle. Attach the bracket to the arm using the provided pin and cotter pin.
Image: Diagram illustrating measurements A and B for optimal gate opener arm placement.
4. Fix the Arm to the Gate
Drill holes and tap them as needed. Securely fix the arm to the gate using the appropriate bolts and washers. Ensure the arm is level and the gate can move freely. Manually open and close the gate to verify correct bracket positioning before final tightening.
Image: The gate opener arm securely attached to the gate.
5. Install Control Box and Power Supply
Install the control box and the UPS01 Uninterrupted Power Supply. Route all cables through PVC conduit buried underground to protect wiring from damage and environmental factors. Connect the 5-conductor cable from the master arm to the control board. If using solar panels, assemble them and connect them in parallel to the UPS01.
Image: The control box and UPS01 power supply unit.
Image: Assembled solar panels for charging the gate opener batteries.
Video: TOPENS AT6132S Gate Opener - Support All the Power Modes, demonstrating wiring for different power configurations.
Návod k obsluze
The TOPENS AT6132S gate opener offers convenient and secure operation. It features a "soft start and soft stop" function to protect the motor and ensure smooth gate movement. The system also includes an "auto-close" feature for added security, which can be configured to close the gate automatically after a set delay.
Provoz dálkového ovládání
The gate opener is operated using the provided remote controls. To program a remote, press the learn button (CODE SW button) on the control board, then press the desired button on the remote twice within 2 seconds. The CODE LED will flash, indicating successful programming. The advanced TOPENS code prevents unauthorized access.
Image: Remote control for operating the gate opener.
Údržba
Regular maintenance ensures the longevity and optimal performance of your gate opener. Keep all moving parts clean and lubricated. Periodically check for any loose connections or signs of wear on the arms and brackets. Ensure the gate itself remains free of obstructions and operates smoothly manually.
The manual release key (included) should be kept in a safe, accessible location for backup use in case of power outage or remote control loss.
Odstraňování problémů
If the gate opener is not functioning as expected, consider the following common issues:
- Gate not closing correctly: This might indicate an issue with the limit switch adjustment or an obstruction. Re-adjust the limit switches as per the manual.
- Remote control failure: Check the remote's batteries. If the issue persists, try reprogramming the remote.
- Problémy s napájením: Verify the power supply connections. If using solar power, ensure the solar panels are clean and receiving adequate sunlight, and that batteries are properly charged.
- překážky: The safety stop-and-reverse feature activates if obstructions are detected. Clear any objects from the gate's path.
- Circuit board issues: In rare cases, a circuit board may need replacement. Contact customer support if other troubleshooting steps fail.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | AT6132S |
| Hmotnost položky | 49.9 libry |
| Rozměry produktu | 32.6 x 4.9 x 8.2 palce |
| Zdroj napájení | AC Powered with Solar Panel Remote Control Kit |
| Kapacita brány (na křídlo) | Up to 660 lbs or 18 ft |
| Typ motoru | 24VDC 50W motors |
| Jsou vyžadovány baterie | 6 CR2 batteries (included for remotes), 2x 12V 12Ah automotive/marine type batteries (NOT included for main power) |
Záruka a podpora
TOPENS provides a 30-day exchange and return policy, along with a 12-month warranty. For technical assistance, installation videos, or customized service, please visit the official TOPENS website. TOPENS specialists are available to provide professional and timely solutions for any questions or concerns you may have regarding your gate opener.
