OLIGHT Javelot Pro 2 LED Flashlight User Manual

1. Úvod

The OLIGHT Javelot Pro 2 is a high-performance LED flashlight engineered for long-range illumination. It delivers an impressive output of up to 2500 lumens and a beam distance of up to 1050 meters. This robust and rechargeable flashlight is designed for demanding applications such as hunting, camping, and search and rescue operations, providing reliable and powerful lighting when needed.

Image: The Javelot Pro 2 demonstrating its long-range beam, reaching up to 1050 meters with 2500 lumens output.

2. Konec produktuview

Familiarize yourself with the components of your Javelot Pro 2 flashlight:

Obrázek: Rozložený view of the Javelot Pro 2, detailing its internal and external parts.

• Zadní krytka: Located at the rear, houses the magnetic charging port and tail switch.
• Body/Battery Compartment: The main housing for the battery pack.
• Tlačítko bočního spínače: Controls brightness levels and provides visual indicators.
• Pouzdro LED: Contains the light-emitting diode.
• Díl plošných spojů: Printed Circuit Board, managing the flashlight's electronics.
• Reflektor: Directs and focuses the light beam.
• Lens Protection Ring: Secures the lens.
• Skleněná čočka: Transparent cover protecting the LED and reflector.
• Strike Luneta: Front ring, often used for self-defense or breaking glass.

3. Nastavení

3.1 Instalace baterie

The Javelot Pro 2 utilizes a separable battery pack. To install or replace the battery, unscrew the tailcap and insert the battery pack with the positive (+) end facing towards the head of the flashlight. Securely re-attach the tailcap.

3.2 Nabíjení

The flashlight is equipped with a magnetic USB charging cable (MCC3). To charge, attach the magnetic end of the charging cable to the tailcap of the flashlight. Connect the USB end to a compatible power source. The charging indicator on the cable will show the charging status. A full charge provides extended runtime.

Image: The Javelot Pro 2 connected to a power bank for magnetic USB charging.

4. Provoz

4.1 Dual Switch System

The Javelot Pro 2 features a dual switch system for versatile control:

• Boční spínač: Used to access and cycle through different brightness levels during general use.
• Zadní spínač: Provides direct access to high or low modes for tactical applications.

Image: Illustration of the dual switch system on the Javelot Pro 2, showing the side and tail switches.

4.2 Výběr režimu

Refer to the detailed instructions in the included quick start guide for specific sequences to activate and cycle through the various brightness modes and special functions.

5. Visual Indicators

The side switch integrates visual indicators for both battery level and brightness. These 4-level indicators provide real-time status updates, allowing you to monitor the flashlight's battery charge and current brightness setting at a glance.

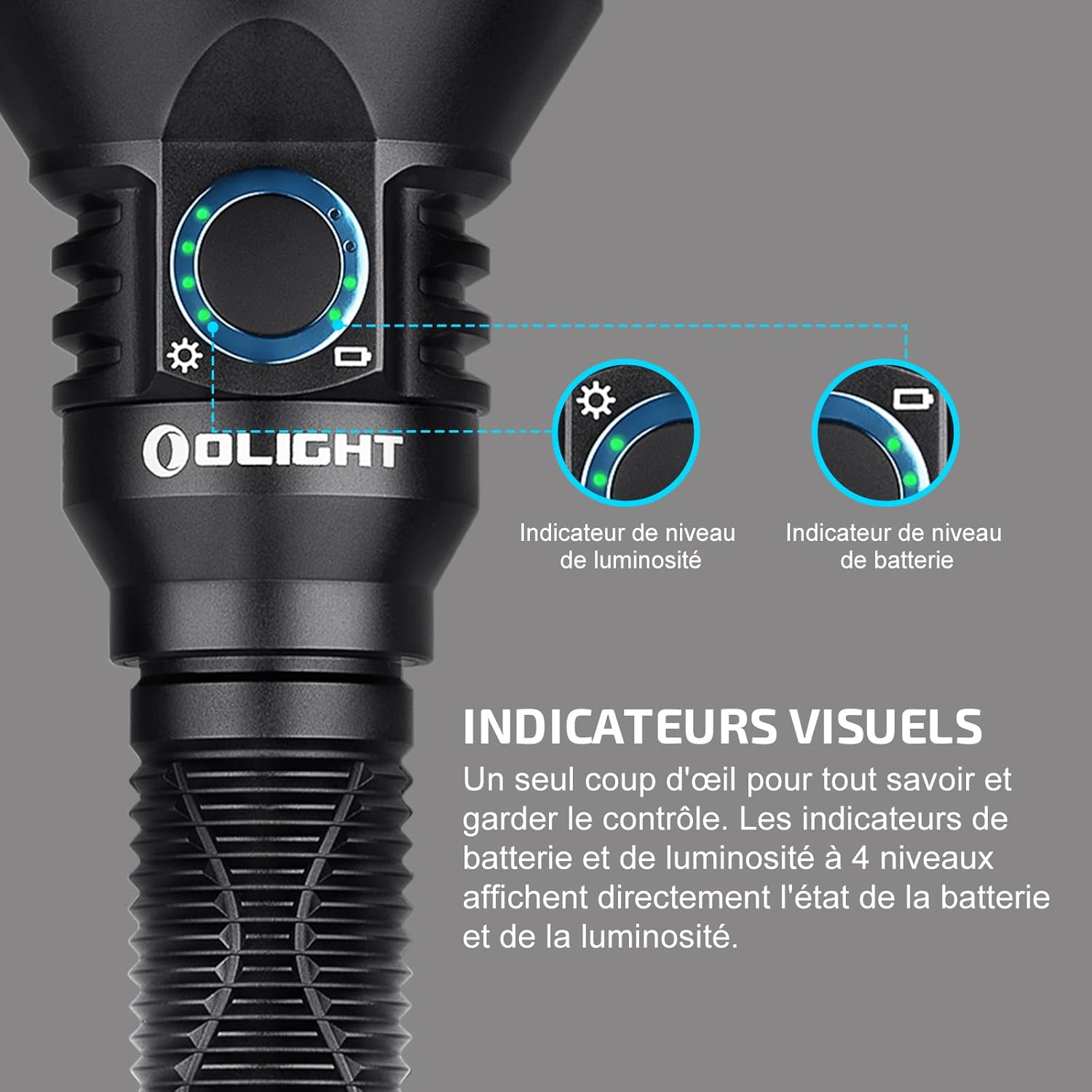

Obrázek: Podrobný view of the visual indicators on the side switch, displaying battery and brightness levels.

6. Údržba

To ensure optimal performance and longevity of your Javelot Pro 2 flashlight, follow these maintenance guidelines:

• Čištění: Regularly clean the lens and body with a soft, damp cloth. Avoid abrasive materials that could scratch the surface.
• Mazání: Pro zachování vodotěsnosti nanášejte na O-kroužky pravidelně tenkou vrstvu silikonového maziva.
• Péče o baterie: Recharge the battery regularly, especially if the flashlight will be stored for an extended period. Avoid fully discharging the battery to prolong its lifespan.
• Skladování: Uchovávejte svítilnu na chladném a suchém místě mimo přímé sluneční světlo a extrémní teploty.

7. Řešení problémů

If you encounter issues with your Javelot Pro 2, consider the following common troubleshooting steps:

• Svítilna se nezapíná:
  • Zkontrolujte, zda je baterie správně nainstalována a plně nabitá.
  • Ensure the tailcap is tightened securely to establish electrical contact.
• Tlumené nebo blikající světlo:
  • Nabijte baterii.
  • Očistěte kontakty a závity baterie čistým hadříkem.
• Magnetické nabíjení nefunguje:
  • Ensure the magnetic charging cable is clean and free of debris.
  • Verify the USB power source is functioning correctly.

For persistent issues, please contact OLIGHT customer support.

8. Specifikace

9. Záruka a podpora

OLIGHT nabízí Doživotní záruka on the Javelot Pro 2, reflecting their commitment to quality and durability. For any product inquiries, technical assistance, or warranty claims, please refer to the official OLIGHT webwebu nebo se obraťte přímo na jejich zákaznickou podporu. Uschovejte si účtenku o koupi pro ověření záruky.
