NXR 24” Drop-in Side Burner Set Instruction Manual

Důležité bezpečnostní informace

Please read and understand all instructions before assembling, installing, or operating this appliance. Failure to follow these instructions could result in fire, explosion, or burn hazard, which could cause property damage, personal injury, or death.

• This appliance is for outdoor use only. Do not operate indoors.
• Ensure adequate ventilation. Never operate the appliance in an enclosed space.
• Udržujte prostor kolem spotřebiče čistý a bez hořlavých materiálů, benzínu a jiných hořlavých výparů a kapalin.
• Always open the lid before lighting the burners.
• Neskladujte ani nepoužívejte benzín nebo jiné hořlavé kapaliny nebo páry v blízkosti tohoto nebo jakéhokoli jiného spotřebiče.
• This appliance is designed for use with natural gas or propane, as specified. Ensure the correct fuel type is used.

Konec produktuview

The NXR 24” Drop-in Side Burner Set is a high-performance outdoor cooking appliance designed to complement your grilling setup. It features durable stainless steel construction and offers versatile cooking options with its combination of an infrared burner and two traditional gas side burners.

Klíčové vlastnosti

• Total cooking area of 306 sq in of stainless steel grates.
• 39,000 Total BTUs: 15,000 BTU infrared burner for high-intensity searing, and two 12,000 BTU side burners for versatile cooking.
• Durable stainless steel lid.
• Natural gas conversion kit included for flexible fuel options.

Komponenty

Nahoru view of the NXR 24" Drop-in Side Burner Set, showing the stainless steel grates, infrared burner (left), and two gas burners (right).

The side burner set includes a robust stainless steel body, a hinged lid, stainless steel cooking grates, an infrared burner, two conventional gas burners, and control knobs with an integrated ignition button.

Nastavení a instalace

This NXR side burner is designed for drop-in installation into a custom outdoor kitchen island or counter. Ensure the cutout dimensions are accurate to allow for proper fit and ventilation. Professional installation is recommended for gas connections.

Dimensions and Materials

• Rozměry produktu (D x Š x V): 26.5 x 25.5 x 11 palce
• Hmotnost položky: 66 libry
• Materiál: High-grade Stainless Steel for durability and weather resistance.
• Materiál rámu: Nerez
• Materiál rukojeti: Nerez

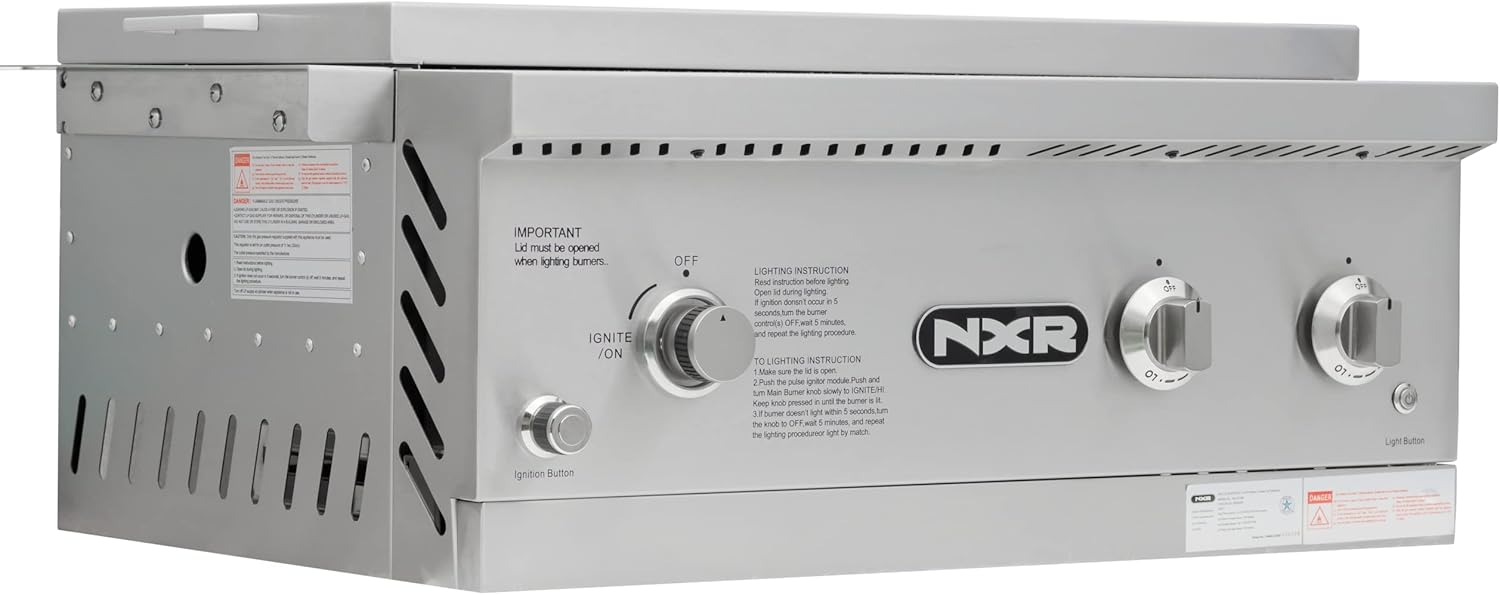

Úhlové view of the NXR 24" Drop-in Side Burner Set, highlighting its stainless steel construction and compact design for integration into an outdoor kitchen.

Strana view of the NXR 24" Drop-in Side Burner Set, illustrating its depth and the ventilation grilles on the side panel.

Návod k obsluze

Před osvětlením

• Ensure the lid of the side burner is fully open before attempting to light any burner.
• Read the lighting instructions carefully before proceeding.

Postup osvětlení

Detailní záběr view of the control panel of the NXR 24" Drop-in Side Burner Set, showing the ignition button, main burner control knob, and printed lighting instructions.

1. Ujistěte se, že je víko otevřené.
2. Push the pulse ignitor module button and turn the desired burner control knob slowly to IGNITE/HI. Keep the knob pressed in until the burner is lit.
3. If the burner doesn't light within 5 seconds, turn the knob to OFF, wait 5 minutes, and repeat the lighting procedure. If it still doesn't light, refer to the troubleshooting section or light by match.

Using the Infrared Burner

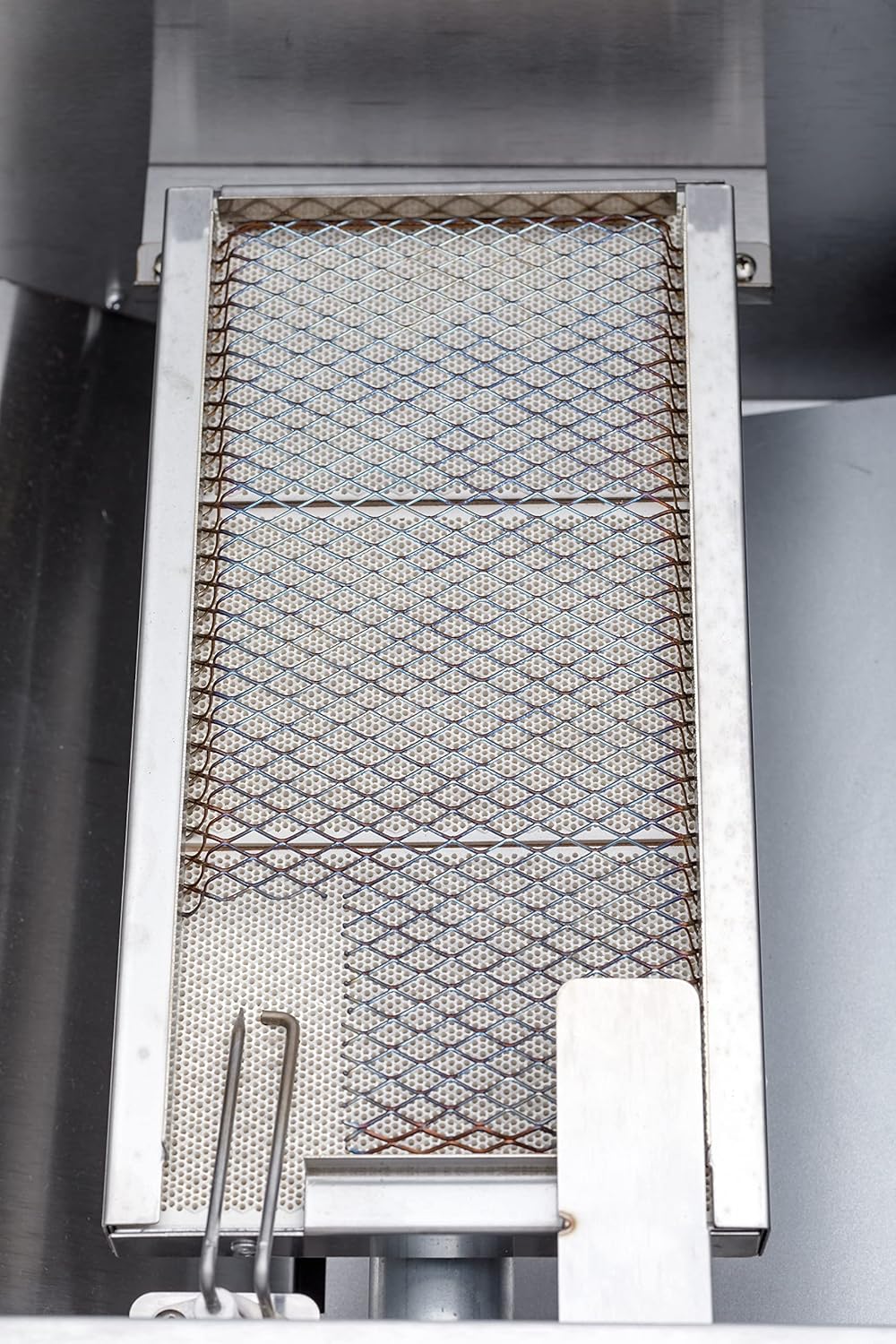

Detailed close-up of the infrared burner on the NXR 24" Drop-in Side Burner Set, showing the ceramic radiant surface and protective grate.

The infrared burner provides intense, even heat ideal for searing meats and achieving a crispy finish. Use its dedicated control knob to adjust the flame intensity. Allow the burner to preheat for optimal performance.

Using the Side Burners

Detailní záběr view of the two circular gas burners on the NXR 24" Drop-in Side Burner Set, with their grates removed to show the burner caps and gas ports.

The two conventional gas side burners are perfect for preparing sauces, boiling water, or sautéing side dishes. Each burner has its own control knob for independent flame adjustment, offering precise temperature control for various cooking needs.

Údržba a péče

Regular cleaning and maintenance will ensure the longevity and optimal performance of your NXR side burner.

• Nerezové povrchy: Clean with a mild soap and water solution, then rinse thoroughly and dry with a soft cloth to prevent water spots. For stubborn stains, use a non-abrasive stainless steel cleaner. Always wipe in the direction of the grain.
• Rošty na vaření: After each use, clean the grates with a grill brush while they are still warm. For a deeper clean, remove the grates and wash with warm, soapy water.
• Porty hořáku: Periodically inspect burner ports for blockages (e.g., food debris, insect nests). Use a wire brush or a small wire to clear any obstructions.
• Víčka hořáků: Remove and clean burner caps regularly to ensure proper flame distribution.
• Víčko: Wipe the lid clean after each use to remove grease and food residue.

Odstraňování problémů

If you encounter issues with your side burner, refer to the following common problems and solutions:

• Hořák se nezapaluje:
  • Check if the gas supply is turned on and the gas tank (if applicable) has fuel.
  • Ensure the burner control knob is fully pushed in and turned to the IGNITE/HI position.
  • Verify that the igniter is sparking. If not, check the igniter electrode for damage or blockages.
  • Clean burner ports and tubes to ensure no obstructions are preventing gas flow.
  • If using a propane tank, ensure it is not empty and the regulator is properly connected.
• Nerovnoměrný plamen:
  • Clean burner ports and ensure they are free of debris.
  • Check for proper alignment of the burner tube with the gas valve orifice.
• Gas Odor:
  • Okamžitě vypněte přívod plynu.
  • Do not operate the appliance.
  • Check all gas connections for leaks using a soapy water solution. Bubbles indicate a leak.
  • If the odor persists, contact a qualified gas technician or your gas supplier immediately.

Specifikace

Záruka a podpora

NXR stands behind the quality of its products. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your purchase or visit the official NXR webmísto.

For technical assistance, replacement parts, or any other support inquiries, please contact NXR customer service. Have your model number (740-LS24SB) and purchase information ready when contacting support.

You can typically find contact information on the NXR official webwebu nebo prostřednictvím svého prodejce.
