Zavedení
This manual provides essential information for the safe and effective use of your Rolec WallPod EV Charger. The WallPod is a 7.4kW (32A) single-phase socketed EV charging unit designed for domestic installations. It supports full Mode 3 charging for all Electric Vehicles (EV/PHEV) currently available on the market.
Mezi klíčové vlastnosti patří:
- Suitable for domestic installations.
- Plug & charge functionality.
- Universal charging socket or Type 2 compatibility.
- Up to 7.4kW charging output.
- IK10 impact resistant design.
- Designed for wall or post mounting.
- Integrated cable lock security feature.
- Vyrobeno ve Velké Británii.
Figure 1: Rolec WallPod EV Chargers in White, Grey, and Black.
Nastavení a instalace
The Rolec WallPod is designed for fixed installation. Due to the electrical nature of this product, installation must be carried out by a qualified electrician in accordance with local wiring regulations and standards.
Místo montáže
The unit can be mounted on a wall or a dedicated post. Consider the following when selecting a location:
- Proximity to the electrical supply.
- Accessibility for vehicle charging.
- Protection from direct impact or excessive environmental exposure, although the unit features an IK10 impact resistant design.
- Ensure the mounting surface can support the unit's weight of approximately 5 kg.
Figure 2: WallPod Charger Installed and in Use.
Elektrické připojení
The WallPod requires a 220 Volt input and provides a 220 Volt output with a current rating of 32 Amps. All wiring must comply with national and local electrical codes. Ensure proper earthing and circuit protection are in place.
Návod k obsluze
The Rolec WallPod is designed for simple "Plug & Charge" operation.
Nabíjení vašeho vozidla
- Ensure the WallPod is powered on and ready for use.
- Connect the charging cable from your electric vehicle to the socket on the WallPod. The unit is compatible with universal charging sockets or Type 2 connectors.
- The WallPod will automatically begin charging your vehicle, delivering up to 7.4kW of power.
- To stop charging, disconnect the cable from your vehicle first, then from the WallPod.
Cable Lock Security Feature
The WallPod includes a cable lock security feature. This allows the user to permanently lock the charging cable into the unit, preventing unauthorized removal during charging or when the unit is not in use. Refer to the detailed installation guide provided with the product for instructions on activating and deactivating this feature.
Varianty produktu
The Rolec WallPod is available in several color options to suit different aesthetic preferences:
White WallPod

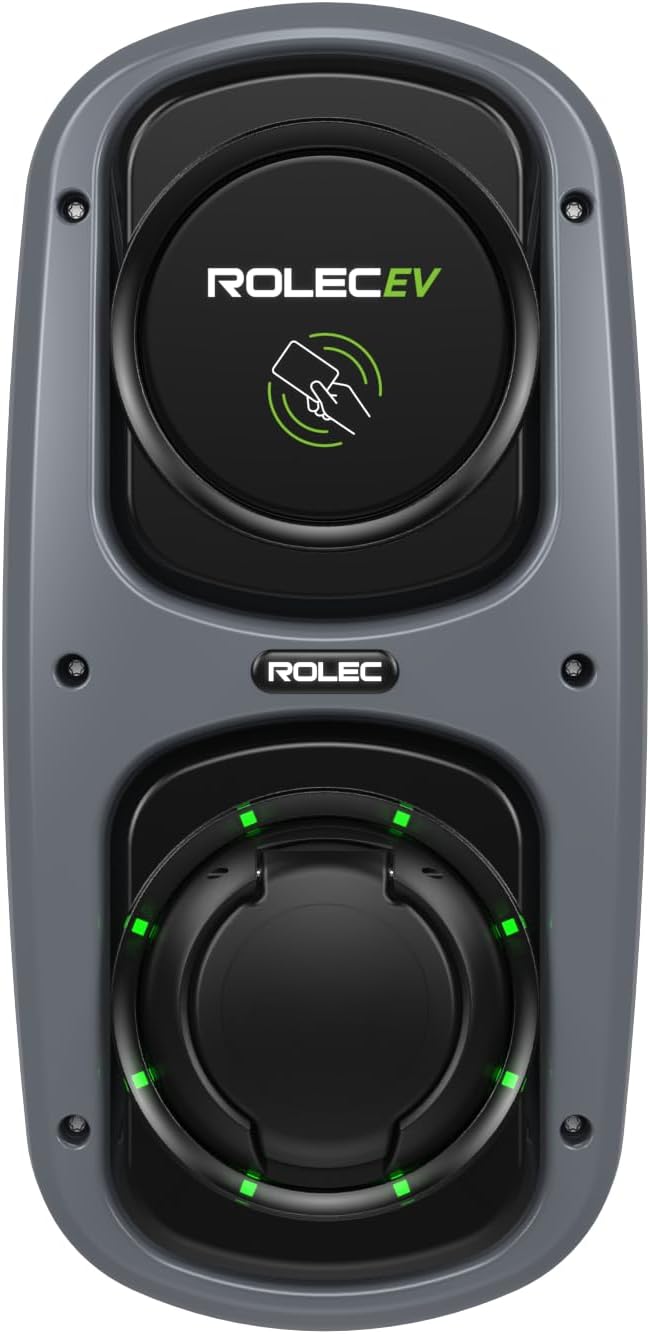

Grey WallPod
Black WallPod
Údržba
The Rolec WallPod is designed for durability and requires minimal maintenance. However, regular checks can help ensure its longevity and safe operation.
- Čištění: Pravidelně otírejte vnější povrch jednotky měkkým hadříkemamp cloth. Do not use abrasive cleaners or solvents. Ensure the unit is not actively charging and is powered off before cleaning.
- Inspekce: Regularly inspect the charging socket and cable for any signs of wear, damage, or corrosion. If any damage is observed, discontinue use and contact a qualified electrician or Rolec support.
- Ochrana životního prostředí: While the unit has an IK10 impact resistant design, avoid exposing it to extreme conditions beyond its operating specifications.
Odstraňování problémů
If you encounter issues with your Rolec WallPod, consider the following basic troubleshooting steps:
- Bez napájení: Check the circuit breaker supplying power to the WallPod. Ensure it has not tripped.
- Nabíjení se nezačíná: Ensure the charging cable is securely connected to both the WallPod and your vehicle. Verify that your vehicle is ready to accept a charge.
- Pomalé nabíjení: Confirm that your vehicle is configured to accept the full charging rate. Check for any error indicators on the WallPod or your vehicle.
- Cable Lock Issue: If the cable lock feature is not functioning correctly, do not force the cable. Refer to the product's detailed guide or contact support.
For persistent issues or complex problems, it is recommended to contact a qualified electrician or Rolec customer support for assistance.
Specifikace
| Funkce | Detail |
|---|---|
| Číslo modelu | EV74-4020 |
| Značka | Rolec |
| Nabíjecí výstup | 7.4 kW |
| Aktuální hodnocení | 32 Amps |
| Vstupní objemtage | 220 voltů |
| Výstupní objemtage | 220 voltů |
| Rozměry produktu (D x Š x V) | 14.2 x 17.9 x 36.7 cm |
| Hmotnost položky | 5 kg |
| Možnosti barev | Černá, šedá, bílá |
| Odolnost proti nárazu | IK10 |
| První dostupný termín | 19. května 2022 |
Záruka a podpora
Warranty information for the Rolec WallPod EV Charger is typically provided by the manufacturer, Rolec, or the authorized seller at the time of purchase. Please refer to your purchase documentation or the official Rolec webkonkrétní záruční podmínky naleznete na webových stránkách.
For technical support, service, or warranty claims, please contact Rolec customer service directly. Contact details can usually be found on the Rolec official webna místě nebo v obalu produktu.
Note: Any repairs or modifications to the unit should only be performed by qualified personnel to maintain safety and warranty validity.
