Keychron Q4 drátová uživatelská příručka mechanické klávesnice

1. Úvod

The Keychron Q4 is a fully customizable mechanical keyboard featuring a compact 60% layout. Constructed with a solid full aluminum frame, the Q4 is designed for easy assembly and personalized typing. It supports QMK/VIA for advanced key remapping and macro programming, and includes hot-swappable switches for user-defined switch preferences. The double-gasket design and internal sound-absorbing foams contribute to a refined typing experience.

Image 1.1: Keychron Q4 keyboard highlighting key features like QMK/VIA support, double-gasket design, CNC aluminum body, macOS & Windows compatibility, 1000 Hz polling rate, hot-swappable switches, south-facing RGB, and OSA PBT keycaps.

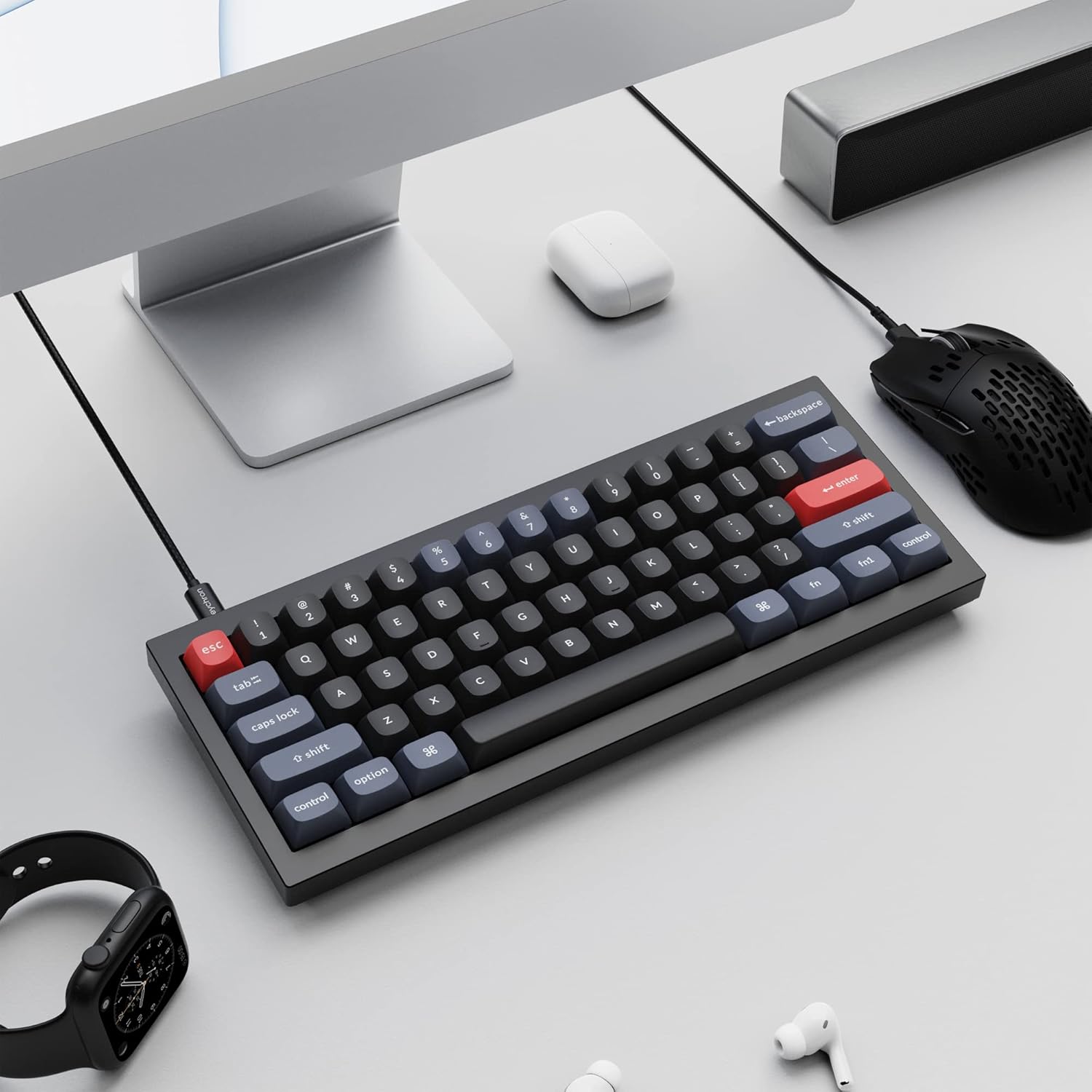

Image 1.2: The Keychron Q4 keyboard integrated into a typical desk setup, connected via USB-C.

2. Nastavení

2.1 Obsah balení

Before beginning, verify that all components are present in the box:

Image 2.1: Diagram illustrating the contents of the Keychron Q4 package, including the fully assembled keyboard, cables, and tools.

• Klávesnice: 1x Fully Assembled Keyboard (including 1x Aluminum Case, 1x PCB, 1x Steel Plate, 1x Sound Absorbing Foam, 1x Case Foam, 12x Gaskets (8 Installed and 4 in the Box), 5 sets x Stabilizers, 1 set x Keycaps (Double-Shot PBT), 1 set x Switches (Gateron G Pro))
• Kabel: 1x Type-C to Type-C Cable, 1x Type-A to Type-C Adapter
• Nástroje: 1x Switch Puller, 1x Keycap Puller, 1x Screwdriver, 1x Hex Key

Note: All tools are located on the bottom of the box.

2.2 Konektivita

Connect the Keychron Q4 keyboard to your computer using the provided USB-C cable. The keyboard is compatible with both macOS and Windows operating systems.

2.3 Přepínač operačního systému

The keyboard features a physical switch to toggle between macOS and Windows layouts. Locate the switch on the side or back of the keyboard and set it to your desired operating system.

Image 2.2: Close-up of the physical switch on the keyboard for selecting between Windows and macOS operating system layouts.

3. Provoz

3.1 Základní funkce kláves

The Keychron Q4 features a 60% layout, which means some keys may have secondary functions accessed via the 'Fn' key. Refer to the keycap legends for these functions.

Obrázek 3.1: Podrobný view of the Keychron Q4's 60% keyboard layout, showing the compact arrangement of keys.

3.2 RGB podsvícení orientované na jih

The keyboard is equipped with south-facing RGB LEDs. This design ensures that the backlight effectively illuminates the keycap legends from the typist's perspective, especially with non-shine-through PBT keycaps.

Obrázek 3.2: Detailní záběr view of the south-facing RGB LED lights illuminating the mechanical switches beneath the keycaps.

4. Přizpůsobení

4.1 QMK and VIA Programmability

The Keychron Q4 supports full QMK and VIA functionality, allowing users to program and remap each key and create custom macros. To utilize this feature:

1. Connect the Q4 to your device via the USB-C cable.
2. Download and install the VIA software.
3. Import the Q4 keymap JSON file into the VIA software.
4. Use the drag-and-drop interface within VIA to remap keys or assign macro commands for macOS, Windows, or Linux operating systems.

Refer to the official Keychron website for detailed instructions and the latest VIA software and keymap files.

Image 4.1: The Keychron Q4 keyboard displayed alongside the VIA software interface, demonstrating key remapping capabilities.

Obrázek 4.2: Podrobný view of the VIA software interface, showing the keymap configuration for the Keychron Q4.

4.2 Přepínače vyměnitelné za provozu

The Keychron Q4 features a hot-swappable PCB, allowing you to change mechanical switches without soldering. It supports most 3-pin and 5-pin MX-style mechanical switches (e.g., Cherry, Gateron, Kailh, Panda).

Výměna spínačů:

1. Carefully remove the keycap using the provided keycap puller.
2. Use the switch puller to gently grip the switch and pull it straight up from the PCB.
3. Zarovnejte piny nového spínače s otvory na desce plošných spojů. Ujistěte se, že piny jsou rovné, aby se neohnuly.
4. Nový spínač pevně zatlačte na místo, dokud nezaklapne.
5. Vyměňte krytku kláves.

Obrázek 4.3: Detailní záběr view of the keyboard's PCB with several switches removed, demonstrating the hot-swappable feature.

4.3 Double-Gasket Design and Internal Foams

The Q4 incorporates a double-gasket design, which enhances typing flexibility and improves the overall sound profile. Additionally, sound-absorbing and case foams are installed internally to reduce resonance and noise between metal components. Each keyboard component is designed for easy reassembly, allowing for further customization.

Image 4.4: An exploded diagram showing the various layers of the Keychron Q4, including keycaps, switches, top case, gaskets, plate, PCB, sound absorbing foam, silicone gaskets, case foam, and bottom case.

5. Údržba

5.1 Čištění klávesnice

Pro udržení optimálního výkonu a vzhledu se doporučuje pravidelné čištění:

• Klávesnice: Use the keycap puller to remove keycaps. Clean them with a mild soap solution and a soft cloth, then rinse thoroughly and allow them to dry completely before reattaching.
• Tělo klávesnice: Použijte měkký hadřík bez žmolků, lehceampened with water or a gentle cleaning solution, to wipe down the aluminum frame. Avoid excessive moisture.
• Mezi klíči: K odstranění prachu a nečistot z prostoru mezi spínači použijte stlačený vzduch. Na odolné částice lze také použít malý kartáč.

Avoid using harsh chemicals or abrasive materials, as these can damage the keyboard's finish or components.

6. Řešení problémů

6.1 Klávesy nereagují

• Zkontrolujte připojení: Ujistěte se, že je kabel USB-C bezpečně připojen ke klávesnici i k počítači. Zkuste jiný port USB nebo kabel.
• Verify OS Switch: Confirm the macOS/Windows switch is set to the correct operating system.
• Zkontrolujte spínače: If individual keys are not responding, carefully remove the keycap and then the switch using the switch puller. Inspect the switch pins for any bends or damage. Straighten bent pins gently with tweezers or replace the switch if damaged. Reinsert the switch firmly.
• QMK/VIA Configuration: If keys are remapped incorrectly, check your keymap configuration in the VIA software.

6.2 Backlighting Issues

• Nastavení jasu: Ensure the backlight brightness is not set to its lowest level. Use the designated key combinations (often Fn + arrow keys or similar) to adjust brightness.
• Ovládání softwaru: If using QMK/VIA, verify that lighting settings are correctly configured.

6.3 Keyboard Not Recognized by Computer

• Restartujte počítač: Problémy s připojením může často vyřešit jednoduchý restart.
• Zkuste jiný počítač: Test the keyboard on a different computer to determine if the issue is with the keyboard or the original computer's setup.
• Aktualizace firmware: Check the Keychron website for any available firmware updates for the Q4 model. Follow the instructions carefully for firmware installation.

7. Specifikace

8. Záruka a podpora

For warranty information, technical support, and additional resources, please visit the official Keychron website or contact Keychron customer service.

Více informací a podporu naleznete na Keychron Store.
