Zavedení
This manual provides detailed instructions for the installation, operation, and maintenance of your Morimoto M LED 2.0 Bi-LED Projector. Designed for custom automotive retrofits, this universal projector lens offers both low beam and high beam functionality with an ECE-compliant RHD (Right-Hand Drive) beam pattern and cutoff. Please read this manual thoroughly before beginning any installation or operation to ensure proper function and safety.

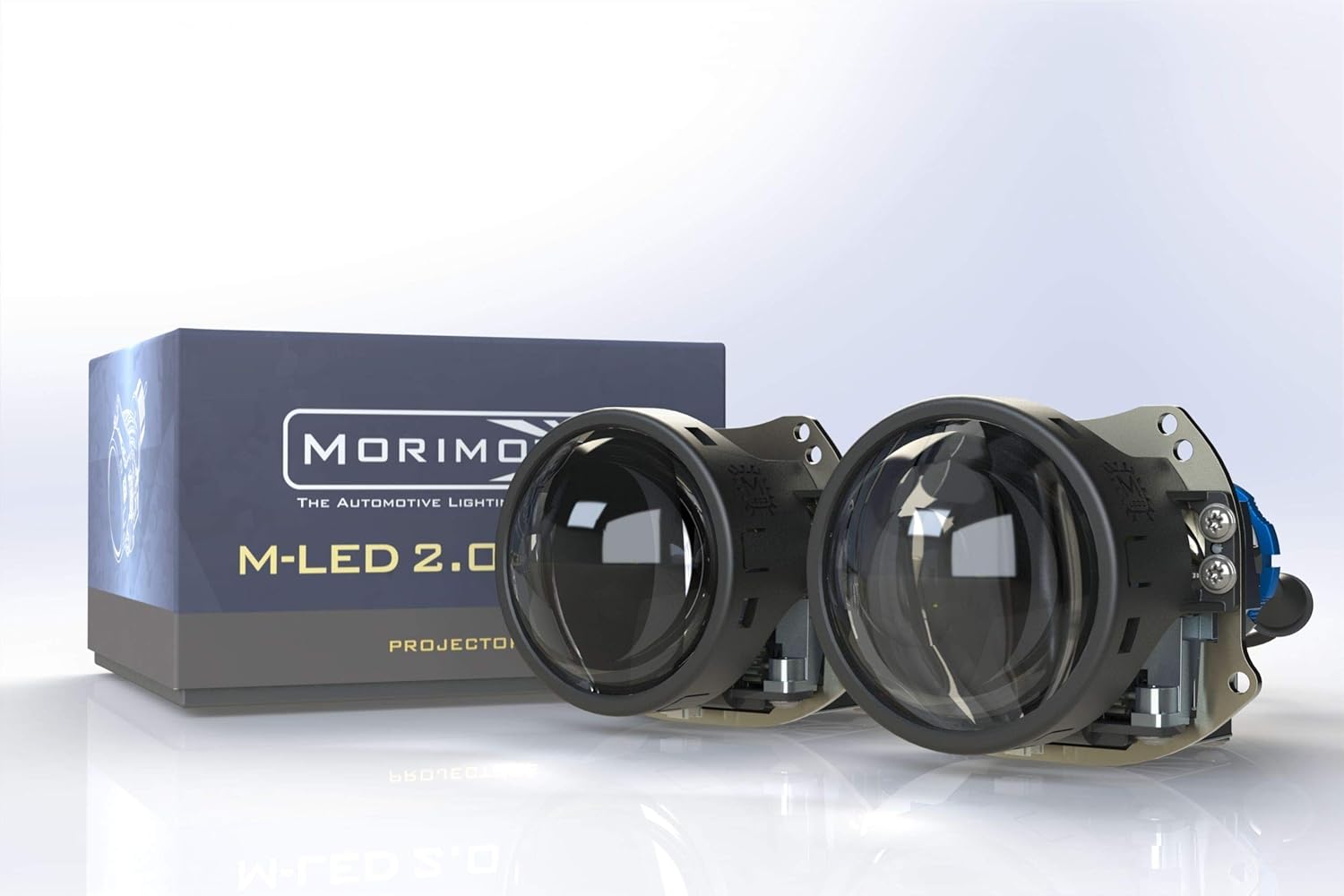

Image: The Morimoto M LED 2.0 Bi-LED Projectors, showcasing the compact design and the product packaging.
Co je zahrnuto
Před zahájením instalace ověřte, zda jsou všechny komponenty přítomny a nepoškozené.
- Projektor: 1x Morimoto M LED 2.0 Bi-LED RHD Projector
- Řidič: 1x M LED 1.0 Driver
- Železářské zboží: 1x Threaded shaft with lock ring

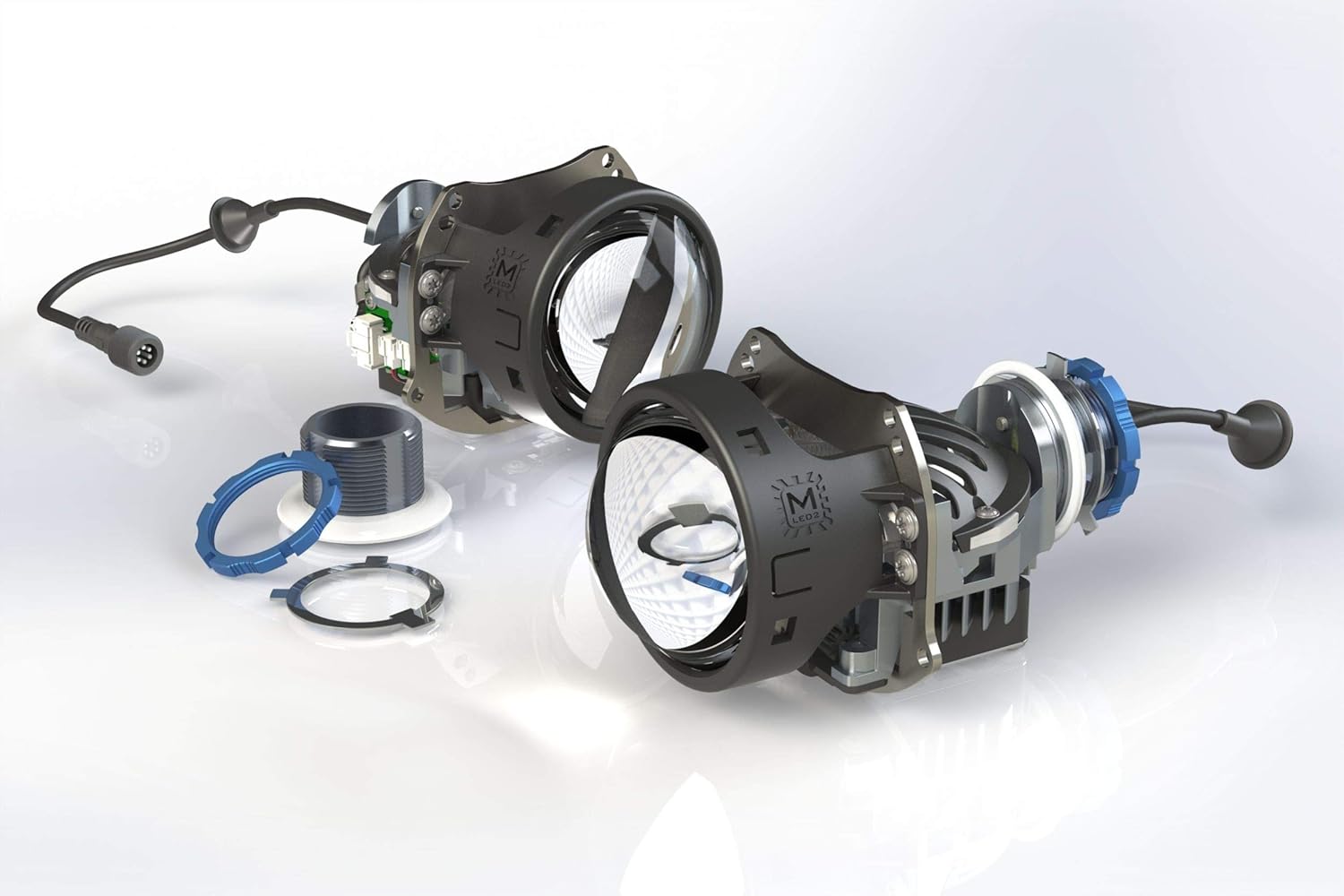

Obrázek: Rozložený view of the projector components, illustrating the lens, housing, and associated hardware.
Nastavení a instalace
The Morimoto M LED 2.0 Bi-LED Projector is designed for universal fitment in custom automotive retrofit applications. Due to the specialized nature of headlight retrofitting, professional installation is highly recommended. This section provides general guidance.
Kontroly před instalací
- Před zahájením jakýchkoli elektrických prací se ujistěte, že je baterie vozidla odpojena.
- Confirm the projector fits within the intended headlight housing.
- Inspect all components for any signs of damage.
Montáž projektoru
The projector utilizes a threaded shaft for secure mounting. This allows for precise adjustment and locking into place within the headlight assembly.
- Carefully insert the projector into the headlight housing opening.
- Secure the projector using the provided threaded shaft and lock ring from the rear of the housing.
- Ensure the projector is oriented correctly for the RHD beam pattern.
Elektrické připojení
Connect the M LED 1.0 Driver to the projector and then to the vehicle's electrical system. The system operates on a 9-30V DC input.
- Connect the projector's cable to the input port on the M LED 1.0 Driver.
- Connect the driver's power input to the vehicle's low beam and high beam wiring. Consult a vehicle-specific wiring diagram if unsure.
- Ujistěte se, že všechna připojení jsou bezpečná a řádně izolovaná, aby se zabránilo zkratu.
Image: The M LED 2.0 Bi-LED drivers, essential components for power regulation and function of the projectors.
Operace
The Morimoto M LED 2.0 is a Bi-LED projector, meaning it provides both low beam and high beam functionality from a single projector unit. The transition between low and high beam is controlled by an internal cutoff shield mechanism.
Low Beam Function
When the low beams are activated, the internal cutoff shield is in place, creating a sharp, ECE-compliant RHD cutoff line. This prevents glare for oncoming traffic while providing ample illumination of the road ahead.

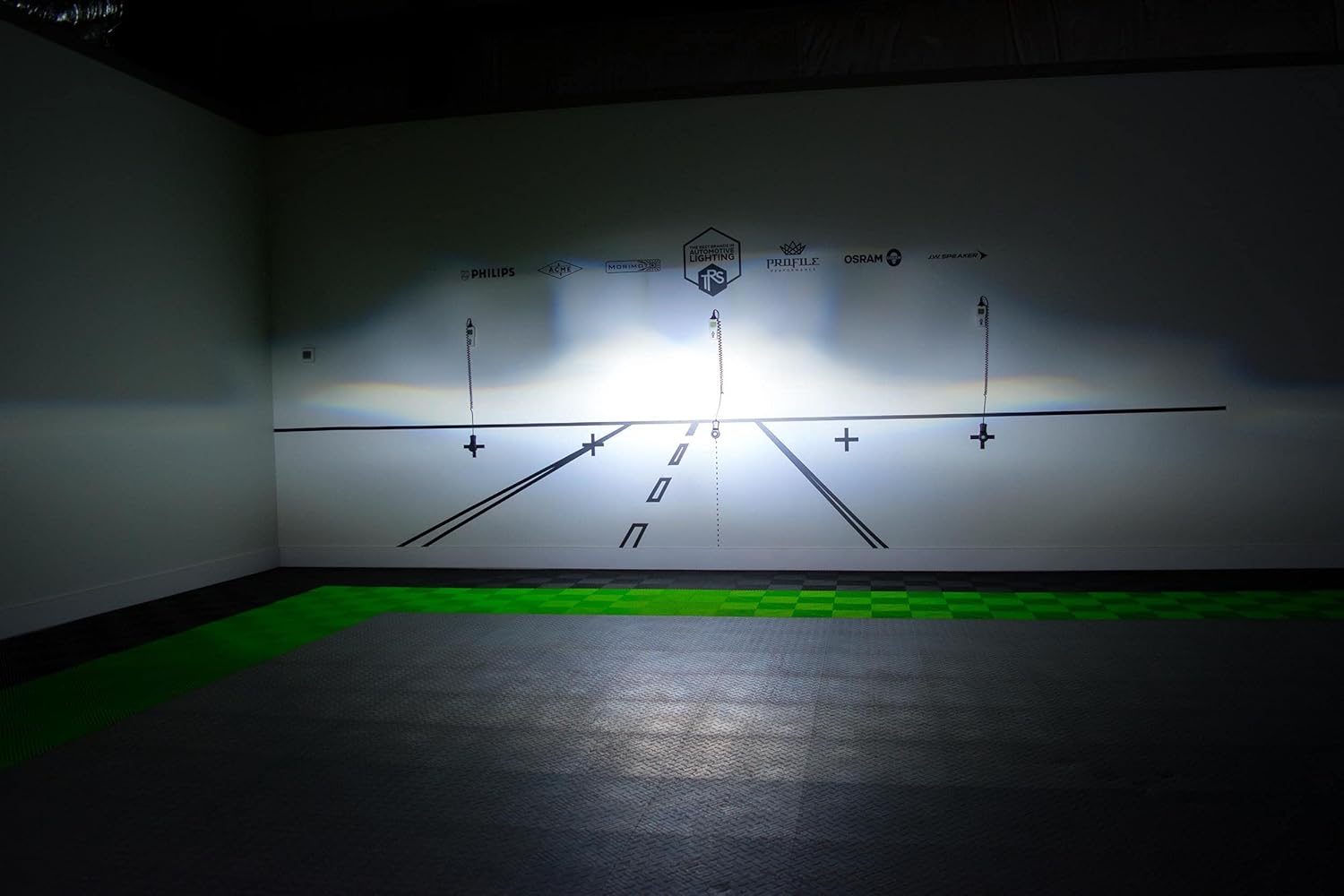

Obrázek: Přample of the RHD beam pattern with a distinct cutoff line, as projected on a test wall.
High Beam Function
When the high beams are activated, the cutoff shield retracts, allowing the full light output to be projected. This provides maximum illumination for increased visibility during night driving in areas without oncoming traffic.
Light Path and Cutoff Mechanism
The projector utilizes a sophisticated optical system, including a sub-reflector and cutoff shield, to precisely control the light output and beam pattern. The RHD beam pattern ensures proper illumination for right-hand drive vehicles.
Image: Technical diagram explaining the internal optics and how the light is managed to create the desired beam patterns.
Údržba
The Morimoto M LED 2.0 Bi-LED Projector is designed for long-term, maintenance-free operation. However, periodic checks can help ensure optimal performance.
- Čištění: Keep the exterior lens of the headlight assembly clean from dirt and debris. Use a soft cloth and mild cleaning solution. Do not use abrasive cleaners.
- Inspekce: Periodically check the wiring connections for any signs of wear or corrosion.
- Vodotěsná funkce: The projector is designed to be waterproof. Ensure that the headlight housing itself is properly sealed after installation to protect the internal components from moisture.
Odstraňování problémů
If you encounter issues with your Morimoto M LED 2.0 Bi-LED Projector, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Projector does not illuminate | No power, loose connection, faulty driver. | Check all wiring connections. Verify power supply to the driver. Test the driver if possible. |
| High beam not activating | Wiring issue to high beam trigger, faulty driver. | Ensure high beam trigger wire is correctly connected to the driver. Check driver functionality. |
| Improper beam pattern/cutoff | Projector not seated correctly, internal component misalignment. | Re-check projector mounting and orientation. If issue persists, contact support. |
For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Morimoto customer support.
Technické specifikace
| Funkce | Detail |
|---|---|
| Model | PR353 |
| Světelný zdroj | HML-3 7545 LED |
| Teplota barev | 6300 tis |
| Funkce | Bi-LED (Low Beam & High Beam) |
| Traffic Pattern | RHD (Right-Hand Drive) with ECE Cutoff |
| Intenzita | 70,000 XNUMX cd |
| Moc | 29.5W |
| Vstupní objemtage | 9-30V DC |
| Průměr čočky | 3.0 palců |
| Materiál čočky | Safírové sklíčko |
| Rozměry (V x Š x H) | 82mm x 95mm x 124mm (150mm with shaft) |
| Průměr hřídele | 35 mm |
| Hmotnost položky | 1 liber |
| Speciální funkce | Vodotěsný |
| Automotive Fit Type | Univerzální střih |
Záruka a podpora
Informace o záruce
The Morimoto M LED 2.0 Bi-LED Projector comes with a 5 rok záruka. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, please refer to the official Morimoto webnebo kontaktujte jejich zákaznický servis.
Zákaznická podpora
For technical assistance, troubleshooting, or warranty inquiries, please contact Morimoto customer support. You can typically find contact information on the official Morimoto webna webu nebo prostřednictvím autorizovaného prodejce.
