1. Úvod
Thank you for choosing the Craftmade CL4000-BN Builder Door Chime. This wired doorbell chime is designed to provide a clear and distinct sound for your home's entryways. It features a durable construction with a brushed satin nickel finish, suitable for indoor use. This manual provides essential information for safe installation, operation, and maintenance of your new door chime.

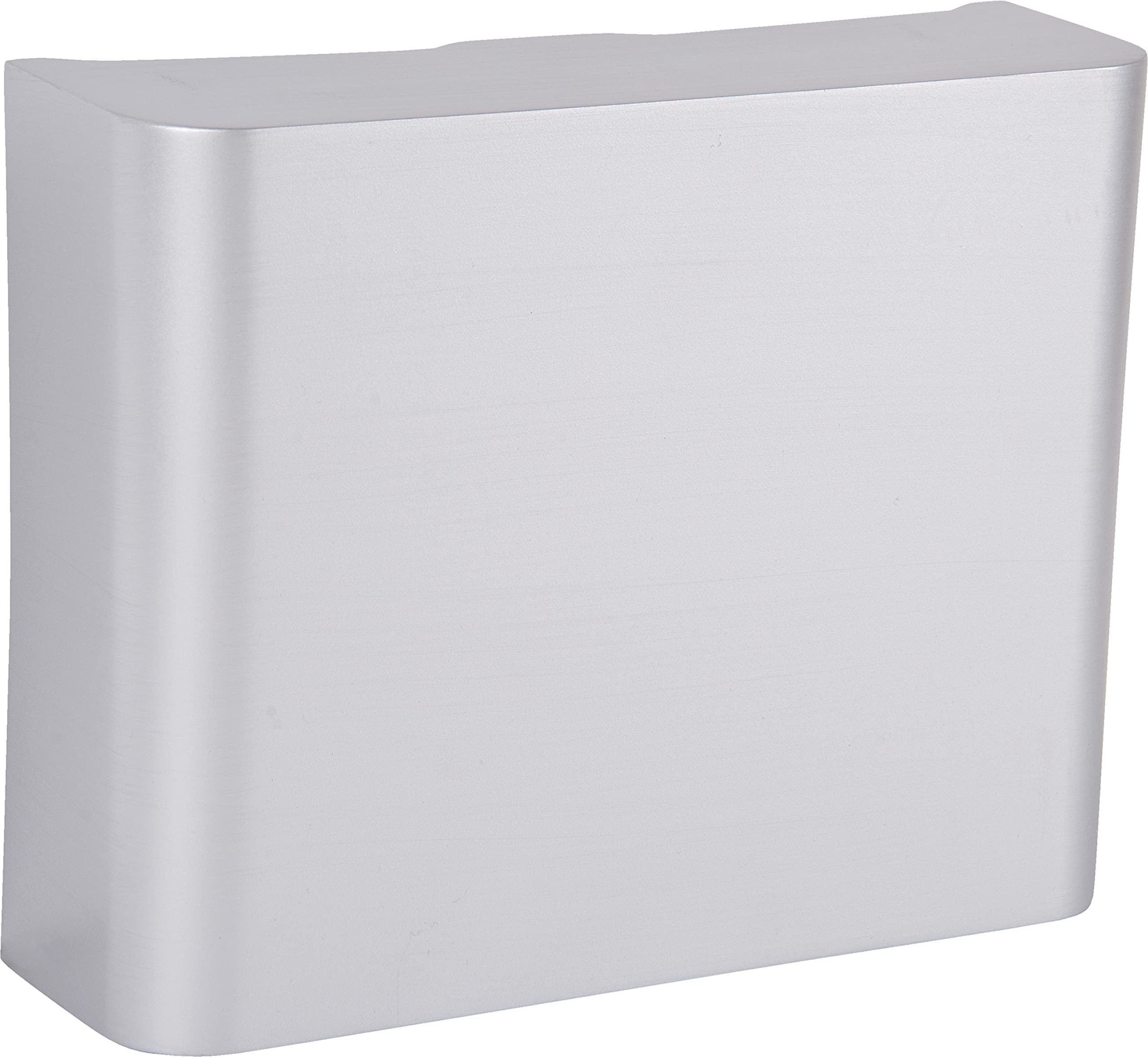

Image 1.1: The Craftmade CL4000-BN Builder Door Chime, showcasing its brushed satin nickel finish and compact design.
2. Bezpečnostní informace
Please read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards. Always consult a qualified electrician if you are unsure about any part of the installation process.
- Odpojit napájení: Always turn off power at the circuit breaker or fuse box before installing, servicing, or cleaning the chime.
- Pouze pro vnitřní použití: This chime is UL approved for INDOOR locations only. Do not install in outdoor or damp prostředí.
- Správné zapojení: Ensure all wiring connections are secure and comply with local electrical codes. Use at least 18 gauge wire for all connections (from button to chime, transformer to chime, and chime to chime if wiring more than one unit).
- svtage Kompatibilita: Ensure your doorbell transformer provides the correct voltage for this chime.
- Žádné díly opravitelné uživatelem: Do not attempt to open or repair the chime mechanism. Refer all servicing to qualified personnel.
3. Vlastnosti a rozměry produktu
Klíčové vlastnosti:
- Zvukový mechanismus: Produces 2 notes for the front door and 1 note for a second door.
- Dokončit: Elegant Brushed Polished Nickel finish.
- Instalace: Supports both vertical and horizontal hanging positions.
- Zapojení: Requires a minimum of 18 gauge wire for all connections.
- Umístění: UL Approved for indoor use.
Rozměry:
The Craftmade CL4000-BN Builder Door Chime has the following approximate dimensions:
- Výška: 9.25 palců (23.5 cm)
- Šířka: 7.32 palců (18.6 cm)
- Hloubka: 2.78 palců (7.06 cm)
- Hmotnost: 2.61 lb (1.18 kg)
Image 3.1: Detailed dimensions of the Craftmade CL4000-BN Door Chime, showing height, width, and depth measurements.
4. Instalace
Installation of the Craftmade CL4000-BN Builder Door Chime requires basic electrical knowledge. If you are not comfortable performing electrical work, please consult a qualified electrician.
Nástroje a materiály (nejsou součástí balení):
- Šroubovák (Phillips a/nebo plochý)
- Kleště pro odizolování
- Vrták (pokud montujete na nové místo)
- Tužka na značení
- Doorbell transformer (compatible with your chime's voltage požadavky)
- Doorbell push buttons
- 18 gauge or heavier wire
Kroky instalace:
- Vypnout napájení: Locate your home's circuit breaker panel and turn off the power to the circuit that supplies your doorbell system. Verify power is off using a voltage tester.
- Vyberte místo montáže: Select an appropriate indoor location for the chime. The chime can be mounted in either a vertical or horizontal position. Ensure there is sufficient space for the chime and access for wiring.
- Příprava zapojení: Run at least 18 gauge wire from your doorbell transformer to the chime, from the chime to your front door push button, and from the chime to your second door push button (if applicable). If connecting multiple chimes, ensure 18 gauge wire is used between chimes as well.
- Mount the Chime: Secure the chime to the wall using appropriate screws and anchors (not included). Ensure it is firmly attached.
- Připojení kabeláže: Connect the wires to the terminals on the chime unit according to the wiring diagram provided with your transformer or doorbell buttons. Typically, there will be terminals for 'TRANS' (transformer), 'FRONT' (front door button), and 'REAR' (second door button). Ensure all connections are tight and secure.
- Obnovit napájení: Once all connections are made and verified, turn the power back on at the circuit breaker.
- Testovací provoz: Press your doorbell buttons to ensure the chime functions correctly.
5. Provoz
The Craftmade CL4000-BN Builder Door Chime is designed for straightforward operation:
- Přední dveře: When the front doorbell push button is pressed, the chime will produce a distinct two-note melodie.
- Second Door: When the second doorbell push button (e.g., rear door, side door) is pressed, the chime will produce a single one-note sound. This allows you to differentiate which door a visitor is at.
6. Údržba
The Craftmade CL4000-BN Builder Door Chime requires minimal maintenance to ensure long-lasting performance.
- Čištění: To clean the chime, ensure power is off at the circuit breaker. Use a soft, dry cloth to gently wipe the exterior. Avoid using abrasive cleaners, solvents, or polishes, as these can damage the finish.
- Inspekce: Pravidelně kontrolujte kabeláž, abyste se ujistili, že je bezpečná.
- Prostředí: Keep the chime in a dry, indoor environment. Avoid exposure to excessive moisture or extreme temperatures.
7. Řešení problémů
If your Craftmade CL4000-BN Builder Door Chime is not functioning as expected, refer to the following common issues and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Nezní zvonění | No power to the chime; Loose wiring connections; Faulty doorbell button; Faulty transformer; Damaged chime mechanism. | Check circuit breaker; Verify all wiring connections are secure; Test doorbell button; Test transformer output; If all else fails, the chime may need replacement. |
| Chime sounds continuously | Doorbell button stuck in 'on' position; Short circuit in wiring. | Inspect and free doorbell button; Check wiring for any exposed wires touching each other. |
| Slabý nebo zkreslený zvuk | Nízký objemtage from transformer; Loose connections; Obstruction in chime mechanism. | Ensure transformer meets voltage requirements; Tighten all wiring connections; Inspect chime mechanism for any foreign objects (with power off). |
If you continue to experience issues after attempting these troubleshooting steps, please contact Craftmade customer support or a qualified electrician.
8. Specifikace
| Specifikace | Detail |
|---|---|
| Číslo modelu | CL4000-BN |
| Výrobce | Řemeslná výroba |
| Dokončit | Brushed Polished Nickel |
| Rozměry (V x Š x H) | 9.25 cm x 7.32 cm x 2.78 cm |
| Hmotnost položky | 2.61 lb (1.18 kg) |
| Zvukový výstup | 2 notes (Front Door), 1 note (Second Door) |
| Požadavek na průřez drátu | Minimálně 18 měřidlo |
| Hodnocení polohy | UL Approved for Indoor Locations |
| Jsou vyžadovány baterie | Žádný |
9. Záruka a podpora
Craftmade products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty information provided at the time of purchase or visit the official Craftmade website for details regarding your specific product's warranty coverage.
For technical assistance, replacement parts, or further inquiries, please contact Craftmade customer support. Contact information can typically be found on the Craftmade webwebu nebo na obalu vašeho produktu.
Webmísto: www.craftmade.com
