The Lepro Solar Motion Sensor Light is an advanced outdoor lighting solution designed for gardens, yards, and garages. It features a 2-in-1 design allowing for integrated or separate solar panel installation, ensuring optimal solar energy absorption. Equipped with high-sensitivity motion and optical sensors, it provides bright 1000LM illumination with 3 adjustable heads for a wide 270-degree lighting angle. The light is remote-controlled and offers two versatile lighting modes: AUTO and DIM-AUTO. Built with robust ABS material and an IP65 waterproof rating, it is designed to withstand various weather conditions, offering reliable and energy-efficient outdoor lighting.
Image: The Lepro Solar Motion Sensor Light, showcasing its main unit with three adjustable light heads, a motion sensor, and a separate solar panel connected by a cable. A remote control is also visible, indicating its control capabilities.
Nastavení a instalace
The Lepro Solar Motion Sensor Light offers flexible installation options: an integrated type or a separated type, depending on your needs and the best location for solar panel exposure.
Možnosti instalace:
- Integrated Type: The solar panel is directly attached to the light unit. This is suitable for areas where the light unit itself receives ample přímé sluneční světlo.
- Separated Type: The solar panel can be detached from the light unit and placed up to 3 meters away using the provided cable. This is ideal for situations where the light needs to be installed in a shaded area (e.g., under eaves) but the solar panel can be positioned in direct sunlight for optimal charging.
Image: Illustration of the two installation types: Integrated (solar panel attached to light) and Separate (solar panel connected via cable), highlighting the flexibility of placement.
Image: A visual comparison demonstrating how a separate solar panel (top) can achieve better energy absorption by being placed in direct sunlight, compared to an integrated panel (bottom) which might be obstructed by eaves.
Doporučená výška instalace:
For optimal motion detection and light coverage, install the unit at a height of 1.8 to 2.5 meters (approximately 6 to 8 feet) ze země.
Kroky instalace:
- Vyberte umístění: Vyberte místo, které přijímá ample direct sunlight for the solar panel (at least 6 hours daily) and provides the desired lighting coverage.
- Označte vrtné body: Use the provided mounting bracket to mark the drilling points on the wall.
- Vrtací otvory: Vyvrtejte otvory v označených bodech a vložte do nich hmoždinky.
- Montážní držák: Secure the light holder or panel holder to the wall using the provided screws.
- Attach Light/Panel: Attach the solar light unit and/or solar panel to their respective holders.
- Connect Cable (for Separated Type): If using the separated type, connect the 3-meter cable from the solar panel to the light unit. Ensure the connection is secure.
- Upravte hlavy: Adjust the three light heads to your desired angles for optimal illumination. The heads offer up to 270 degrees of rotation.
- Aktivovat: Use the remote control or the switch on the unit to select the desired operating mode.
Image: Step-by-step visual guide for installing the light in its integrated configuration, showing how to mount the unit directly to a wall.
Image: Step-by-step visual guide for installing the light in its separated configuration, illustrating how to mount the light unit and the solar panel separately.
Návod k obsluze
The Lepro Solar Motion Sensor Light is designed for intelligent and efficient operation, primarily controlled via the included remote.
Pohybový a světelný senzor:
The light features an ultra-sensitive motion (PIR) sensor and a light sensor. It will only activate at night or in dark environments when motion is detected. The motion sensor has a sensing distance of 0-8 metry and a wide sensing angle of 120 stupňů.
Image: A diagram illustrating the motion sensor's detection range (0-8m) and angle (120 degrees) in front of a garage, showing how it detects people, pets, and vehicles.
Lighting Modes (via Remote Control):
Use the remote control to switch between the following modes:
- AUTO režim:
In this mode, the light remains off when no motion is detected at night. When motion is detected, the light turns on at full 1000LM brightness. It automatically turns off after approximately 20 sekund of no further motion detection.
- DIM-AUTO Mode:
In this mode, the light stays on at a low 20LM dim brightness when no motion is detected at night. When motion is detected, it brightens to full 1000LM brightness. After approximately 20 seconds of no further motion, it returns to the dim 20LM state.
- Tlačítka ON/OFF:
The remote also includes dedicated ON and OFF buttons for manual control of the light.
Image: A visual representation of the two practical lighting modes: AUTO mode (light off, then 1000LM with motion, then off) and DIM-AUTO mode (20LM dim, then 1000LM with motion, then back to 20LM dim).
Údržba
Proper maintenance ensures the longevity and optimal performance of your Lepro Solar Motion Sensor Light.
Čištění:
- Solární panel pravidelně otírejte měkkým hadříkemamp cloth to remove dust, dirt, leaves, or snow. A clean solar panel ensures maximum sunlight absorption and efficient charging.
- Clean the light heads and motion sensor lens periodically to ensure clear light output and accurate motion detection.
Baterie a nabíjení:
- Ensure the solar panel is placed in a location that receives at least 6 hours of direct sunlight daily for optimal charging.
- The light is designed to operate reliably even in rainy or winter months, but prolonged periods of low sunlight may reduce performance.
Trvanlivost a odolnost proti povětrnostním vlivům:
The light is constructed with robust ABS material and has an Třída vodotěsnosti IP65, making it resistant to rain, heat, and frost. No special weather-proofing maintenance is typically required beyond ensuring proper installation and avoiding physical damage.
Image: Visual representation of the light's IP65 waterproof rating under rain, and its heat and frost resistance in different weather conditions.
Odstraňování problémů
If you encounter issues with your Lepro Solar Motion Sensor Light, refer to the following common problems and solutions:
| Problém | Možná příčina | Řešení |
|---|---|---|
| Světlo se v noci nerozsvítí. |
|
|
| Light stays dim or turns off too quickly. |
|
|
| Dálkové ovládání nefunguje. |
|
|
| Světlo není tak jasné, jak se očekávalo. |
|
|
Specifikace
| Funkce | Detail |
|---|---|
| Značka | Lepro |
| Číslo modelu | PR640005-DW-2 |
| Jas | 1000 XNUMX lumenů |
| Teplota barev | 6500K (studená bílá) |
| Zdroj napájení | Solární napájení |
| Rozsah snímače pohybu | 0-8 metry |
| Úhel pohybového senzoru | 120 stupňů |
| Lighting Angle (Adjustable Heads) | Až 270 stupňů |
| Hodnocení voděodolnosti | IP65 |
| Materiál | Plast (ABS) |
| Rozměry produktu | 14 x 12 x 11 cm; 1.03 kg |
| Typ baterie | 1 Lithium Ion battery (required) |
| Barva | Černý |
| Specifická použití | Garden, Yard, Pathway, Patio |

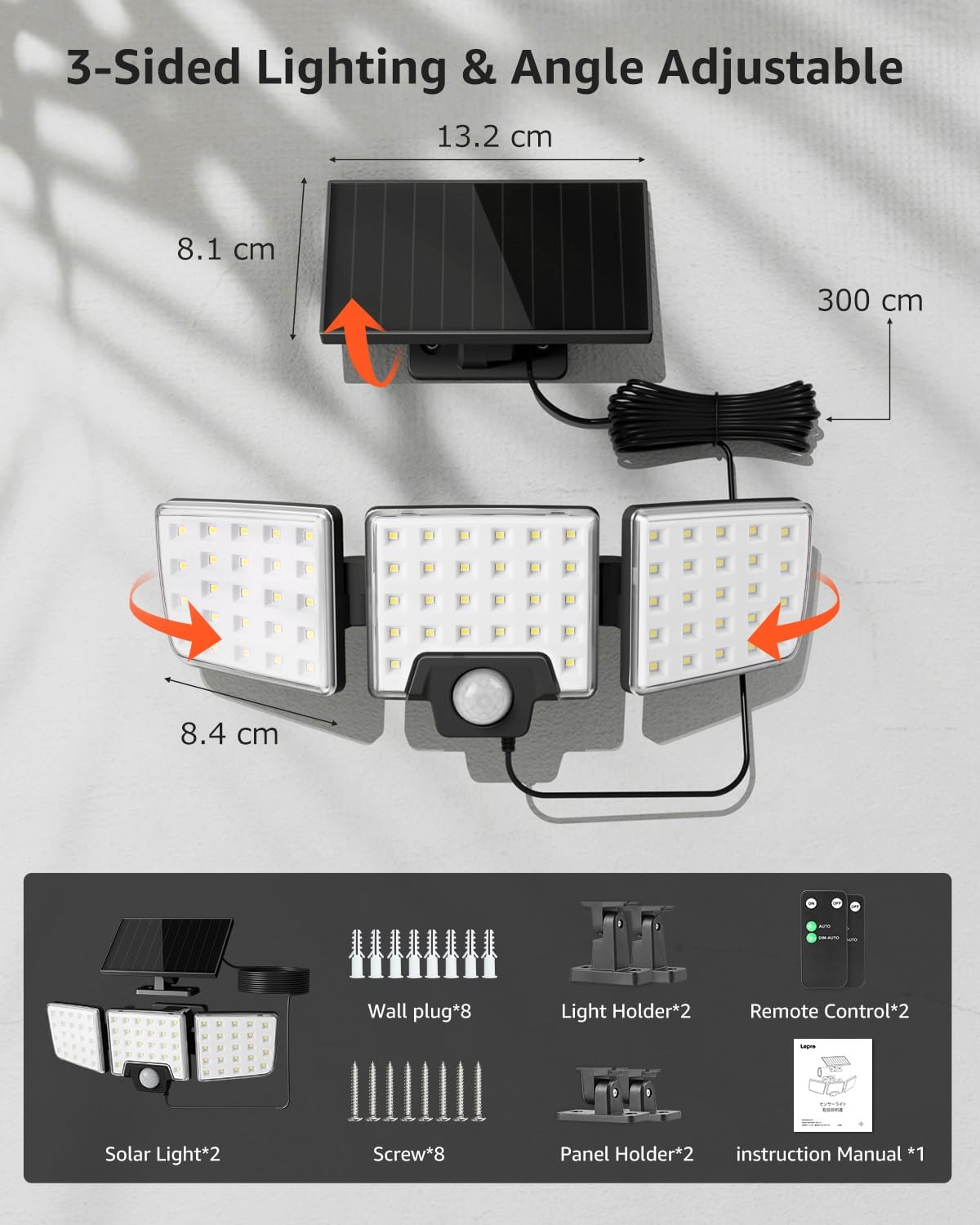

Image: Detailed diagram showing the dimensions of the solar panel and light heads, along with a list of included components such as screws, wall plugs, light holders, panel holders, remote control, and the instruction manual.
Záruka a podpora
Lepro is committed to providing reliable and satisfying lighting products. For specific warranty information, including duration and terms, please refer to the product packaging or the official Lepro website. Typically, warranty details cover manufacturing defects and product malfunctions under normal use.
For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact Lepro customer service through their official channels. Contact information can usually be found on the product packaging, the brand's official website, or the retailer's support page where the product was purchased.
Můžete navštívit Obchod Lepro na Amazonu pro více informací a aktualizace produktů.
