Matrix Fitness T75 Treadmill with XER Console User Manual

1. Úvod

Welcome to the Matrix Fitness T75 Treadmill with XER Console user manual. This guide provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new fitness equipment. The Matrix T75 Treadmill is designed to deliver a club-quality workout experience in the comfort of your home, featuring robust construction and advanced console technology.

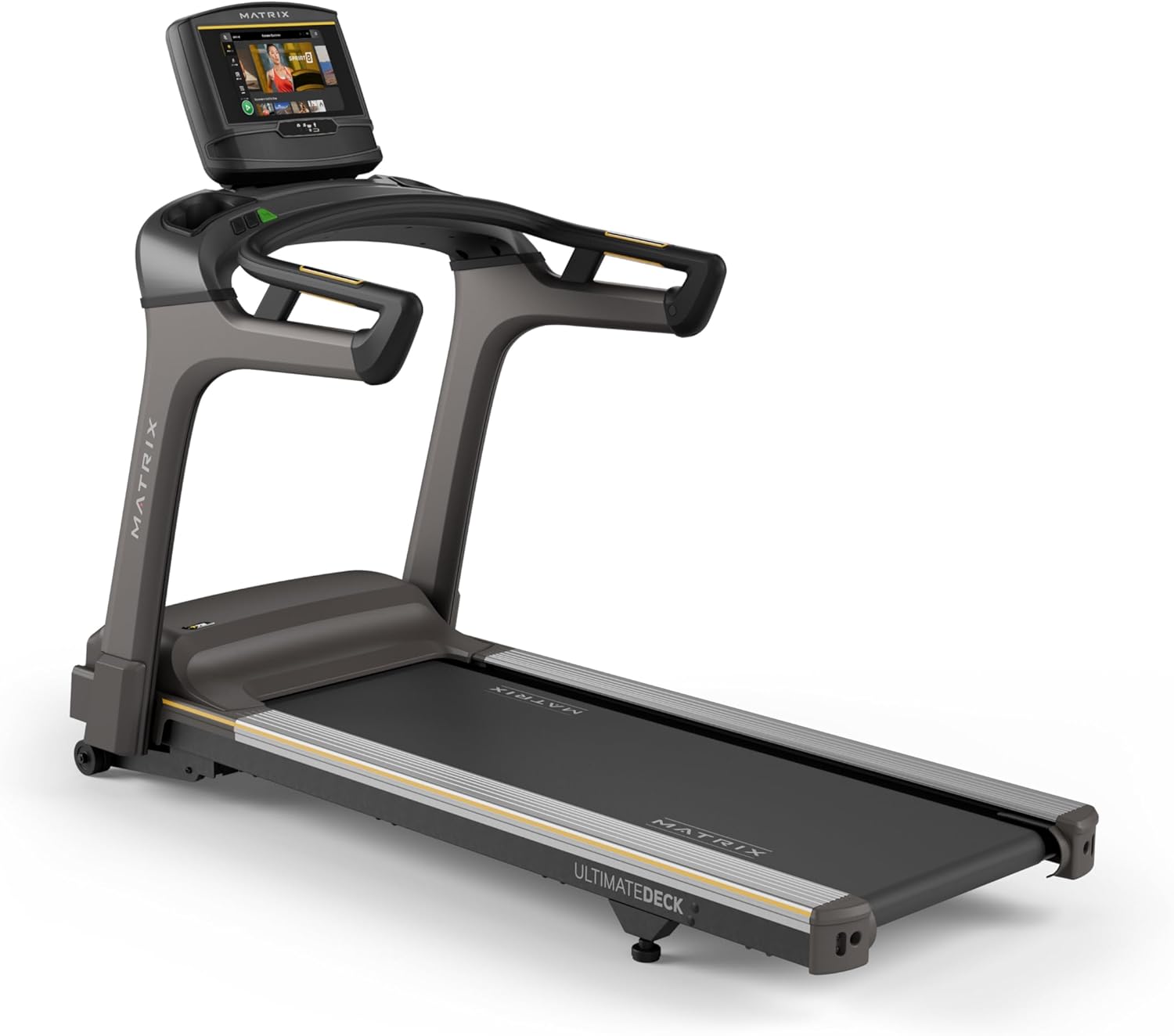

Figure 1.1: Matrix Fitness T75 Treadmill with XER Console. This image shows the complete treadmill unit, highlighting its sleek design and the integrated touchscreen console.

2. Bezpečnostní informace

Please read all warnings and instructions in this manual before using the treadmill. Keep this manual for future reference. Failure to follow these instructions could result in injury or damage to the product.

• Před zahájením jakéhokoli nového cvičebního programu se vždy poraďte se zdravotníkem.
• Ujistěte se, že běžecký pás je umístěn na rovném a stabilním povrchu s dostatečným volným prostorem kolem něj.
• Během provozu udržujte děti a domácí zvířata mimo běžecký pás.
• Use the safety key at all times. Attach it to your clothing before beginning your workout.
• Do not operate the treadmill if it is damaged or not functioning properly.
• Noste vhodnou sportovní obuv a oblečení.
• Do not attempt to service the treadmill beyond the maintenance instructions provided in this manual.

3. Obsah balení

Před zahájením montáže ověřte, zda jsou všechny komponenty přítomny:

• Rám běžeckého pásu
• Stěžně
• Mast Boots
• Základna konzoly
• Řídítka
• Handlebar Sleeves
• Čepice na řídítka
• Frame Cover Sets
• Zadní kryt
• Napájecí kabel
• Bezpečnostní klíč
• Hardware kit

4. Nastavení a montáž

The Matrix T75 Treadmill requires assembly. It is recommended that two people perform the assembly process. Follow the detailed instructions provided in the separate assembly guide for step-by-step procedures. Ensure all connections are secure before use.

Figure 4.1: Treadmill Dimensions. The image illustrates the overall dimensions of the T75 Treadmill: 79 inches (length) x 36 inches (width) x 61 inches (height).

Once assembled, place the treadmill in a location with sufficient space for safe operation. The recommended clearance is at least 6 feet (1.8 meters) behind the treadmill and 2 feet (0.6 meters) on each side.

5. Vlastnosti a technologie

The Matrix T75 Treadmill is engineered with advanced features for a superior workout experience:

• Expanded 22" x 60" Running Surface: Poskytuje ample space for comfortable and natural strides, even during intense runs.
• 0.5–12.5 mph Speed Range: Offers a wide range of speeds suitable for walking, jogging, and high-intensity running.
• 0–15% Incline Range: Simulate various terrains and increase workout intensity with adjustable incline.
• Industrial-Grade AC Motor: A powerful motor designed for durability, quiet operation, and consistent performance with lower RPM and reduced maintenance.
• Exclusive Ultimate Deck System: Features a heavy-duty frame, extra-thick deck, and industrial-grade cushions for superior shock absorption and comfort, extending the life of the deck and belt.
• Systém pohonu Johnson: Ensures smooth, quiet, and responsive operation, maintaining perfect rhythm throughout your workout.
• 10" Touchscreen Console (XER): A vibrant display with best-in-class apps for entertainment and workout tracking.
• iFIT and Virtual Active Integration: Explore global terrains and engage in interactive workouts with a 30-day iFIT membership included.

Figure 5.1: T75 Treadmill Key Features. This diagram highlights the heavy-duty welded steel frame, extra-wide 22" x 60" Ultimate Deck System, commercial-grade AC motor, 0-15% incline range, 0.5-12.5 mph speed range, and industrial-grade cushioning.

Figure 5.2: Ultimate Deck System. An internal view showing the robust construction of the deck and cushioning for enhanced comfort and durability.

Figure 5.3: Johnson Drive System. A cutaway view illustrating the internal components of the motor, emphasizing its quiet and durable design.

Official Product Video: T75 Treadmill - Features & Benefits

6. Návod k obsluze

The XER Console offers an intuitive interface for controlling your workout and accessing entertainment. Ensure the treadmill is plugged into a grounded outlet and the safety key is in place before starting.

6.1. XER Console Overview

The 10-inch touchscreen console provides access to various workout programs, entertainment apps, and performance metrics.

Figure 6.1: XER Console Features. This image highlights the console's ability to stream apps like Netflix, YouTube, and Spotify, its integration with Virtual Active Sprint 8 and iFIT, Bluetooth FTMS for third-party apps, 12 built-in programs, and Bluetooth HR with included strap.

Figure 6.2: XER Console Main Workout Screen. Displays workout options and progress tracking.

6.2. Zahájení tréninku

1. Stoupněte si na běžecký pás a položte nohy na boční madla.
2. Upevněte sponu na bezpečnostní klíč k oděvu.
3. Select your desired workout program or manual mode from the console.
4. Press the START button to begin. The belt will start moving at a low speed.
5. Adjust speed and incline using the console controls or quick-access buttons on the handlebars.

6.3. Using iFIT and Virtual Active

The XER Console comes with iFIT and Virtual Active pre-installed. Activate your included 30-day iFIT membership to access a vast library of trainer-led workouts and global routes. Virtual Active allows you to experience immersive outdoor scenery that adjusts to your pace and incline.

Figure 6.3: XER Console Virtual Active Display. Shows a scenic route being displayed on the console during a workout.

Figure 6.4: User Interacting with XER Console Apps. A user is shown on the treadmill, engaging with various entertainment and fitness applications available on the console.

7. Údržba

Regular maintenance ensures the longevity and optimal performance of your Matrix T75 Treadmill.

• Čištění: Otřete povrch běžeckého pásu, včetně konzole a madel, čisticím prostředkem.amp Po každém použití očistěte hadříkem. Nepoužívejte abrazivní čisticí prostředky.
• Pásové mazání: The Ultimate Deck System is designed for low maintenance. Refer to the separate assembly guide or contact customer support for specific lubrication intervals and procedures.
• Napnutí a seřízení řemene: Periodically check the walking belt for proper tension and alignment. Adjust as needed following the instructions in the assembly guide.
• Čištění krytu motoru: Once a year, remove the motor cover and vacuum any dust or debris from the motor and surrounding components. Ensure the treadmill is unplugged before performing this.

8. Řešení problémů

Tato část se zabývá běžnými problémy, se kterými se můžete setkat. V případě problémů, které zde nejsou uvedeny, se obraťte na zákaznickou podporu.

9. Specifikace

10. Informace o záruce

The Matrix Fitness T75 Treadmill comes with the following manufacturer's warranty:

• Utěšit: 5 years parts / 1 year labor
• Rám: Celý život
• Motor: Celý život
• odpružení: Celý život
• Ostatní díly: 7 years parts / 2 years labor

Please retain your proof of purchase for warranty claims. For full warranty terms and conditions, refer to the documentation included with your product or visit the official Matrix Fitness webmísto.

11. Zákaznická podpora

For technical assistance, parts, or service inquiries, please contact Matrix Fitness customer support. Have your model number (763165008952) and serial number ready when contacting support.
