1. Bezpečnostní informace
Operating a dirt bike can be dangerous if proper safety precautions are not followed. Always prioritize safety to prevent injury or damage.
- Always wear appropriate safety gear, including a helmet, eye protection, gloves, long pants, and sturdy boots.
- Ensure adult supervision for all youth riders.
- This dirt bike is designed for off-road use only. It is not street legal and should not be operated on public roads, sidewalks, or paved areas.
- Perform pre-ride inspections before each use to check brakes, tires, and controls.
- Neřiďte kolo pod vlivem alkoholu nebo drog.
- Udržujte ruce, nohy a oděv mimo dosah pohyblivých částí.
2. Konec produktuview

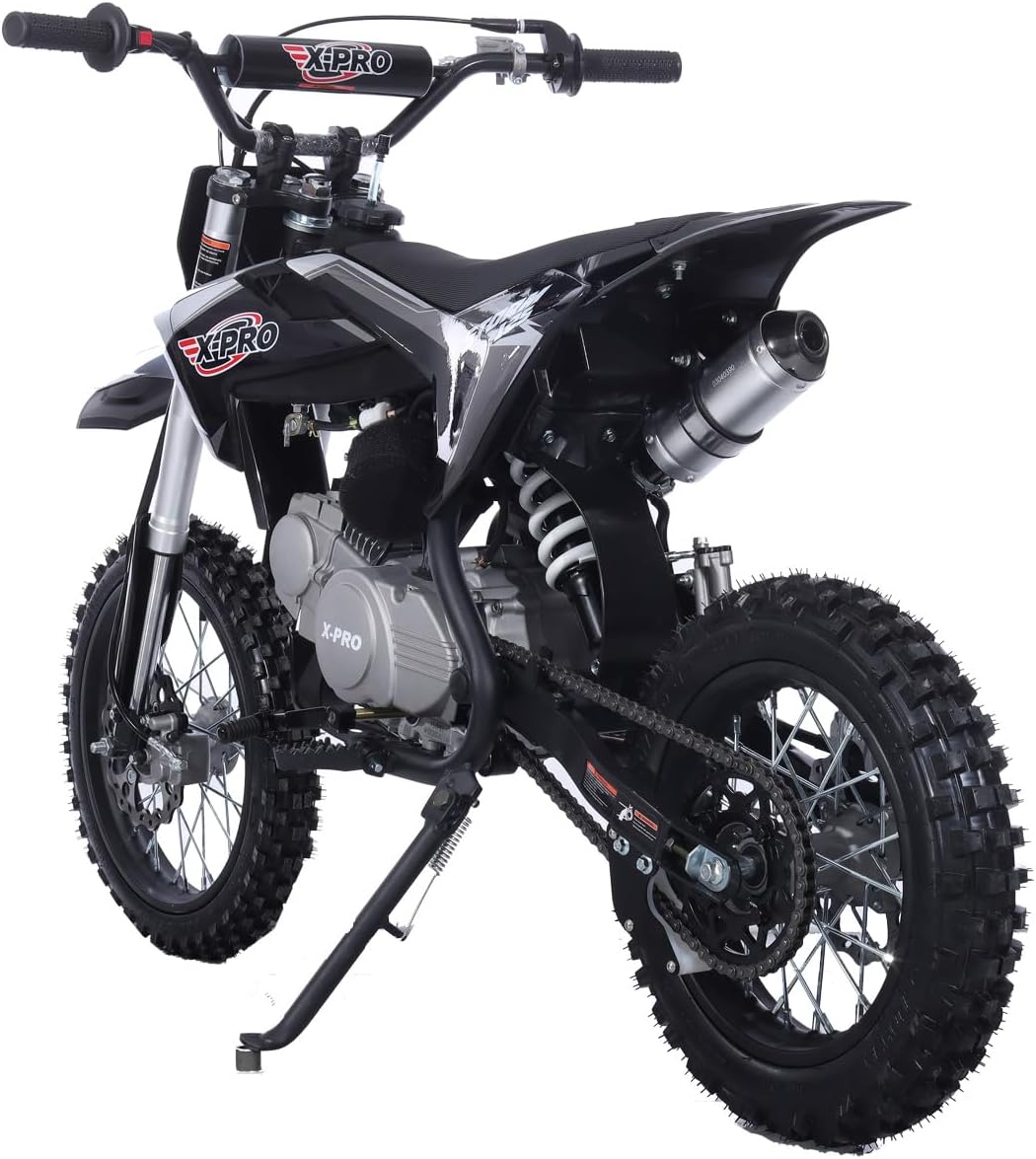

The X-PRO 125cc Kids Dirt Bike is a robust youth dirt pit bike featuring a 4-speed semi-automatic transmission and large 14"/12" tires, designed for off-road adventures. It is equipped with a reliable Zongshen 125cc engine and a strong steel frame for durability and performance.
3. Nastavení a montáž
The X-PRO 125cc Dirt Bike requires some assembly upon arrival. Please follow these steps carefully. It is recommended to have two people for assembly.
3.1 Vybalení
Carefully remove the dirt bike from its shipping crate. Inspect for any shipping damage before proceeding with assembly.
3.2 Montážní kroky
- Instalace řídítek: Attach the handlebar brackets securely. Ensure the handlebars are centered and tightened to the recommended torque specifications.
- Upevnění kola: Install the front and rear wheels. Pay close attention to the orientation of the brake discs and ensure all axle nuts are properly tightened.
- Brake System Connection: Connect and adjust the brake levers and calipers. Verify proper brake function before riding.
- Number Plate and Fender Installation: Securely attach the front number plate and fenders.
- Kontroly provozních kapalin: Check engine oil levels and add fuel. Refer to the specifications section for recommended fluid types.
- Závěrečná kontrola: Before the first ride, double-check all nuts, bolts, and fasteners for tightness. Ensure all cables are routed correctly and not pinched.
4. Návod k obsluze
4.1 Startování motoru
- Ujistěte se, že je palivový ventil v poloze „ON“.
- If the engine is cold, set the choke lever to the 'ON' or 'START' position.
- Place the bike on a stable surface, preferably with the kickstand down.
- Firmly press down on the kick start lever until the engine starts.
- Once the engine starts, gradually return the choke lever to the 'OFF' position as the engine warms up.
4.2 Transmission (Semi-Automatic)
This dirt bike features a 4-speed semi-automatic transmission, meaning there is no clutch lever to operate. Shifting gears is done by simply pressing the gear shift lever with your foot.
- Řazení nahoru: Press the gear shift lever down with your foot to shift from neutral to 1st gear, then lift the lever up for 2nd, 3rd, and 4th gears.
- Řazení dolů: Press the gear shift lever down repeatedly to downshift through the gears.
- The transmission is designed to allow shifting without manually operating a clutch.
4.3 Brzdění
The bike is equipped with disc brakes for effective stopping power.
- The front brake is operated by the lever on the right handlebar.
- The rear brake is operated by the foot pedal on the right side.
- Apply both brakes smoothly and simultaneously for optimal stopping performance. Avoid sudden, hard braking, especially on loose surfaces.
4.4 Tipy pro jízdu
- Always ride within your skill level and the bike's capabilities.
- Buďte si vědomi svého okolí a potenciálních nebezpečí.
- The maximum recommended weight for the rider is 165 pounds.
- Ensure the rider meets the minimum user height of 29 inches for safe operation.
5. Údržba
Regular maintenance is crucial for the longevity and safe operation of your X-PRO 125cc Dirt Bike.
5.1 Pravidelné kontroly (před každou jízdou)
- pneumatiky: Check tire pressure and inspect for wear or damage.
- brzdy: Verify proper function of front and rear brakes. Ensure levers and pedals have adequate free play.
- Řetěz: Check chain tension and lubrication. Adjust if necessary.
- Spojovací materiál: Inspect all nuts, bolts, and fasteners for tightness.
- Kapaliny: Zkontrolujte hladinu motorového oleje.
5.2 Plánovaná údržba
- Výměna motorového oleje: Change engine oil after the first 5 hours of operation, then every 15-20 hours or seasonally, whichever comes first. Use recommended oil type (refer to specifications).
- Čištění vzduchového filtru: Clean the air filter every 10-15 hours of operation, more frequently in dusty conditions.
- Kontrola zapalovací svíčky: Inspect and clean the spark plug every 20-30 hours. Replace if worn.
- Mazání řetězu: Lubricate the drive chain every 5-10 hours of operation.
- Kontrola brzdových destiček: Check brake pad wear every 20-30 hours. Replace if worn beyond limits.
6. Řešení problémů
Tato část obsahuje řešení běžných problémů, se kterými se můžete setkat.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Motor nenastartuje | No fuel, choke off (cold engine), fouled spark plug, carburetor issue | Check fuel level and fuel valve. Apply choke. Clean/replace spark plug. Inspect carburetor for blockages. |
| Ztráta moci | Dirty air filter, old fuel, spark plug issue, incorrect engine oil | Clean air filter. Drain old fuel and refill with fresh. Check/replace spark plug. Ensure correct oil type and level. |
| Brzdy nejsou účinné | Worn brake pads, air in brake lines, loose cables | Inspect and replace brake pads. Bleed brake lines (professional recommended). Adjust brake cables. |
| Nadměrné vibrace | Loose fasteners, unbalanced wheels, worn bearings | Check and tighten all fasteners. Inspect wheels and bearings for damage. |
Pokud narazíte na problémy, které zde nejsou uvedeny, nebo pokud řešení problém nevyřeší, obraťte se na kvalifikovaný servisní personál.
7. Specifikace
| Funkce | Specifikace |
|---|---|
| Typ kola | Dětská kola |
| Věkové rozmezí (popis) | Dítě, mládež |
| Značka | X-PRO |
| Počet rychlostí | 4 |
| Barva | Černý |
| Velikost kola | 14 Inches (Front), 12 Inches (Rear) |
| Materiál rámu | Legovaná ocel |
| Typ odpružení | Přední, zadní |
| Speciální funkce | Off-road |
| Zahrnuté komponenty | Manual, Tool Kit |
| Styl brzdy | Disk |
| Hmotnost položky | 123 libry |
| Doporučená maximální hmotnost | 165 libry |
| Minimální výška uživatele | 29 palce |
| Typ pohonu jízdního kola | Poloautomatický |
| Číslo modelu | XB27B-125 |
8. Záruka a podpora
8.1 Informace o záruce
The X-PRO 125cc Kids Dirt Bike comes with a 1měsíční omezená záruka. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For specific details regarding coverage and exclusions, refer to the warranty documentation included with your product.
8.2 Zákaznická podpora
For technical assistance, parts inquiries, or any questions regarding your X-PRO 125cc Dirt Bike, please contact XPROUSA customer service. Contact information can typically be found on the X-PRO official website or through your original point of purchase. When contacting support, please have your model number (XB27B-125) and purchase details readily available.
