Hatteker Hair Clipper & Trimmer Grooming Kit User Manual

1. Úvod

Thank you for choosing the Hatteker Professional Hair Clipper & Trimmer Grooming Kit. This versatile kit is designed to provide a comprehensive solution for all your grooming needs, including haircuts, beard and mustache trimming, touch-ups, body grooming, and detailing. With its high-performance features and durable design, you can achieve professional results from the comfort of your home.

Figure 1.1: Hatteker Hair Clipper and Trimmer Grooming Kit with accessories.

Klíčové vlastnosti:

• Professional Hair Clipper & Trimmer Set: Includes a professional hair clipper, a nose trimmer, and a T-blade for various grooming tasks.
• Čepel z vysoce uhlíkové oceli: Precision-ground blades designed to stay sharp longer, ensuring high performance and durability without snagging or pulling.
• Adjustable Taper Lever & Precision Dial: Easily adjust cutting closeness from 0.8 mm to 2.0 mm with the taper lever. The T-blade trimmer features a precision dial for nineteen length settings in 0.5 mm step sizes.
• IPX7 Vodotěsnost: Both the trimmer and all attachments are fully washable for easy cleaning under running water.
• Designed for Hair ART: The T-blade trimmer allows for close-to-zero-distance cutting (0.1~0.2 mm) for precise detailing of hair, beard, face, sideburns, and body hair.
• Digitální displej: Features a clear digital display showing battery indicator, oil reminder, and travel lock status.

2. Obsah balení

Ujistěte se, že máte v balení všechny níže uvedené položky:

• 1 x Profesionální zastřihovač vlasů
• 1 x zastřihovač s T-čepelí
• 1 x zastřihovač chloupků v nose
• 10 x Reinforced Guide Combs (1.5, 3, 4.5, 6, 10, 13, 16, 19, 22, 25 mm)
• 2 x Hair Combs
• 2 x USB Cables (for charging clipper and trimmer)
• 1 x čisticí kartáček
• 1 x lahvička s mazacím olejem
• 1 x Hairdressing Cape
• 1 x úložný sáček
• Uživatelské příručky

Obrázek 2.1: Přesview všech zahrnutých komponent.

3. Bezpečnostní informace

Please read and understand all safety instructions before using the product to prevent injury or damage.

• Používejte opatrně v blízkosti obličeje a očí.
• Keep small parts and accessories away from children.
• Ensure the product is properly cleaned after each use to maintain hygiene and performance.
• Do not immerse the charging cables or power adapter in water.
• Pokud zařízení nepoužíváte, skladujte ho na suchém místě.
• Nepokoušejte se zařízení sami rozebírat nebo opravovat. Požádejte o pomoc zákaznickou podporu.

4. Nastavení

4.1 Nabíjení zařízení

Before first use, fully charge the hair clipper and trimmer. A full charge takes approximately 3 hours and provides up to 5 hours of runtime.

1. Connect the appropriate USB cable to the charging port at the bottom of the hair clipper or trimmer.
2. Zapojte druhý konec kabelu USB do kompatibilního napájecího adaptéru USB (není součástí balení) nebo do portu USB počítače.
3. The digital display on the hair clipper will show the charging progress. For the trimmer, a light indicator will show charging status.
4. Po úplném nabití odpojte zařízení od zdroje napájení.

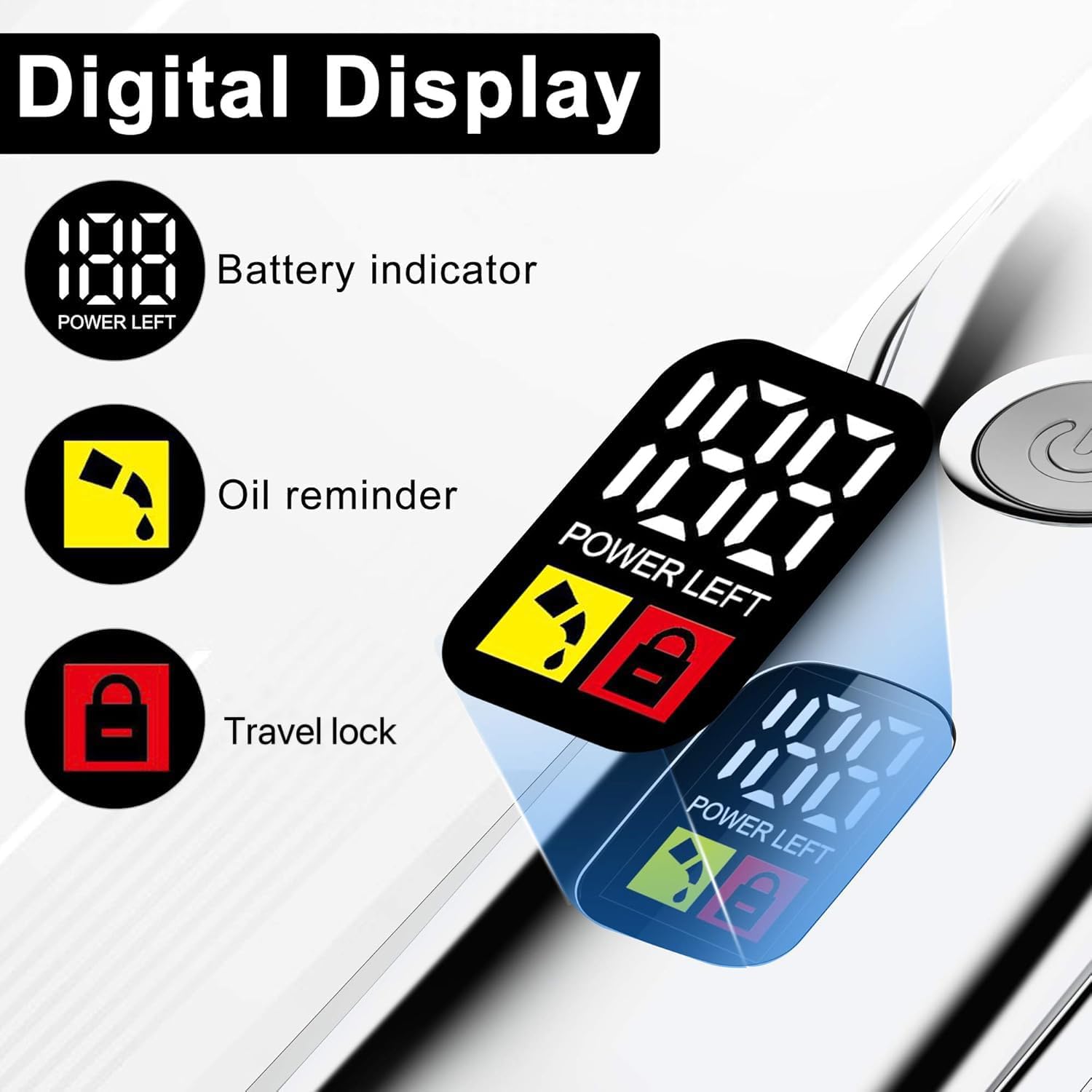

Figure 4.1: Digital display on the hair clipper indicating battery level.

4.2 Attaching/Detaching Heads and Comb Guides

The grooming kit comes with interchangeable heads for different functions.

• To change heads on the trimmer: Gently twist the current head counter-clockwise and lift it off. Align the desired head (T-blade or Nose Trimmer) with the base and twist clockwise until it clicks into place.
• To attach comb guides to the hair clipper: Select the desired guide comb. Align the comb with the clipper blade and slide it on until it securely snaps into place.
• To attach comb guides to the T-blade trimmer: The T-blade trimmer uses a precision dial comb guide. Slide the comb guide onto the T-blade. Rotate the dial to select your desired length setting.

Figure 4.2: Hair clipper, T-blade trimmer, and nose trimmer with labeled parts.

Figure 4.3: Hair clipper showing the taper lever and various guide comb sizes.

Figure 4.4: T-blade trimmer with its precision dial for length adjustments.

5. Návod k obsluze

5.1 Používání zastřihovače vlasů

1. Ujistěte se, že je zastřihovač nabitý.
2. Select the appropriate guide comb for your desired hair length and attach it securely.
3. Adjust the taper lever on the side of the clipper to fine-tune the cutting length (0.8 mm to 2.0 mm).
4. Press the power button to turn on the clipper. The digital display will illuminate.
5. Začněte stříhat vlasy proti směru růstu vlasů plynulými a rovnoměrnými tahy.
6. Turn off the clipper after use by pressing the power button.

5.2 Používání vyžínače s T-čepelí

1. Ensure the trimmer is charged and the T-blade head is attached.
2. For precise detailing or zero-distance cutting (0.1-0.2 mm), use the T-blade without a comb guide.
3. For specific lengths, attach the precision dial comb guide and rotate the dial to select one of the nineteen settings.
4. Stisknutím tlačítka napájení zapněte zastřihovač.
5. Carefully trim beard, mustache, sideburns, or create hair designs.
6. Po použití zastřihovač vypněte.

Obrázek 5.1: Přamples of using the grooming kit for different styles and areas.

5.3 Using the Nose Trimmer

1. Ensure the trimmer is charged and the nose trimmer head is attached.
2. Stisknutím tlačítka napájení zapněte zastřihovač.
3. Gently insert the nose trimmer into your nostril or ear canal.
4. Move the trimmer in a circular motion to remove unwanted hair.
5. Po použití zastřihovač vypněte.

5.4 Oficiální video produktu

6. Údržba

6.1 Čištění

The Hatteker grooming kit is IPX7 waterproof, allowing for easy cleaning.

1. After each use, remove any attached comb guides or heads.
2. Rinse the blades and the device body under running water to remove hair clippings.
3. Use the provided cleaning brush to remove stubborn hair from the blades.
4. Ensure the device is completely dry before reattaching heads or storing.

Figure 6.1: The hair clipper and trimmer are fully washable for easy cleaning.

6.2 Mazání nožů

Regular oiling ensures optimal performance and extends the life of the blades.

1. Apply a few drops of the provided lubricating oil onto the blades of the hair clipper and T-blade trimmer.
2. Turn on the device for a few seconds to distribute the oil evenly.
3. Přebytečný olej setřete čistým hadříkem.

Figure 6.2: High carbon steel blades are self-sharpening for long-lasting sharpness.

6.3 Skladování

Store the grooming kit and all its accessories in the provided storage bag in a cool, dry place, away from direct sunlight and moisture.

7. Řešení problémů

8. Specifikace

• Číslo modelu: 003
• Rozměry produktu: 5.91 x 3.46 x 9.06 palce
• Hmotnost: 1.94 libry
• Typ baterie: Lithium-Ion
• Doba nabíjení: 3 hodiny
• Doba běhu: 5 hodin
• Hodnocení voděodolnosti: IPX7
• Výrobce: kloboučník
• Země původu: Čína

9. Záruka a podpora

Hatteker products are manufactured with quality and durability in mind. For any questions, concerns, or support regarding your Hatteker Hair Clipper & Trimmer Grooming Kit, please contact Hatteker customer service. Information regarding available protection plans can be found on the product's purchase page.

Uschovejte si prosím doklad o koupi pro případné reklamace.
