1. Úvod
This manual provides detailed instructions for the installation, operation, and maintenance of the Elitech MTC-5080 Universal Refrigerator Thermostat. The MTC-5080 is designed for temperature control in refrigeration systems, offering functions such as cooling, defrosting, and alarm management. It features a dual temperature display for clear monitoring of both current and set temperatures.
Figure 1: Elitech MTC-5080 in typical refrigeration applications.
2. Bezpečnostní informace
Please read all safety warnings and instructions carefully before installing or operating the MTC-5080 thermostat. Failure to follow these instructions may result in electric shock, fire, or damage to the product.
- Před jakoukoli kabeláží nebo údržbou se ujistěte, že je odpojeno napájení.
- All wiring should be performed by a qualified electrician and comply with local electrical codes.
- Nevystavujte zařízení vodě ani nadměrné vlhkosti.
- The MTC-5080 has passed industrial four-level EMC testing, ensuring stable and reliable operation in demanding environments.

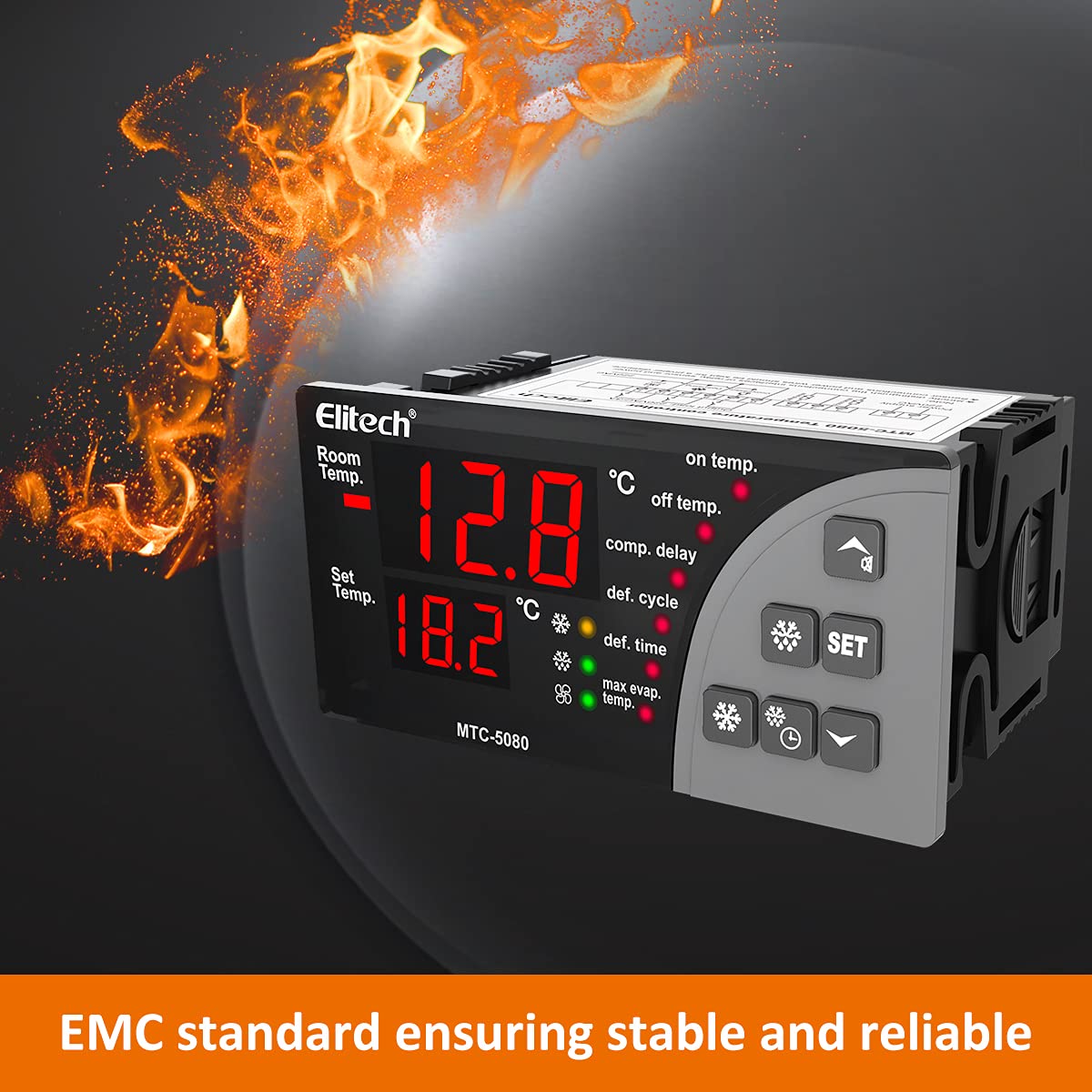

Figure 2: The MTC-5080 meets EMC standards for stable and reliable performance.
3. Konec produktuview
3.1 Klíčové vlastnosti
- Vysoká přesnost: Equipped with a high-precision sensor and chip, capable of withstanding 3000 high and low temperature shocks for stable performance.
- Snadná obsluha: Multifunctional button panel allows common functions to be operated with a single button, simplifying configuration.
- Jasný displej: Large panel with dual temperature display intuitively shows current and set temperatures.
- Funkce: Supports cooling, defrosting, and features a three-way output. Includes dual temperature sensors for storage and defrosting.
3.2 Komponenty
Obrázek 3: Přední strana view of the Elitech MTC-5080 thermostat.
Figure 4: MTC-5080 features: 2 sensors, cooling, defrosting, alarm, and fan control.
4. Specifikace
| Specifikace | Hodnota |
|---|---|
| Model | MTC-5080 |
| Značka | Elitech |
| svtage | 110 Volts (Note: Other voltage variants may exist) |
| Typ zobrazení | LCD |
| Rozměry (D x Š x V) | 11.2 x 9.7 x 8.51 cm |
| Hmotnost | 299 g |
| Montážní velikost | 92 x 44 mm (3.6 x 1.7 palců) |
| UPC | 781454241538 |
Figure 5: MTC-5080 dimensions and mounting size.
5. Nastavení a instalace
5.1 Montáž
The MTC-5080 is designed for panel mounting. Ensure the mounting hole dimensions are 92mm x 44mm. Secure the thermostat firmly into the panel cutout using the provided clips or fasteners.
5.2 Schéma zapojení
Refer to the wiring diagram below for proper electrical connections. Ensure all connections are secure and insulated. The power supply for this model is 110VAC.
Figure 6: MTC-5080 Wiring Diagram (110VAC/3A Output Load).
- Terminály 1 a 2: Power Supply (110VAC)
- Terminály 3 a 4: Čidlo pokojové teploty
- Terminály 4 a 5: Defrosting Temperature Sensor
- Terminals 6, 7, 8: Output Load (e.g., Compressor)
- Terminals 9, 10: Defrosting Output Load
- Terminals 11, 12: Fan Output Load
Note: Always verify the voltage requirements of your specific MTC-5080 unit before connecting to power.
6. Návod k obsluze
The MTC-5080 features a user-friendly interface with a multifunctional button panel for easy operation.
Figure 7: Easy operation with the MTC-5080 button panel.
6.1 Zobrazení nadview
- The upper display shows the current room temperature.
- The lower display shows the set temperature.
- Indicator lights show the status of cooling, defrosting, fan, and alarm.
6.2 Nastavení teploty
- Stiskněte tlačítko SOUBOR button once. The set temperature value will flash on the lower display.
- Použijte Nahoru (▲) or Dolů (▼) tlačítka pro nastavení požadované teploty.
- Stiskněte tlačítko SOUBOR button again to confirm and save the new setting, or wait a few seconds for it to save automatically.
6.3 Accessing and Modifying Parameters
For advanced settings and parameter adjustments (e.g., defrost cycle, compressor delay), refer to the detailed parameter list in the full product manual. Typically, these settings are accessed by pressing and holding the SOUBOR button for several seconds until the parameter codes appear.
7. Údržba
Regular maintenance ensures the longevity and optimal performance of your MTC-5080 thermostat.
- Čištění: Otřete displej a casinměkkým, suchým hadříkem. Nepoužívejte abrazivní čisticí prostředky ani rozpouštědla.
- Kontrola senzoru: Periodically check the temperature sensors for any physical damage or corrosion. Ensure they are properly positioned and clean for accurate readings.
- Kontrola připojení: Každoročně kontrolujte všechna elektrická připojení, abyste se ujistili, že jsou pevná a bez koroze.
8. Řešení problémů
This section addresses common issues you might encounter with the MTC-5080 thermostat. For problems not listed here, please contact Elitech support.
| Problém | Možná příčina | Řešení |
|---|---|---|
| Displej je prázdný | Chybí napájení nebo je zapojení nesprávné. | Check power connections (Terminals 1 & 2) and ensure the unit is receiving 110VAC. |
| Odečet teploty je nepřesný | Faulty or improperly placed sensor. | Inspect sensor wiring and placement. Replace sensor if damaged. |
| Cooling/Defrosting not activating | Incorrect parameter settings or faulty output wiring. | Verify set temperature and operating mode. Check output load wiring (Terminals 6-12). |
| Unit beeps continuously | High/low temperature alarm triggered. | Check current temperature and alarm settings. Address the cause of temperature deviation. |
9. Záruka a podpora
For warranty information, please refer to the documentation provided with your purchase or contact your Elitech product supplier. Elitech offers technical support and customer service for its products.
For further assistance or to explore other Elitech products, please visit the official Elitech webweb nebo jejich značkový obchod na Amazonu:
