1. Úvod
This manual provides detailed instructions for the installation, operation, and maintenance of your ANNKE 3K Add-On Security Bullet Camera, Model CR1CJ. Please read this manual thoroughly before using the product to ensure correct setup and optimal performance.
1.1 Konec produktuview
The ANNKE CR1CJ is a 3K resolution bullet-style security camera designed for surveillance applications. It features full-color night vision, a built-in microphone for audio recording, and 4-in-1 signal compatibility (TVI/AHD/CVI/CVBS) for integration with various DVR systems. Its IP67 weatherproof rating ensures durability in outdoor environments.
Image 1.1: ANNKE 3K Bullet Security Camera CR1CJ. This image shows the front and side view of the white bullet camera with the ANNKE logo.
1.2 What's in the Package
Ověřte, zda jsou v balení obsaženy všechny níže uvedené položky:
- 1x ANNKE 3K Full Color Night Vision Bullet Camera
- 1x 60ft/18.3m BNC Cable
- 1x Power Adapter for Camera
- 1x Screw Kit & Wall Sticker
- 1x Uživatelská příručka (tento dokument)

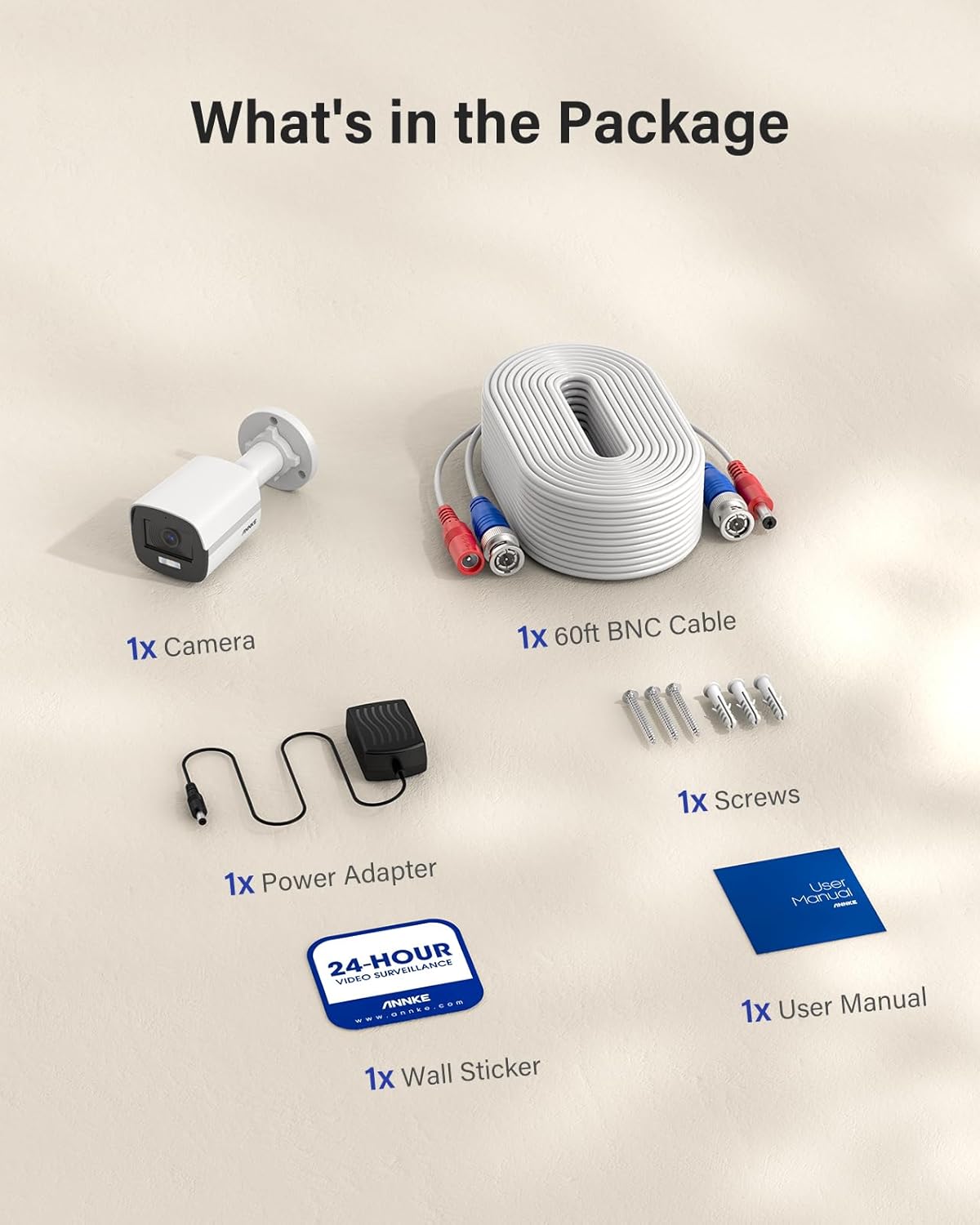

Image 1.2: Contents of the ANNKE 3K Bullet Security Camera package. Shows the camera, BNC cable, power adapter, screws, wall sticker, and user manual.
2. Specifikace
The following table details the technical specifications of the ANNKE 3K Bullet Security Camera CR1CJ:
| Funkce | Specifikace |
|---|---|
| Obrazový snímač | 3K CMOS Image Sensor |
| Rozlišení videa | 2960 (H) × 1665 (V) (16:9) |
| Signální systém | PAL/NTSC |
| Snímková frekvence | TVI: 3K@20 fps, 4 MP@25/30 fps, 1080p@25/30 fps; AHD: 5 MP@20 fps, 4 MP@25/30 fps; CVI: 4 MP@25/30 fps; CVBS: PAL/NTSC |
| Čočka | 2.8mm fixed focal lens @ F1.2 |
| Min. Osvětlení | Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light |
| Úhel View | Horizontální FOV: 102°, Vertikální FOV: 56°, Diagonální FOV: 122° |
| Doplňkový typ světla | 1 Bílé světlo |
| Doplňte dosah světla | Až 20 65 m (XNUMX XNUMX stop) |
| Supplement Light Mode | IR light works normally, switches to white light when human or vehicle detected at night. |
| Široký dynamický rozsah | Digitální WDR |
| Redukce šumu | 2D-DNR |
| Zvuk | Built-in mic (audio over coaxial cable) |
| Režim Den/Noc | Barva |
| Video výstup | BNC, switchable TVI/AHD/CVI/CVBS |
| Bydlení | Plast |
| Barva | Bílý |
| Provozní výkon | 12 V DC ± 25% |
| Spotřeba | Max. 2.9 W |
| Provozní teplota | -40 °F – 140 °F / -40 °C – 60 °C |
| Vnitřní/venkovní použití | Vnitřní/venkovní |
| Hodnocení odolnosti vůči povětrnostním vlivům | IP67 |
| Rozměry | 18.8 x 18.29 x 10.79 cm |
| Hmotnost | 762 g |
3. Nastavení a instalace
3.1 Součásti kamery
Familiarize yourself with the main components of the camera:
Image 3.1: Diagram showing the camera's components: One-way Microphone, 2.8mm Lens, Supplement White Light, IP67 Housing, Video Output, Power Port, and Switch Button.
- One-way Microphone: Pro nahrávání zvuku.
- 2.8 mm objektiv: Provides a 102° horizontal field of view.
- Supplement White Light: Illuminates for full-color night vision up to 20m.
- IP67 Housing: Durable and weatherproof enclosure.
- Video výstup: BNC connector for 3K video output.
- Napájecí port: Vstup 12V DC.
- Přepínací tlačítko: Used to switch video output signals (TVI/AHD/CVI/CVBS).
3.2 Montáž fotoaparátu
- Choose a suitable location for installation, considering the desired field of view and cable routing. The camera is rated IP67 for both indoor and outdoor use.
- Use the provided wall sticker as a template to mark the drilling positions.
- Vyvrtejte pilotní otvory a v případě potřeby vložte hmoždinky do zdi.
- Připevněte základnu kamery k montážnímu povrchu pomocí dodaných šroubů.
- Podle potřeby upravte úhel kamery.
3.3 Připojení fotoaparátu
The camera requires connection to a compatible Digital Video Recorder (DVR) for operation. It cannot be used independently.

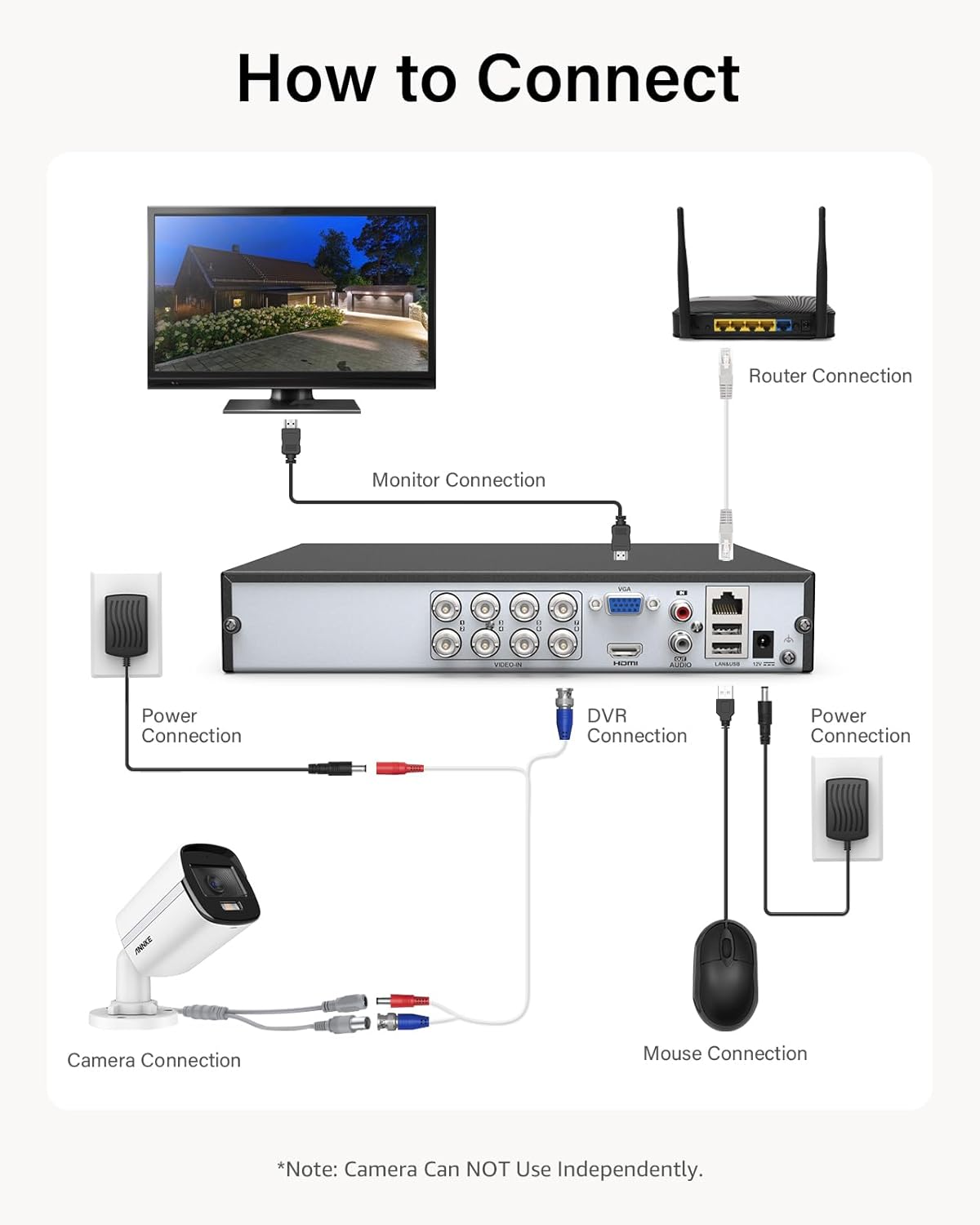

Image 3.2: Connection diagram for the ANNKE 3K Bullet Security Camera. Shows the camera connected via BNC cable to a DVR, which is connected to a monitor, router, and power. A mouse is also connected to the DVR.
- Connect one end of the 60ft BNC cable to the camera's video output port.
- Connect the other end of the BNC cable to a video input port on your DVR.
- Connect the provided power adapter to the camera's power port and then plug it into a power outlet.
- Ensure your DVR is properly connected to a monitor, power source, and network (if applicable).
3.4 Switching Video Output Signal (4-in-1)
This camera supports four different video signal types: TVI, AHD, CVI, and CVBS. You may need to switch the signal type to match your DVR.
Image 3.3: Diagram illustrating the 4-in-1 switchable signals (TVI, CVBS, CVI, AHD) for the ANNKE camera. Shows a camera on a pedestal with the signal types around it.
To switch the video output signal:
- Locate the switch button on the camera's cable (refer to Image 3.1).
- Press and hold the switch button for approximately 5 seconds to cycle through the available signal types (TVI, AHD, CVI, CVBS).
- Observe the image on your monitor connected to the DVR. Release the button when the correct signal type is displayed.
4. Provoz
4.1 Plně barevné noční vidění
The ANNKE CR1CJ camera features advanced full-color night vision technology. With an f/1.0 aperture and a dedicated white light illuminator, the camera can capture 3K full-color images even in low-light conditions (down to 0.01 lux) without relying solely on infrared.
Obrázek 4.1: Příkladample of 3K full-color night vision. Shows a clear, color image of a street at night with a person and a car, illuminated by the camera's white light.
The camera's supplement light mode is designed to use IR light normally and switch to white light when human or vehicle motion is detected at night, providing clear color footage of events.
4.2 Vestavěný mikrofon
The integrated microphone allows for one-way audio recording, which is transmitted over the coaxial cable along with the video signal. This feature enhances surveillance by providing audio context to video footage.
Image 4.2: Illustration of the built-in microphone feature. Shows a child speaking near the camera, with a speech bubble indicating audio capture.
4.3 Remote Access and Motion Detection
When connected to a compatible ANNKE DVR and configured with the ANNKE App, you can:
- Access live camera feeds remotely via iOS/Android smartphones, tablets, or computers.
- Receive instant app push notifications and email alerts when motion events are detected by the camera.
5. Údržba
The ANNKE CR1CJ camera is designed for minimal maintenance due to its durable IP67 weatherproof housing.
Image 5.1: Illustration of the camera's IP67 weatherproof rating, showing it resistant to water and extreme temperatures (-40°C to 60°C).
- Čištění: Pravidelně čistěte objektiv fotoaparátu měkkým hadříkemamp cloth to remove dust, dirt, or water spots that may affect image quality. Avoid abrasive cleaners.
- Kontrola kabelů: Regularly inspect the BNC and power cables for any signs of wear, damage, or loose connections.
- Aktualizace firmwaru: Zkontrolujte oficiální stránky ANNKE website for any available firmware updates for your camera or connected DVR to ensure optimal performance and security.
6. Řešení problémů
If you encounter issues with your ANNKE 3K Bullet Security Camera, refer to the following common problems and solutions:
- Žádný obraz na monitoru:
- Ensure the camera is receiving power. Check the power adapter and outlet.
- Ověřte, zda je kabel BNC bezpečně připojen na straně kamery i DVR.
- Confirm the camera's video output signal (TVI/AHD/CVI/CVBS) matches the input type supported by your DVR channel. Use the switch button to cycle signals if necessary.
- Check the DVR's settings to ensure the correct channel is selected and configured.
- Poor Image Quality / Distorted Image:
- Vyčistěte čočku fotoaparátu.
- Check the BNC cable for damage or kinks. A faulty cable can degrade signal quality.
- Ensure the camera's signal type is correctly matched to the DVR.
- Verify the DVR supports 3K resolution or higher for optimal display.
- Bez zvukového záznamu:
- Ensure the camera is powered and connected via BNC cable. Audio is transmitted over the coaxial cable.
- Check your DVR's audio input settings for the corresponding channel. Ensure audio recording is enabled.
- Verify the DVR supports audio over coaxial (AoC) for the selected signal type.
- Night Vision Not Working / Not in Color:
- Ensure there is sufficient ambient light for color night vision. While effective in low light, extreme darkness may still result in monochrome images if the white light is not activated or insufficient.
- Check if the white light illuminator is obstructed.
- Verify motion detection settings on your DVR if the white light is configured to activate upon motion.
7. Informace o záruce
ANNKE products typically come with a limited warranty. For specific warranty terms, conditions, and duration applicable to your ANNKE 3K Bullet Security Camera (Model CR1CJ), please refer to the official ANNKE webwebu nebo záruční kartu, která byla přiložena k vašemu nákupu. Uschovejte si doklad o koupi pro případ reklamace.
8. Zákaznická podpora
If you require further assistance or have questions not covered in this manual, please contact ANNKE customer support through their official webwebu. Zdroje podpory, nejčastější dotazy a kontaktní informace obvykle naleznete na adrese www.annke.com/support (napřampodkaz, prosím ověřte skutečnou URL).
When contacting support, please have your product model (CR1CJ) and purchase information ready.
