HUUM Hive Mini 9.0 kW Sauna Heater with UKU WiFi Controls User Manual

Zavedení

This manual provides comprehensive instructions for the installation, operation, and maintenance of your HUUM Hive Mini 9.0 kW electric sauna heater with UKU WiFi Controls. Please read this manual thoroughly before installation and use to ensure safe and efficient operation of your sauna heater. Retain this manual for future reference.

Bezpečnostní informace

Always prioritize safety. Installation and electrical connections must be performed by a qualified, licensed electrician in accordance with all local and national electrical codes. Failure to do so may result in electric shock, fire, or other hazards. Do not operate the heater without sauna stones properly installed. Keep flammable materials away from the heater. Children and individuals with reduced physical, sensory, or mental capabilities should be supervised or instructed on safe use.

Konec produktuview

The HUUM Hive Mini 9.0 kW is a floor-mounted electric sauna heater designed for sauna rooms ranging from 282 to 530 cubic feet. It features a robust stainless steel construction and is designed for direct contact between the sauna stones and heating elements, promoting efficient heat transfer and a consistent, mild heat. The integrated air tunnel technology accelerates heat-up time and extends the lifespan of the heating elements. This model includes the UKU WiFi control system for convenient remote operation.

Obraz: The HUUM Hive Mini 9.0 kW electric sauna heater, shown without sauna stones. Its stainless steel frame is visible, designed to hold a large quantity of stones.

Obraz: The HUUM Hive Mini 9.0 kW sauna heater with sauna stones properly installed within its frame, ready for operation. The stones are in direct contact with the heating elements.

Instalace

1. Elektrické připojení

The HUUM Hive Mini 9.0 kW operates on 240V, single-phase power. It requires an amperage of 37.5A and a 50A circuit breaker. Use AWG 8 wire size for connections. All electrical wiring must be performed by a licensed electrician according to local and national electrical codes. Ensure the power supply is disconnected before any installation work.

2. Umístění ohřívače

The heater is a floor model with adjustable legs. Position the heater in your sauna room ensuring adequate clearance from walls and benches as specified in the detailed installation guide provided with the product packaging. The air tunnel feature helps optimize heat distribution and element longevity.

3. Sauna Stone Installation

Carefully place the sauna stones into the heater's stone cage. The Hive Mini 9.0 kW can hold up to 330 lbs of stones (265 lbs with the HIVE air tunnel). Arrange the stones to allow for proper air circulation while ensuring they are in direct contact with the heating elements. Do not use broken or unsuitable stones, as this can damage the heater.

Obraz: Bývalýample of the HUUM Hive Mini sauna heater installed in a sauna room, demonstrating proper placement relative to the sauna benches and walls.

Návod k obsluze

1. UKU WiFi Control System

The HUUM Hive Mini 9.0 kW is controlled by the UKU WiFi control panel. This system allows you to manage your sauna's temperature and heating schedule. Ensure the UKU control panel is properly installed and connected to your home's WiFi network.

Obraz: The HUUM UKU WiFi control panel, a sleek black unit with a central rotary knob, used to operate the sauna heater.

2. Mobile App Operation

For enhanced convenience, download the official HUUM mobile app. This app allows you to remotely control your sauna heater, including presetting heating times and adjusting temperatures from your smartphone. Follow the app's instructions for pairing with your UKU WiFi control system.

Obraz: A screenshot of the HUUM mobile application interface, showing options to set start and end times for sauna heating and adjust temperature.

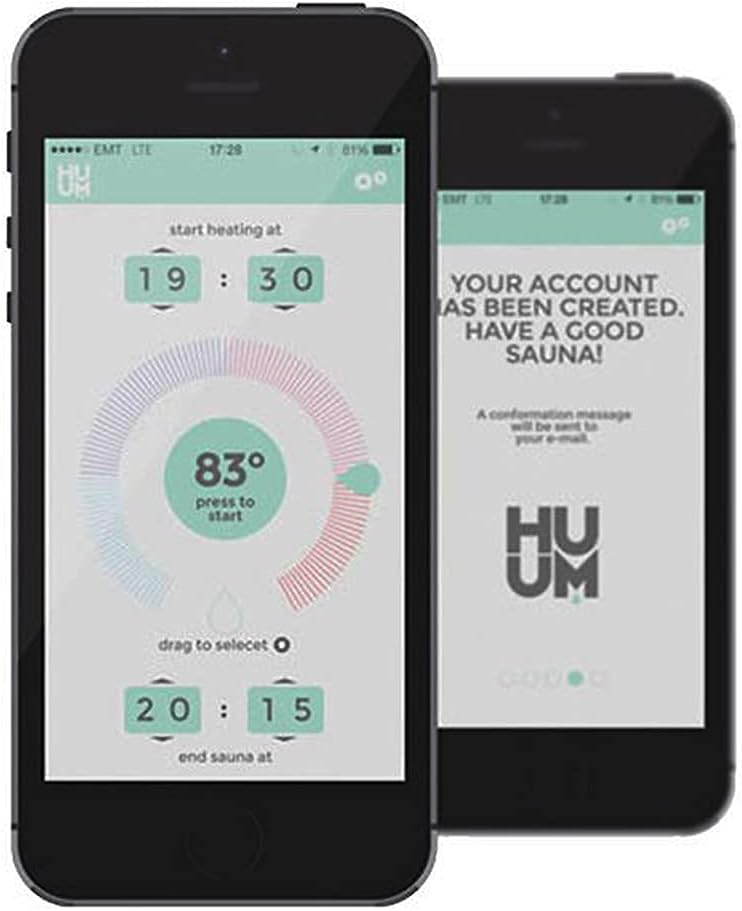

Obraz: Two smartphones displaying the HUUM mobile app. One shows a confirmation of account creation, and the other illustrates the heating schedule and temperature setting interface.

3. Proces ohřevu

Once activated, the heater will begin to warm the sauna stones. The air tunnel design ensures a rapid heat-up time. The large stone capacity helps maintain a consistent and even temperature throughout your sauna session, providing a soft and enjoyable heat.

Údržba

1. Pravidelné čištění

Periodically inspect the heater and its surroundings for any debris or obstructions. Ensure the air vents are clear to maintain proper airflow. Clean the exterior of the heater with a damp hadříkem; nepoužívejte abrazivní čisticí prostředky.

2. Stone Inspection and Replacement

Over time, sauna stones can degrade due to repeated heating and cooling cycles. Inspect the stones annually for cracks, crumbling, or discoloration. Replace any damaged stones to ensure optimal performance and prevent potential damage to the heating elements. Refer to HUUM's recommendations for suitable replacement stones.

3. Electrical Component Check

For safety, have a licensed electrician periodically check the electrical connections and heating elements for wear or damage. This helps ensure the longevity and safe operation of your heater.

Odstraňování problémů

If you encounter issues with your HUUM Hive Mini heater, refer to the following common troubleshooting steps:

• Topení netopí: Check the circuit breaker to ensure it hasn't tripped. Verify that the UKU control panel is powered on and correctly set. Ensure all electrical connections are secure (consult a licensed electrician).
• Uneven heat or slow heat-up: Inspect the sauna stones. Ensure they are properly arranged, allowing air circulation, and are not broken or too small. Replace any degraded stones. Check for obstructions around the heater or air tunnel.
• UKU WiFi control issues: Ensure your UKU control panel is within range of your WiFi router. Restart both the control panel and your router. Re-pair the control panel with the mobile app if necessary.
• Neobvyklé zvuky nebo pachy: Immediately turn off the heater and disconnect power. Contact a qualified technician or HUUM customer support for assistance.

For persistent issues, contact HUUM customer support or a certified service technician.

Specifikace

Záruka a podpora

The HUUM Hive Mini sauna heating unit carries HUUM's limited 5-year warranty. For warranty claims, technical support, or service inquiries, please refer to the contact information provided in your product packaging or visit the official HUUM webwebu. Uschovejte si doklad o koupi pro účely ověření záruky.
